Hansgrohe 96509000 Diverter Cartridge Shut off Unit with Selector - HANS-96509000
Send a photo of your item and we'll help confirm it.
Summary

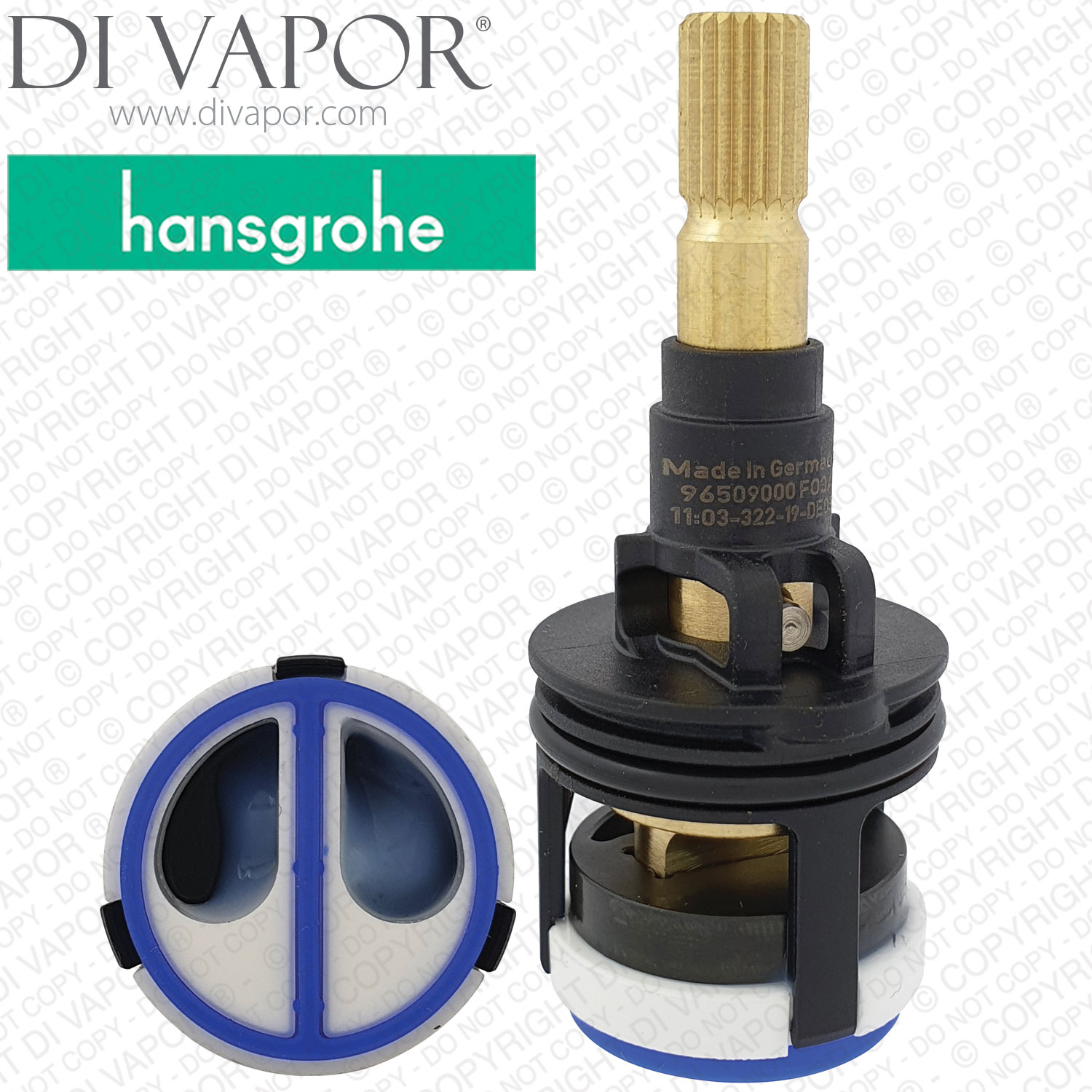

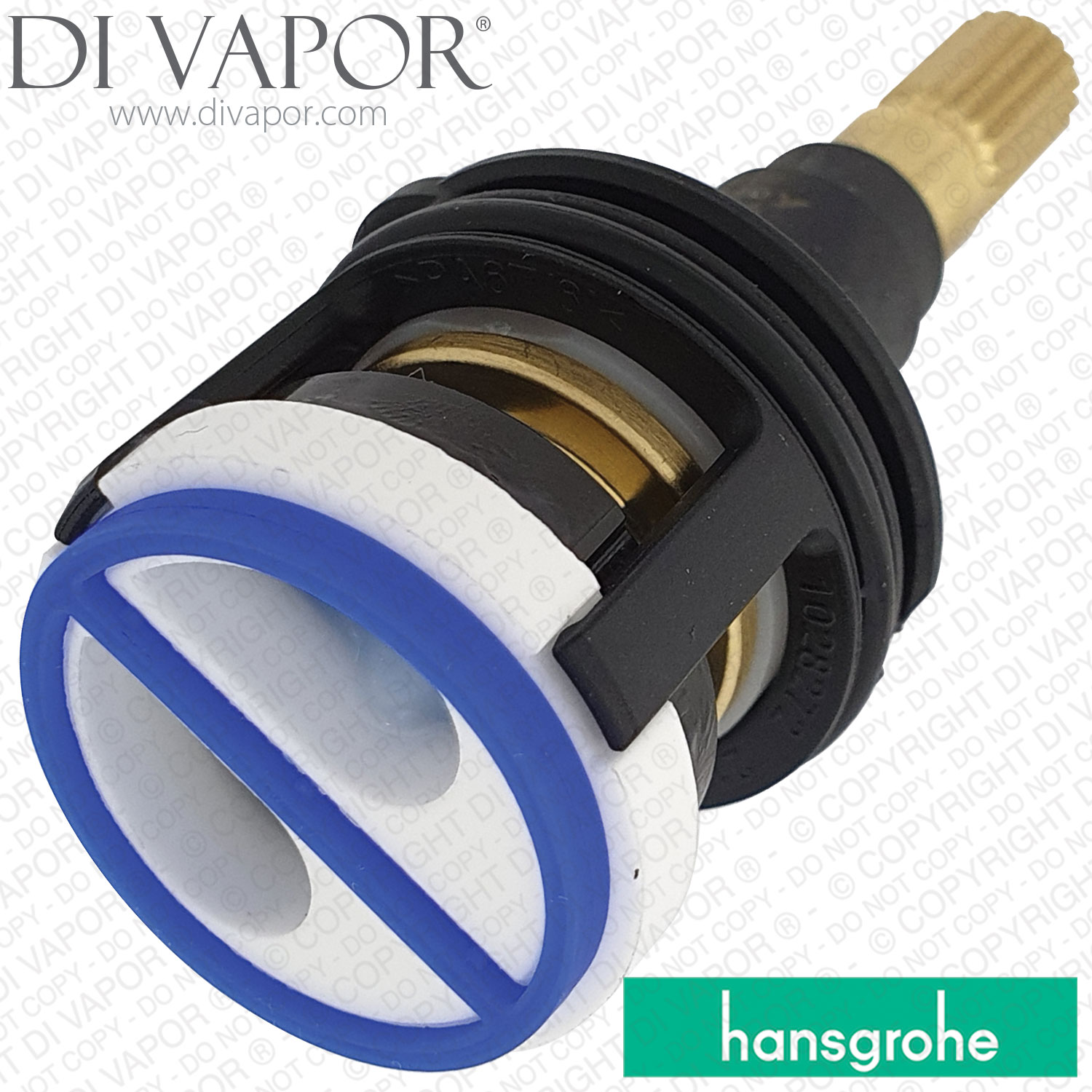

Hansgrohe 96509000 Shower Valve Shut-Off and Diverter Cartridge with Selector
The Hansgrohe 96509000 is a shower valve shut-off cartridge with selector for Hansgrohe and AXOR shower valves with diverter control. Other code variants Hansgrohe 96509 000 and Hansgrohe 96 509 000.
This part is also known as an on/off cartridge or diverter cartridge. It controls shut-off and outlet selection in valves with a diverter function and is not the thermostatic temperature cartridge.
Technical Details
| Part code | 96509000 |
|---|---|
| Di Vapor Part Number | HANS-96509000 |
| Part type | shut-off cartridge with selector and diverter function |
| Ceramic disc diameter at bottom | 25mm |
| Handle fitting | 7.6mm x 20 splines |
| Total length | 62mm |
- Check the existing cartridge code, spline size and valve layout before ordering because this cartridge should not be selected by diameter alone
Common Fault Symptoms
- Water dripping from one outlet while another outlet is in use
- Shower leaking when the valve is turned off
- Failure to divert water correctly from one outlet to another
Confirmed Product Use
The 96509000 shut-off and diverter cartridge for selected Hansgrohe and AXOR showers with diverters including Axor Allegroh, Axor Arco, Axor Azzur, Axor Bouroullec, Axor Carlton, Axor Citterio, Axor Citterio M, Ecostat 1001 SL, Ecostat 5001, Ecostat Classic, Ecostat E, Ecostat S, Fox, Axor Massaud, Axor Mondaro, Axor Montreux, Pharo SkyLine Showerpanel, PuraVida, Raindance EcoSmart, Axor Starck, Axor Starck X, Axor Steel, Axor Terrano, Axor Uno and Axor Urquiola valves where the relevant dated spares diagram uses this part.
- Hansgrohe Ecostat 1001 CL Thermostatic Exposed Bath Shower Mixer - 13201000 Spare Parts
- Hansgrohe 13201000 Ecostat Bath Thermostat 1001 Cl for Exposed Installation 04/16 - 08/19 Spare Parts
- Hansgrohe 13211000 Ecostat Shower Thermostat 1001 Cl for Exposed Installation after 09/19 Spare Parts
- Hansgrohe 13154000 MyFox Bath Thermostat for Exposed Installation after 09/19 Spare Parts
- Hansgrohe AXOR Citterio Cross Head Shower Valve and Shut Off 39705000 Spare Parts
- Hansgrohe 39720000 AXOR Citterio Thermostat for Concealed Installation with Shut-Off/Diverter Valve and Lever Handle after 05/11 Spare Parts
- Hansgrohe 39725000 AXOR Citterio Thermostat for Concealed Installation with Shut-Off/Diverter Valve and Cross Handle 07/08 - 04/11 Spare Parts
- Hansgrohe 34725000 AXOR Citterio M Thermostat for Concealed Installation with Shut-Off/Diverter Valve 01/08 - 06/08 Spare Parts
- Hansgrohe 16820830 AXOR Montreux Thermostat for Concealed Installation with Cross Handle and Shut-Off/Diverter Valve 07/08 - 12/19 Spare Parts
- Hansgrohe 16821000 AXOR Montreux Thermostat for Concealed Installation with Lever Handle and Shut-Off/Diverter Valve after 10/16 Spare Parts
- Hansgrohe 17241000 AXOR Carlton Thermostatic Bath Mixer for Exposed Installation 01/06 - 08/19 Spare Parts
- Hansgrohe 17241000 AXOR Carlton Thermostatic Bath Mixer for Exposed Installation after 09/19 Spare Parts
- Hansgrohe 17720000 AXOR Carlton Thermostatic Mixer for Concealed Installation with Shut-Off/Diverter Valve and Lever Handle 07/08 - 01/09 Spare Parts
- Hansgrohe 17725000 AXOR Carlton Thermostatic Mixer for Concealed Installation with Shut-Off/Diverter Valve and Cross Handle after 02/09 Spare Parts
- Hansgrohe 10720000 AXOR Starck Thermostat for Concealed Installation with Shut-Off/Diverter Valve 07/08 - 05/11 Spare Parts
- Hansgrohe 10726000 AXOR Starck X Thermostat for Concealed Installation with Shut-Off/Diverter Valve 07/08 - 04/11 Spare Parts
- Hansgrohe 10340000 AXOR Starck 2-Handle Bath Thermostat for Exposed Installation 09/02 - 04/11 Spare Parts
- Hansgrohe 18750000 AXOR Massaud Thermostat for Concealed Installation with Shut-Off/Diverter Valve after 05/11 Spare Parts
- Hansgrohe 38720000 AXOR Uno Thermostat for Concealed Installation with Shut-Off/Diverter Valve after 09/12 Spare Parts
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Hansgrohe 96520000 Handle
- Hansgrohe 96421000 Handle for Axor Valves

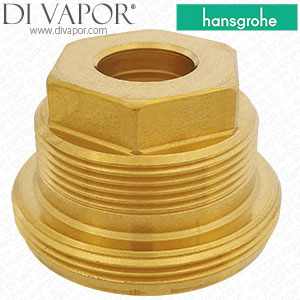

- Hansgrohe 94641541 Nut for 96509000 Diverter Cartridge
- Hansgrohe 94641456 Spindle Adapter for 96509000 Diverter Cartridge
- Hansgrohe 94282000 Thermostatic Cartridge for Axor, Pharo and Other Valves
- Hansgrohe 94282000 Thermostatic Cartridge - Compatible Brass Replacement - 94282000-CP
Ordering Note
This listing is for the 96509000 shut-off and diverter cartridge only. Handles, retaining nut, spindle adapter, thermostatic cartridge and silicone grease are separate items where shown above.
