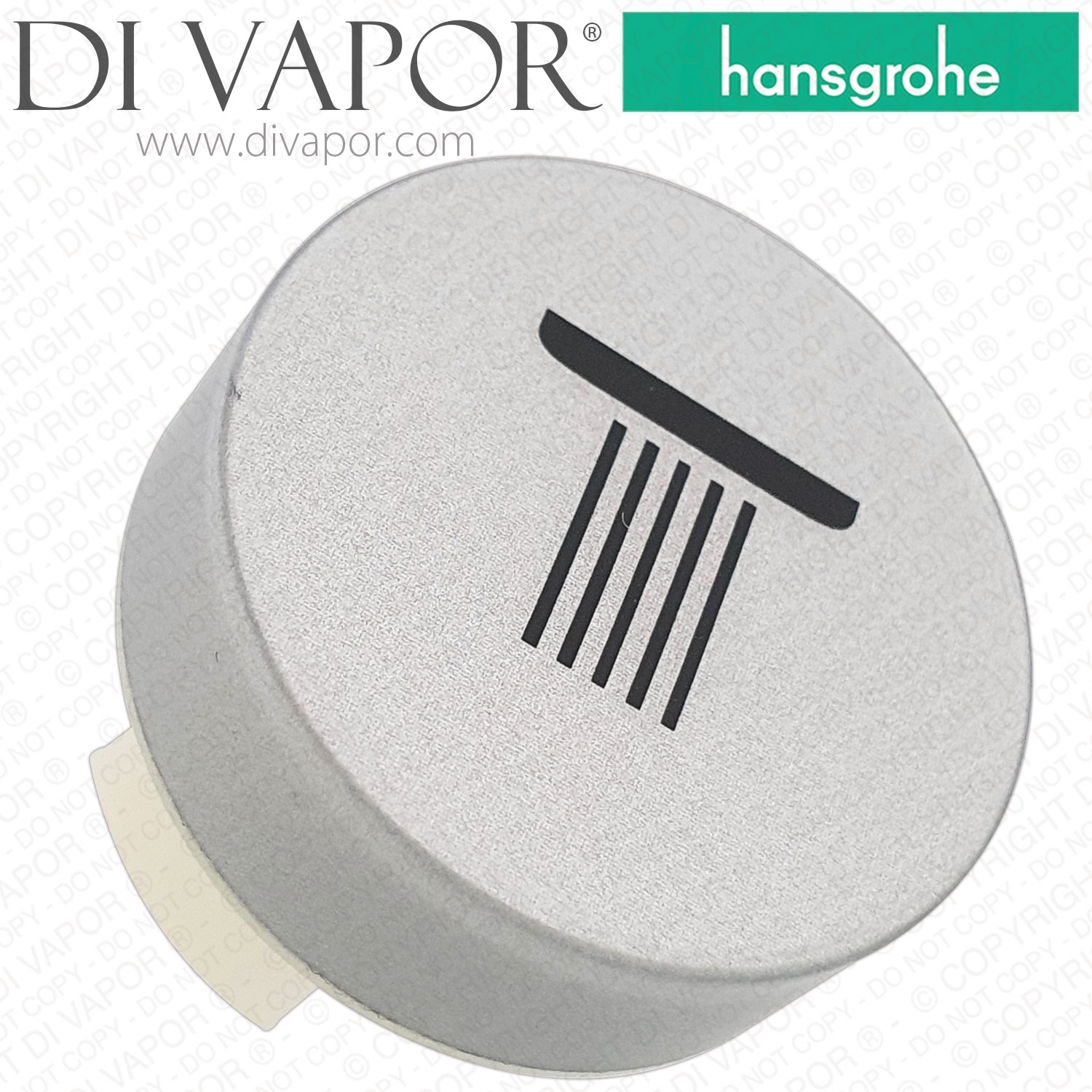

Hansgrohe 93571880 Rain Shower Symbol Push Button (Satin Chrome)

SUMMARY

Hansgrohe 93571880 Rain Large Overhead Shower Symbol Push Button Satin Chrome

Counterpart push button cartridge is 95758000.

The Hansgrohe 93571880 is a satin chrome Rain large overhead-shower symbol push button used on selected Hansgrohe ShowerSelect and ShowerSelect S concealed controls. It identifies the control assigned to the overhead shower or Rain large outlet.

This is the visible symbol button fitted to the Select operating assembly rather than the internal water-control cartridge. The shut-off unit fitted behind the button varies by valve generation, so the exact shower control and production period should be checked before ordering internal components.

Technical Details

- - Hansgrohe product code: 93571880

- - Part type: Rain large overhead-shower symbol push button

- - Finish: Satin Chrome

- - External diameter: 28mm

- - Application: identifies and operates the Rain large or overhead-shower outlet on selected Hansgrohe Select controls

- - 93571880 is the visible symbol component and is not the internal shut-off cartridge

- - Many later ShowerSelect assemblies use shut-off unit 95758000 while some earlier generations use a different shut-off unit such as 92692000

Confirmed Compatible Models for 93571880 Push Button Rain Shower Symbol

- - Hansgrohe 15764000 ShowerSelect Valve for concealed installation for 3 functions - production 10/2013 to 04/2018

- - Hansgrohe 15764000 ShowerSelect Valve for concealed installation for 3 functions - production 05/2018 to 12/2025

- - Hansgrohe 15743700 ShowerSelect S Thermostat for concealed installation for 2 functions Matt White - production 06/2020 to 12/2025

- - Hansgrohe 15743000 ShowerSelect S Thermostat for concealed installation for 2 functions - production 05/2014 to 02/2015

- - Hansgrohe 15743000 ShowerSelect S Thermostat for concealed installation for 2 functions - production 03/2015 to 12/2017

- - Hansgrohe 15743000 ShowerSelect S Thermostat for concealed installation for 2 functions - production 01/2018 to 12/2025

- - Hansgrohe 15744000 ShowerSelect S Thermostat for concealed installation for 1 function - production 05/2014 to 02/2015

- - Hansgrohe 15744000 ShowerSelect S Thermostat for concealed installation for 1 function - production 03/2015 to 12/2025

- - Hansgrohe 15743340 ShowerSelect S Thermostat for concealed installation for 2 functions Brushed Black Chrome - production 06/2020 to 12/2025

- - Hansgrohe 15742000 ShowerSelect S Thermostat HighFlow for concealed installation for 1 function and additional outlet - production 05/2014 to 02/2015

- - Hansgrohe 15742000 ShowerSelect S Thermostat HighFlow for concealed installation for 1 function and additional outlet - production 03/2015 to 12/2017 and 01/2018 to 12/2025

- - Hansgrohe 15745000 ShowerSelect S Valve for concealed installation for 3 functions - production 05/2014 to 04/2018

- - Hansgrohe 15745000 ShowerSelect S Valve for concealed installation for 3 functions - production 05/2018 to 12/2025

- - Hansgrohe 15761000 ShowerSelect Thermostat HighFlow for concealed installation for 1 function and additional outlet - production 10/2013 to 12/2025

- - Hansgrohe 15765000 ShowerSelect Thermostat for concealed installation for 2 functions with hose connection and shower holder - production 05/2014 to 02/2015

- - Hansgrohe 15765000 ShowerSelect Thermostat for concealed installation for 2 functions with hose connection and shower holder - production from 03/2015

- - Hansgrohe 15743990 ShowerSelect S Thermostat for concealed installation for 2 functions Polished Gold Optic - production 06/2020 to 12/2025

- - Hansgrohe 15763140 ShowerSelect Thermostat for concealed installation for 2 functions Brushed Bronze - production 07/2019 to 12/2025

- - Hansgrohe 15763340 ShowerSelect Thermostat for concealed installation for 2 functions Brushed Black Chrome - production 11/2019 to 12/2025

- - Hansgrohe 15764140 ShowerSelect Valve for concealed installation for 3 functions Brushed Bronze - production 10/2021 to 12/2025

- - Hansgrohe 15764340 ShowerSelect Valve for concealed installation for 3 functions Brushed Black Chrome - production 10/2021 to 12/2025

- - Hansgrohe 15763007 ShowerSelect Thermostat for concealed installation for 2 functions - production from 10/2018

- - Hansgrohe 15764007 ShowerSelect Valve for concealed installation for 3 functions - production from 10/2018

- - Hansgrohe 15748000 ShowerSelect S Mixer for concealed installation for 2 functions - production from 05/2014

- - Hansgrohe 15768000 ShowerSelect Mixer for concealed installation for 2 functions - production from 05/2014

- - Hansgrohe 15768007 ShowerSelect Mixer for concealed installation for 2 functions

- - Hansgrohe 13755000 Picta 2016 Thermostat for concealed installation for 2 functions - production from 07/2018

- - Hansgrohe 14736000 Sanibel 5001 - production from 04/2018

Before You Order

Check the original symbol and the exact Hansgrohe valve model and production period before ordering. Do not identify this part from its 28mm diameter alone.

Not sure this is the part you need? Use the Di Vapor Part Identification Service and we can help identify it.

Related Spares You May Need

- - Hansgrohe 95758000 Shut Off Unit - Push Button On / Off Cartridge - used behind the Select control on many later assemblies; check the exact valve generation before ordering

- - Hansgrohe 93573880 Hand Shower Symbol Push Button Satin Chrome - hand-shower pictogram version for applicable Select outlet controls
