Hansgrohe 97334000 Safety Set for Temperature Control
Send a photo of your item and we'll help confirm it.
Summary

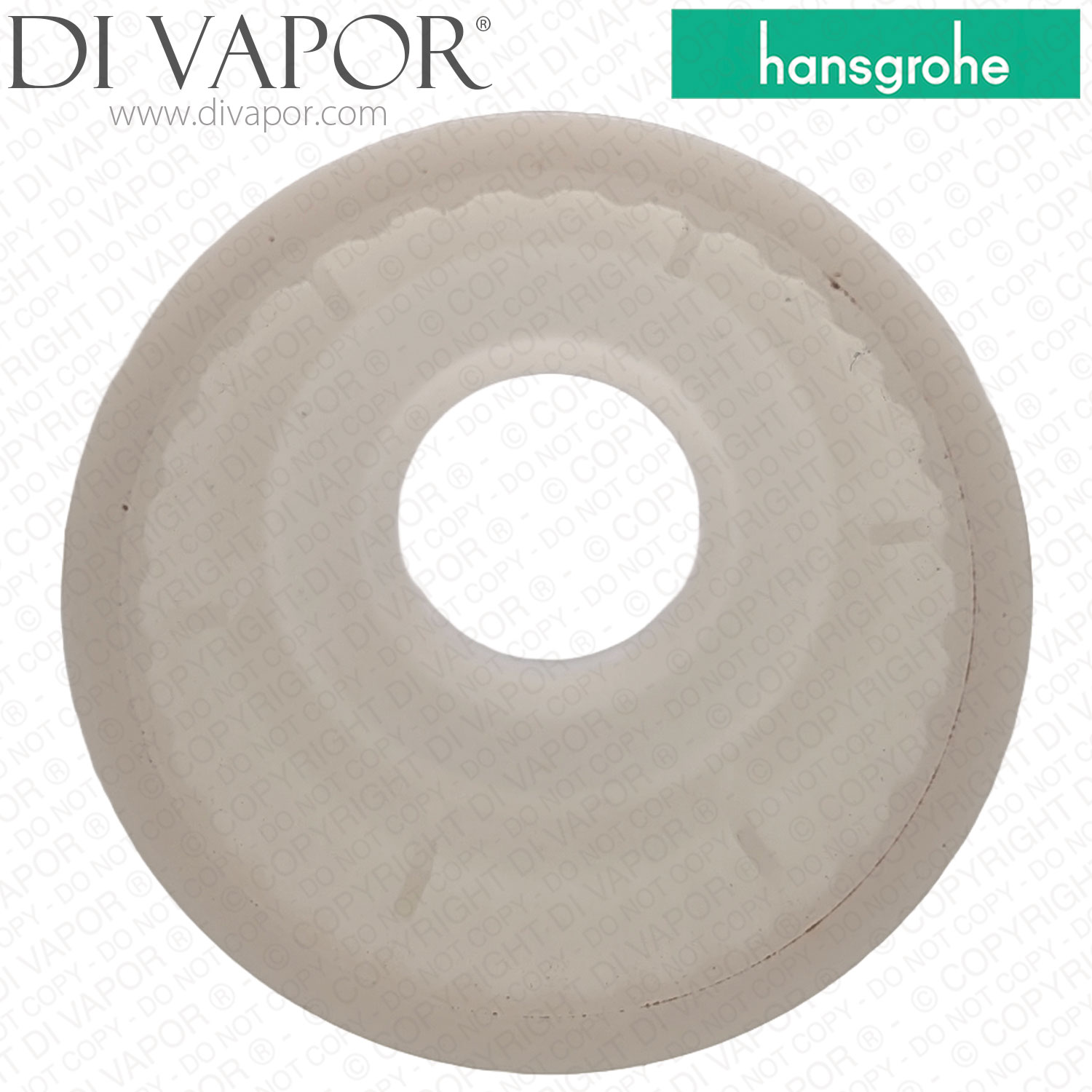

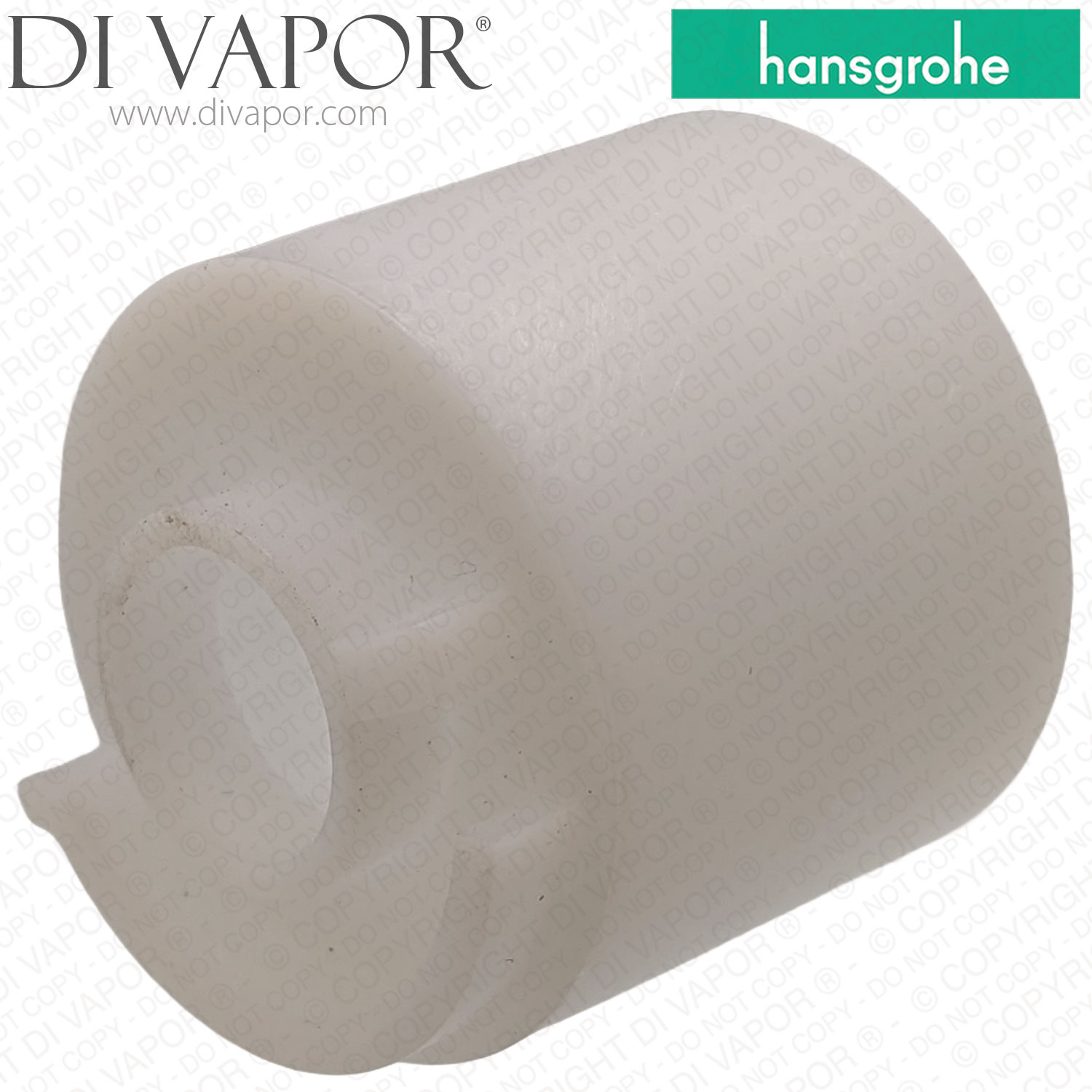

The Hansgrohe 97334000 safety set disk is a thermostat stop ring used as part of the temperature-control safety stop assembly on selected Hansgrohe and AXOR concealed thermostatic shower controls.
This part is fitted around the thermostat control assembly and is used when setting or restoring the temperature safety stop. It is not a thermostatic cartridge and should be checked against the installed valve or trim article number before ordering.
Technical Details
| Brand | Hansgrohe / AXOR |
|---|---|
| Part Number | 97334000 |
| Part type | safety set disk / thermostat stop ring |
| Application | thermostatic shower temperature-control safety stop assembly |
| Safety stop context | used with thermostatic controls where the temperature stop limits outlet temperature and can be calibrated during installation or servicing |
Fitting and Checking Notes
The safety set disk is refitted during thermostat calibration after the sleeve and spindle parts are positioned. When setting the thermostat, check the outlet water temperature with a thermometer and refit the handle with the safety button correctly aligned.
Before ordering, compare the existing part and confirm the shower trim or thermostat article number. Do not order from appearance alone if the fitted control has been changed or rebuilt previously.
Confirmed Model Fitment
- Hansgrohe 36706000 AXOR ShowerSelect Thermostat Highflow for Concealed Installation Softsquare for 1 Function and Additional Outlet 05/15 - 08/16 Spare Parts
- Hansgrohe 36711000 AXOR ShowerSelect Thermostat Highflow for Concealed Installation Softsquare 04/15 - 10/16 Spare Parts
- Hansgrohe 36718000 AXOR ShowerSelect Thermostat Highflow for Concealed Installation Square >05/15 Spare Parts
