Hansgrohe 96774000 Diverter Knob

Summary

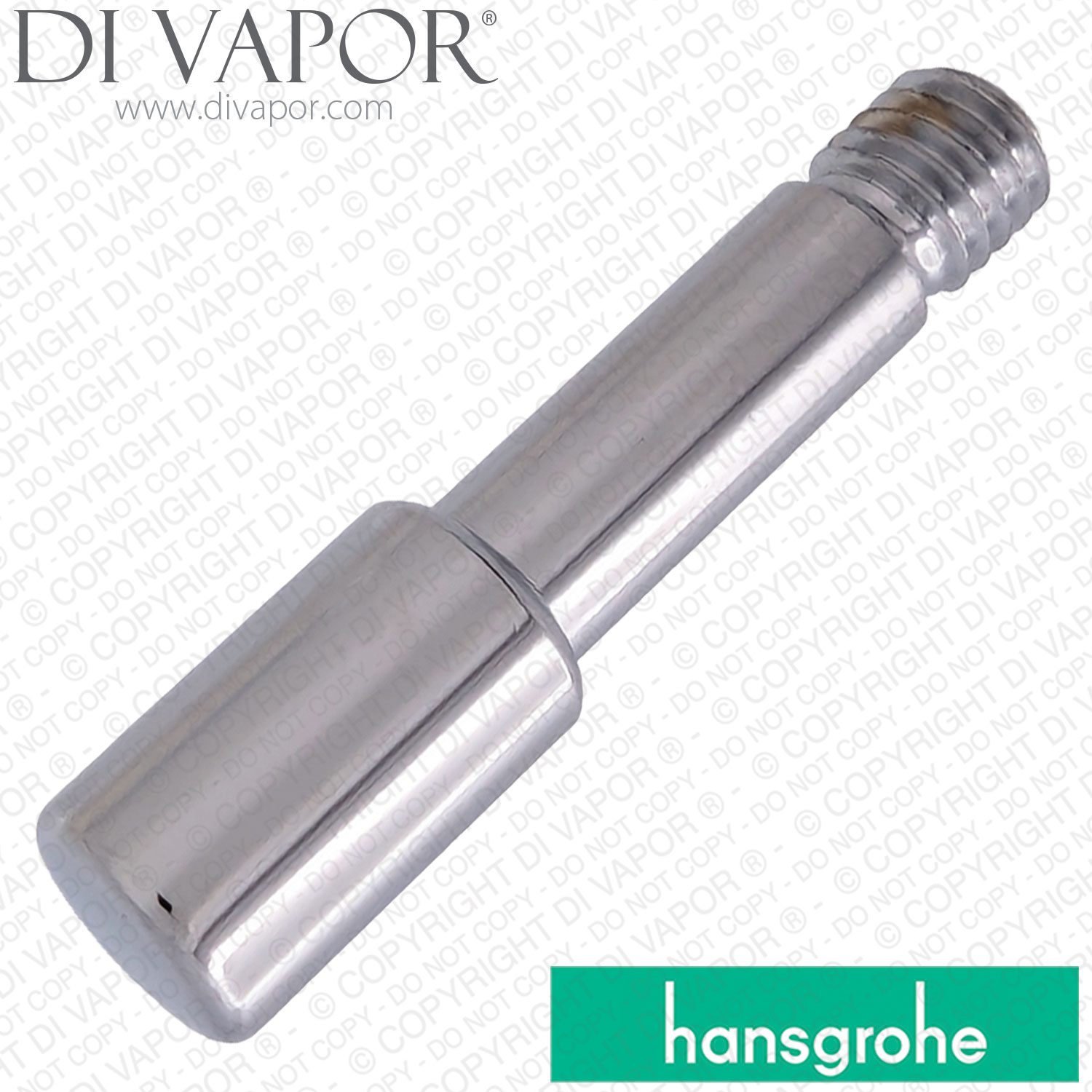

Hansgrohe 96774000 Chrome Bath Mixer Diverter Knob

The Hansgrohe 96774000 is a chrome diverter knob used on selected Hansgrohe and AXOR multi-hole bath mixers. It provides the external hand control for switching the water outlet between the bath spout and hand shower.

This item is the operating knob only. The internal selector assembly and associated seals are separate components and can vary according to the exact bath mixer article number and production period.

Technical Details

• Many verified assemblies use Hansgrohe 97660000 hollow set screw M6x6 to secure the knob
• Rim-mounted assemblies commonly use selector assembly 96775000 while selected tile-mounted assemblies use selector 96777000

Check Before You Order

Confirm the full bath mixer article number and production period before ordering. A missing, damaged or loose control can require 96774000 but a mixer that will not change outlets correctly after the knob is fitted may instead have a worn internal selector or damaged selector seals.

Confirmed Models

• Hansgrohe Logis 3-hole rim-mounted single lever bath mixer for Secuflex 71310000 - production from 01/2015
• Hansgrohe Logis 3-hole rim-mounted single lever bath mixer 71313000 - production from 01/2015
• Hansgrohe Logis 4-hole rim-mounted bath mixer 71314000 - production 04/2014 to 12/2014
• Hansgrohe Talis 4-hole rim-mounted bath mixer 32314000 - production from 06/2009
• Hansgrohe Metris S 4-hole rim-mounted bath mixer with 17.1 cm spout 31446000 - production from 01/2017
• AXOR Uno 3-hole rim-mounted bath mixer with loop handle 38436000 - production 04/2017 to 08/2019
• AXOR Uno 3-hole rim-mounted bath mixer with loop handle 38436000 - production from 09/2019
• AXOR Citterio M 4-hole rim-mounted bath mixer with lever handles and escutcheons 34444000 - production 01/2008 to 05/2013
• AXOR Citterio M 4-hole rim-mounted bath mixer with lever handles and escutcheons 34444000 - production 06/2013 to 12/2016
• AXOR Citterio M 4-hole rim-mounted bath mixer with lever handles and escutcheons 34444000 - production from 01/2017
• AXOR Citterio M 4-hole rim-mounted bath mixer with lever handles and plate 34445000 - production 01/2008 to 05/2013
• AXOR Citterio M 4-hole rim-mounted bath mixer with lever handles and plate 34445000 - production 06/2013 to 01/2017
• AXOR Citterio M 4-hole rim-mounted bath mixer with lever handles and plate 34445000 - production 01/2017 to 12/2017
• AXOR Citterio M 4-hole rim-mounted bath mixer with star handles and escutcheons 34446000 - production 06/2011 to 05/2013
• AXOR Citterio M 4-hole tile-mounted bath mixer with lever handles and escutcheons 34454000 - production 05/2008 to 05/2013
• AXOR Citterio M 4-hole tile-mounted bath mixer with lever handles and escutcheons 34454000 - production 06/2013 to 12/2016
• AXOR Citterio M 4-hole tile-mounted bath mixer with lever handles and plate 34455000 - production 05/2008 to 05/2013
• AXOR Citterio M 4-hole tile-mounted bath mixer with lever handles and plate 34455000 - production 01/2017 to 03/2018
• AXOR Citterio M 4-hole tile-mounted bath mixer with star handles and escutcheons 34456000 - production 06/2011 to 05/2013
• AXOR Citterio M 4-hole tile-mounted bath mixer with star handles and escutcheons 34456000 - production 06/2013 to 12/2016
• AXOR Citterio 4-hole rim-mounted bath mixer with cross handles and plate 39443000 - production 01/2005 to 05/2013
• AXOR Citterio 4-hole rim-mounted bath mixer with lever handles and plate 39444000 - production 01/2005 to 05/2013
• AXOR Citterio 4-hole rim-mounted bath mixer with lever handles and plate 39444000 - production 01/2017 to 03/2018
• AXOR Citterio 4-hole rim-mounted bath mixer with cross handles 39445000 - production 04/2004 to 12/2004
• AXOR Citterio 4-hole rim-mounted bath mixer with cross handles 39445000 - production 02/2013 to 12/2016
• AXOR Citterio 4-hole rim-mounted bath mixer with lever handles 39446000 - production 04/2004 to 12/2004
• AXOR Citterio 4-hole rim-mounted bath mixer with lever handles 39446000 - production 01/2005 to 01/2013
• AXOR Citterio 4-hole rim-mounted bath mixer with lever handles 39446007 - production 10/2017 to 03/2018
• AXOR Citterio 4-hole tile-mounted bath mixer with cross handles and plate 39452000 - production 04/2003 to 05/2013
• AXOR Citterio 4-hole tile-mounted bath mixer with cross handles and plate 39452000 - production 01/2017 to 12/2017
• AXOR Citterio 4-hole tile-mounted bath mixer with cross handles and escutcheons 39453000 - production 04/2003 to 05/2013
• AXOR Citterio 4-hole tile-mounted bath mixer with lever handles and escutcheons 39454000 - production 04/2003 to 05/2013
• AXOR Citterio 4-hole tile-mounted bath mixer with lever handles and escutcheons 39454000 - production 06/2013 to 12/2016
• AXOR Citterio 4-hole tile-mounted bath mixer with lever handles and plate 39456000 - production 04/2003 to 05/2013

Related Spares You May Need

The following seals are used with selector assemblies shown in verified bath mixer diagrams containing the 96774000 diverter knob. Check the exact article number and production period because the selector and seal arrangement is not identical across every mixer.

• Hansgrohe 98189000 O-Ring 14x2.5
• Hansgrohe 98183000 O-Ring 23x2.5
• Hansgrohe 98185000 O-Ring 22x2
• Hansgrohe 98217000 O-Ring 9x2.5
