Hansgrohe 96449000 Diverter knob
Send a photo of your item and we'll help confirm it.
Summary

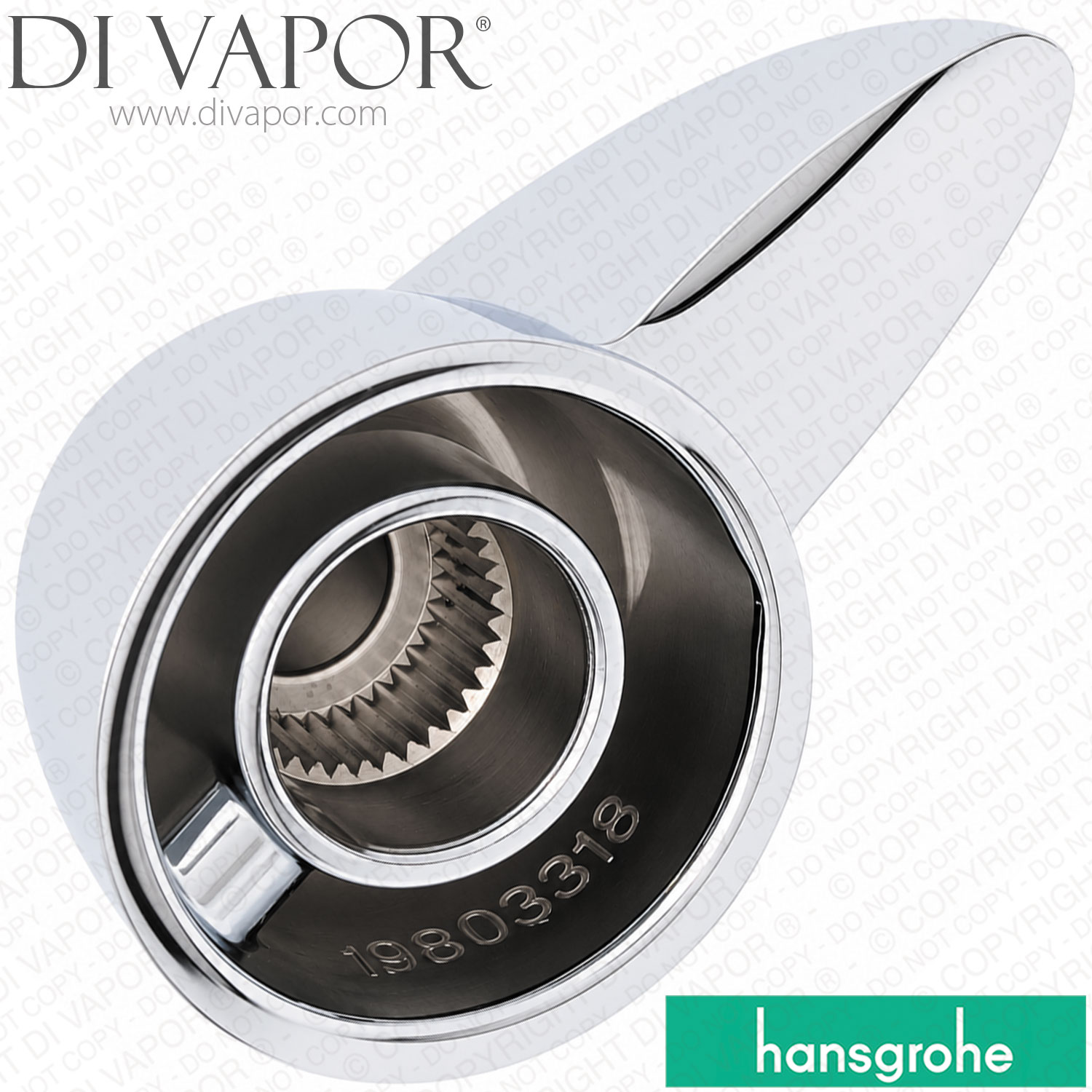

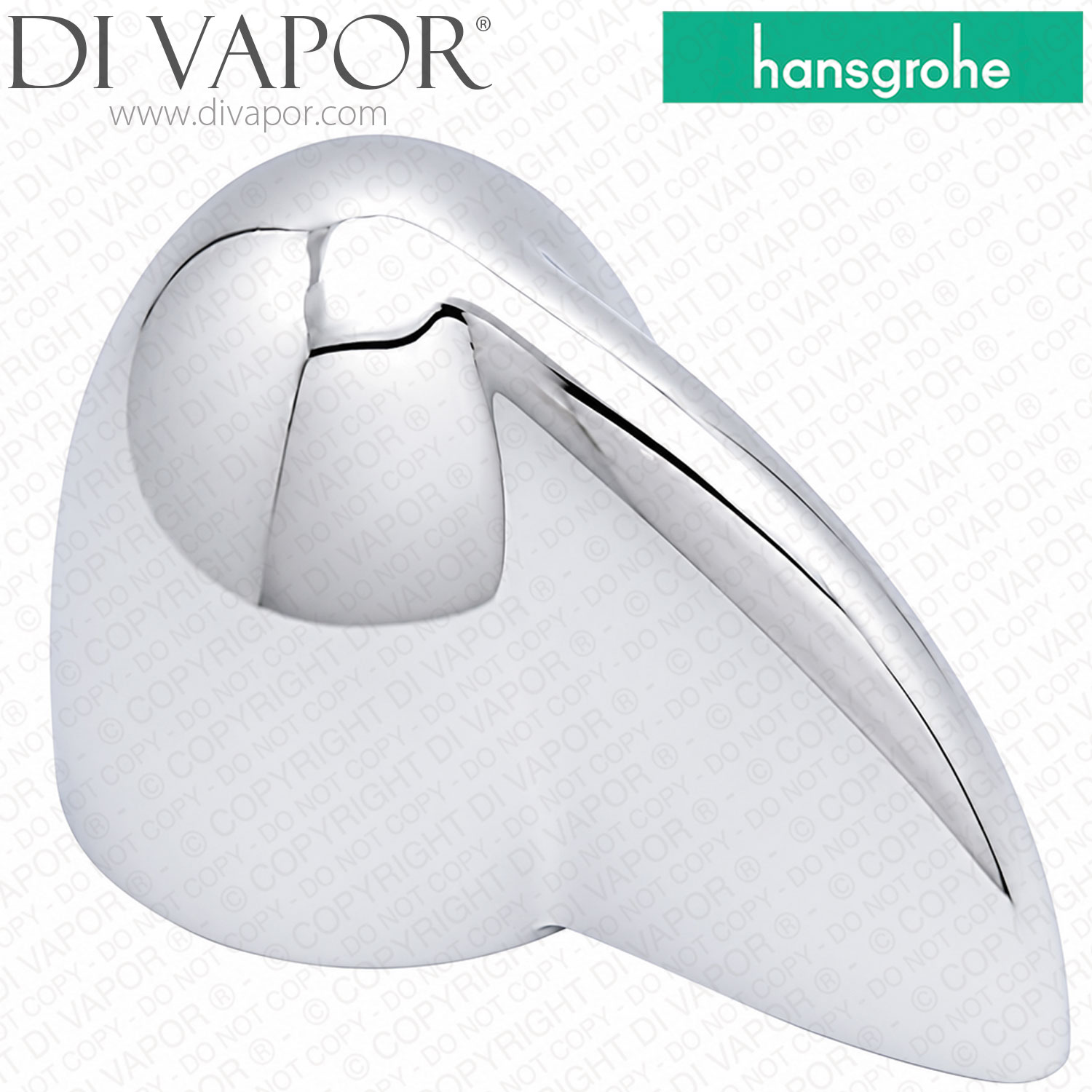

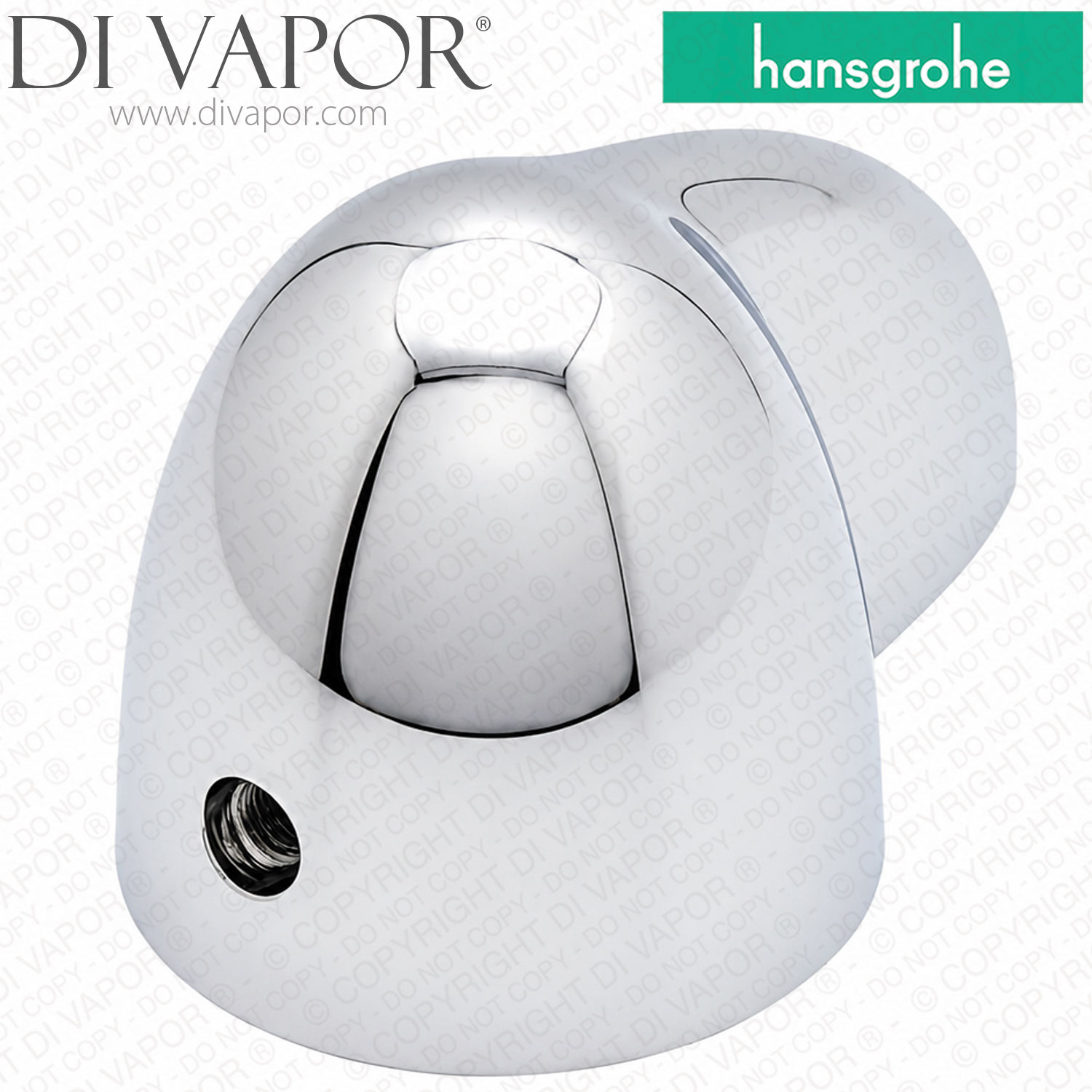

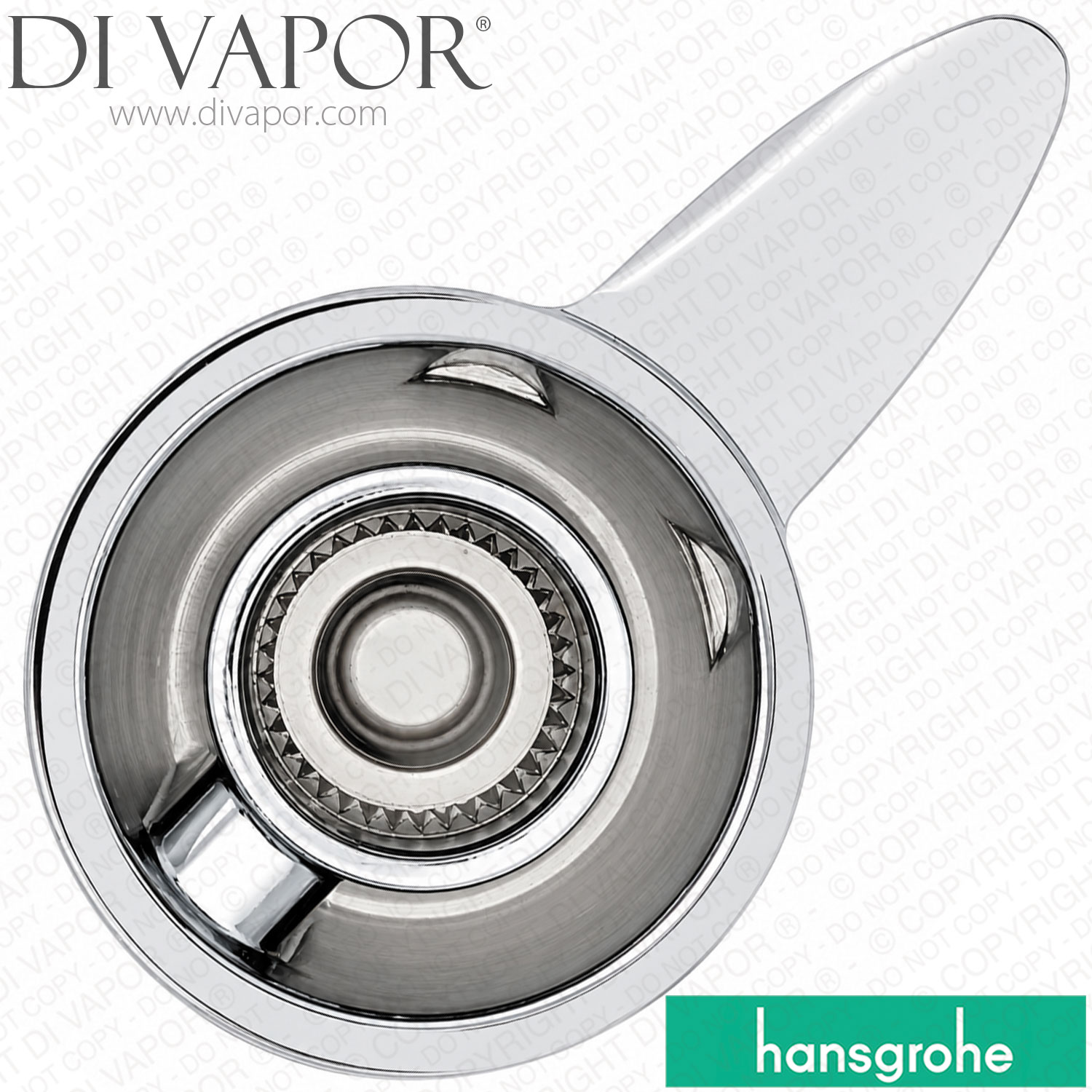

Hansgrohe 96449000 iBox Shut-Off and Diverter Control Handle Chrome
Hansgrohe 96449000 is a chrome iBox control handle used on selected concealed Hansgrohe and AXOR thermostatic valve trims. Depending on the exact valve configuration and construction period, the handle operates either the water shut-off or flow control, or a combined shut-off and outlet-selector diverter.
This listing is for the external control handle only. The push button, fixing screws, spindle adapters, sleeves, escutcheon, cartridges and other valve components are separate parts unless specifically stated otherwise.
Technical Details
| Manufacturer code | 96449000 |
|---|---|
| Part type | concealed shower valve shut-off and diverter control handle knob |
| Manufacturer description | iBox handle |
| Finish | chrome |
| EAN | 4011097439877 |
| Application | selected Hansgrohe and AXOR concealed thermostatic valve trim assemblies |
| Operating function | shut-off or flow control on one-function valves and combined shut-off with outlet selection on diverter valves |
- No superseding or replacement code has been confirmed for 96449000
Before Ordering
The same visible handle is used across different valve revisions with different internal cartridges and trim components. Check the complete valve article number and construction period before ordering. Do not select the internal cartridge from the appearance of the handle alone.
Shut-off-only valve versions may use the 94009000 flow cartridge, while combined shut-off and diverter versions may use the 96509000 cartridge. These cartridges are not interchangeable solely because the external handle is the same.
Confirmed Compatible Models
- AXOR Carlton 17700000 thermostatic mixer with shut-off valve and lever handle - 05/2002 to 06/2008
- AXOR Carlton 17700000 thermostatic mixer with shut-off valve and lever handle - 07/2008 to 01/2009
- AXOR Carlton 17700090 thermostatic mixer with shut-off valve and lever handle - 05/2002 to 06/2008
- AXOR Carlton 17705000 thermostatic mixer with shut-off valve and cross handle - from 02/2009
- AXOR Carlton 17705090 thermostatic mixer with shut-off valve and cross handle - 07/2008 to 01/2009
- AXOR Carlton 17720000 thermostatic mixer with shut-off and diverter valve and lever handle - 06/2001 to 06/2008
- AXOR Carlton 17720000 thermostatic mixer with shut-off and diverter valve and lever handle - 07/2008 to 01/2009
- AXOR Carlton 17720000 thermostatic mixer with shut-off and diverter valve and lever handle - 02/2009 to 12/2017
- AXOR Carlton 17720090 thermostatic mixer with shut-off and diverter valve and lever handle - 07/2001 to 06/2008
- AXOR Carlton 17720090 thermostatic mixer with shut-off and diverter valve and lever handle - 02/2009 to 12/2017
- AXOR Carlton 17725000 thermostatic mixer with shut-off and diverter valve and cross handle - from 02/2009
- AXOR Carlton 17725090 thermostatic mixer with shut-off and diverter valve and cross handle - from 02/2009
- AXOR Allegroh finish set for thermostatic mixer 36700000
- AXOR Allegroh finish set for thermostatic bath and shower mixer 36720000
- AXOR Azzur shower valve 34720
- AXOR Mondaro shower valve 18700
- Hansgrohe Ecostat E thermostatic mixer with shut-off valve 15700000 - 07/2008 to 12/2014
Related Spares You May Need
Handle and Trim Components
- Hansgrohe 97212000 AXOR Carlton Red Push Button
- Hansgrohe 97669000 Hollow Set Screw M4 x 8mm
- Hansgrohe 92160000 M4x35 Hexagon Socket Screw
- Hansgrohe 96435000 Handle Spindle Adapters
- Hansgrohe 96439000 Chrome Sleeve
- Hansgrohe 96446000 Chrome Sleeve
- Hansgrohe 98174000 48x5mm O-Ring
- Hansgrohe 98153000 30x5mm O-Ring
- Hansgrohe 95508000 O-Ring
- Hansgrohe 96447000 Sub Plate
- Hansgrohe 96454000 Fixing Screw Set
Valve Internals and Installation Parts
- Hansgrohe 94282000 Thermostatic Cartridge for AXOR Pharo and Other Valves
- Hansgrohe 95037000 Thermostatic Cartridge Seal Kit
- Hansgrohe 94009000 1/2 Inch On/Off 1/4 Turn Flow Cartridge
- Hansgrohe 96509000 Shut-Off and Diverter Cartridge with Selector
- Hansgrohe 98158000 39x2mm O-Ring
- Hansgrohe 96525000 Screw Set
- Hansgrohe 98128000 13x2mm O-Ring
- Hansgrohe 98133000 16x2mm O-Ring
- Hansgrohe 94073000 Noise Reduction Set
- Hansgrohe 94074000 Non-Return Valves DW15 / DN10
- Hansgrohe 01800180 iBox Universal Basic Set
