Hansgrohe 96451000 Handle Spindle Adapter for Concealed Shower Shut-Off and Diverter Controls - Compatible Spare

Summary

Hansgrohe 96451000 Handle Spindle Adapter for Concealed Shower Shut-Off and Diverter Controls

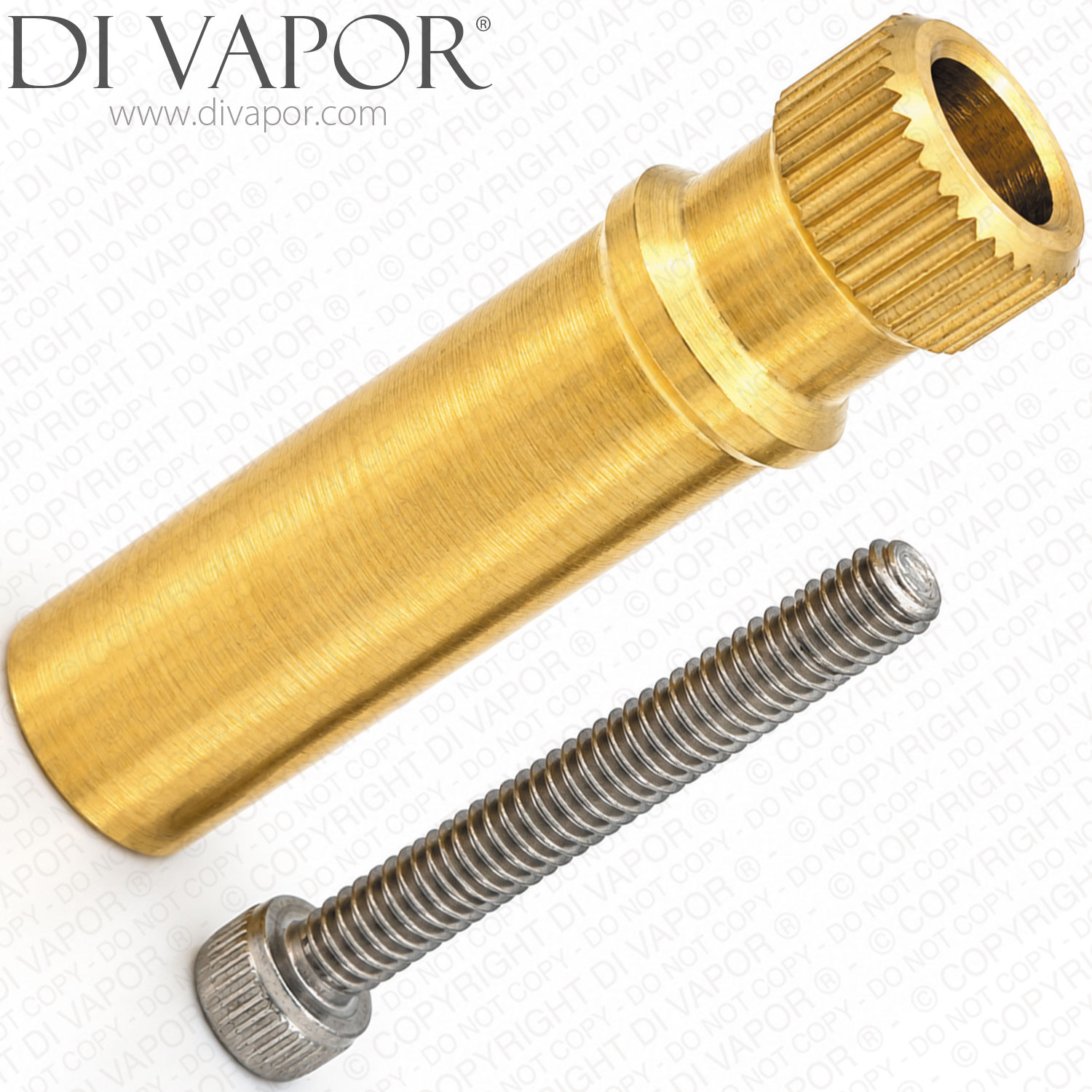

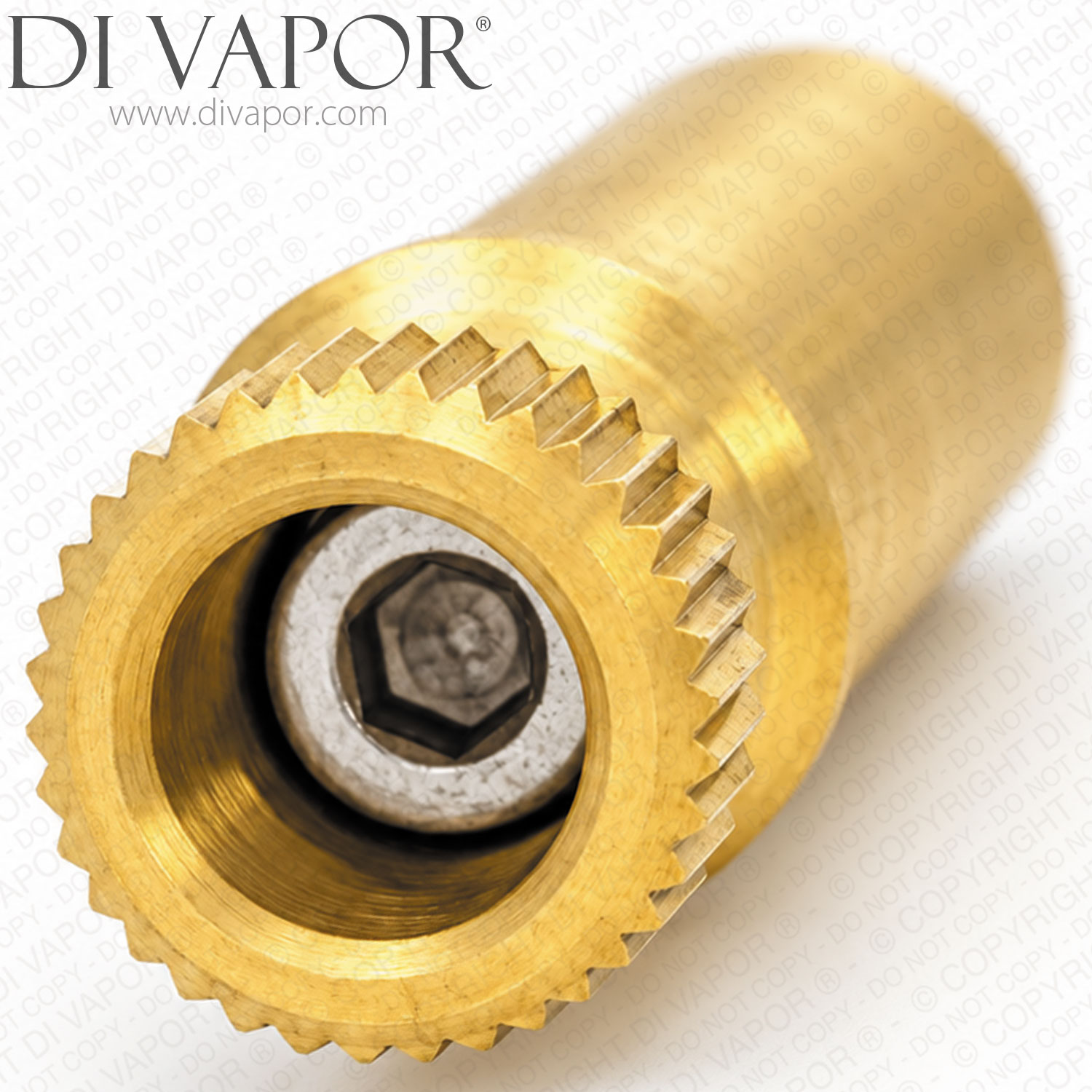

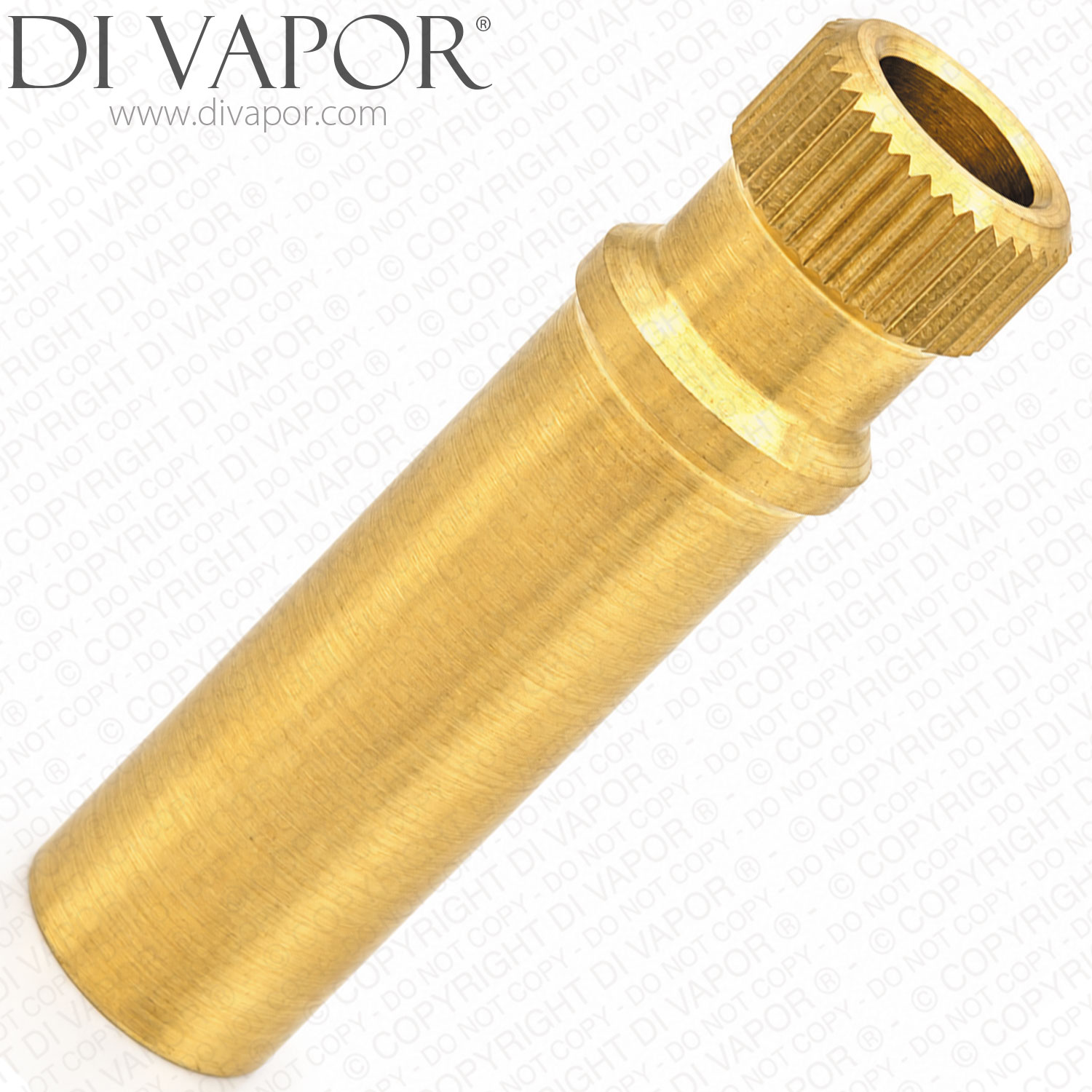

Hansgrohe 96451000 handle spindle adapter for the shut-off and shut-off/diverter controls on the concealed shower valves and shower systems listed below.

The adapter connects the operating handle to the control spindle. It is used with the 96509000 shut-off/diverter cartridge in specified assemblies and with other shut-off units shown in the relevant model diagrams.

Technical Details

• Part code: 96451000
• Compatible part code: 96451000-C
• Part type: handle spindle adapter for the shut-off or shut-off/diverter control
• Application: the concealed thermostatic shower controls and shower systems listed below
• Associated fixing: 92160000 M4 x 35 screw in the relevant assembly diagrams

Fitting Advice

Check the adapter and retaining screw if the operating handle is loose or turns without operating the valve. For water dripping after the control is closed, check the shut-off cartridge. Temperature-control adapters such as 96435000, 98701000 and 97108000 are separate components.

Before Ordering

Check the exact mixer or trim code and production period before ordering. A valve using 96509000 does not by itself prove that it uses 96451000.

Confirmed Compatible Models Using 96451000 Spline Adapter

Match the exact model code and production period before ordering. Production dates are shown as month/year.

Hansgrohe Ecostat

• Hansgrohe Ecostat S 15721880 concealed thermostat with shut-off/diverter valve - production 04/05 - 06/08; 07/08 - 12/11
• Hansgrohe Ecostat S 15721000 concealed thermostat with shut-off/diverter valve - production 04/05 - 06/08; 07/08 - 08/12; 09/12 - 12/17
• Hansgrohe Ecostat E 15720000 concealed thermostat with shut-off/diverter valve - production 06/01 - 06/08; 07/08 - 12/14
• Hansgrohe Ecostat E 15720090 concealed thermostat with shut-off/diverter valve - production 06/01 - 06/08; 07/08 - 12/11
• Hansgrohe Ecostat E 15720810 concealed thermostat with shut-off/diverter valve - production 06/01 - 07/07
• Hansgrohe Ecostat E 15720880 concealed thermostat with shut-off/diverter valve - production 06/01 - 06/08; 07/08 - 02/11
• Hansgrohe Ecostat 15722000 concealed thermostat with valve - production 06/10 - 08/12; 09/12 - 12/14
• Hansgrohe Ecostat S 15701000 concealed thermostat with shut-off valve - production 04/05 - 06/08; 07/08 - 08/12; 09/12 - 12/17
• Hansgrohe Ecostat S 15701880 concealed thermostat with shut-off valve - production 04/05 - 06/08; 07/08 - 01/11
• Hansgrohe Ecostat E 15700000 concealed thermostat with shut-off valve - production 04/01 - 04/02; 05/02 - 06/08; 07/08 - 12/14
• Hansgrohe Ecostat E 15700090 concealed thermostat with shut-off valve - production 04/01 - 04/02; 05/02 - 06/08; 07/08 - 09/11
• Hansgrohe Ecostat E 15700810 concealed thermostat with shut-off valve - production 04/01 - 04/02; 05/02 - 01/08
• Hansgrohe Ecostat E 15700880 concealed thermostat with shut-off valve - production 04/01 - 04/02; 05/02 - 06/08; 02/09 - 12/11
• Hansgrohe Ecostat Classic 15752000 concealed thermostat with shut-off valve - production 10/10 - 05/12; 06/12 - 12/13
• Hansgrohe Ecostat Classic 15752820 concealed thermostat with shut-off valve - production 10/10 - 05/12; 06/12 - 12/13
• Hansgrohe Ecostat Classic 15753000 concealed thermostat with shut-off/diverter valve - production 10/09 - 05/12; 06/12 - 12/16
• Hansgrohe Ecostat Classic 15753820 concealed thermostat with shut-off/diverter valve - production 10/09 - 05/12; 06/12 - 12/13
• Hansgrohe Ecostat E 31572000 concealed thermostat with shut-off valve - production 09/11 - 12/17

Hansgrohe PuraVida

• Hansgrohe PuraVida 15771000 concealed thermostat with shut-off/diverter valve - production 07/09 - 06/22
• Hansgrohe PuraVida 15771400 concealed thermostat with shut-off/diverter valve - production 07/09 - 06/22
• Hansgrohe PuraVida 15775000 concealed thermostat with shut-off valve - production from 07/09
• Hansgrohe PuraVida 15775400 concealed thermostat with shut-off valve - production 07/09 - 04/21

AXOR Citterio

• AXOR Citterio 39725000 concealed thermostat with cross handle and shut-off/diverter valve - production 04/03 - 06/08; 07/08 - 04/11; from 05/11
• AXOR Citterio 39705000 concealed thermostat with cross handle and shut-off valve - production 04/03 - 06/08; 07/08 - 04/11; 05/11 - 05/23; from 06/23 - spares page from 05/11; model spares page
• AXOR Citterio 39700000 concealed thermostat with lever handle and shut-off valve - production 04/03 - 06/08; 07/08 - 04/11; 05/11 - 05/23; from 06/23 - model spares page; spares page from 05/11
• AXOR Citterio 39720000 concealed thermostat with lever handle and shut-off/diverter valve - production 04/03 - 06/08; 07/08 - 04/11; from 05/11
• AXOR Citterio 39720250 concealed thermostat with lever handle and shut-off/diverter valve - production from 10/16
• AXOR Citterio 39700800 concealed thermostat with lever handle and shut-off valve - production from 12/16

AXOR Citterio M

• AXOR Citterio M 34705000 concealed thermostat with shut-off valve - production 01/08 - 06/08; 07/08 - 05/11; 06/11 - 08/13; from 09/13
• AXOR Citterio M 34725000 concealed thermostat with shut-off/diverter valve - production 01/08 - 06/08; 07/08 - 05/11; 06/11 - 08/12; from 09/12
• AXOR Citterio M 34725250 concealed thermostat with shut-off/diverter valve - production from 10/16
• AXOR Citterio M 34725300 concealed thermostat with shut-off/diverter valve - production from 10/16
• AXOR Citterio M 34725140 concealed thermostat with shut-off/diverter valve - production from 10/16

AXOR Montreux

• AXOR Montreux 16821820 concealed thermostat with lever handle and shut-off/diverter valve - production from 10/16
• AXOR Montreux 16820340 concealed thermostat with cross handle and shut-off/diverter valve - production from 11/16
• AXOR Montreux 16800000 concealed thermostat with cross handle and shut-off valve - production 05/06 - 06/08; 07/08 - 02/10; from 03/10
• AXOR Montreux 16821000 concealed thermostat with lever handle and shut-off/diverter valve - production from 10/16
• AXOR Montreux 16820000 concealed thermostat with cross handle and shut-off/diverter valve - production 05/06 - 06/08; 07/08 - 02/10; from 03/10
• AXOR Montreux 16801820 concealed thermostat with lever handle and shut-off valve - production from 10/16
• AXOR Montreux 16801000 concealed thermostat with lever handle and shut-off valve - production from 10/16
• AXOR Montreux 16800820 concealed thermostat with cross handle and shut-off valve - production 05/06 - 06/08; 07/08 - 02/10; from 03/10
• AXOR Montreux 16820820 concealed thermostat with cross handle and shut-off/diverter valve - production 05/06 - 06/08; 07/08 - 02/10; from 03/10

AXOR Starck

• AXOR Starck 10720000 concealed thermostat with shut-off/diverter valve - production 07/01 - 06/08; 07/08 - 05/11; from 06/11
• AXOR Starck 10700000 concealed thermostat with shut-off valve - production 04/01 - 04/02; 05/02 - 06/08; 07/08 - 05/11; from 06/11

AXOR Uno

• AXOR Uno 38700000 concealed thermostat with shut-off valve - production 04/01 - 04/02; 05/02 - 06/08; 07/08 - 05/11; 06/11 - 08/12; from 09/12
• AXOR Uno 38720800 concealed thermostat with shut-off/diverter valve - production 11/12 - 12/15
• AXOR Uno 38720000 concealed thermostat with shut-off/diverter valve - production 06/01 - 06/08; 07/08 - 04/11; 05/11 - 08/12; from 09/12
• AXOR Uno 38720340 concealed thermostat with shut-off/diverter valve - production from 01/17
• AXOR Uno 38720250 concealed thermostat with shut-off/diverter valve - production from 01/17
• AXOR Uno 38720330 concealed thermostat with shut-off/diverter valve - production from 01/17
• AXOR Uno 38720310 concealed thermostat with shut-off/diverter valve - production from 01/17

AXOR Massaud

• AXOR Massaud 18750000 concealed thermostat with shut-off/diverter valve - production 07/06 - 04/11; 05/11 - 6/23
• AXOR Massaud 18745000 concealed thermostat with shut-off valve - production 07/06 - 06/08; 07/08 - 04/11; 05/11 - 4/23

Hansgrohe Shower Systems

• Hansgrohe Raindance Showerpipe S240 AIR 27145000 for concealed installation - production 06/09 - 05/11; 06/11 - 06/13; 07/13 - 12/16
• Hansgrohe Raindance Showerpipe EcoSmart S180 AIR 27192000 for concealed installation - production 06/09 - 04/10; 05/10 - 05/11; 06/11 - 12/13
• Hansgrohe Raindance S 27122000 with Ecostat S finish set 15721000 - production 05/09 - 05/18

Related Spares You May Need

Use the links below to find associated service parts. Match each spare to your model and production period, as cartridges, handles, sleeves and faceplates vary between versions. Where alternative listings are shown, select the version you need.

• TACSIL 3g silicone grease
• Hansgrohe 96520000 handle
• Hansgrohe 96421000 handle
• Hansgrohe 94641541 nut for 96509000
• Hansgrohe 96509000 shut-off/diverter cartridge
• Hansgrohe 94282000 thermostatic cartridge
• 96509000 shut-off/diverter cartridge - alternative listing 96509000-C
• Hansgrohe 38391000 AXOR Uno temperature-control handle
• Hansgrohe 97212000 red push button
• Hansgrohe 97669000 M4 x 8 grub screw
• Hansgrohe 92160000 M4 x 35 fixing screw
• Hansgrohe 98174000 48 x 5mm O-ring
• Hansgrohe 98153000 30 x 5mm O-ring
• Hansgrohe 96447000 sub plate
• Hansgrohe 96454000 fixing screw set
• 94282000 brass thermostatic cartridge - alternative listing 94282000-CP
• Hansgrohe 95037000 thermostatic cartridge seal kit
• 94009000 flow cartridge - alternative listing 94009000-CS
• Hansgrohe 94009000 flow cartridge
• Hansgrohe 98158000 39 x 2mm O-ring
• Hansgrohe 96525000 screw set
• Hansgrohe 98128000 13 x 2mm O-ring
• Hansgrohe 98133000 16 x 2mm O-ring
• Hansgrohe 94073000 noise reduction set
• Hansgrohe 94074000 non-return valves
• Hansgrohe 95508000 O-ring
• Hansgrohe 96435000 temperature-control spindle adapter
• Hansgrohe 96439000 sleeve
• Hansgrohe 96446000 sleeve
• Hansgrohe 01800180 iBox Universal basic set
• Hansgrohe 98701000 temperature-control spindle adapter
• Hansgrohe 97327000 shut-off/selector cartridge for the listed Raindance Showerpipe assemblies
• Hansgrohe 97108000 temperature-control handle adapter - H-97108000
• 97108000 temperature-control handle adapter - alternative listing
• Hansgrohe 97663000 M4 x 16 grub screw
• Hansgrohe 39994000 AXOR Citterio temperature-control handle
• Hansgrohe 10391000 AXOR Starck temperature-control handle
• Hansgrohe 16594000 handle
• Hansgrohe 95157000 faceplate
• Hansgrohe 95804000 round faceplate
• Hansgrohe 95805000 round faceplate
• Hansgrohe 97334000 temperature-control safety set
• 96350000 shut-off cartridge - alternative listing for AXOR Starck 10700000 production 04/01 - 04/02
• Hansgrohe 96350000 shut-off cartridge for AXOR Starck 10700000 production 04/01 - 04/02

If you are unsure which part you need, use the Di Vapor part identification service for help.
