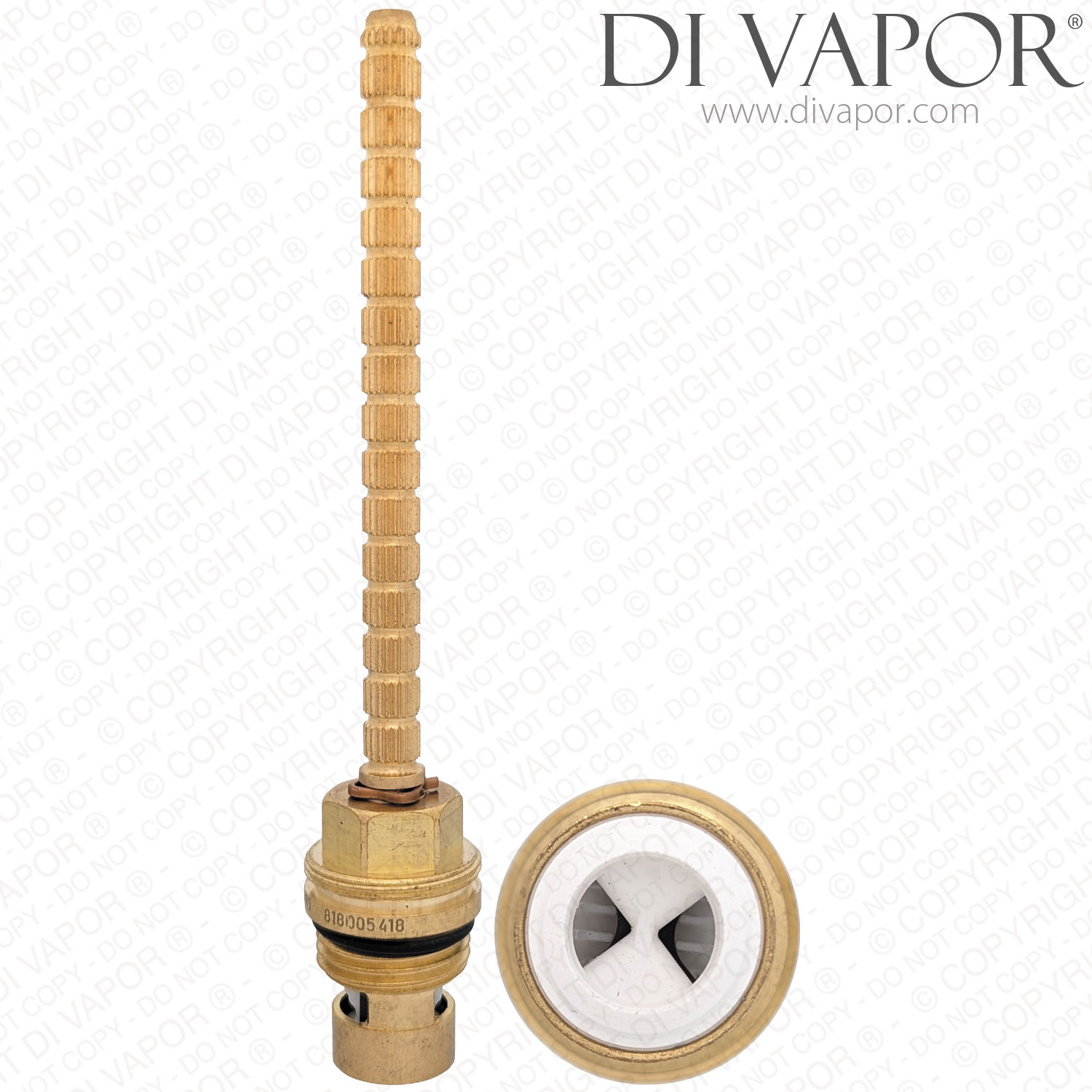

Dornbracht 9090032030090 Cartridge

SUMMARY

The Dornbracht 9090032030090 is a 1/2 inch clockwise closing ceramic cartridge for Dornbracht flow control assemblies where this exact cartridge code is specified.

This cartridge controls the on and off flow of water through the valve or tap assembly. A worn flow cartridge can cause poor shut-off, stiff operation or water passing through to the outlet when the control is turned off.

Technical Details

- - Brand: Dornbracht

- - Part Number: 9090032030090

- - Also shown as: 90 90 03 203 00 90

- - Type: ceramic disc cartridge / upper head part

- - Size: 1/2 inch

- - Closing direction: clockwise closing

- - Operation: quarter turn

- - Spline detail found: 20pt

Before ordering, compare the code, closing direction, thread size, spline and overall cartridge form with the part being replaced. Do not order from the 1/2 inch size alone, as Dornbracht uses multiple similar-looking cartridges with different opening and closing directions.

Installation Note

Isolate the water supply before removing the existing cartridge. Clean the valve body seating area and check that no debris, limescale or damaged seal material remains before fitting the replacement cartridge.
