Hansgrohe 98217000 O-Ring

SUMMARY

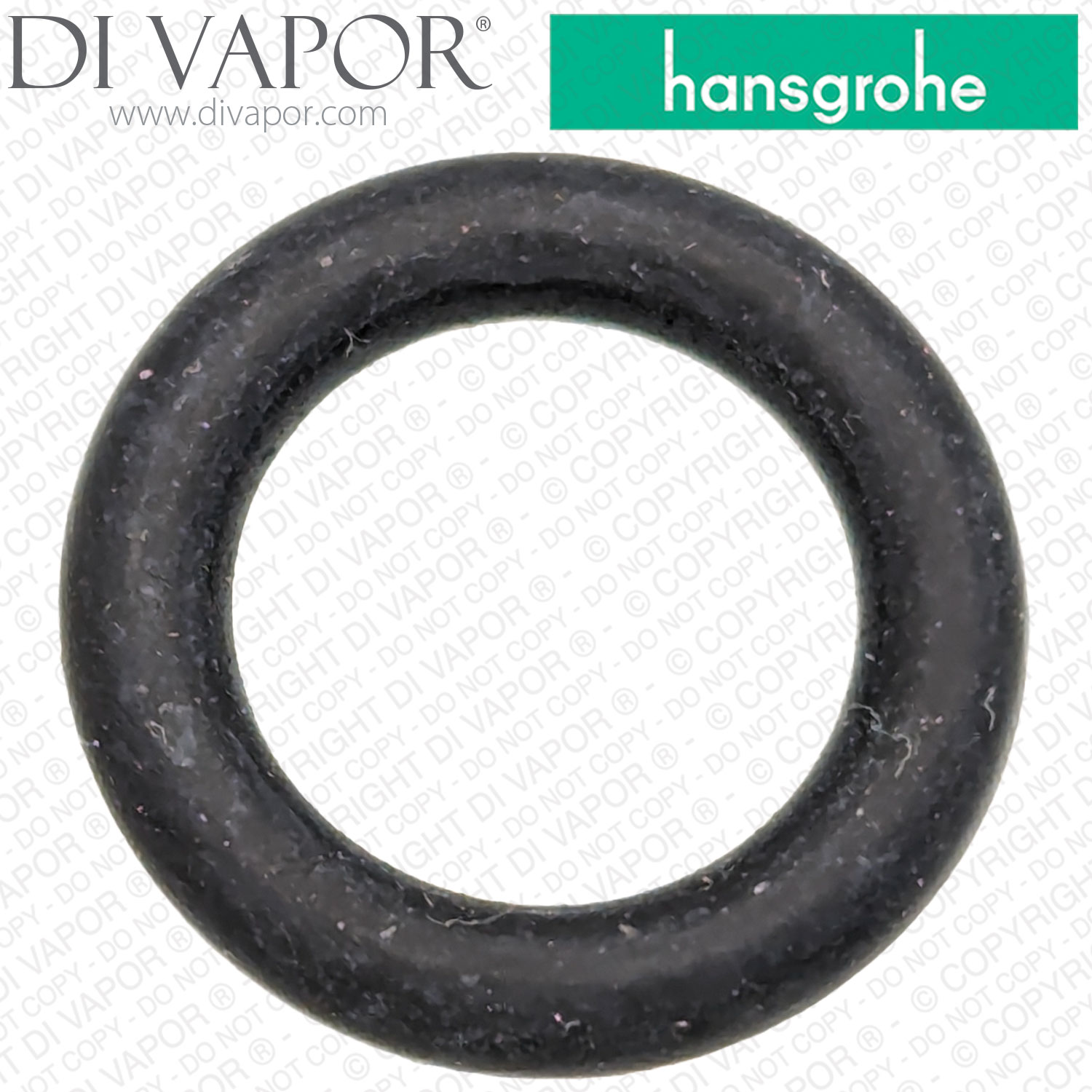

Hansgrohe 98217000 O-Ring Seal 9 x 2.5mm

The Hansgrohe 98217000 is a 9 x 2.5 mm O-ring seal used at designated internal joints in selected Hansgrohe and AXOR bath mixers, basin mixers and shower assemblies.

Its position depends on the parent product. In many rim-mounted bath mixers it is fitted around the selector area with O-rings 98189000, 98183000 and 98185000. A flattened, split, displaced or damaged seal can allow local leakage at the joint.

Technical Details

- - Part code: 98217000

- - Part type: O-ring seal

- - Nominal size: 9 x 2.5 mm

- - Function: Forms a watertight seal at the designated internal joint

- - Installation position: Product-dependent

- - No superseded or replacement code has been identified

- - Do not select by dimensions alone; confirm 98217000 against the exact parent article number and construction period

98217000 Confirmed Used In Hansgrohe Valves

Models with Verified Di Vapor Component Pages

- - Logis 3-hole rim-mounted bath mixer 71313000 - 04/14 to 12/14

- - Talis E 4-hole rim-mounted bath mixer 71748000 - from 01/16

- - Metris 4-hole rim-mounted bath mixer 31442000 - from 07/11

- - Talis S 3-hole rim-mounted bath mixer 72417000 - from 01/16

- - Finoris 4-hole rim-mounted bath mixer 76443701 - from 11/21

- - AXOR Montreux 4-hole rim-mounted bath mixer 16550000 - from 01/17

- - Metropol 4-hole rim-mounted bath mixer 32553997 - from 03/20

- - Metropol 4-hole rim-mounted bath mixer 32553347 - from 03/20

- - Vivenis 4-hole rim-mounted bath mixer with sBox 75444700 - from 06/21

- - AXOR Edge 3-hole rim-mounted bath mixer 46430000 - from 06/19

- - AXOR Bouroullec 4-hole rim-mounted bath mixer 19446000 - 10/10 to 10/13

- - PuraVida 4-hole rim-mounted bath mixer 15446000 - 05/11 to 04/21

- - Logis 4-hole rim-mounted bath mixer 71314000 - 04/14 to 12/14

- - Metropol 4-hole rim-mounted bath mixer 74553000 - from 04/17

- - Talis E 3-hole rim-mounted bath mixer 71731000 - from 01/16

- - Talis S 4-hole rim-mounted bath mixer 72419000 - from 01/16

- - AXOR MyEdition 4-hole rim-mounted bath mixer 47430000 - from 10/21

- - AXOR Montreux 4-hole rim-mounted bath mixer 16546820 - 04/06 to 06/22

- - AXOR Uno 3-hole rim-mounted bath mixer 38436930 - 04/17 to 12/20

- - AXOR Urquiola concealed wall-mounted basin mixer with 168 mm spout 11042000 - from 12/13

- - Metropol Classic 4-hole rim-mounted bath mixer 31441000 - 10/16 to 06/22

- - Ecos 4-hole rim-mounted bath mixer 14102000 - from 01/18

- - Vivenis 4-hole rim-mounted bath mixer with sBox 75444000 - from 06/21

- - Finoris 4-hole rim-mounted bath mixer 76443001 - from 11/21

- - Talis 4-hole rim-mounted bath mixer 32314000 - 06/09 to 09/22

- - AXOR Urquiola concealed wall-mounted basin mixer with 168 mm spout 11042007 - from 07/18

- - AXOR Urquiola concealed wall-mounted basin mixer with 228 mm spout 11043000 - from 12/13

- - AXOR Citterio M 4-hole rim-mounted bath mixer 34444000 - from 01/17

- - Talis E 4-hole rim-mounted bath mixer 71748340 - from 07/19

- - Talis E 4-hole rim-mounted bath mixer 71748997 - from 03/20

- - Metris S 4-hole rim-mounted bath mixer 31443000 - 01/17 to 01/25

- - Metropol 4-hole rim-mounted bath mixer 32553147 - from 03/20

- - AXOR Citterio M 4-hole rim-mounted bath mixer 34444000 - 06/13 to 12/16

- - Metropol 4-hole rim-mounted bath mixer for Secuflex 32552000 - from 04/17

- - Metropol Classic 4-hole rim-mounted bath mixer 31449000 - 10/16 to 06/22

- - Focus 4-hole rim-mounted bath mixer 31936000 - 01/12 to 05/19

- - AXOR Urquiola concealed wall-mounted basin mixer with 228 mm spout 11051009 - from 04/20

- - AXOR Citterio M 4-hole rim-mounted bath mixer 34446000 - 06/11 to 05/13

- - AXOR Uno 3-hole rim-mounted bath mixer 38436000 - from 09/19

- - Metris 3-hole rim-mounted bath mixer 31190000 - from 09/11

- - Talis E 4-hole rim-mounted bath mixer 71748700 - from 11/19

- - Talis E 4-hole rim-mounted bath mixer 71748990 - from 11/19

- - Metropol 3-hole rim-mounted bath mixer 74551000 - from 04/17

- - Metropol 4-hole rim-mounted bath mixer 32553000 - from 04/17

- - Metropol 4-hole rim-mounted bath mixer for Secuflex 74552000 - from 04/17

- - Metris S 4-hole rim-mounted bath mixer with 17.1 cm spout 31446000 - from 01/17

- - Metropol 3-hole rim-mounted bath mixer 32551000 - from 04/17

- - Finoris 4-hole rim-mounted bath mixer 76443821 - from 11/21

- - Logis 3-hole rim-mounted bath mixer for Secuflex 71310000 - from 01/15

- - Talis E 3-hole rim-mounted bath mixer for Secuflex 71730000 - from 01/16

- - Talis E 4-hole rim-mounted bath mixer 71748140 - from 07/19

- - Metropol 3-hole rim-mounted bath mixer for Secuflex 32550000 - from 04/17

- - Talis S 3-hole rim-mounted bath mixer for Secuflex 72416000 - from 01/16

- - Vivenis 4-hole rim-mounted bath mixer with sBox 75444670 - from 06/21

- - Finoris 4-hole rim-mounted bath mixer with sBox 76444670 - from 06/21

- - Finoris 4-hole rim-mounted bath mixer with sBox 76444700 - from 06/21

- - AXOR Edge 3-hole rim-mounted bath mixer Diamond Cut 46431000 - from 06/19

- - AXOR Starck 4-hole rim-mounted bath mixer 10444000 - 02/13 to 12/16

- - AXOR Montreux 4-hole tile-mounted bath mixer 16544820 - 04/06 to 06/22

- - AXOR MyEdition 4-hole rim-mounted bath mixer 47430600 - 10/18 to 09/21

- - AXOR MyEdition 4-hole rim-mounted bath mixer without plate 47432000 - from 10/18

Additional Manufacturer-Confirmed Applications

- - Metropol 3-hole rim-mounted single lever bath mixer with loop handle for Secuflex 74550000 - from 04/17

- - Logis 3-hole rim-mounted single lever bath mixer for Secuflex 71310000 - 04/14 to 12/14

- - Metris S 4-hole rim-mounted bath mixer with 17.1 cm spout 31446000 - 05/10 to 12/16

- - PuraVida 3-hole rim-mounted single lever bath mixers 15432000 and 15432400 - 07/11 to 06/22

- - Talis S 4-hole rim-mounted bath mixer for Secuflex 72418000 - from 01/16

- - Finoris 4-hole rim-mounted bath mixer with sBox 76444000 - from 06/21; 76444340 and 76444140 - from 09/25

- - Vivenis 4-hole rim-mounted bath mixer with sBox 75444140 - from 09/25

- - Tecturis S 3-hole rim-mounted single lever bath mixer with sBox 73447000, 73447140, 73447700 and 73447670 - from 10/23

- - Tecturis E 3-hole rim-mounted single lever bath mixer with sBox 73443140 and 73443000 - from 10/23; 73443670 - from 09/23

- - Raindance Alive Q Showerpipe 210/340 1jet with ShowerSelect Comfort 24580140, 24580000, 24580340, 24580670, 24580700 and 24580990 - from 04/25

- - Raindance Alive Q Showerpipe 210/340 1jet EcoSmart with ShowerSelect Comfort 24581340, 24581140, 24581000, 24581700, 24581670 and 24581990 - from 04/25

- - Raindance Alive S Showerpipe 300 1jet with ShowerSelect Comfort 24582000, 24582140, 24582340, 24582670, 24582700 and 24582990 - from 04/25

- - Raindance Alive S Showerpipe 300 1jet EcoSmart with ShowerSelect Comfort 24583340, 24583140, 24583000, 24583990, 24583670 and 24583700 - from 04/25

- - Raindance Alive Q Showerpipe 210/340 2jet with ShowerSelect Comfort 24590670, 24590000, 24590340, 24590140, 24590700 and 24590990 - from 04/25

- - Raindance Alive Q Showerpipe 210/340 2jet EcoSmart with ShowerSelect Comfort 24591340, 24591140, 24591000, 24591670, 24591700 and 24591990 - from 04/25

- - Raindance Alive S Showerpipe 300 2jet with ShowerSelect Comfort 24595000, 24595140, 24595670, 24595340, 24595700 and 24595990 - from 04/25

- - Raindance Alive S Showerpipe 300 2jet EcoSmart with ShowerSelect Comfort 24596140, 24596000, 24596340, 24596670, 24596700 and 24596990 - from 04/25

- - Focus S 4-hole bath mixer 31758000 - 06/09 to 12/16

- - Focus 4-hole rim-mounted bath mixer 31936000 - 06/19 to 06/22

- - PuraVida 4-hole rim-mounted bath mixer 15446400 - 05/11 to 02/17 and from 03/17

- - Logis 3-hole rim-mounted single lever bath mixer 71313000 - from 01/15

- - Metris S 4-hole rim-mounted bath mixer 31443000 - 10/09 to 12/16

- - Metropol Classic 4-hole rim-mounted bath mixer 31315000 - 10/16 to 07/20

Before Ordering and Fitting Checks

- - Match the full eight-digit parent article number and construction period before ordering

- - Confirm the O-ring position in the spare-parts diagram for the exact assembly

- - Isolate the water supply and release pressure before dismantling

- - Inspect the sealing groove and adjoining surfaces for scale, debris, scoring or damage

- - Fit without twisting, stretching, cutting or trapping the O-ring

Related Spares You May Need

- - Hansgrohe 98189000 O-Ring 14 x 2.5 mm

- - Hansgrohe 98185000 O-Ring 22 x 2 mm

- - Hansgrohe 98183000 O-Ring 23 x 2.5 mm
