Hansgrohe 94641456 Spindle Adapter for 96509000 Diverter Cartridge
Send a photo of your item and we'll help confirm it.
Summary

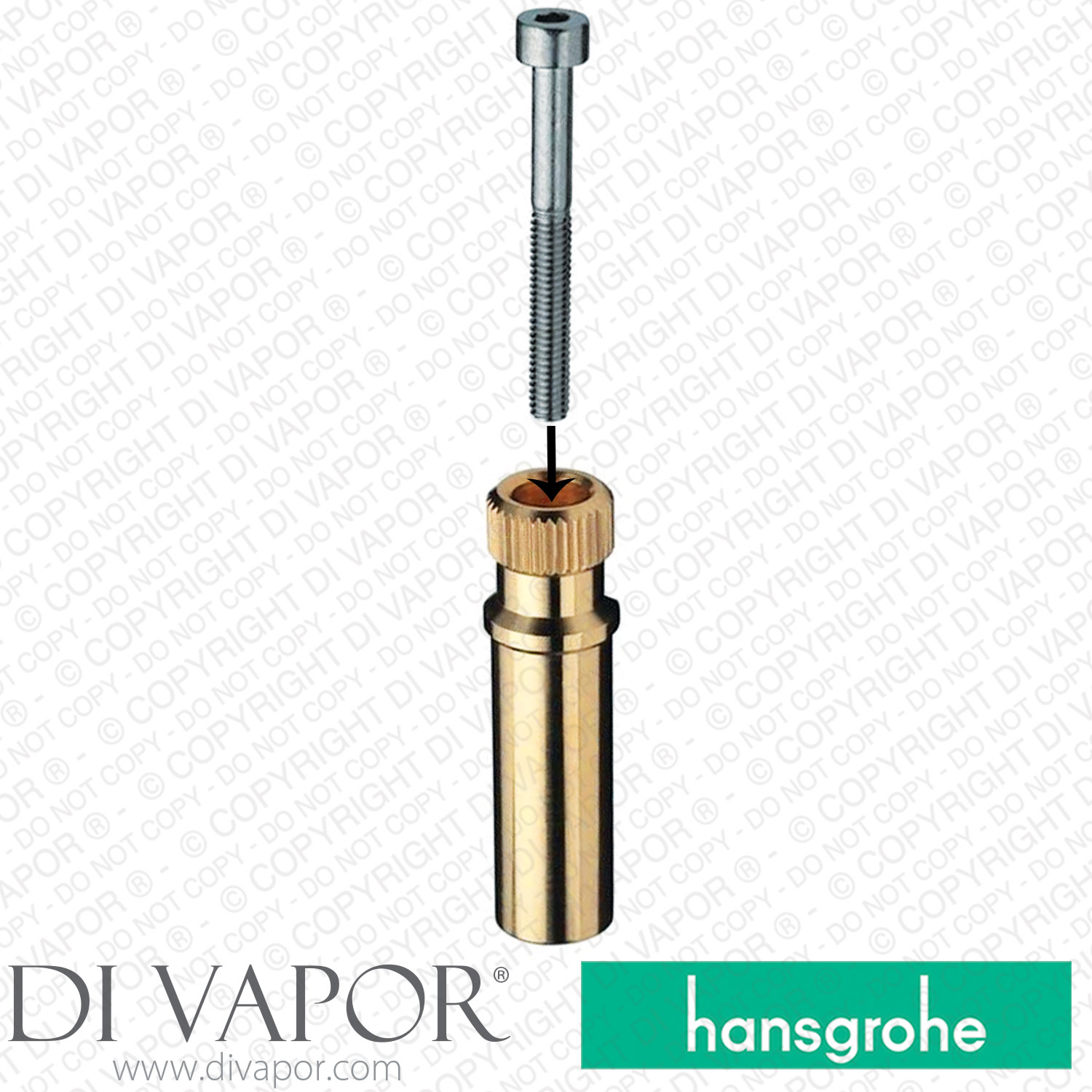

Hansgrohe 94641456 is a spindle adapter used with the Hansgrohe 96509000 shut-off and diverter cartridge assembly in selected Hansgrohe and AXOR concealed and exposed thermostatic shower valves.
This is the adapter component only. It is used to connect the control handle to the 96509000 shut-off and diverter unit so the valve can be turned and diverted correctly.
A damaged or worn spindle adapter can leave the control handle loose or stop it from engaging the shut-off and diverter unit properly. This part is intended for valves that use the 96509000 cartridge assembly and should be matched by reference rather than by appearance alone.
Technical Details
| Part code | 94641456 |
|---|---|
| Part type | spindle adapter |
| Used with | Hansgrohe 96509000 shut-off and diverter unit |
- This is not the cartridge itself and does not include the handle or retaining nut
- Before you order check your valve uses the 96509000 shut-off and diverter unit, and compare the handle and trim arrangement with your existing assembly
Verified Shower Valve Systems
- Hansgrohe 39705000 AXOR Citterio Thermostat for Concealed Installation with Shut-Off Valve and Cross Handle >05/11 Spare Parts
- Hansgrohe 13201000 Ecostat Bath Thermostat 1001 CL for Exposed Installation 04/16 - 08/19 Spare Parts
- Hansgrohe 13201000 Ecostat Bath Thermostat 1001 CL for Exposed Installation >09/19 Spare Parts
- Hansgrohe 15771000 PuraVida Thermostat for Concealed Installation with Shut-Off Diverter Valve 07/09 - 06/22 Spare Parts
- Hansgrohe 15771400 PuraVida Thermostat for Concealed Installation with Shut-Off Diverter Valve 07/09 - 06/22 Spare Parts
Related Spares You May Need
- Hansgrohe 96509000 Diverter Cartridge Shut off Unit with Selector
- Hansgrohe 94641541 Nut for 96509000 Diverter Cartridge
- Hansgrohe 96520000 Handle
- Hansgrohe 96421000 Handle for Axor Valves
- Hansgrohe 94009000 1/2" On/Off 1/4 Turn Flow Cartridge (Anti-Clockwise Turn On)
- Hansgrohe 94008000 1/2" On/Off 1/4 Turn Flow Cartridge (Clockwise Turn Open)
- Hansgrohe 94282000 Thermostatic Cartridge for Axor, Pharo and Other Valves
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
