Hansgrohe 96466000 Axor Diverter knob
Send a photo of your item and we'll help confirm it.
Summary

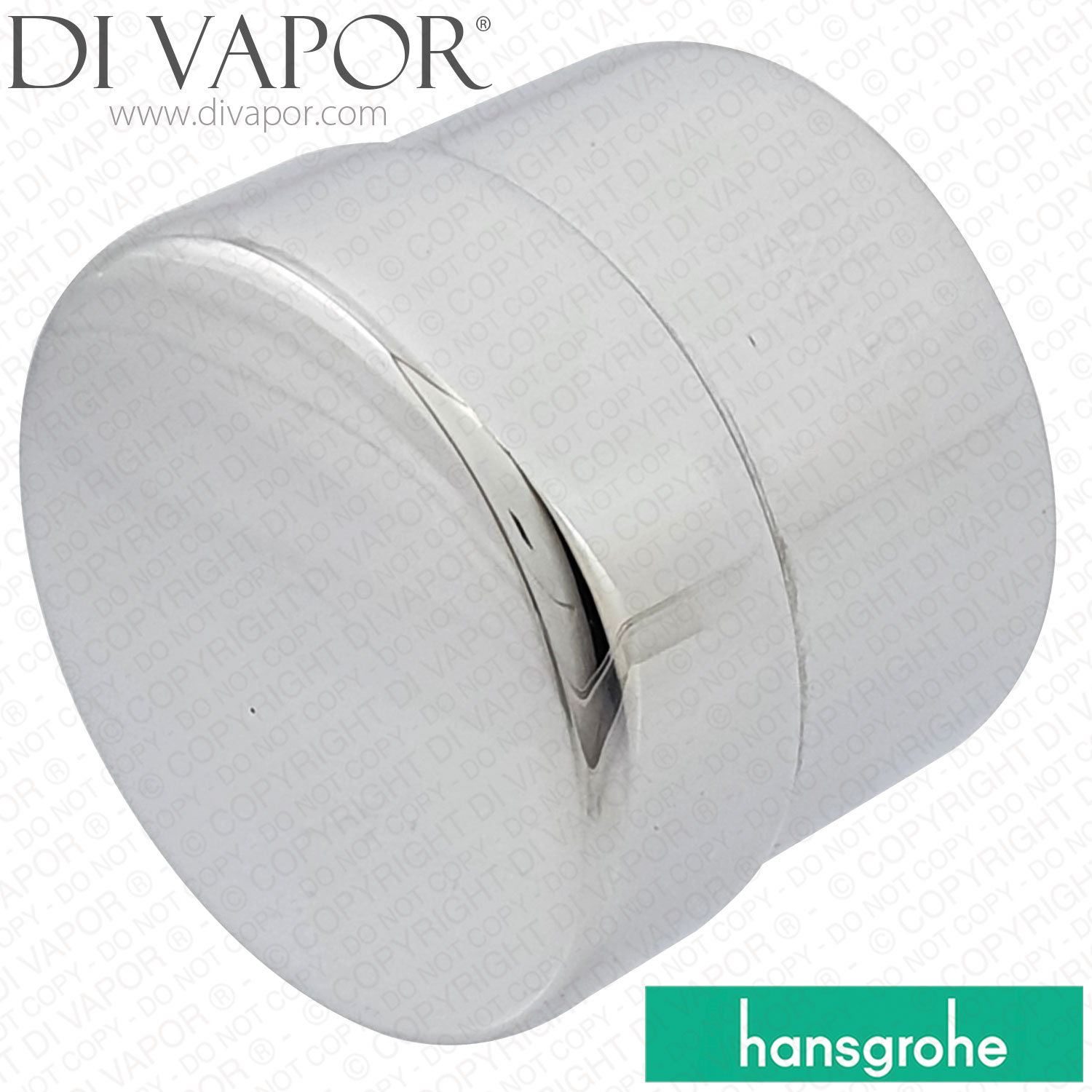

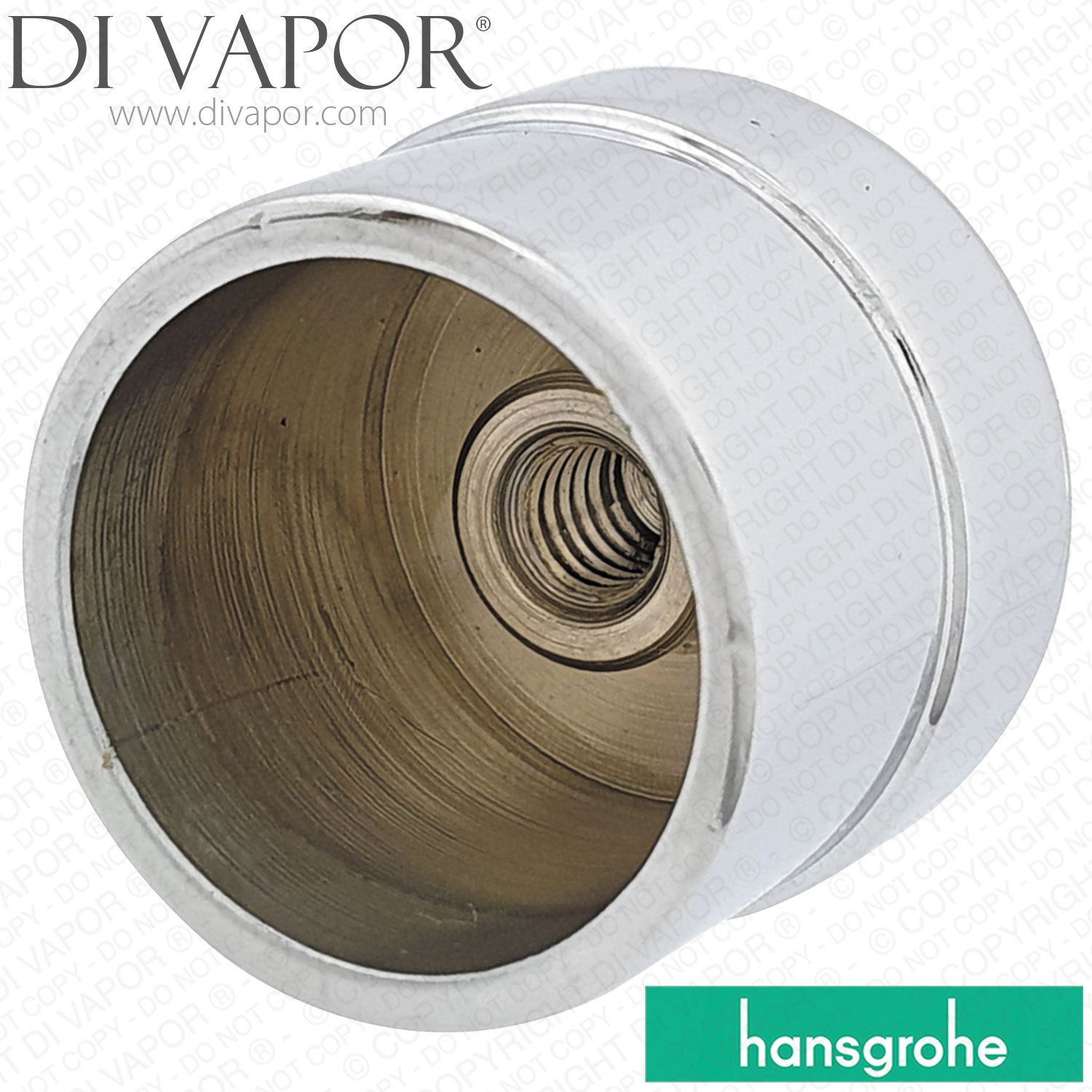

Hansgrohe 96466000 Bath Mixer and Showerpipe Diverter Knob Chrome
The Hansgrohe 96466000 is a chrome external diverter pull knob used on selected AXOR and Hansgrohe bath mixers, bath and shower thermostats, and showerpipes. It operates the outlet selector so water can be directed between the bath spout and shower outlet.
This part is the user-operated knob rather than the complete internal diverter mechanism. A loose, cracked, damaged, or missing knob can prevent normal operation of the selector. Difficulty changing outlets may also be caused by the internal sleeve or selector assembly, so inspect the mechanism before ordering.
Technical Details
| Manufacturer code | 96466000 |
|---|---|
| Part type | external diverter pull knob |
| Finish | chrome |
| Diameter | 19.6mm |
| Function | operates the bath-to-shower outlet selector on the specified mixer or shower system |
- Associated components can include sleeve 97738000 and selector assembly 94077000 or another model-specific selector
Confirmed Compatible Models
- AXOR Citterio 39442000 3-hole wall-mounted bath mixer with lever handles and plate - production 07/05 to 12/16
- AXOR Citterio 39442000 3-hole wall-mounted bath mixer with lever handles and plate - production 01/17 to 04/20
- AXOR Citterio 39448000 3-hole wall-mounted bath mixer with lever handles and escutcheons - production 07/05 to 12/16
- AXOR Citterio 39448000 3-hole wall-mounted bath mixer with lever handles and escutcheons - production 01/17 to 04/20
- AXOR Citterio 39448000 3-hole wall-mounted bath mixer with lever handles and escutcheons - production from 05/20
- AXOR Citterio 39441000 3-hole wall-mounted bath mixer with cross handles and plate - production 07/05 to 12/16
- AXOR Citterio 39441000 3-hole wall-mounted bath mixer with cross handles and plate - production 01/17 to 04/20
- AXOR Citterio 39441000 3-hole wall-mounted bath mixer with cross handles and plate - production from 05/20
- AXOR Citterio 39400000 exposed single-lever bath mixer with lever handle - production 04/03 to 06/09
- AXOR Citterio 39400000 exposed single-lever bath mixer with lever handle - production 07/09 to 04/20
- AXOR Citterio 39400000 exposed single-lever bath mixer with lever handle - production from 05/20
- AXOR Citterio 39451000 floor-standing single-lever bath mixer with pin handle - production 03/07 to 08/21
- AXOR Citterio 39451000 floor-standing single-lever bath mixer with pin handle - production from 09/21
- AXOR Citterio 39447000 3-hole wall-mounted bath mixer with cross handles and escutcheons - production 07/05 to 12/16
- AXOR Citterio 39447000 3-hole wall-mounted bath mixer with cross handles and escutcheons - production 01/17 to 04/20
- AXOR Citterio 39447000 3-hole wall-mounted bath mixer with cross handles and escutcheons - production from 05/20
- AXOR Citterio 39440000 floor-standing single-lever bath mixer with lever handle - production from 06/21
- AXOR Citterio 39620000 showerpipe with single-lever mixer and overhead shower 180 1jet - production 05/03 to 01/05
- AXOR Citterio 39620000 showerpipe with single-lever mixer and overhead shower 180 1jet - production 02/05 to 12/05
- AXOR Citterio 39620000 showerpipe with single-lever mixer and overhead shower 180 1jet - production 01/06 to 08/12
- AXOR Citterio 39620000 showerpipe with single-lever mixer and overhead shower 180 1jet - production 09/12 to 12/16
- AXOR Citterio 39620000 showerpipe with single-lever mixer and overhead shower 180 1jet - production 01/17 to 11/20
- AXOR Starck X 10402000 exposed single-lever bath mixer
- AXOR Starck X 10406000 floor-standing single-lever bath mixer
- AXOR Starck X 10406007 floor-standing single-lever bath mixer
- Hansgrohe Metris S 31460000 exposed single-lever bath mixer
- Hansgrohe Metris S 31464000 exposed single-lever bath mixer
- Hansgrohe Talis S 32420000 exposed single-lever bath mixer
- Hansgrohe Talis 31426000 2-hole rim-mounted bath mixer with diverter valve and hand shower
- Hansgrohe Focus 31521000 2-hole rim-mounted bath mixer with diverter valve and hand shower
- Hansgrohe Novus 71044000 2-hole rim-mounted bath mixer with diverter valve and hand shower
- Hansgrohe Ecomax 13354000 exposed bath and shower thermostat
- Hansgrohe Metris Puro 31462000 exposed single-lever bath mixer DN15
Before Ordering
Check the mixer or showerpipe product code and construction period against the original spare-parts diagram. Do not identify this knob from the 19.6mm diameter alone, as visually similar Hansgrohe diverter knobs use different connections and internal selector arrangements.
Related Spares You May Need
The thermostatic cartridge is relevant only to selected thermostatic installations and is not used in every mixer fitted with the 96466000 diverter knob.
