Hansgrohe 38993000 Handle - 10836318

SUMMARY

Hansgrohe 38993000 Chrome Shut-Off and Diverter Control Handle 10836318

Diameter: 61mm

Height: 50mm

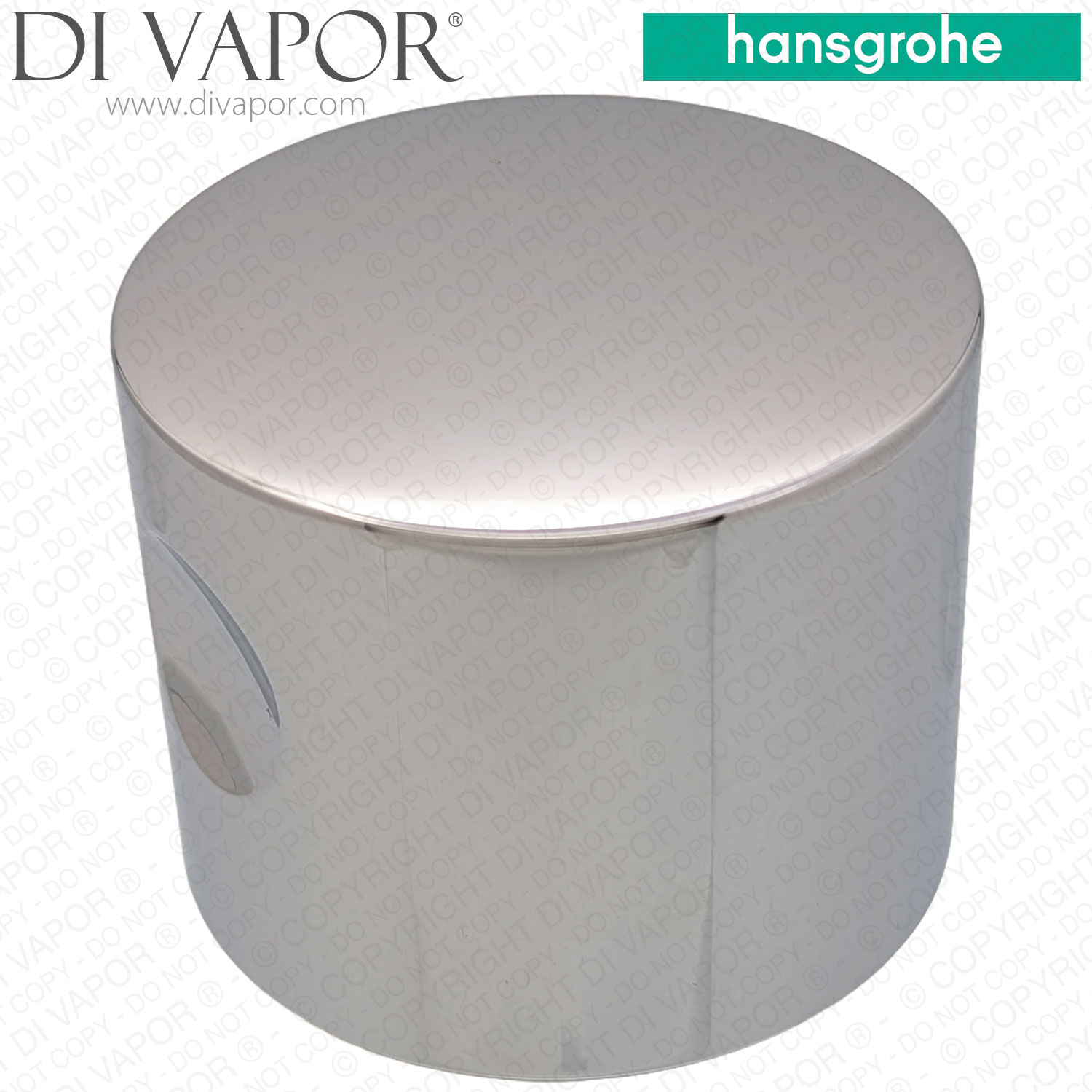

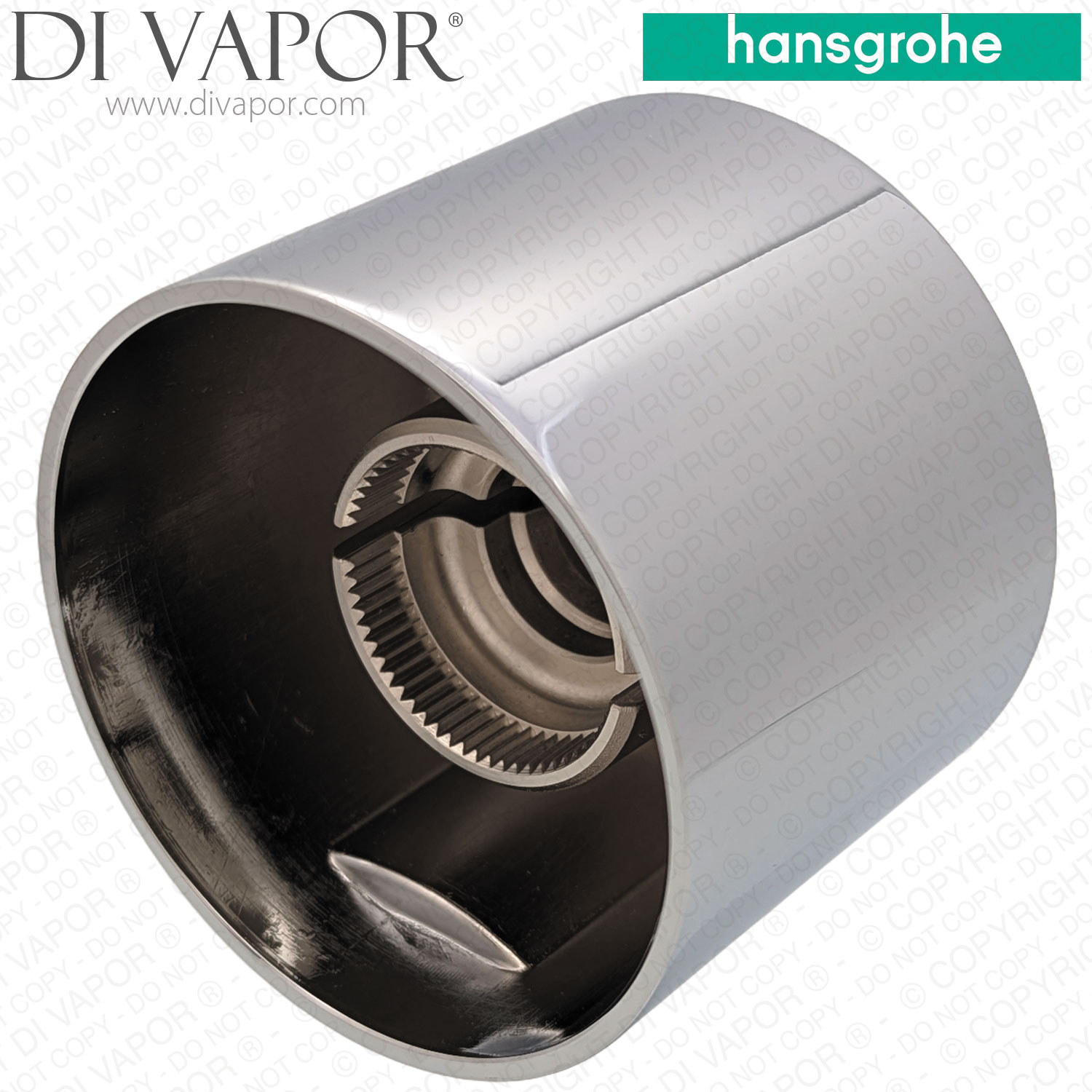

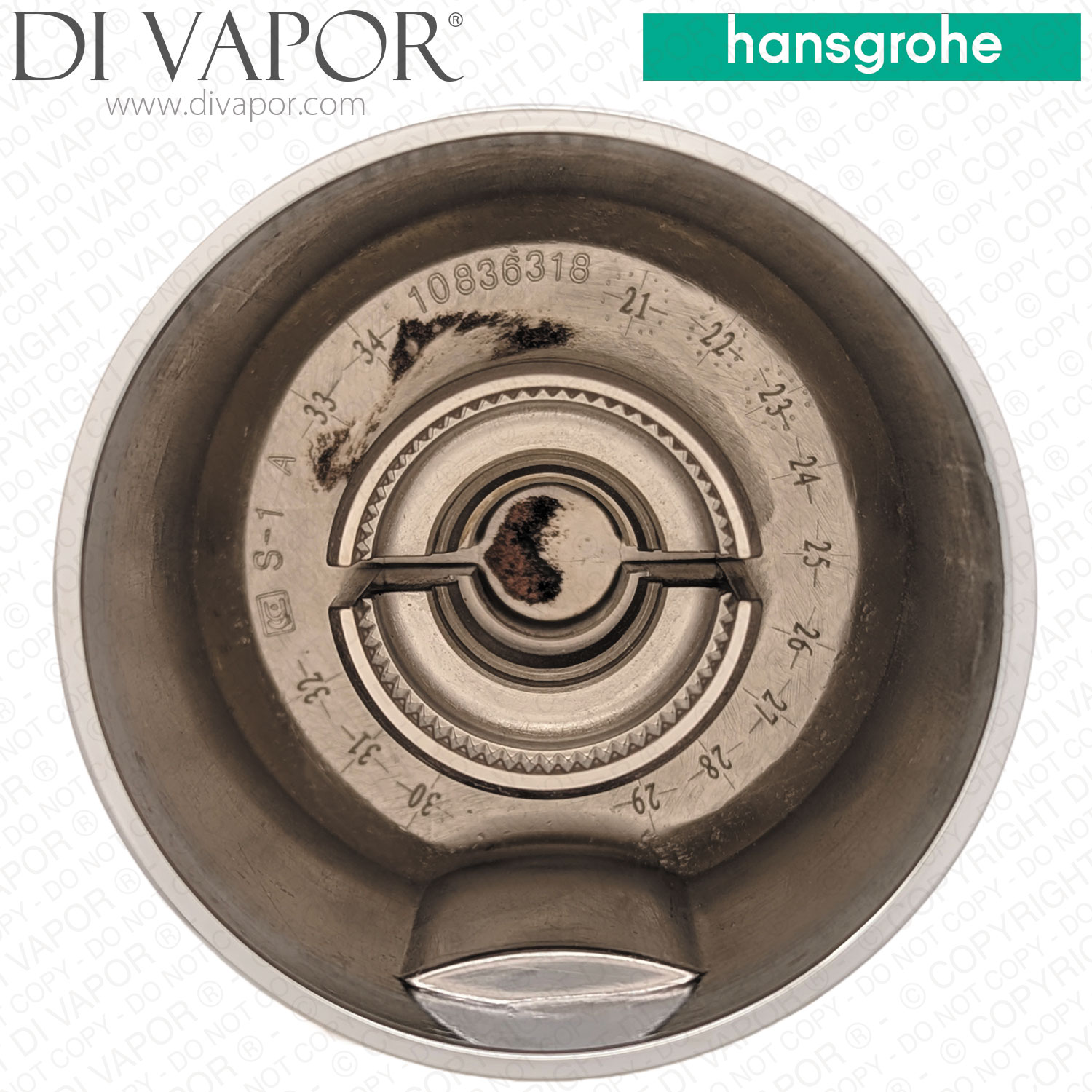

The Hansgrohe 38993000 is a cylindrical chrome control handle for selected Hansgrohe and AXOR shut-off valves, Trio/Quattro diverter controls and thermostatic bath mixers. The additional reference 10836318 is shown with this part on the Di Vapor listing.

Depending on the parent fitting, the handle operates the water shut-off function or controls outlet selection through the internal diverter assembly. It is intended to restore the external control when the original handle is cracked, missing or no longer engaging correctly with the fixing adapter or valve spindle.

Technical Details

- - Brand: Hansgrohe / AXOR

- - Manufacturer code: 38993000

- - Additional reference: 10836318

- - Part type: shut-off and diverter control handle

- - Finish: chrome

- - Form: cylindrical

- - Fixing type: snapped

Confirmed Compatible Models

- - AXOR Uno 38882000 Wall Outlet Stop with Shut-Off Valve from 04/2001

- - AXOR Uno 38933000 Shut-Off and Diverter Valve for 3 or 4 Outlets

- - Hansgrohe 15932000 S Trio/Quattro Concealed Shut-Off and Diverter Valve from 11/2009

- - AXOR Citterio M 34920000 Concealed Trio/Quattro Shut-Off and Diverter Valve from 01/2008 to 04/2009

- - AXOR Uno 38480000 2-Hole Rim-Mounted Thermostatic Bath Mixer from 03/2002 to 09/2012

Before Ordering

Confirm the complete article number and production period of the parent valve or mixer before ordering. The handle dimensions and appearance alone do not confirm fitment.

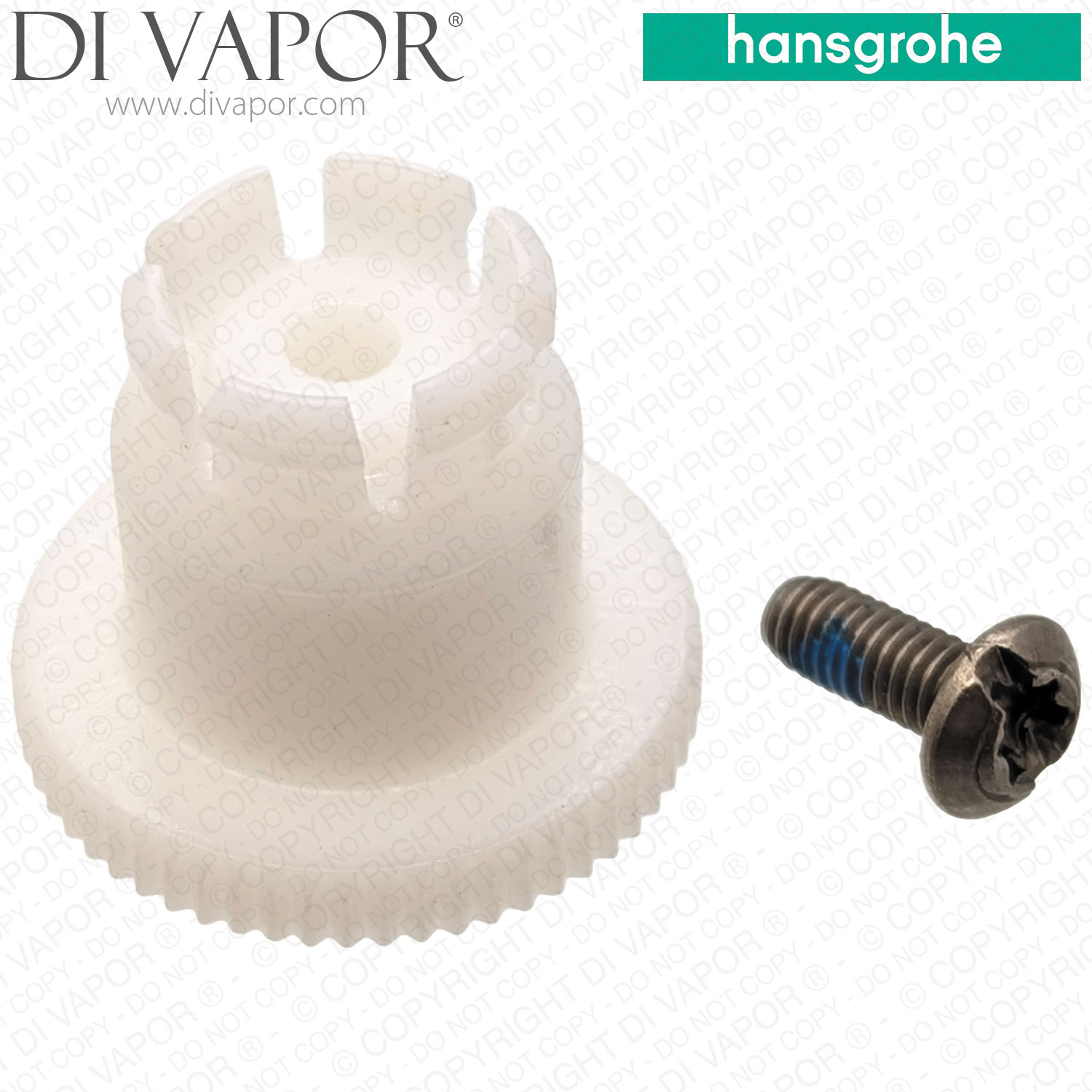

The fixing adapter and internal valve components are separate parts. Inspect the existing 94184000 fixing adapter and the valve spindle for wear or damage before replacing the handle.

Troubleshooting

- - Symptom: the handle is loose or will not engage. Likely Cause: damage to the handle or 94184000 fixing adapter. Solution: inspect both components and replace the damaged part.

- - Symptom: the handle turns but water does not stop or change outlet. Likely Cause: a fault within the internal shut-off or diverter mechanism. Solution: identify the parent fitting and check its internal cartridge or valve components.

- - Symptom: water drips from the shower head or spout when the fitting is turned off. Likely Cause: wear within the internal flow or diverter cartridge rather than the external handle. Solution: inspect the appropriate internal cartridge for the exact model.

Installation Note

Isolate the water supply where access to the valve assembly is required. Position the fixing adapter and spindle correctly before snapping the handle into place, and avoid forcing the chrome handle if it does not align.

Related Spares You May Need

- - Hansgrohe 94184000 Handle Fixing Adapter - used in the handle fixing arrangement on the confirmed shut-off and diverter controls

- - Hansgrohe 98677000 Control Handle Fixing Nut - used with the Hansgrohe 15932000 control assembly

- - Hansgrohe 98128000 13x2mm O-Ring - used within the Hansgrohe 15932000 and AXOR Citterio M 34920000 assemblies

- - Hansgrohe 94074000 Non Return Valves DW15 / DN10 - used within the AXOR Uno 38882000 wall outlet stop assembly

- - Hansgrohe 97212000 Axor Carlton Red Push Button - listed for the AXOR Uno 38480000 thermostatic bath mixer

- - Hansgrohe 94282000 Thermostatic Cartridge for Axor Pharo and Other Valves - temperature-control cartridge listed for the AXOR Uno 38480000 bath mixer

- - Hansgrohe 92371000 3-Way Diverter Cartridge - outlet-selection cartridge listed for the AXOR Uno 38480000 bath mixer
