Hansgrohe 96509000 Diverter Cartridge Shut off Unit with Selector - Compatible Spare

Summary

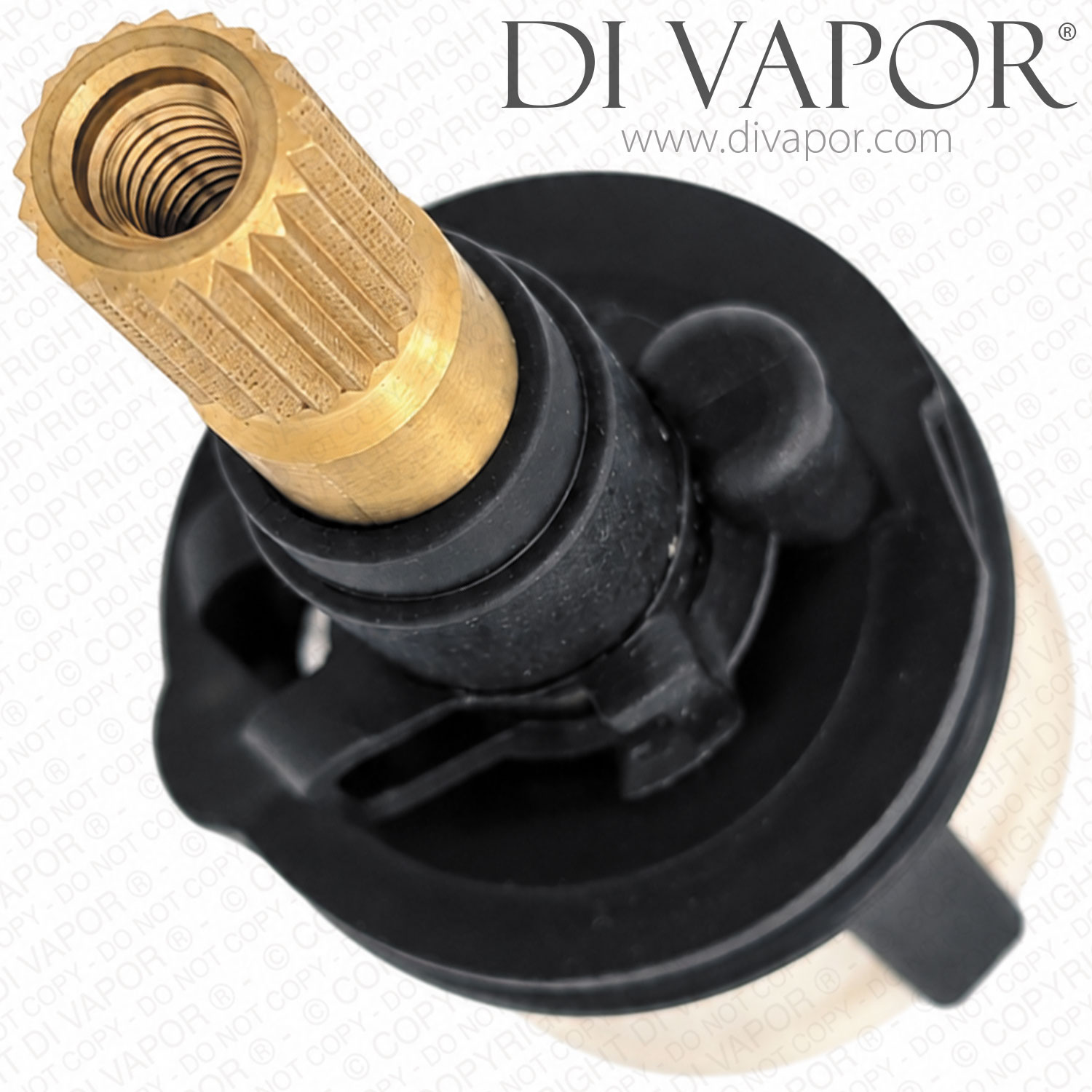

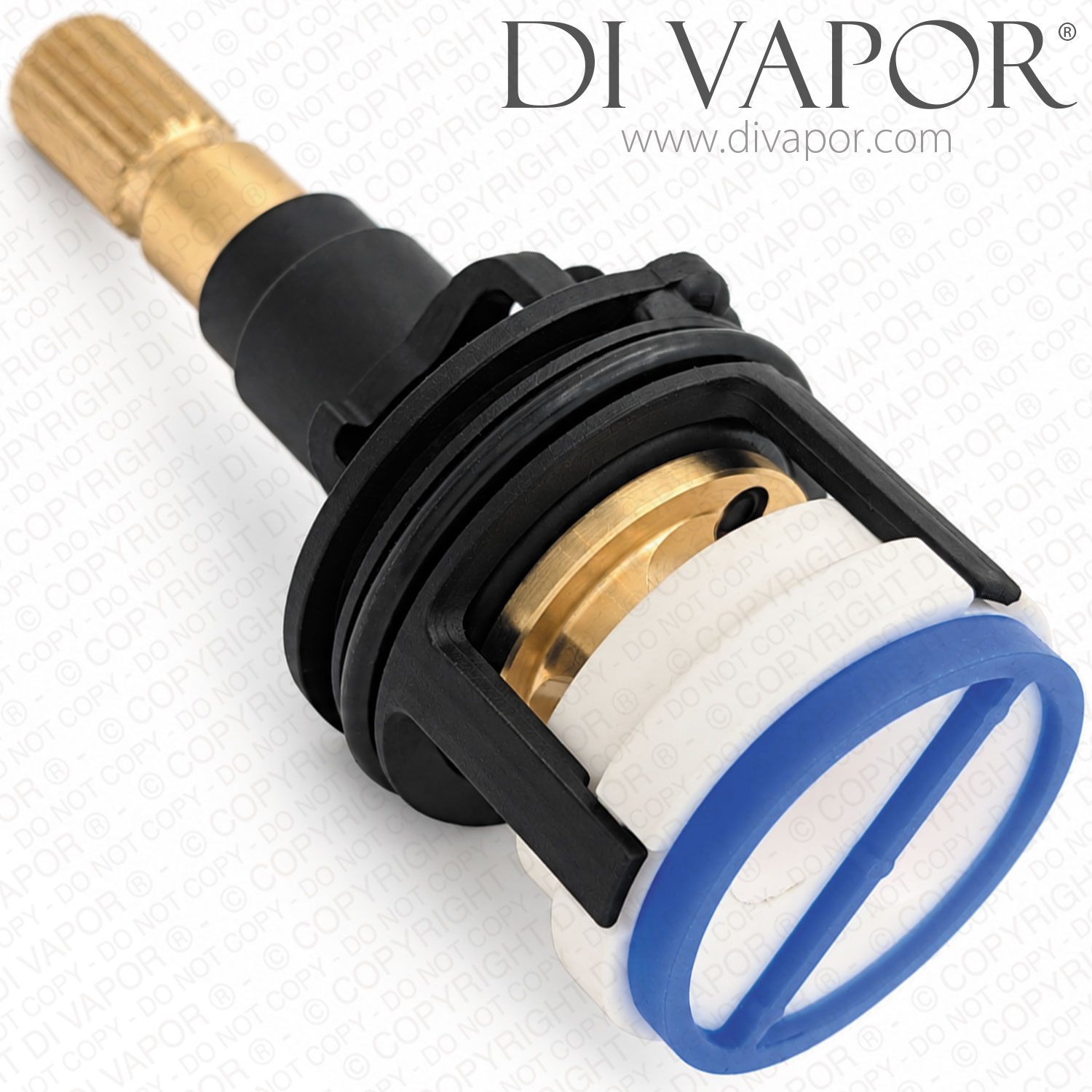

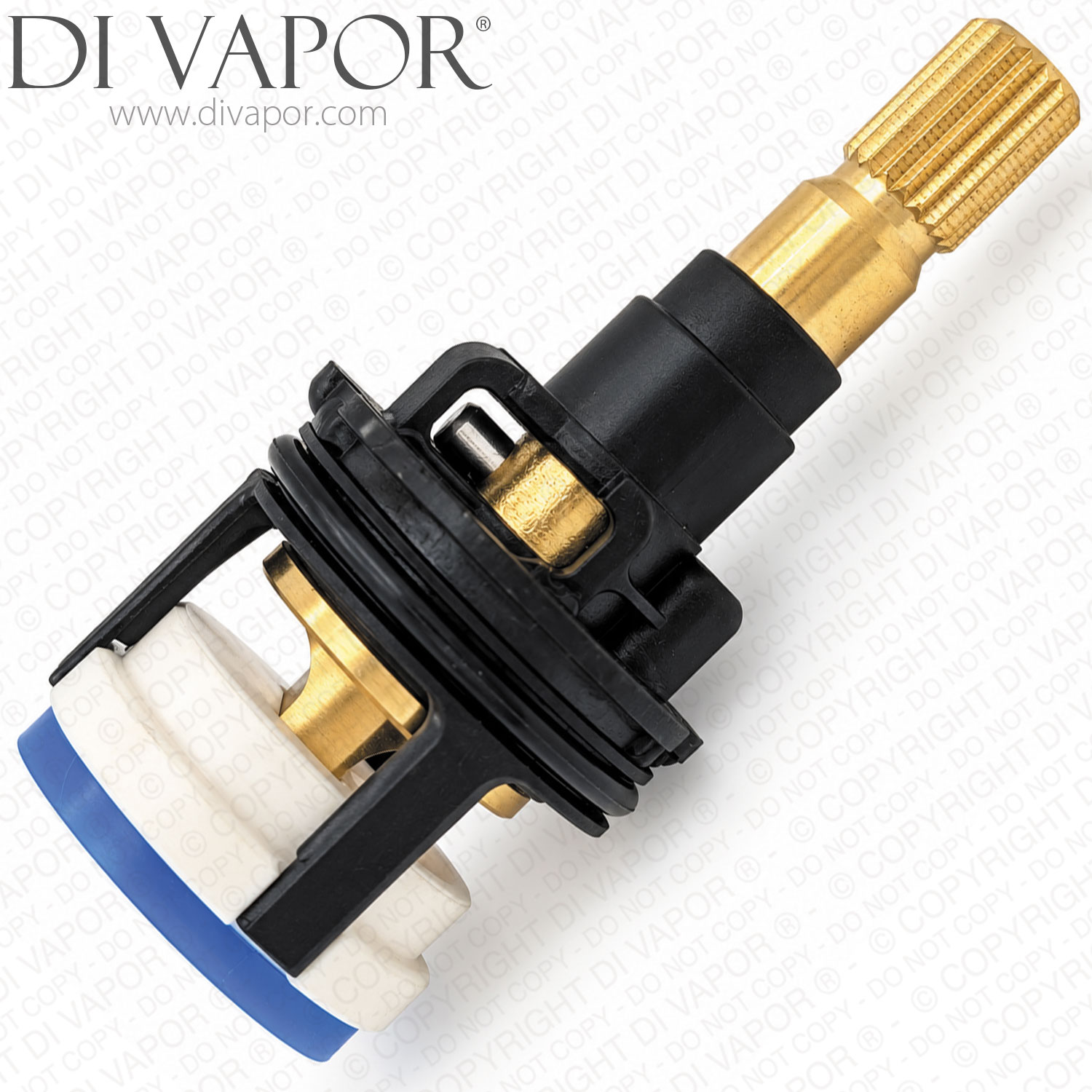

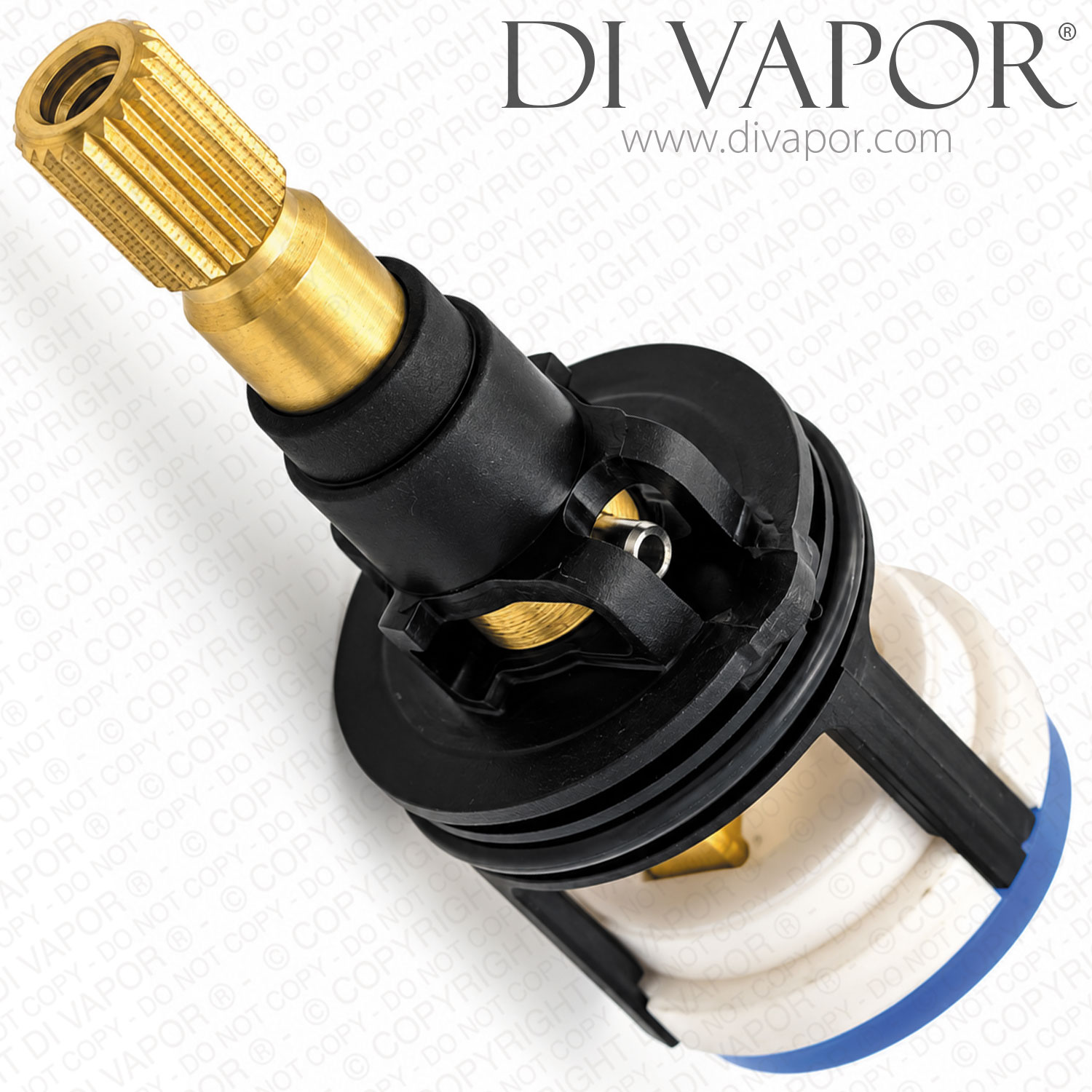

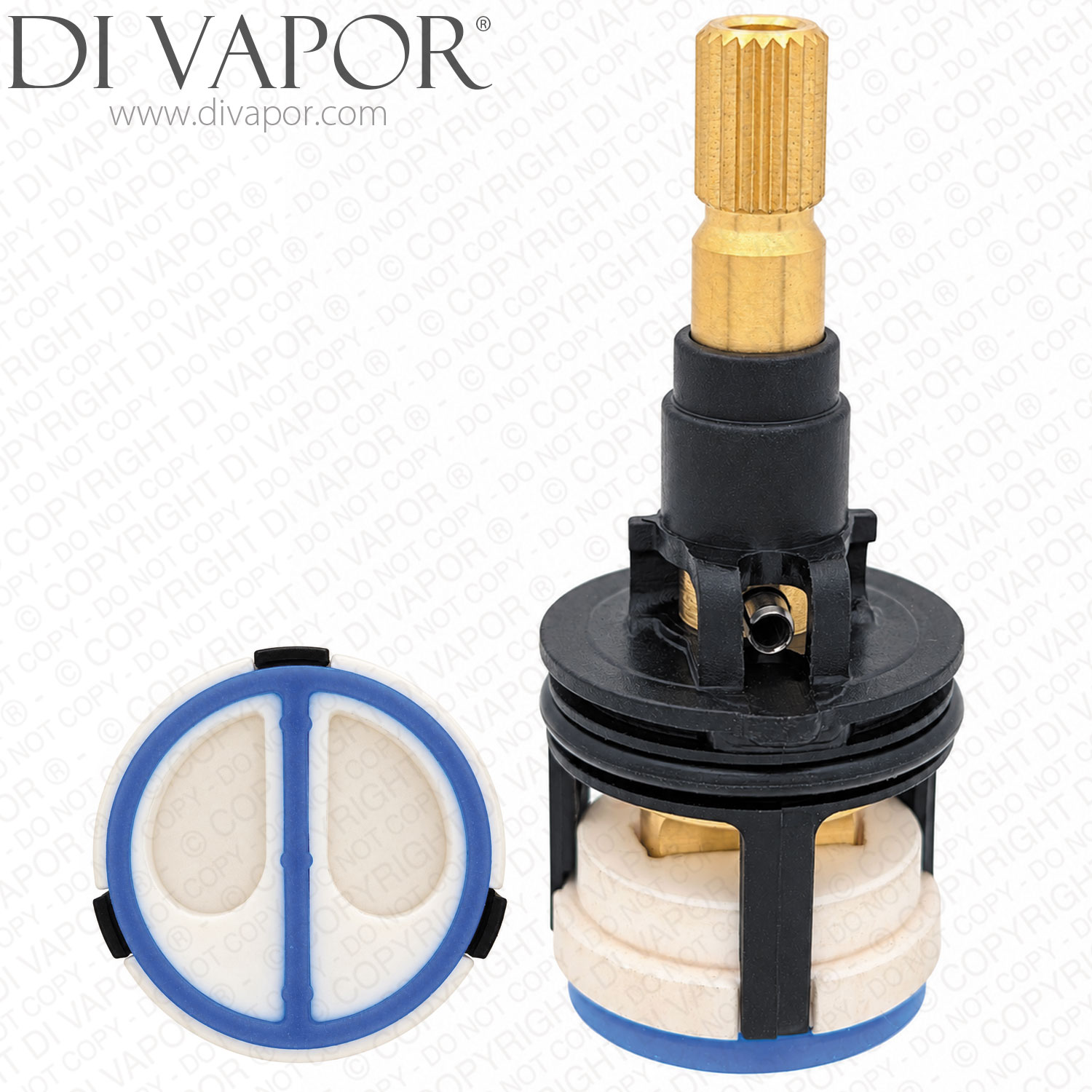

Hansgrohe 96509000 Shower and Bath Mixer Shut-Off Diverter Cartridge - Compatible Spare

A compatible shut-off and diverter cartridge for Hansgrohe 96509000. This selector cartridge is used in selected Hansgrohe and AXOR thermostatic shower mixers, bath mixers, concealed valves and showerpipe systems.

The cartridge controls water shut-off and selects the outlet on mixers with a diverter function. It is separate from the thermostatic cartridge that regulates the mixed-water temperature.

Technical Details

Common Faults and Checks

• Symptom: water continues dripping from the shower head or bath spout after the control is turned off / Likely Cause: wear, damage or debris affecting the shut-off mechanism / Solution: inspect the cartridge and its seating and renew the cartridge where the fault is confirmed
• Symptom: water flows from an unselected outlet or the mixer no longer diverts correctly / Likely Cause: a fault within the diverter mechanism / Solution: check the control operation and inspect the diverter cartridge
• Symptom: the handle turns without operating the valve / Likely Cause: a loose or damaged handle connection or spindle adapter / Solution: inspect the handle and adapter before assuming the cartridge requires replacement

Temperature-control problems require separate diagnosis. This shut-off and diverter cartridge does not replace the thermostatic temperature-control cartridge.

Check Before Ordering

Match the complete Hansgrohe or AXOR product code and the production period of your mixer. The correct spare-parts diagram must specify 96509000 at the shut-off or diverter position. A shared range name, similar handle or matching diameter alone does not establish fitment. Parts 94009000 and 94008000 are different cartridges and must not be treated as interchangeable with 96509000.

Confirmed Compatible Models

Fitment is specific to the model and production version. Where several versions are listed, use the components page for the period matching your installation.

Hansgrohe Ecostat and MyFox

• Hansgrohe Ecostat 1001 CL 13201000 exposed thermostatic bath mixer - production 04/16 - 08/19
• Hansgrohe Ecostat 1001 CL 13201000 exposed thermostatic bath mixer - production from 09/19
• Hansgrohe MyFox 13154000 exposed bath thermostat - production from 09/19
• Hansgrohe Ecostat 1001 SL 13242000 exposed thermostatic bath mixer - production 11/04 - 05/12
• Hansgrohe Ecostat 1001 SL 13242000 exposed thermostatic bath mixer - production 06/12 - 12/17
• Hansgrohe Ecostat 1001 CL 13214000 bath thermostat - production 05/16 - 08/19 and from 09/19
• Hansgrohe Ecostat 1001 SL 13241000 bath thermostat - production 01/02 - 12/17
• Hansgrohe Ecostat 1001 SL 13287000 bath thermostat - production 07/13 - 12/17
• Hansgrohe Ecostat S 15721000 concealed thermostat with shut-off and diverter - production 04/05 - 06/08, 07/08 - 08/12 and 09/12 - 12/17
• Hansgrohe Ecostat S 15721880 concealed thermostat with shut-off and diverter - production 04/05 - 06/08 and 07/08 - 12/11
• Hansgrohe Ecostat E 15720810 concealed thermostat - production 06/01 - 07/07
• Hansgrohe Ecostat E 15720880 concealed thermostat - production 06/01 - 06/08 and 07/08 - 02/11
• Hansgrohe 15722000 concealed thermostat - production 06/10 - 08/12 and 09/12 - 12/14
• Hansgrohe Mediano S 15733000 concealed thermostat - production 04/10 - 08/12 and 09/12 - 07/16
• Hansgrohe Ecostat Classic 15753000 concealed thermostat - production 10/09 - 05/12 and 06/12 - 12/16
• Hansgrohe Ecostat Classic 15753820 concealed thermostat - production 10/09 - 05/12 and 06/12 - 12/13

Hansgrohe Showerpipes and Shower Panels

• Hansgrohe Crometta S Showerpipe 240 1jet 27267000 - production 04/16 - 05/19 and from 06/19
• Hansgrohe Crometta E Showerpipe 240 1jet EcoSmart 27281000 - production 04/16 - 11/20 and from 12/20
• Hansgrohe Crometta E Showerpipe 240 1jet 27271000 - production 04/16 - 11/21 and from 12/21
• Hansgrohe Crometta S Showerpipe 240 1jet EcoSmart 27268000 - production from 04/16
• Hansgrohe Crometta S 26186000
• Hansgrohe Crometta S Showerpipe 240 1jet 160cc 27332000 - production from 04/16
• Hansgrohe Crometta E Showerpipe 240 1jet 160cc 27336000 - production from 04/16
• Hansgrohe Raindance S 240 Air 1jet Showerpipe 27160000 - production 07/06 - 01/09, 02/09 - 07/11, 08/11 - 11/12, 12/12 - 06/13 and 07/13 - 12/16
• Hansgrohe Raindance S 180 Air 1jet EcoSmart Showerpipe 27165000 - production 01/07 - 01/09, 02/09 - 05/11, 06/11 - 06/13 and 07/13 - 12/16
• Hansgrohe MyClub Showerpipe 180 1jet 26735400 - production 01/16 - 06/22
• Hansgrohe MyClub Showerpipe 180 1jet EcoSmart 26738400 - production 01/16 - 06/22
• Hansgrohe Marin 2 Showerpipe 160 Eco 27207000 - production 01/11 - 01/18
• Hansgrohe Waterforms 26985000 - production from 06/21
• Hansgrohe Pharo SkyLine shower panel 26017000 - production 05/07 - 12/14
• Hansgrohe Pharo SkyLine 150 26015000 - production 10/07 - 12/14

Hansgrohe PuraVida

• Hansgrohe PuraVida 15771000 concealed thermostat with shut-off and diverter - production 07/09 - 06/22
• Hansgrohe PuraVida 15771400 concealed thermostat with shut-off and diverter - production 07/09 - 06/22

AXOR Citterio and Citterio M

• AXOR Citterio 39720000 concealed thermostat with lever handle - production 04/03 - 06/08
• AXOR Citterio 39720000 concealed thermostat with lever handle - production 07/08 - 04/11
• AXOR Citterio 39720000 concealed thermostat with lever handle - production from 05/11
• AXOR Citterio 39725000 concealed thermostat with cross handle - production 04/03 - 06/08
• AXOR Citterio 39725000 concealed thermostat with cross handle - production 07/08 - 04/11
• AXOR Citterio 39725000 concealed thermostat with cross handle - production from 05/11
• AXOR Citterio M 34725000 concealed thermostat with shut-off and diverter - production 01/08 - 06/08
• AXOR Citterio M 34725000 concealed thermostat - additional production versions 07/08 - 05/11, 06/11 - 08/12 and from 09/12
• AXOR Citterio M Showerpipe 34630000 - production 01/08 - 11/13
• AXOR Citterio Showerpipe 39739000 - production 06/10 - 08/12 and 09/12 - 12/14
• AXOR Citterio showerpipes 39670000 and 39670990 - match the exact production version

AXOR Montreux

• AXOR Montreux 16820830 concealed thermostat with cross handle - production 07/08 - 12/19
• AXOR Montreux 16821000 concealed thermostat with lever handle - production from 10/16
• AXOR Montreux 16820000 concealed thermostats with cross handle - production 05/06 - 06/08, 07/08 - 02/10 and from 03/10
• AXOR Montreux 16820820 concealed thermostats with cross handle - production 05/06 - 06/08, 07/08 - 02/10 and from 03/10
• AXOR Montreux 16821820 concealed thermostat with lever handle - production from 10/16
• AXOR Montreux 16820340 concealed thermostat with cross handle - production from 11/16
• AXOR Montreux 16241000 exposed bath thermostats - production 04/06 - 06/07 and 07/07 - 12/13
• AXOR Montreux 16241820 exposed bath thermostats - production 04/06 - 06/07 and 07/07 - 12/13
• AXOR Montreux 16241830 exposed bath thermostat - production 04/06 - 06/07 and 07/07 - 08/12

AXOR Carlton

• AXOR Carlton 17241000 exposed thermostatic bath mixer - production 01/06 - 08/19
• AXOR Carlton 17241000 exposed thermostatic bath mixer - production from 09/19
• AXOR Carlton 17720000 concealed thermostat with lever handle - production 07/08 - 01/09
• AXOR Carlton 17720000 concealed thermostat with lever handle - additional production versions 06/01 - 06/08 and 02/09 - 12/17
• AXOR Carlton 17725000 concealed thermostat with cross handle - production from 02/09
• AXOR Carlton 17725090 concealed thermostat with cross handle - production 07/01 - 06/08 and 07/08 - 01/09
• AXOR Carlton 17720090 concealed thermostat with lever handle - production 07/01 - 06/08, 07/08 - 01/09 and 02/09 - 12/17
• AXOR Carlton 17241810 exposed bath thermostat - production 01/06 - 09/09

AXOR Starck and Starck X

• AXOR Starck 10720000 concealed thermostat with shut-off and diverter - production 07/08 - 05/11
• AXOR Starck 10720000 concealed thermostat - additional production versions 07/01 - 06/08 and from 06/11
• AXOR Starck X 10726000 concealed thermostat with shut-off and diverter - production 07/08 - 04/11
• AXOR Starck X 10726000 concealed thermostat - additional production versions 04/05 - 06/08 and from 05/11
• AXOR Starck 10340000 two-handle exposed bath thermostat - production 09/02 - 04/11
• AXOR Starck 10340810 two-handle exposed bath thermostat - production 09/02 - 09/07

AXOR Uno and Other Concealed Thermostats

• AXOR Uno 38720000 concealed thermostat with shut-off and diverter - production 06/01 - 06/08
• AXOR Uno 38720000 concealed thermostat with shut-off and diverter - production 07/08 - 04/11
• AXOR Uno 38720000 concealed thermostat with shut-off and diverter - production 05/11 - 08/12
• AXOR Uno 38720000 concealed thermostat with shut-off and diverter - production from 09/12
• AXOR Uno 38720800 concealed thermostat - production 11/12 - 12/15
• AXOR Uno Color concealed thermostat variants 13720030, 13720060, 13720330, 13720450, 13720430 and 13720480 - production 07/01 - 05/03
• AXOR Massaud 18750000 concealed thermostat with shut-off and diverter - production 05/11 - 06/23
• AXOR Massaud 18750000 concealed thermostat with shut-off and diverter - production 07/06 - 04/11
• AXOR Urquiola 11733000 concealed thermostat with shut-off and diverter - production from 04/09
• AXOR Bouroullec 19706000 concealed thermostat with shut-off and diverter - production 10/10 - 12/17
• AXOR Terrano 37720000 lever-handle and 37725000 cross-handle concealed thermostats - production 07/01 - 06/08 and 07/08 - 12/10
• AXOR Terrano 37720810 lever-handle and 37725810 cross-handle concealed thermostats - production 07/01 - 06/08 and 07/08 - 07/09
• AXOR Mondaro 18720000 concealed thermostat - production 07/01 - 12/03
• AXOR Steel 35720800 concealed thermostat - production 06/01 - 06/08 and 07/08 - 12/11
• AXOR Arco 11720000 concealed thermostat - production 07/01 - 08/04
• AXOR Arco 11720090 concealed thermostat - production 07/01 - 06/05
• AXOR Azzur 34720520 concealed thermostat - production 07/01 - 11/06
• AXOR Azzur 34720530 concealed thermostat - production 07/01 - 02/05

Installation Note

Isolate both water supplies before dismantling the mixer and follow the service instructions for its exact model and production version. Inspect the cartridge seating, seals, retaining arrangement and spindle adapter during removal. Use a suitable silicone lubricant on seals where directed by the installation instructions. Reassemble and check shut-off, outlet selection and leakage before returning the mixer to use.

Related Spares You May Need

These parts are used on particular mixer versions and are not required together. Match each item to the components diagram for your exact valve. The thermostatic cartridges listed below serve the separate temperature-control position; the HANS-94282000 and 94282000-CP options are alternatives to one another.

• TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - suitable seal lubricant for servicing - Part Number: TAC86
• Hansgrohe 96618000 Handle - model-specific control handle - Part Number: HG-96618000
• Hansgrohe 96520000 Handle - flow and diverter control handle for selected valves - Part Number: HG-96520000
• Hansgrohe 96421000 Handle for AXOR Valves - model-specific operating handle - Part Number: HG-96421000
• Hansgrohe 94641541 Nut for 96509000 Diverter Cartridge - check the retaining arrangement for your valve version - Part Number: HG-94641541
• Hansgrohe 94641456 Spindle Adapter for 96509000 Diverter Cartridge - handle-to-cartridge connection for selected valves - Part Number: HG-94641456
• Hansgrohe 94282000 Thermostatic Cartridge for AXOR and Pharo Valves - separate temperature-control cartridge where specified - Part Number: HANS-94282000
• Hansgrohe 94282000 Thermostatic Cartridge Compatible Brass Replacement - alternative for the separate temperature-control position where specified - Part Number: 94282000-CP

Model-Specific Handles and Service Parts

The following components apply only to the relevant mixer assemblies. O-ring sizes identify these individual seals and must not be used to identify the 96509000-C cartridge or establish valve fitment.

• Hansgrohe 96619000 Ecostat 1001 Flow Control Handle - Chrome - Part Number: 96619000

• Hansgrohe 94074000 Non-Return Valves DW15 / DN10 - Part Number: HG-94074000
• Hansgrohe 95037000 Thermostatic Cartridge Seal Kit - seals for the separate thermostatic cartridge position - Part Number: HG-95037000
• Hansgrohe 92160000 M4x35 Hexagon Socket Screw - Part Number: 92160000

• Hansgrohe 96447000 Sub Plate - concealed trim support plate for selected assemblies - Part Number: 96447000
• Hansgrohe 97212000 AXOR Red Push Button - temperature-control handle button for selected mixers - Part Number: 97212000

For help finding the right part, use the Di Vapor part identification service.
