Hansgrohe 92651001 Chrome Adapter from 92651000

SUMMARY

Hansgrohe 92651001 Chrome Adapter from 92651000

Total length (including brass spindle and chrome): 87mm

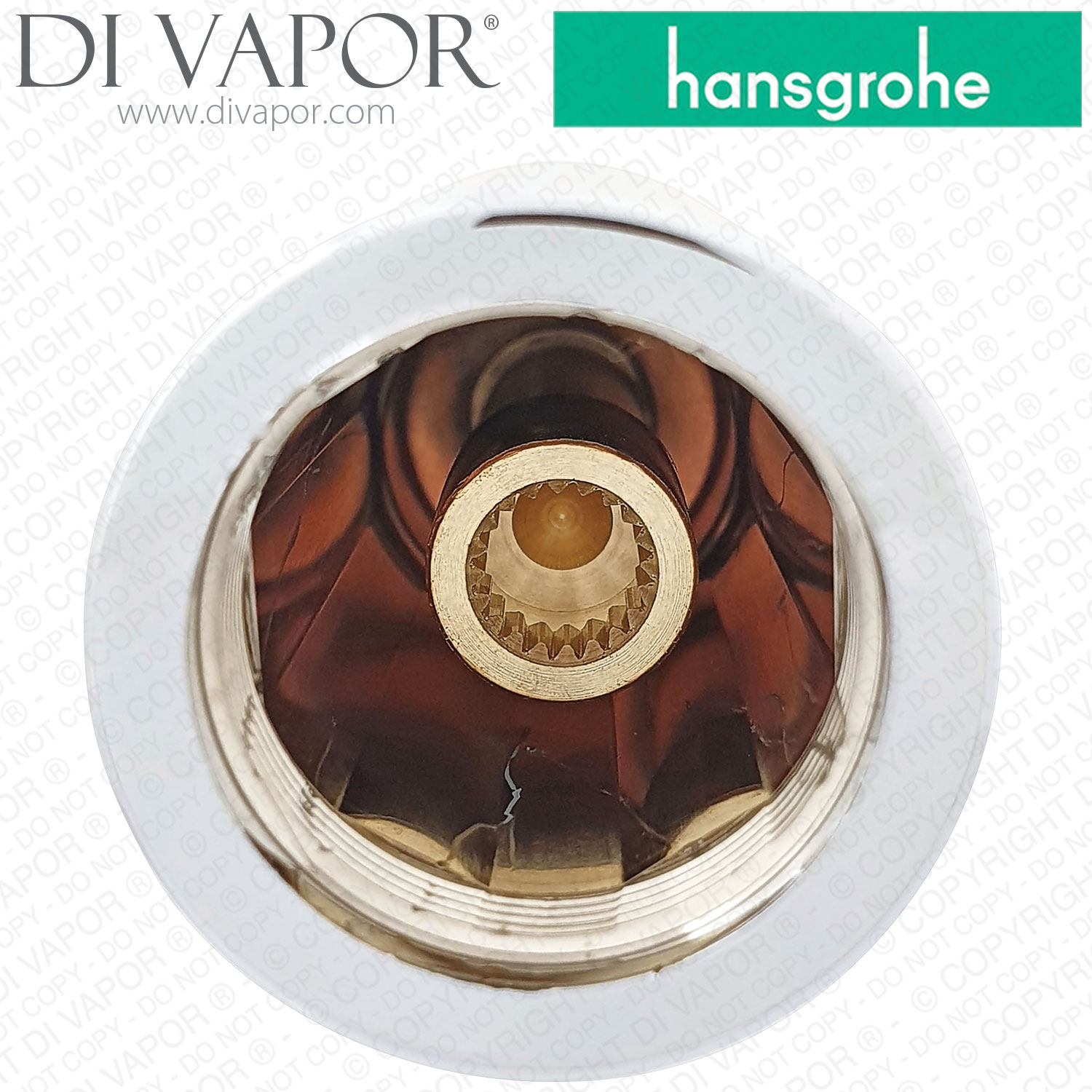

Number of internal Splines: 20

Number of External Splines: 20

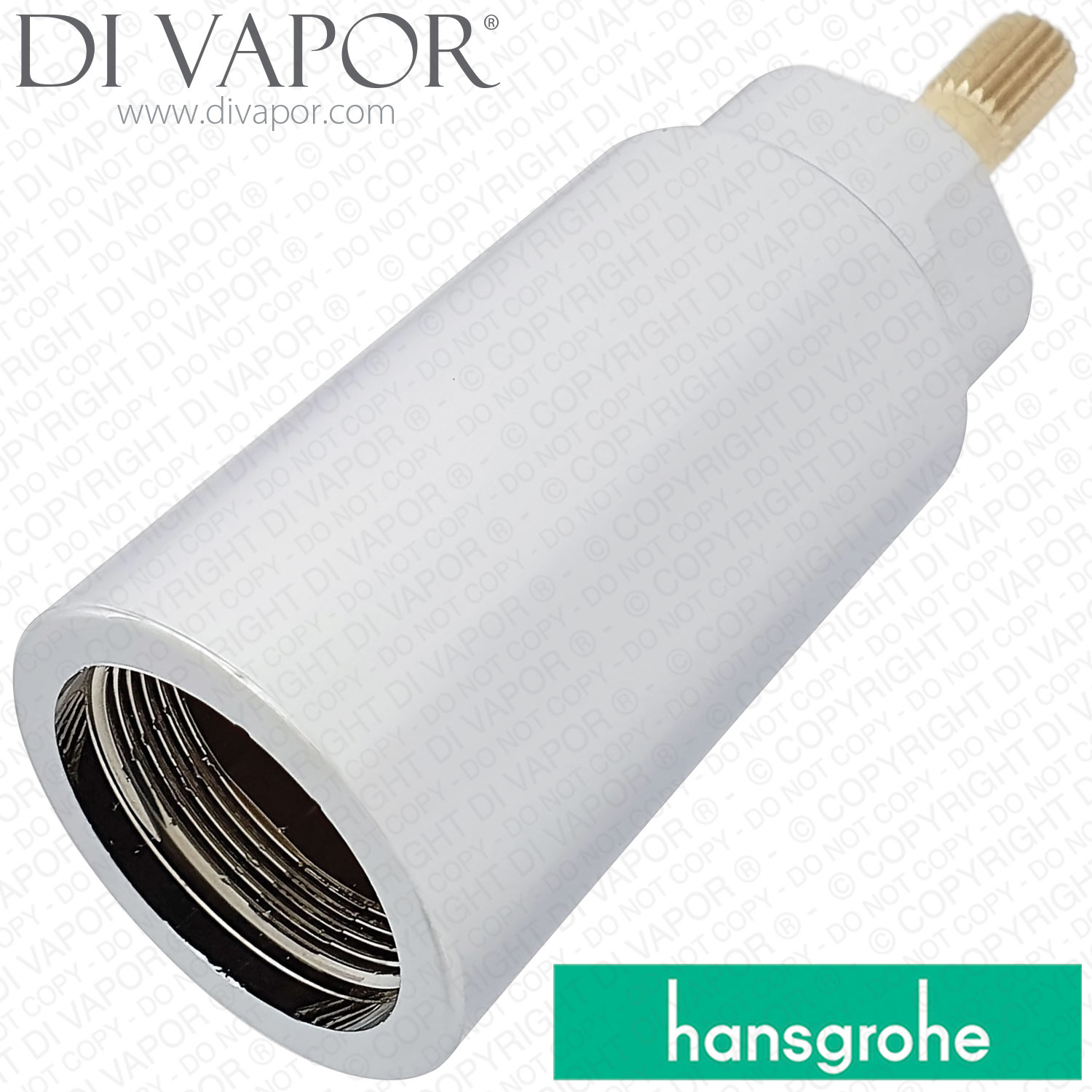

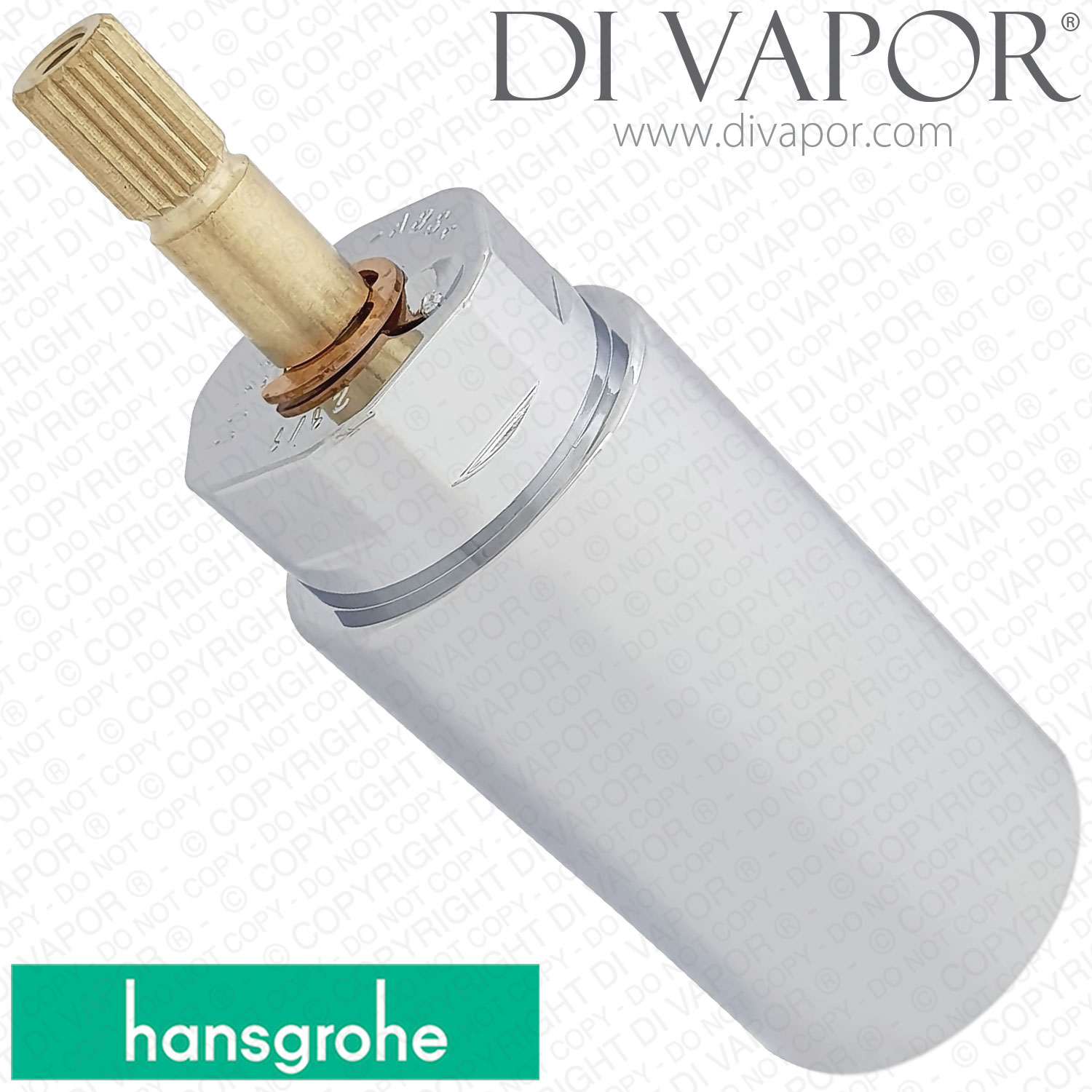

The Hansgrohe 92651001 is a chrome sleeve and brass spindle adapter used with the 92651000 sleeve and shut-off-unit assembly in selected AXOR Arco and AXOR Allegroh concealed shut-off valves. This component is not the complete flow cartridge or shut-off cartridge.

The adapter transfers movement from the operating handle to the internal shut-off spindle while forming the visible chrome sleeve around the valve control. The internal shut-off unit is available separately under part code 92929000.

Technical Details

- - Hansgrohe part code: 92651001

- - Part type: chrome sleeve and spindle adapter

- - Outer finish: chrome

- - Spindle material: brass

- - Associated complete assembly: 92651000

- - Associated shut-off cartridge: 92929000 sold separately

Confirmed Models and Systems

- - AXOR Arco / AXOR Allegroh concealed stop valve 16976000 production 03/1989 to 03/2001

- - AXOR Arco / AXOR Allegroh concealed stop valve 16977000 production 03/1989 to 03/2001

- - Hansgrohe concealed shut-off-valve basic set 13975180 DN20 when used with the 92651000 sleeve and shut-off-unit assembly production from 07/1992

Before Ordering

Check the original part code and compare the 87 mm overall length and both 20-spline connections with the removed component. Do not identify the correct adapter from the spline count or length alone because visually similar Hansgrohe sleeves can use different assembly codes.

Related Spares You May Need

- - Hansgrohe 92651000 3/4 Inch Flow Cartridge and Flow Extension

- - Hansgrohe 92929000 3/4 Inch Shut-Off Unit Cartridge

- - Hansgrohe 94184000 Handle Fixing Adapter

- - Hansgrohe 16991000 Handle for AXOR Allegroh Concealed Shut-Off Valve Chrome

- - TACSIL 3g Premium Cartridge Silicone Grease WRAS Approved
