Hansgrohe 93573880 Hand Shower Symbol Push Button (Satin Chrome)

SUMMARY

Hansgrohe 93573880 Hand Shower Symbol Push Button for ShowerSelect Satin Chrome

Counterpart push button cartridge is 95758000

External Diameter: 28mm

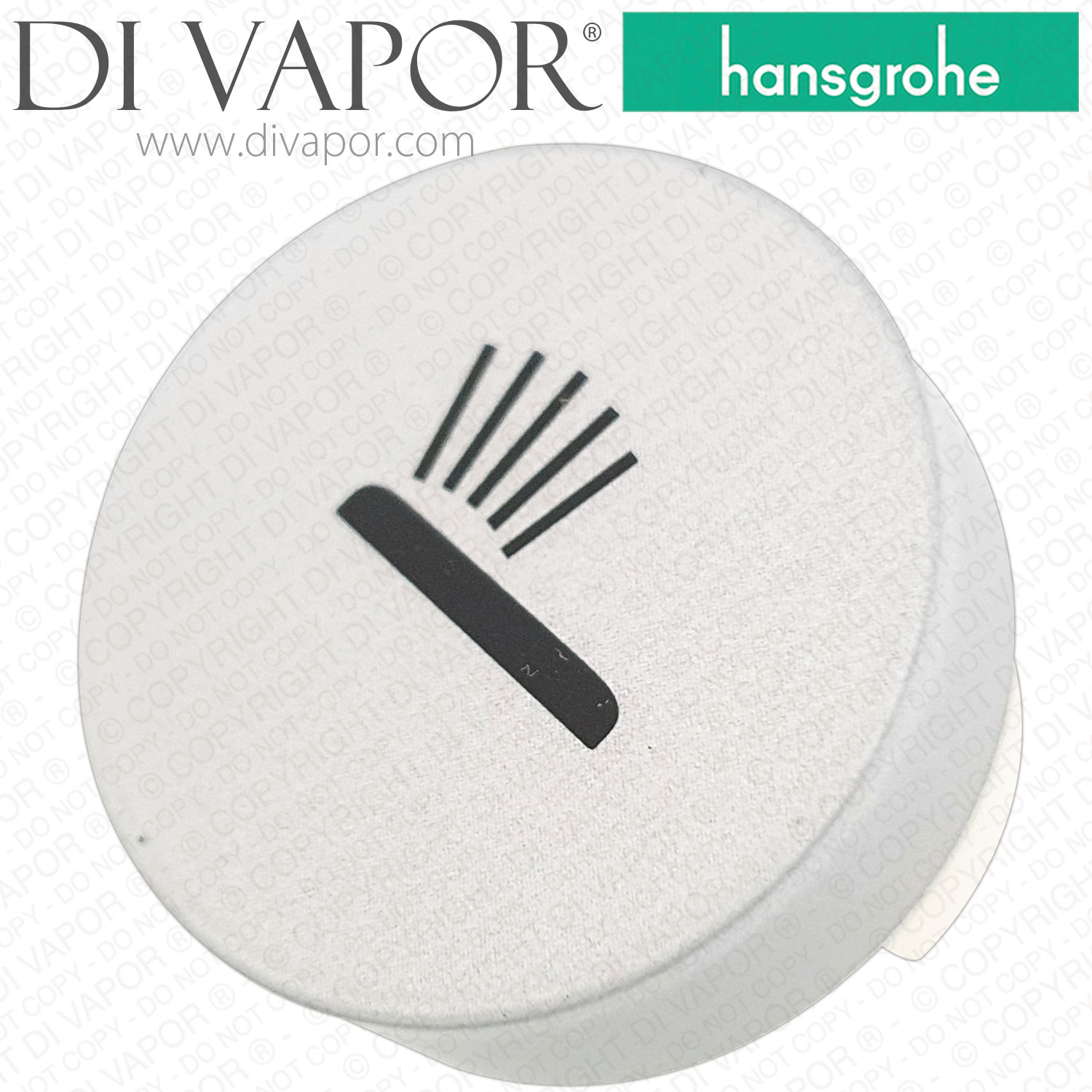

The Hansgrohe 93573880 is a satin chrome hand-shower symbol push button for selected ShowerSelect and ShowerSelect S concealed shower controls supplied with a dedicated hand-shower outlet button. The pictogram identifies the control assigned to the hand shower.

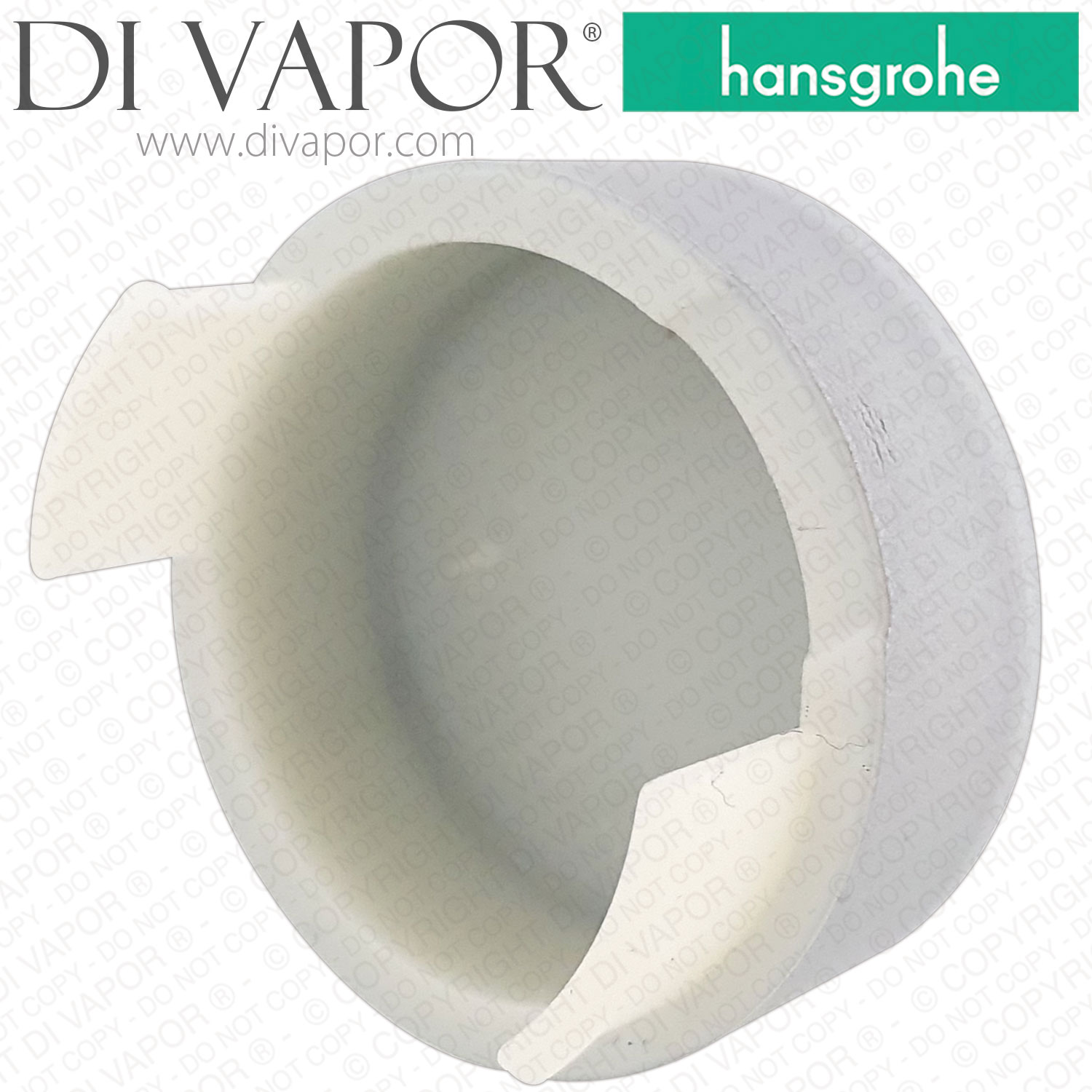

This is the visible symbol button fitted over the Select push-button operating assembly. It is not the internal water-control cartridge. The associated Hansgrohe 95758000 shut-off unit is positioned behind the button and opens or closes the selected outlet.

Technical Details

- - Hansgrohe product code: 93573880

- - Di Vapor Part Number: HG-93573880

- - Part type: Hand-shower symbol push button

- - Finish: Satin Chrome

- - External diameter: 28mm

- - Application: Identification and operation of a dedicated hand-shower outlet on selected Hansgrohe Select controls

- - Associated shut-off unit: Hansgrohe 95758000

- - Excludes controls supplied only with an On/Off button or with different outlet pictograms

Confirmed Compatible Models

- - Hansgrohe 15743000 ShowerSelect S Thermostat for concealed installation for 2 functions - production 01/2018 to 12/2025

- - Hansgrohe 15743000 ShowerSelect S Thermostat for concealed installation for 2 functions - production 03/2015 to 12/2017

- - Hansgrohe 15743000 ShowerSelect S Thermostat for concealed installation for 2 functions - production 05/2014 to 02/2015

- - Hansgrohe 15765000 ShowerSelect Thermostat for concealed installation for 2 functions with hose connection and shower holder - production from 03/2015

- - Hansgrohe 15765000 ShowerSelect Thermostat for concealed installation for 2 functions with hose connection and shower holder - production 05/2014 to 02/2015

- - Hansgrohe 15761000 ShowerSelect Thermostat HighFlow for concealed installation for 1 function and additional outlet - production 10/2013 to 12/2025

- - Hansgrohe 15763000 ShowerSelect Thermostat for concealed installation for 2 functions - production 02/2018 to 12/2025

- - Hansgrohe 15763000 ShowerSelect Thermostat for concealed installation for 2 functions - production 03/2015 to 01/2018

- - Hansgrohe 15763000 ShowerSelect Thermostat for concealed installation for 2 functions - production 10/2013 to 02/2015

- - Hansgrohe 15764000 ShowerSelect Valve for concealed installation for 3 functions - production 05/2018 to 12/2025

- - Hansgrohe 15764000 ShowerSelect Valve for concealed installation for 3 functions - production 10/2013 to 04/2018

- - Hansgrohe 15742000 ShowerSelect S Thermostat HighFlow for concealed installation for 1 function and additional outlet - production 05/2014 to 12/2025

- - Hansgrohe 15763340 ShowerSelect Thermostat for concealed installation for 2 functions Brushed Black Chrome - production 11/2019 to 12/2025

- - Hansgrohe 15763140 ShowerSelect Thermostat for concealed installation for 2 functions Brushed Bronze - production 07/2019 to 12/2025

- - Hansgrohe 15763990 ShowerSelect Thermostat for concealed installation for 2 functions Polished Gold Optic - production 07/2019 to 12/2025

- - Hansgrohe 15743340 ShowerSelect S Thermostat for concealed installation for 2 functions Brushed Black Chrome - production 06/2020 to 12/2025

- - Hansgrohe 15743140 ShowerSelect S Thermostat for concealed installation for 2 functions Brushed Bronze - production 06/2020 to 12/2025

- - Hansgrohe 15743700 ShowerSelect S Thermostat for concealed installation for 2 functions Matt White - production 06/2020 to 12/2025

- - Hansgrohe 15743990 ShowerSelect S Thermostat for concealed installation for 2 functions Polished Gold Optic - production 06/2020 to 12/2025

- - Hansgrohe 15764340 ShowerSelect Valve for concealed installation for 3 functions Brushed Black Chrome - production 10/2021 to 12/2025

- - Hansgrohe 15764140 ShowerSelect Valve for concealed installation for 3 functions Brushed Bronze - production 10/2021 to 12/2025

- - Hansgrohe 14733000 Sanibel 5001 - production from 04/2018

- - Hansgrohe 15761007 ShowerSelect Thermostat HighFlow for concealed installation for 1 function and additional outlet - production from 10/2018

- - Hansgrohe 13755000 Picta 2016 Thermostat for concealed installation for 2 functions - production from 07/2018

- - Hansgrohe 15763007 ShowerSelect Thermostat for concealed installation for 2 functions Chrome - production from 10/2018

- - Hansgrohe 15763003 ShowerSelect Thermostat for concealed installation for 2 functions Chrome - production from 10/2016

- - Hansgrohe 14738000 Sanibel 5001 - production from 04/2018

- - Hansgrohe 14738000 Sanibel 5001 - production from 04/2018

- - Hansgrohe 13754000 Picta 2016 Valve for concealed installation for 3 functions - production from 07/2018

- - Hansgrohe 14736000 Sanibel 5001 - production from 04/2018

- - Hansgrohe 15742007 ShowerSelect S Thermostat HighFlow for concealed installation for 1 function and additional outlet - production 07/2018 to 12/2025

- - Hansgrohe 15743007 ShowerSelect S Thermostat for concealed installation for 2 functions Chrome - production 07/2018 to 12/2025

- - Hansgrohe 15743003 ShowerSelect S Thermostat for concealed installation for 2 functions Chrome - production from 10/2016

- - Hansgrohe 15765007 ShowerSelect Thermostat for concealed installation for 2 functions with hose connection and shower holder - production from 01/2018

- - Hansgrohe 15743821 ShowerSelect S Thermostat for concealed installation for 2 functions Brushed Nickel - production from 12/2014

- - Hansgrohe 15743001 ShowerSelect S Thermostat for concealed installation for 2 functions Chrome - production from 12/2014

- - Hansgrohe 15763001 ShowerSelect Thermostat for concealed installation for 2 functions Chrome - production from 12/2014

- - Hansgrohe 15763997 ShowerSelect Thermostat for concealed installation for 2 functions Polished Gold Optic - production from 03/2020

- - Hansgrohe 15763347 ShowerSelect Thermostat for concealed installation for 2 functions Brushed Black Chrome - production from 03/2020

- - Hansgrohe 15763147 ShowerSelect Thermostat for concealed installation for 2 functions Brushed Bronze - production from 03/2020

- - Hansgrohe 15743141 ShowerSelect S Thermostat for concealed installation for 2 functions Brushed Bronze - production from 08/2020

- - Hansgrohe 15743671 ShowerSelect S Thermostat for concealed installation for 2 functions Matt Black - production from 01/2021

- - Hansgrohe 15763341 ShowerSelect Thermostat for concealed installation for 2 functions Brushed Black Chrome - production from 08/2020

- - Hansgrohe 15764007 ShowerSelect Valve for concealed installation for 3 functions Chrome - production from 10/2018

- - Hansgrohe 15764003 ShowerSelect Valve for concealed installation for 3 functions Chrome - production 10/2016 to 04/2018 and 05/2018 to 12/2025

- - Hansgrohe 14745000 Sanibel 3001 Thermostat Select for concealed installation for 2 functions Chrome - production from 09/2023

- - Hansgrohe 15671000 LivaFine Thermostat for concealed installation for 2 functions - production 12/2024 to 12/2026

- - Hansgrohe 15671670 LivaFine Thermostat for concealed installation for 2 functions - production 12/2024 to 01/2026

Before You Order

Check that the existing control carries a hand-shower pictogram and requires the Satin Chrome finish. Confirm the exact Hansgrohe model code and production period before ordering. Do not identify this part from its 28mm diameter alone, and do not order it for a control supplied only with a generic On/Off button or a different outlet symbol.

If the symbol button is intact but the shower outlet will not switch on or off correctly, or water continues dripping from the hand shower after the control is turned off, inspect the separate Hansgrohe 95758000 shut-off unit.

Related Spares You May Need

- - Hansgrohe 95758000 Shut Off Unit - Push Button On / Off Cartridge

- - Hansgrohe 93571880 Rain Shower Symbol Push Button Satin Chrome
