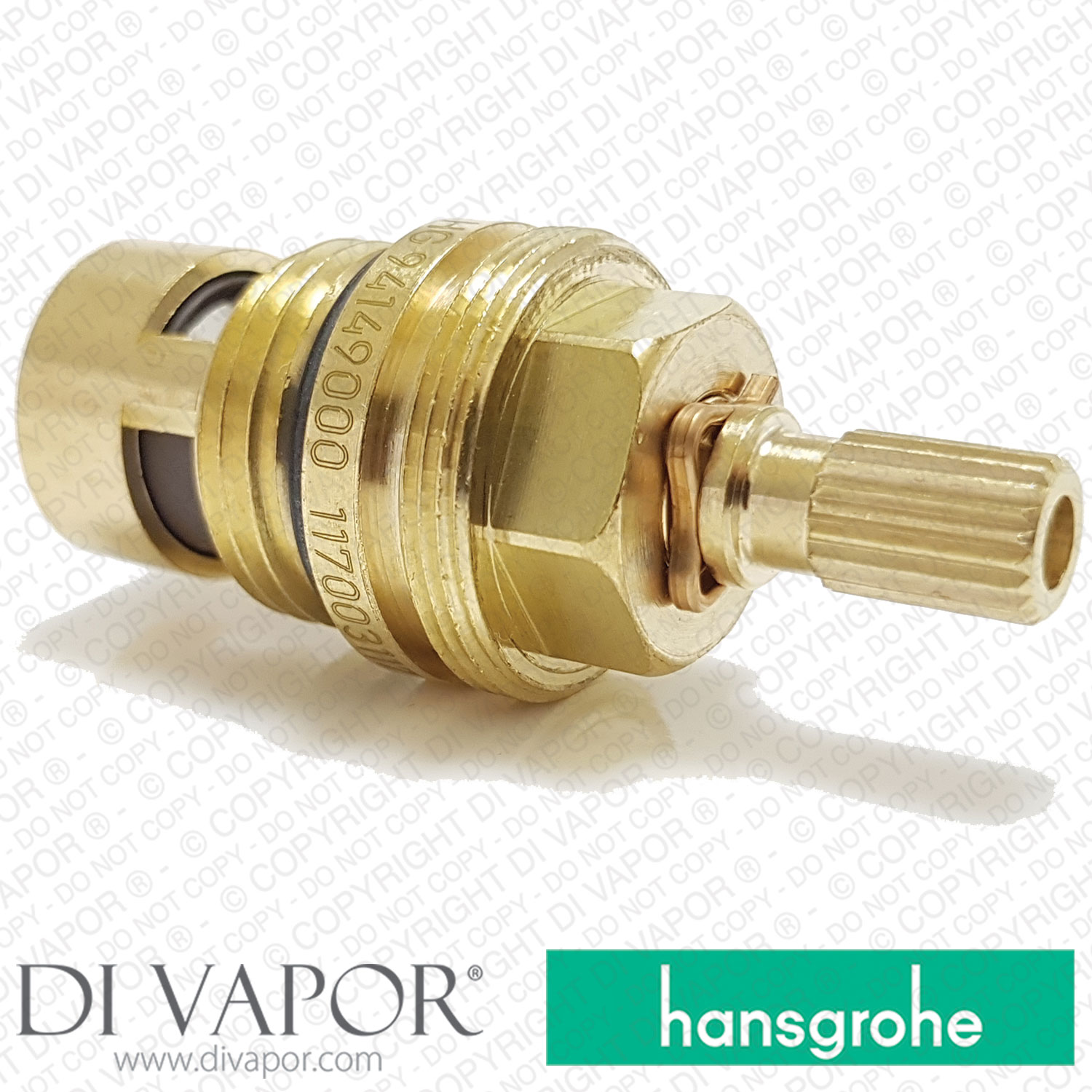

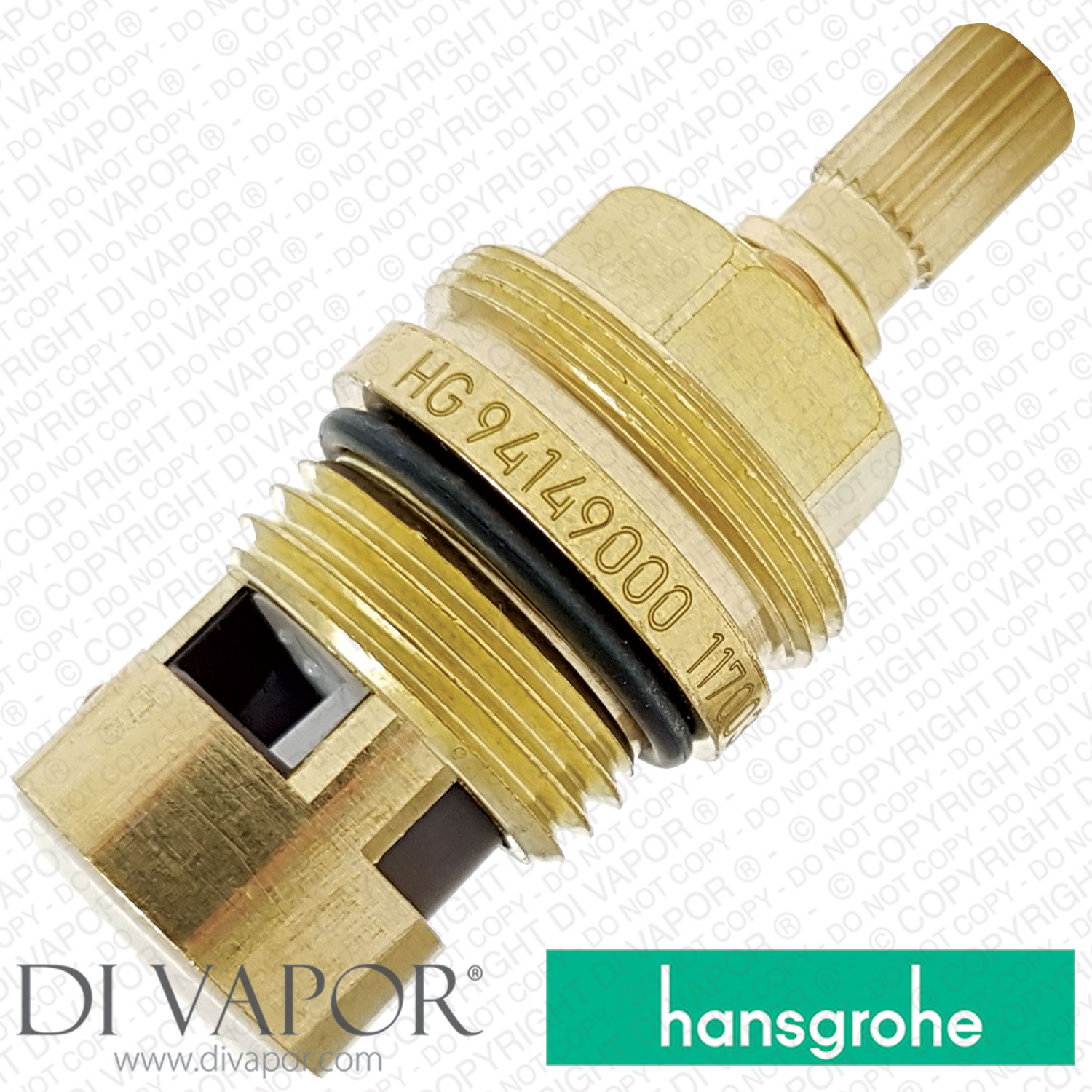

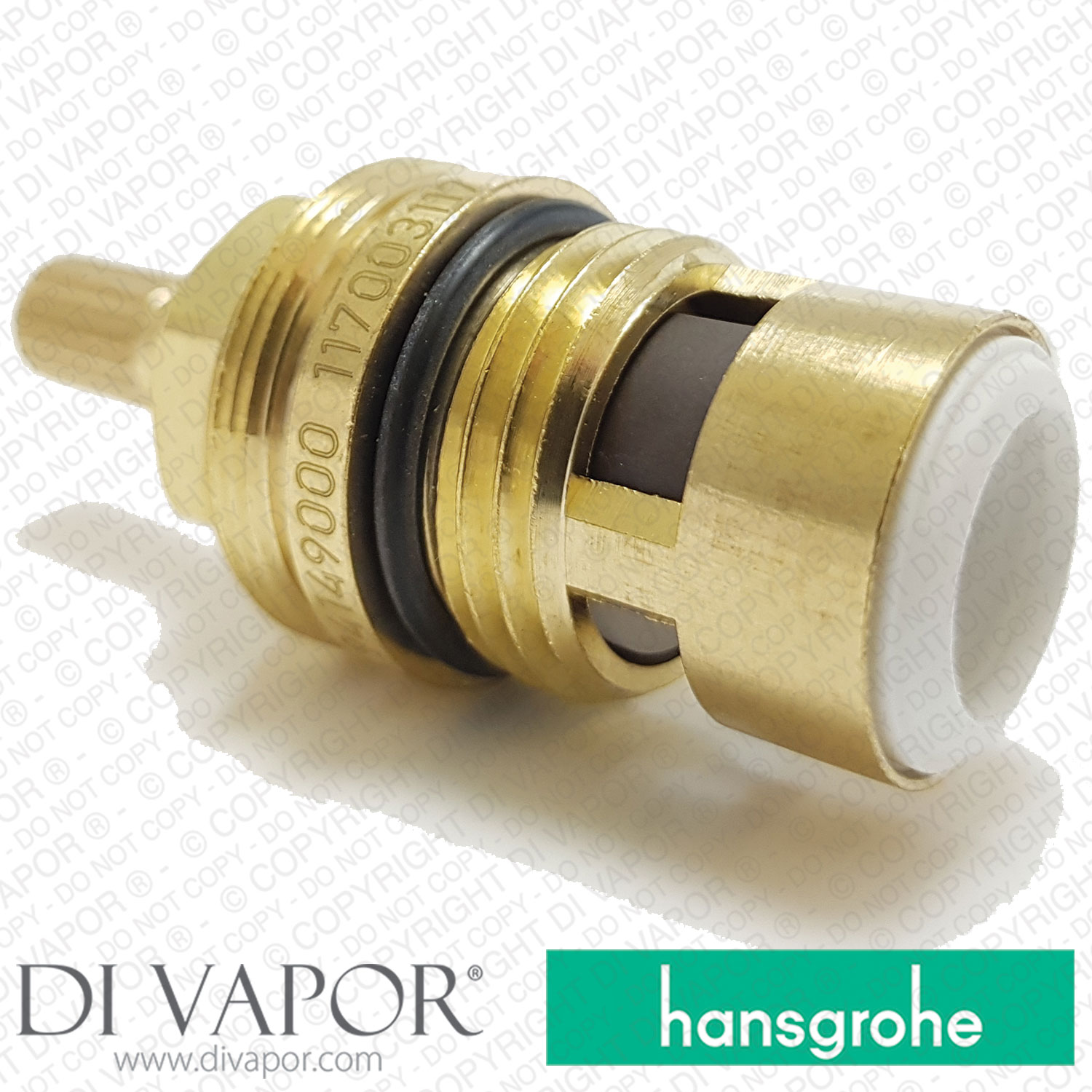

Hansgrohe 94149000 1/2" On/Off Half Turn Ceramic Disc Cartridge (Anti-Clockwise Turn On)
Save with a compatible alternative
- Tested replacement
- 12-month warranty
- Simple returns
SUMMARY
Hansgrohe 94149000 1/2" On/Off half Turn Ceramic Disc Cartridge. The cartridge turns anti-clockwise to turn on. Includes Hansgrohe box. This cartridge is used in a lot of different Hansgrohe shower and bath mixer valves.
This Hansgrohe 94149000 cartridge is used in the following Hansgrohe shower and bath mixer valves:
- Hansgrohe Basic Set
- Hansgrohe Axor Carlton
- Hansgrohe Axor Citterio
- Hansgrohe Axor Steel
- Hansgrohe Axor Terrano
- Hansgrohe Axor Starck
- Hansgrohe Axor Montreux
- Hansgrohe Axor Mondaro
- Hansgrohe Centostat
- Hansgrohe Mondial
- Hansgrohe Versostat
- Hansgrohe Whirlpool 215
- Hansgrohe Almonte
- Hansgrohe Imandra
- Hansgrohe Iseo
- Hansgrohe Ladoga
- Hansgrohe Lugano
- Hansgrohe Malawi
- Hansgrohe Manitoba
- Hansgrohe Moneva
- Hansgrohe Teslin
- Hansgrohe Victoria
- Hansgrohe DeLuxe
- Hansgrohe Comfort
Genuine Hansgrohe part, stocked in the UK.
When fitting this cartridge, you will need to isolate all water supplying the shower or bath valve. To remove this cartridge from the valve, turn it anti-clockwise.
The genuine Hansgrohe 94149000 is a 1/2" on/off half-turn ceramic disc cartridge used as a shut-off and flow-control cartridge in selected Hansgrohe shower and bath mixer valves. This cartridge turns anti-clockwise to turn on and is supplied in a Hansgrohe box.
It controls water flow through the valve body using ceramic discs and provides the mechanical shut-off when the handle is turned off. A worn flow cartridge can allow water to pass when closed, often showing as dripping from the shower head or bath spout, stiff handle movement or unreliable on/off control.
Technical Details
- - Brand: Hansgrohe
- - Product code: 94149000
- - Part type: 1/2" on/off half-turn ceramic disc flow cartridge / ceramic shut-off cartridge
- - Connection dimension: DN15
- - Closing angle: 180 degree turn
- - Closing direction: right closing
- - Turn direction: anti-clockwise turn on
- - Application: selected Hansgrohe shower and bath mixer valves
- - Supplied with: Hansgrohe box
Fitting and Ordering Notes
- - Isolate all hot and cold water supplies before removing the cartridge.
- - Di Vapor notes that this cartridge is turned anti-clockwise to remove it from the valve.
- - Check the removed cartridge, valve model code, construction year and spare-parts diagram before ordering; do not order from the 1/2" / DN15 size alone.
Confirmed Hansgrohe Models
- - Hansgrohe 13444180 Basic Set for 4-Hole Rim Mounted Bath Mixer >06/17 Spare Parts
- - Hansgrohe 13444180 Basic Set for 4-Hole Rim Mounted Bath Mixer 10/09 - 05/17 Spare Parts
- - Hansgrohe 13444180 Basic set for 4-hole rim-mounted bath mixer with Secubox 08/91 - 09/09
- - Hansgrohe Croma Select S SemiPipe Multi with Thermostatic Shower Mixer 27247400 Spare Parts
- - Hansgrohe 27248400 Croma Select E SemiPipe Multi with thermostatic shower mixer White/Chrome >10/15
- - Hansgrohe 13141000 Ecostat Select Bath Thermostat for Exposed Installation >06/11 Spare Parts
- - Hansgrohe 13141400 Ecostat Select Bath Thermostat for Exposed Installation >06/11 Spare Parts
- - Hansgrohe 13161400 Ecostat Select Shower Thermostat for Exposed Installation >06/11 Spare Parts
- - Hansgrohe 13161000 Ecostat Select Shower Thermostat for Exposed Installation >06/11 Spare Parts
- - Hansgrohe 13122000 Ecostat Shower Thermostat Universal for Exposed Installation >01/14 Spare Parts
- - Hansgrohe 13113000 Ecostat Shower Thermostat Comfort for Exposed Installation HQ >07/12 Spare Parts
- - Hansgrohe 13116700 Ecostat Shower Thermostat Comfort for Exposed Installation >07/19 Spare Parts
- - Hansgrohe 13116990 Ecostat Shower Thermostat Comfort for Exposed Installation >07/19 Spare Parts
- - Hansgrohe 13324000 Ecostat Fine Shower thermostat for exposed installation Chrome >04/24
- - Hansgrohe 13324670 Ecostat Fine Shower thermostat for exposed installation Matt Black >04/24
- - Hansgrohe 13323000 Ecostat Fine Shower thermostat for exposed installation with temperature limiter Chrome >04/24
- - Hansgrohe 13346000 Ecostat Element Shower thermostat for exposed installation Chrome >04/24
- - Hansgrohe 13346670 Ecostat Element Shower thermostat for exposed installation Matt Black >04/24
Related Spares You May Need
- - Hansgrohe 94149000 Half Turn Cartridge Anti-Clockwise Turn On Axor Compatible Spare - alternative option no box included
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - for lubricating cartridge o-rings and bottom seals during fitting
- - Hansgrohe 95033000 16mm Non Return Valve - DW 16 check valve for selected Hansgrohe shower valve and thermostatic mixer assemblies
- - Hansgrohe 94282000 Thermostatic Cartridge for Axor, Pharo and Other Valves
- - Hansgrohe 97108000 Spline Adapter for Handle
- - Hansgrohe 95843000 Ecostat Comfort Handle Fixing Set
- - Hansgrohe 98915000 Croma Handle
- - Hansgrohe 94282000 Thermostatic Cartridge - Compatible Brass Replacement - 94282000-CP
