Hansgrohe 96454000 Fixing Screw Set
Part number: 96454000
Only 8 left in stock.
Price: £7.89
Price includes UK VAT (Region: UKâ–¼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

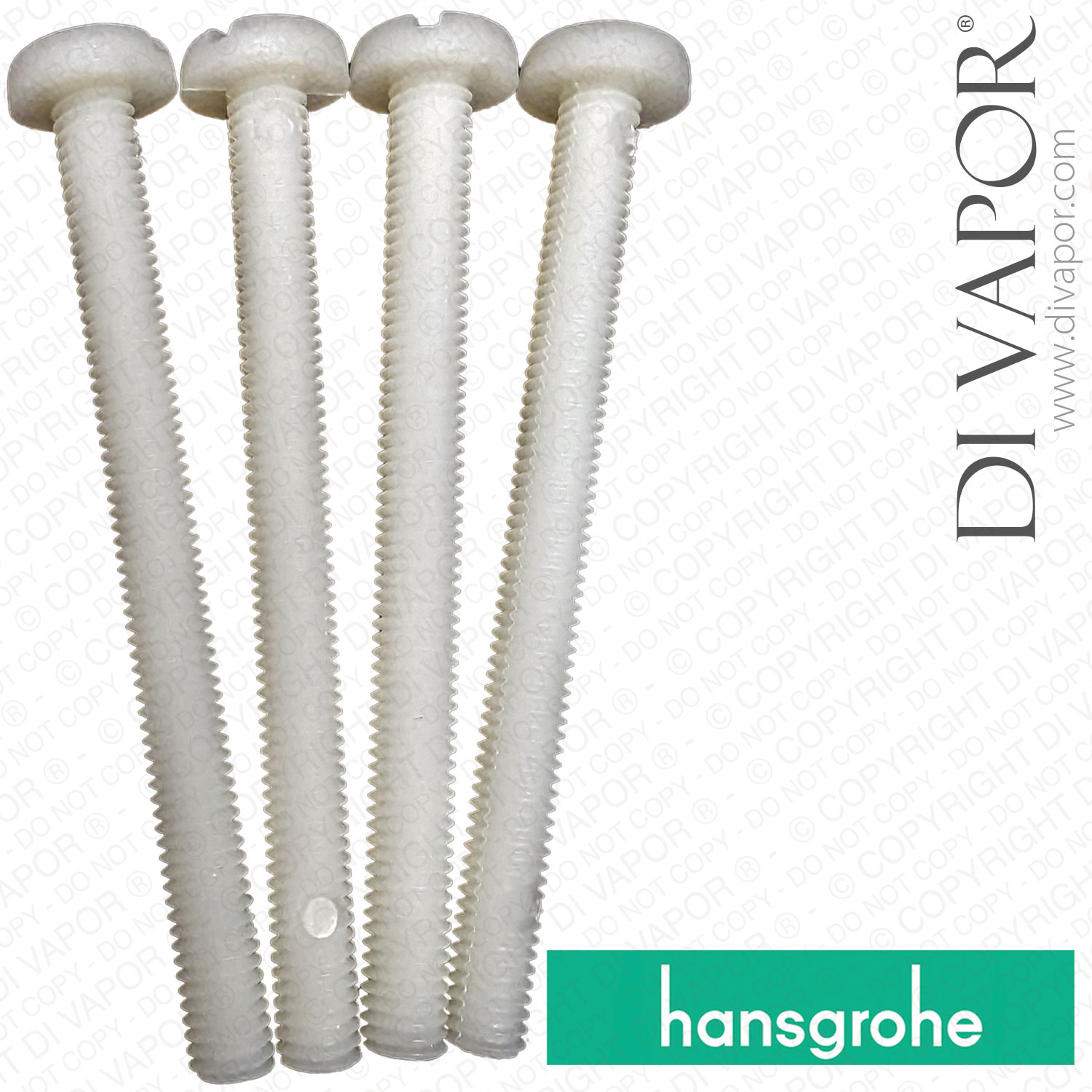

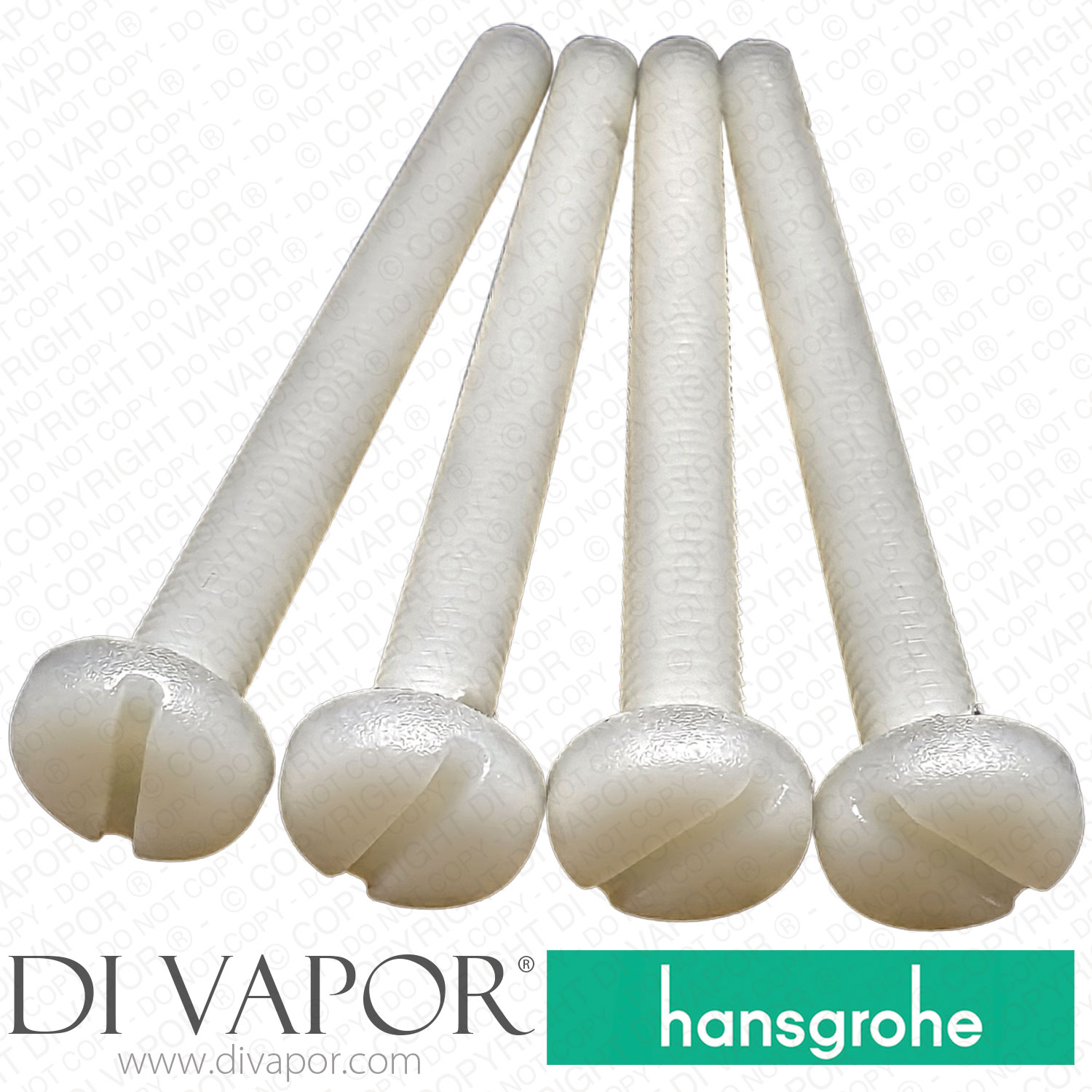

Hansgrohe 96454000 M5 x 55 iBox Universal Fixing Screw Set
Hansgrohe 96454000 is an M5 x 55 fixing screw set used with selected concealed Hansgrohe and AXOR controls installed on the iBox universal system. The set secures the internal trim carrier or subplate assembly to the concealed function block behind the external control plate.
This is a mechanical mounting set rather than a flow cartridge or water-control cartridge. It is intended for service work where the original trim fixing screws are missing, damaged or unsuitable for refitting.
Technical Details
| Brand | Hansgrohe |
|---|---|
| Manufacturer code | 96454000 |
| Part type | iBox universal fixing screw set |
| Thread size | M5 |
| Nominal screw length | 55 mm |
| Set quantity | four fixing screws |
| Application | selected concealed bath mixers, shower mixers, thermostats and outlet-control trims using the iBox universal system |
| Function | secures the trim carrier or subplate to the concealed mixer or thermostat function block |
| Supersession | no superseded or replacement code has been identified |
| Check before ordering | confirm the complete mixer or thermostat product code and construction period because the iBox universal installation alone does not prove fitment |
- Code suffixes and finish variants must be checked exactly and must not be removed or treated as interchangeable
Confirmed Models and Systems
The following complete product-code groups use this fixing screw set. Construction periods must also be checked.
- ShowerSelect and Ecostat: 15743000, 15762000, 15763000, 15758000, 15748000, 15734400, 15735400, 15765000, 15744000, 15736400, 15706000, 15760000, 15708000, 15705000, 15707000, 15755000, 15768000, 15742000, 15745000, 15737400, 15761000, 15712000, 15741000, 15757000, 15747000, 15714000, 15764000, 15767000, 15738400, 15756000, 15790000, 15763670, 15763340, 15763140, 15714670, 15714340, 15714990, 15714140, 15763700, 15763990, 15714700, 15758340, 15743340, 15743140, 15758140, 15743670, 15743700, 15743990, 15758990, 15758670, 15758700, 15764700, 15764670, 15764140, 15764340, 15760700, 15760670, 15760140
- Metris: 31685000, 31487000, 31451000, 31652000, 31454000, 31456000, 31493000
- Logis: 71405000, 71605000, 71407000, 71607000
- Talis S: 72605000, 72405000, 72406000
- Metropol: 32545000, 74565000, 74545000, 32565000, 32546000, 32546140, 32565140, 32545990, 32546670, 32565990, 32546700, 32545700, 32546990, 32545670, 32545340, 32565700, 32545140, 32565340, 32565670, 32546340
- Focus: 31945000, 31946000, 31965000, 31964000
- Talis E: 71768000, 71765000, 71745000, 71474000, 71765670, 71474340, 71765340, 71745990, 71745340, 71474990, 71765700, 71474140, 71765990, 71745140, 71474670, 71745670, 71765140, 71474700
- Finoris: 76615000, 76615700, 76615670, 76416700, 76416000, 76416670, 76415670, 76415000, 76415700
- Vivenis: 75416700, 75416000, 75416670, 75615670, 75615000, 75615700, 75415670, 75415700, 75415000
- Vernis: 71467000, 71468670, 71468000, 71668670, 71668000, 71667670, 71466000, 71667000
- Rebris: 72466000, 72466670, 72467000, 72467670, 72667000, 72667670, 72468000, 72468670, 72469000, 72469670, 72668000, 72668670
- Additional legacy product codes: 36720000, 36700000, 36710000, 11720, 34615, 34720, 17710000, 34725000, 18710000, 10720000, 10616, 10615000, 10700000, 10726000, 10706000, 35720800, 35700800, 34705000, 15700, 31572000, 15740800, 33455000
Model and System Spare Pages
- Hansgrohe 71267000 Logis Loop Concealed Shower Mixer 01/17 - 09/19 Spare Parts
- Hansgrohe 14736000 sanibel 5001 from 04/18 Spare Parts
- Hansgrohe 16820340 AXOR Montreux Concealed Thermostat Spare Parts
- Hansgrohe 76615703 Finoris Concealed Shower Mixer Spare Parts
- Hansgrohe 31646000 Talis E Concealed Bath Mixer 02/13 - 12/15 Spare Parts
- Hansgrohe 31454000 Metris Concealed Bath Mixer from 01/16 Spare Parts
- Hansgrohe 14733000 sanibel 5001 from 04/18 Spare Parts
- Hansgrohe 32475000 Talis S Concealed Bath Mixer 09/02 - 12/07 Spare Parts
- Hansgrohe 36711800 AXOR ShowerSelect HighFlow Thermostat Spare Parts
- Hansgrohe 36717000 AXOR ShowerSelect Three-Function Valve Spare Parts
- Hansgrohe 36723820 AXOR ShowerSolutions Two-Function Thermostat Spare Parts
- Hansgrohe 36726000 AXOR ShowerSelect HighFlow Thermostat Spare Parts
- Hansgrohe 31456000 Metris Concealed Shower Mixer Spare Parts
- Hansgrohe 15772400 PuraVida Concealed HighFlow Thermostat Spare Parts
- Hansgrohe 36715330 AXOR ShowerSolutions Two-Function Thermostat Spare Parts
- Hansgrohe 76415670 Finoris Concealed Bath Mixer Spare Parts
- Hansgrohe 72466670 Rebris S Concealed Bath Mixer Spare Parts
- Hansgrohe 36714000 AXOR ShowerSelect One-Function Thermostat Spare Parts
- Hansgrohe 36773340 AXOR ShowerSelect Three-Function Valve Spare Parts
- Hansgrohe 4822820 Locarno Pressure-Balance Shower Mixer Spare Parts
- Hansgrohe 31958000 Metris iControl E Shut-Off and Diverter Valve Spare Parts
- Hansgrohe 76415000 Finoris Concealed Bath Mixer Spare Parts
- Hansgrohe 15760007 ShowerSelect Concealed HighFlow Thermostat Spare Parts
- Hansgrohe 36773820 AXOR ShowerSelect Three-Function Valve Spare Parts
- Hansgrohe 36715000 AXOR ShowerSolutions Two-Function Thermostat Spare Parts
- Hansgrohe 15407000 PuraVida Pressure-Balance Shower Mixer Spare Parts
- Hansgrohe 31365090 Metropol Classic Concealed Shower Mixer Spare Parts
- Hansgrohe 19621000 AXOR Bouroullec Concealed Shower Mixer Spare Parts
- Hansgrohe 15748000 ShowerSelect S Two-Function Mixer Spare Parts
- Hansgrohe 14734000 sanibel 5001 from 04/18 Spare Parts
- Hansgrohe 45111000 AXOR Uno Electronic Basin Mixer Spare Parts
- Hansgrohe 10755000 AXOR ShowerSolutions Thermostatic Module Spare Parts
- Hansgrohe 15763000 ShowerSelect Thermostat 10/13 - 02/15 Spare Parts
- Hansgrohe 15763000 ShowerSelect Thermostat 03/15 - 01/18 Spare Parts
- Hansgrohe 31945000 Focus Concealed Bath Mixer Spare Parts
- Hansgrohe 71065000 Novus Concealed Shower Mixer Spare Parts
- Hansgrohe 15447400 PuraVida Concealed Bath Mixer Spare Parts
- Hansgrohe 13754000 Picta 2016 Three-Function Valve Spare Parts
- Hansgrohe 15764140 ShowerSelect Three-Function Valve Spare Parts
- Hansgrohe 31652000 Metris Concealed HighFlow Shower Mixer Spare Parts
- Hansgrohe 15677000 PuraVida Concealed HighFlow Shower Mixer Spare Parts
- Hansgrohe 15764007 ShowerSelect Three-Function Valve Spare Parts
- Hansgrohe 15445400 PuraVida Concealed Bath Mixer Spare Parts
- Hansgrohe 36727820 AXOR ShowerSelect Three-Function Valve Spare Parts
- Hansgrohe 15777400 PuraVida iControl Three-Function Valve Spare Parts
- Hansgrohe 15764700 ShowerSelect Three-Function Valve Spare Parts
- Hansgrohe 31965000 Focus Concealed Shower Mixer Spare Parts
- Hansgrohe 32674000 Talis Concealed HighFlow Shower Mixer Spare Parts
Installation and Ordering Checks
- Confirm that the required screws are M5 x 55 and that the original carrier uses four fixing positions
- Match the full product code and construction period to the spare-parts diagram before removing the trim
- Do not order solely because the concealed installation uses an iBox universal body
- This screw set will not correct dripping, poor temperature control, restricted flow or diverter faults because it does not control water
