Hansgrohe 95758000 Shut Off Unit - Push Button On / Off Cartridge
SUMMARY

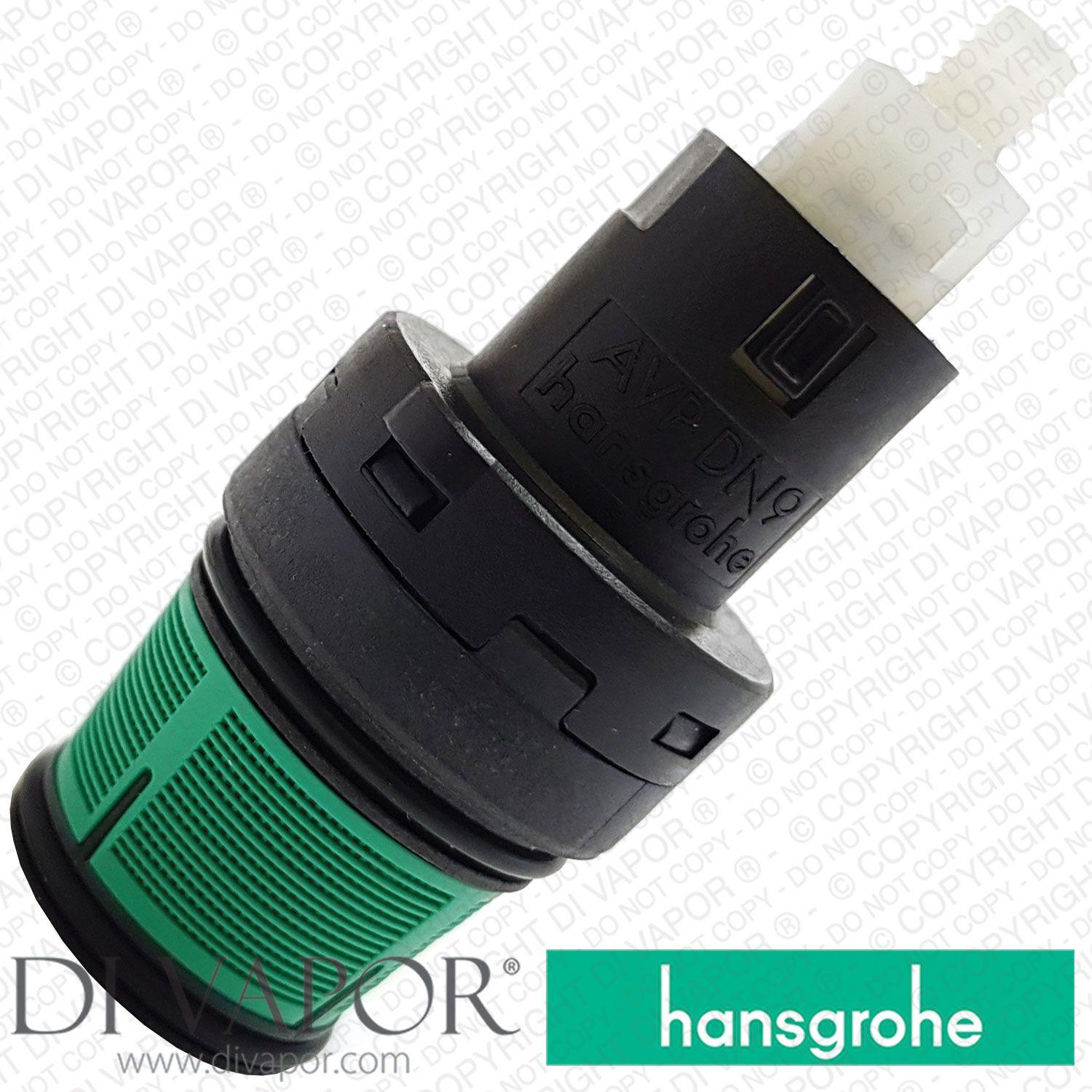

Hansgrohe 95758000 Shut Off Unit - Push Button On / Off Cartridge
Used in Hansgrohe 13171000 Select 300 Exposed Thermostatic Shower Mixer.
The Hansgrohe 95758000 is a shut-off unit AV-P DN9 push-button on-off cartridge used to control water flow through the push-button outlet control on selected Hansgrohe shower valves and thermostatic mixers.
This cartridge is used in the Hansgrohe 13171000 Select 300 Exposed Thermostatic Shower Mixer and is marked with 95758000 or AVP DN9 Hansgrohe on the body. Replacing a worn shut-off unit can help restore positive on-off control where the shower outlet will not shut off correctly or where water continues dripping from the shower head when the control is turned off.
Technical Details
- - Di Vapor Part Number: HG-95758000
- - Hansgrohe product code: 95758000
- - Official part type: Shut-off unit AV-P DN9
- - Cartridge height: 57.7mm
- - Diameter: 26.2mm

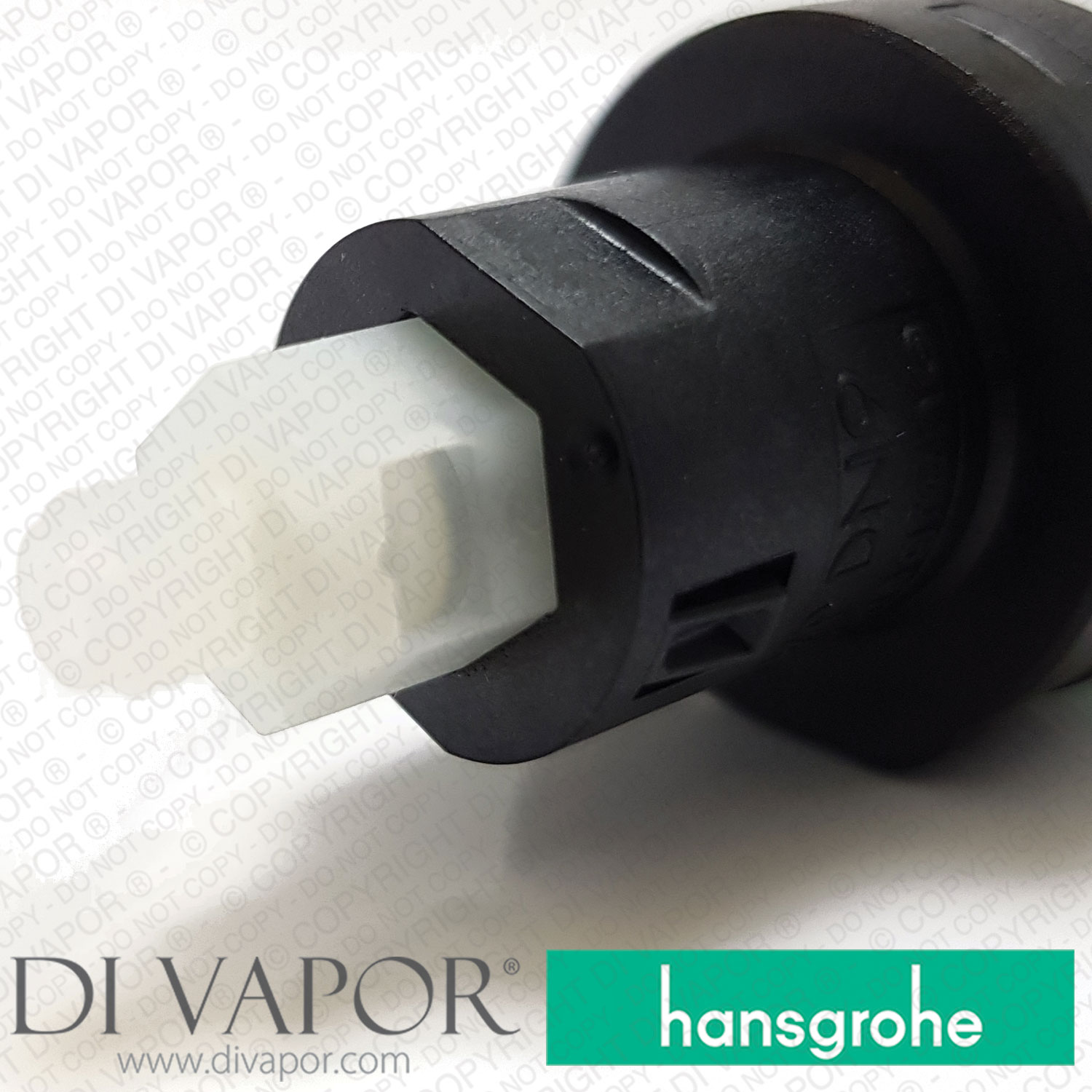

- - Diameter of top white plastic hex: 9.6mm
- - Diameter of bottom O-ring: 20.5mm
- - Diameter of top O-ring: 24mm
- - Colours: green filter and black plastic

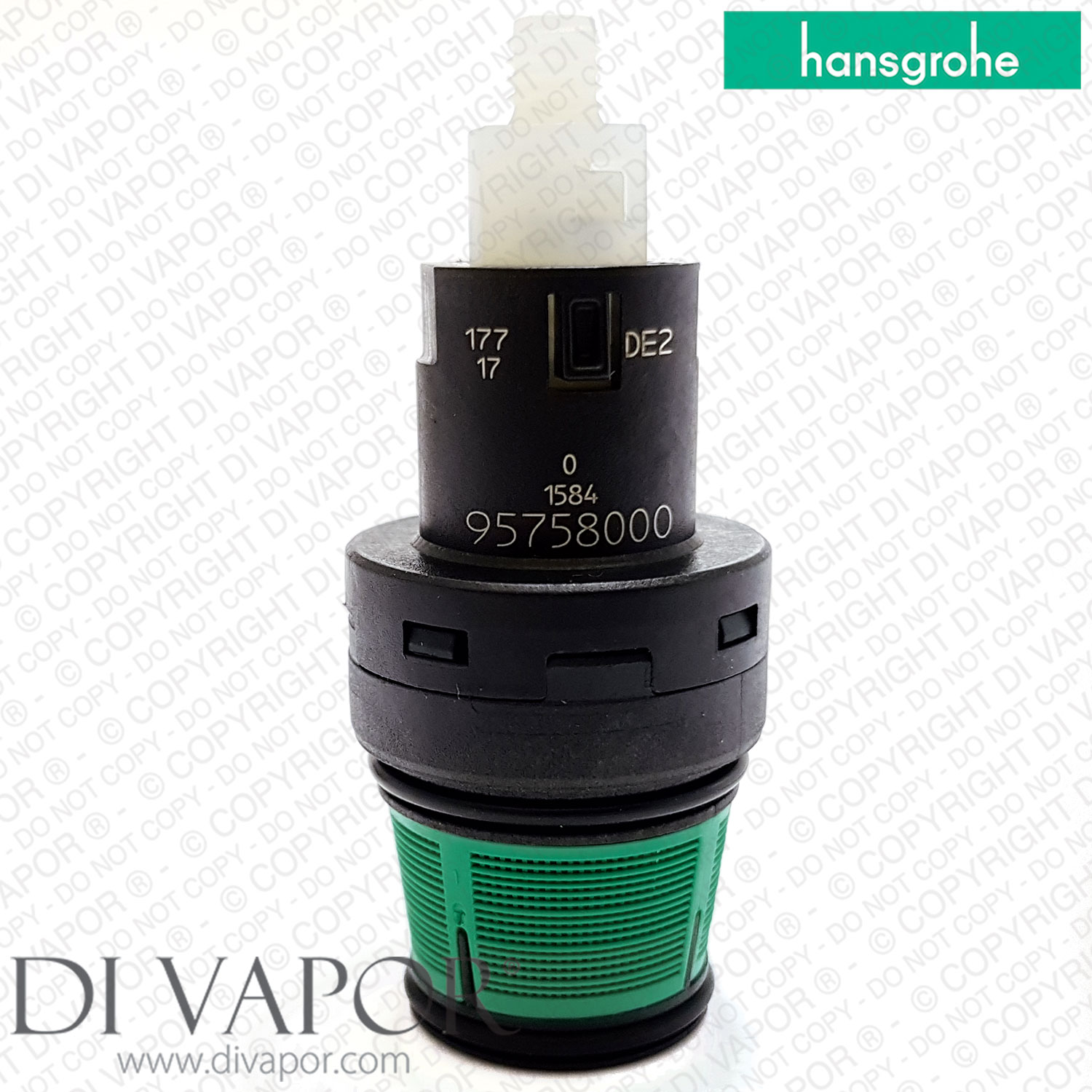

- - Other possible cartridge markings: 177 17 DE2, 0 1584, 95758000, AVP DN9 Hansgrohe
Confirmed Compatible Models
- - Hansgrohe 13171000 Select 300 Exposed Thermostatic Shower Mixer
Before You Order Check
Compare the cartridge height, body diameter, O-ring positions and printed cartridge markings before ordering. This shut-off unit is not confirmed by diameter alone and should be matched to 95758000 or AVP DN9 markings where possible.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - Hansgrohe 93573880 Hand Shower Symbol Push Button (Satin Chrome)
- - Hansgrohe 93571880 Rain Shower Symbol Push Button (Satin Chrome)
