Hansgrohe 95033000 16mm Non Return Valve

SUMMARY

Hansgrohe 95033000 16mm Non Return Valve

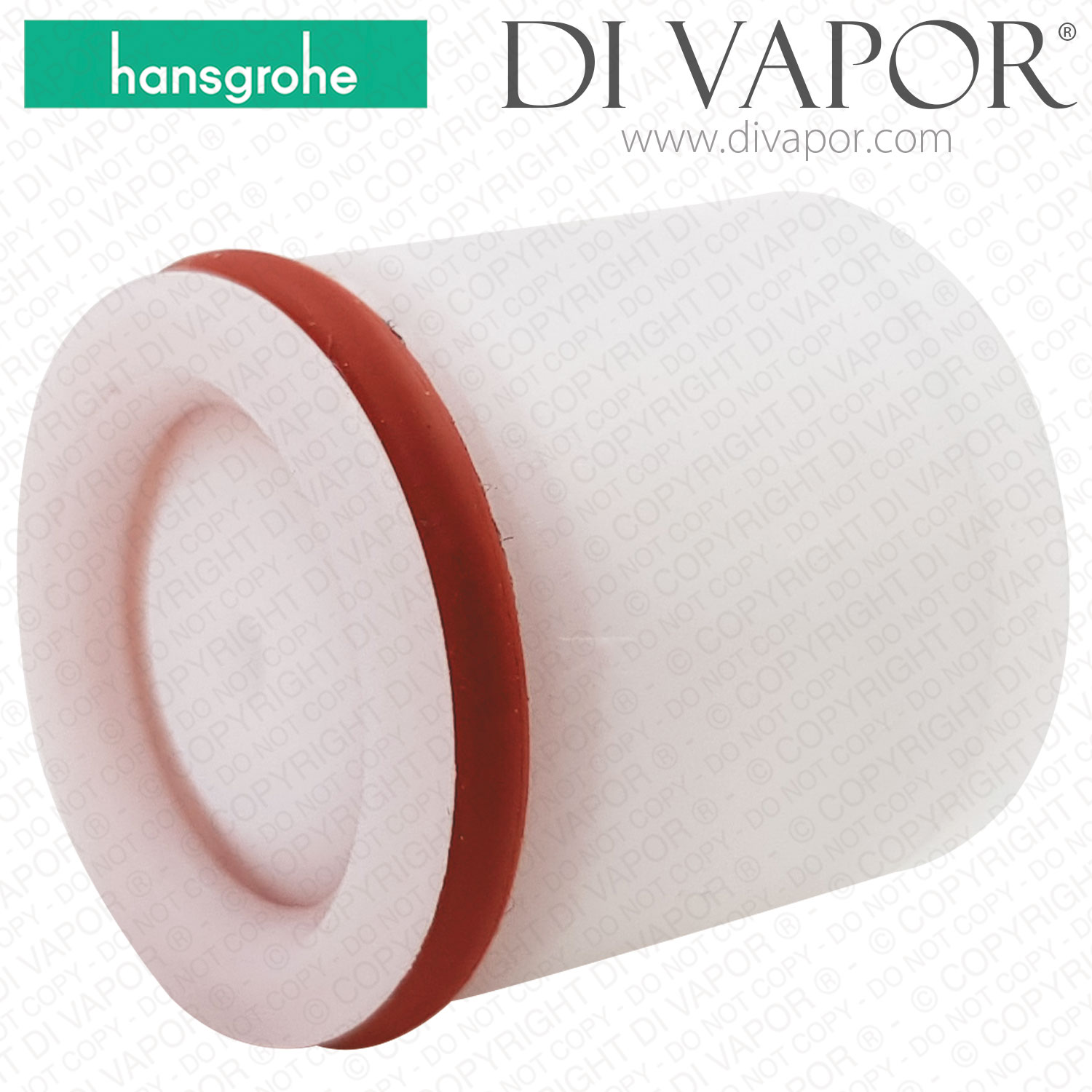

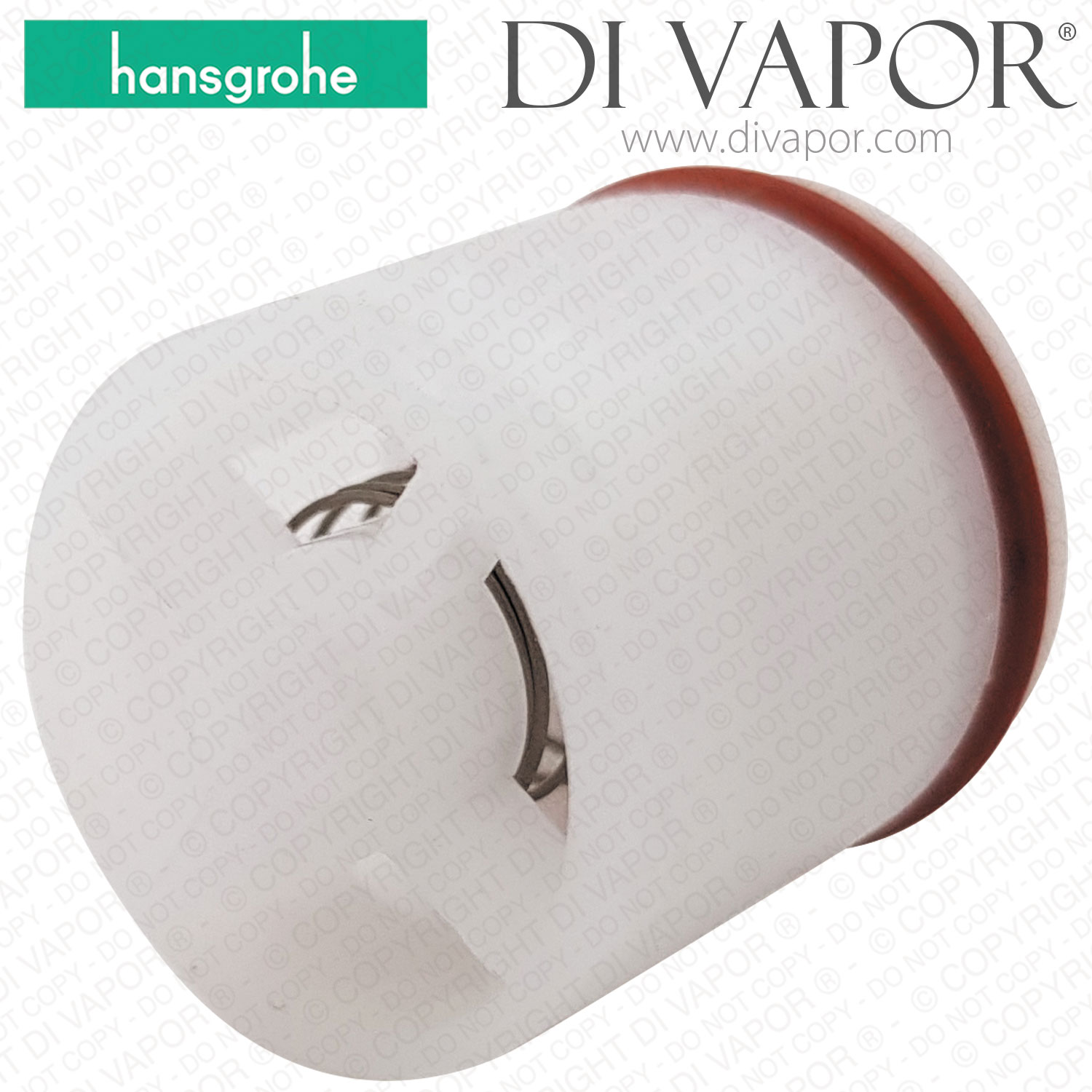

Hansgrohe 95033000 is a 16mm DW 16 non-return valve for selected Hansgrohe shower valve and thermostatic mixer assemblies. This check valve sits in the waterway to help prevent reverse flow between supplies and is used where the valve parts diagram specifies Hansgrohe 95033000.

The non-return valve helps protect the mixer from hot and cold crossflow. Common signs that the valve or surrounding inlet components may need checking include unwanted transfer between hot and cold pipework, unstable shower temperature, reduced flow, or a thermostatic mixer that does not respond correctly even when the cartridge is serviceable.

Technical Details

- - Brand: Hansgrohe

- - Product code: 95033000

- - Di Vapor Part Number: HG-95033000

- - Part type: non-return valve / check valve

- - Hansgrohe designation: DW 16

- - Size reference: 16mm

- - Application: selected Hansgrohe Ecostat thermostatic shower valves, exposed thermostatic mixers and shower panel systems

Before You Order

Check the exploded spare parts diagram for the shower valve before ordering and confirm that the required non-return valve is listed as 95033000 / DW 16. Do not order solely from the 16mm size, as other Hansgrohe non-return valves such as DW 15 / DN10 94074000 are different parts.

Confirmed Compatible Models

- - Hansgrohe 36360520 Ecostat 5001 Exposed Thermostatic Shower Mixer 11/97 - 05/01

- - Hansgrohe 36360000 Ecostat 5001 Exposed Thermostatic Shower Mixer 06/97 - 05/01

- - Hansgrohe 36360520 Ecostat 5001 Exposed Thermostatic Shower Mixer 05/01 - 05/03

- - Hansgrohe 36360000 Ecostat 5001 Exposed Thermostatic Shower Mixer 05/01 - 10/07

- - Hansgrohe 15360000 Ecostat 5001 Exposed Thermostatic Shower Mixer 05/01 - 04/09

- - Hansgrohe 26512000 Shower Panel Moonlight ML 20 Wall Corner Version With Lighting Manual 05/01 - 12/07

- - Hansgrohe Ecostat 1001 / 2001 / 5001 where the service diagram specifies DW 16 95033000

- - Hansgrohe Ecostat 1001 13260XXX / 13240XXX where the service diagram specifies DW 16 95033000

- - Hansgrohe Ecostat 5001 36360XXX / 36340XXX where the service diagram specifies DW 16 95033000

Troubleshooting

- - Symptom: hot water enters the cold supply or cold water enters the hot supply

- - Likely Cause: dirty, worn or leaking non-return valve

- - Solution: isolate the water supplies, inspect the inlet area, clean debris where suitable and replace the non-return valve if it no longer seals correctly

Related Spares You May Need

- - Hansgrohe 94282000 Thermostatic Cartridge for Axor Pharo and Other Valves

- - Hansgrohe 97108000 Spline Adapter for Handle

- - Hansgrohe 94184000 Handle Fixing Adapter

- - Hansgrohe 94149000 1/2" On/Off Half Turn Ceramic Disc Cartridge Anti-Clockwise Turn On

- - Hansgrohe 94074000 Non Return Valves DW15 / DN10

- - Hansgrohe 95037000 Thermostatic Cartridge Seal Kit

- - Hansgrohe 96364000 O-ring Set 32x2.5mm

- - Hansgrohe 98127000 Pair of O-Rings

If the valve body cannot be identified, send clear photos of the complete shower valve, the removed part and any visible markings to help confirm the correct spare before ordering.
