Dornbracht 0490032020090 Cartridge - Clockwise Open (9090032020090)
Send a photo of your item and we'll help confirm it.
Summary

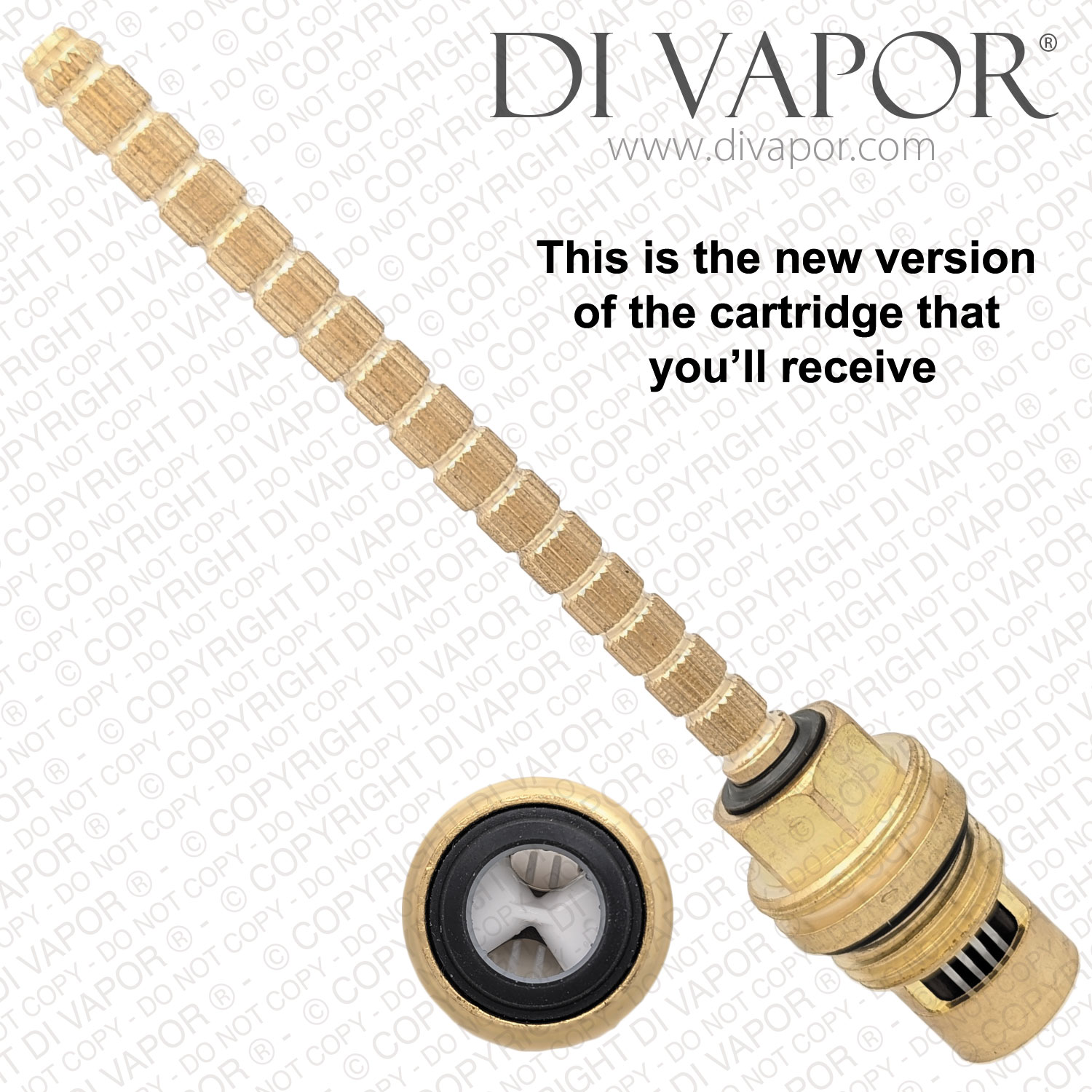

Dornbracht 0490032020090 Cartridge - Clockwise Open. The bottom of the cartridge now uses a black rubber instead of white as to meet European regulations. The cartridge now has a friction bearing for improved performance and user experience.
Incluses 2 x plastic spline adapters. Doesn't include the brass adaper (not shown in photos).
| Fitting Screw Thread (1/2 inch BSP) | 20.7mm |
|---|---|
| Upper screw thread | 23.7mm |
| Total Length | 138mm |
This Dornbracht clockwise open flow cartridge is used in selected 1/2 inch wall valve and volume control assemblies. It is sold under code 0490032020090 and is also associated with code 9090032020090.
The cartridge controls on and off water flow within the valve and restores correct shut-off when the original internal seals or ceramic mechanism have worn. A common symptom of failure is water continuing to drip from the shower head or spout after the valve is turned off.
Technical Details
- Part type: clockwise open flow cartridge for selected Dornbracht 1/2 inch wall valves
- The lower section now uses black rubber instead of white
- The cartridge includes a friction bearing
- Supplied with 2 plastic spline adapters
- Brass adapter not included
Before you order check
- Check the exact part code on the old cartridge or valve documentation
- Check that your valve uses a clockwise open cartridge
- Check the thread sizes and overall length against your original part
- Check whether you need the cartridge only or the alternative assembly version with cut-to-length shaft
Confirmed Compatible Models
- Dornbracht Symetrics Volume Control Counter-Clockwise Closing 1/2 Chrome 36 607 980-00 Spare Parts
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Brushed Platinum 36 607 980-06
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Platinum 36 607 980-08
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Brushed Durabrass 23kt Gold 36 607 980-28
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Brushed Chrome 36 607 980-93
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Brushed Dark Platinum 36 607 980-99 Spare Parts
- Dornbracht Symetrics Volume Control Counter-Clockwise Closing 1/2 Chrome 36 607 985-00 Spare Parts
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Brushed Platinum 36 607 985-06 Spare Parts
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Platinum 36 607 985-08
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Brushed Durabrass 23kt Gold 36 607 985-28
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Brushed Chrome 36 607 985-93
- Dornbracht Symetrics Wall Valve Anti-Clockwise Closing 1/2 Brushed Dark Platinum 36 607 985-99 Spare Parts
- xTool Thermostat Module IMO ST 060 113 2985 finish variants 00 06 08 28 93 99
- xTool Thermostat Module with 2 Valves IMO ST 060 111 2980 finish variants 00 06 08 28 93 99
- xTool Thermostat Module with 3 Valves IMO ST 060 111 3980 finish variants 00 06 08 28 93 99
