Hansgrohe 98283000 Axor Starck Diverter Cartridge Shut off Unit with Selector

SUMMARY

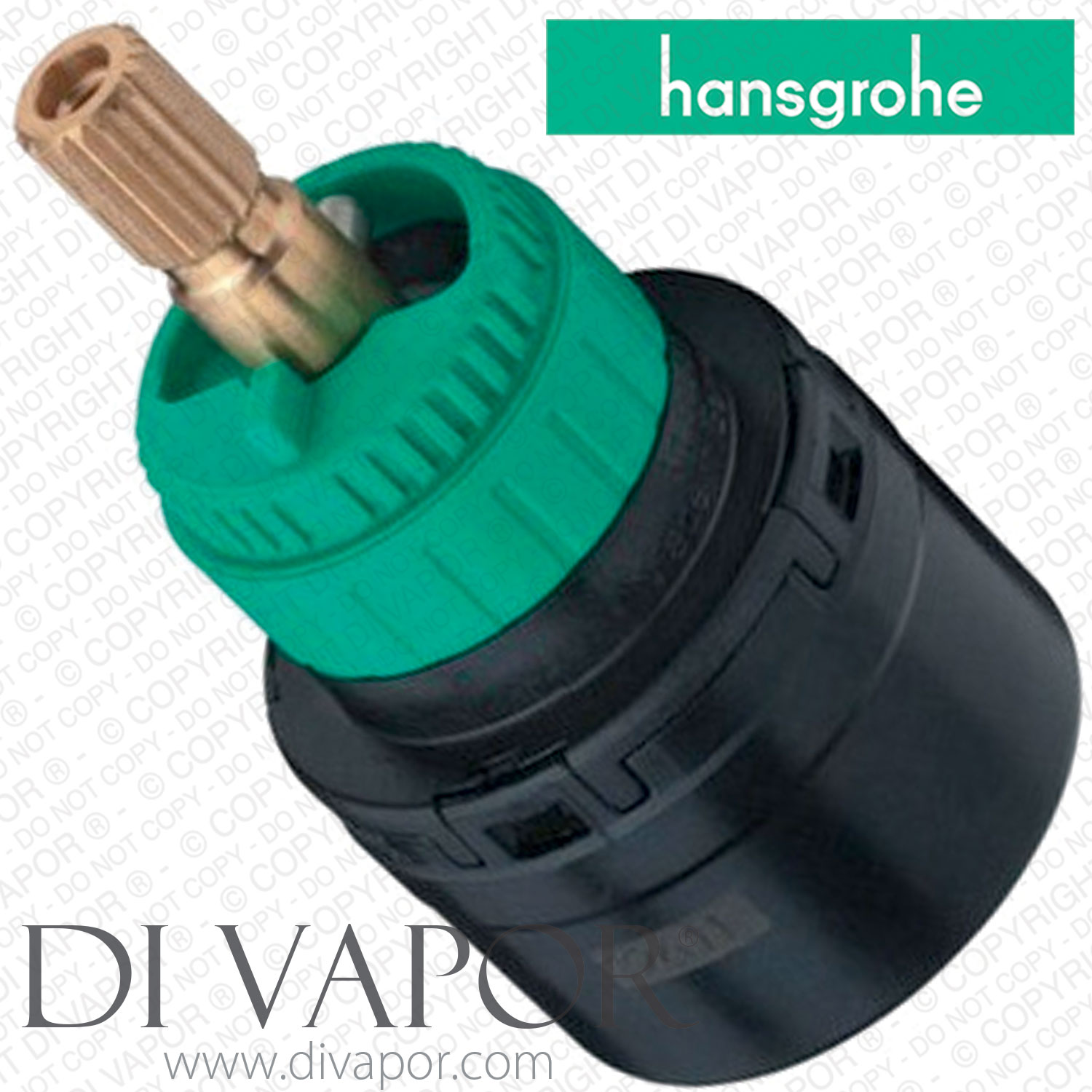

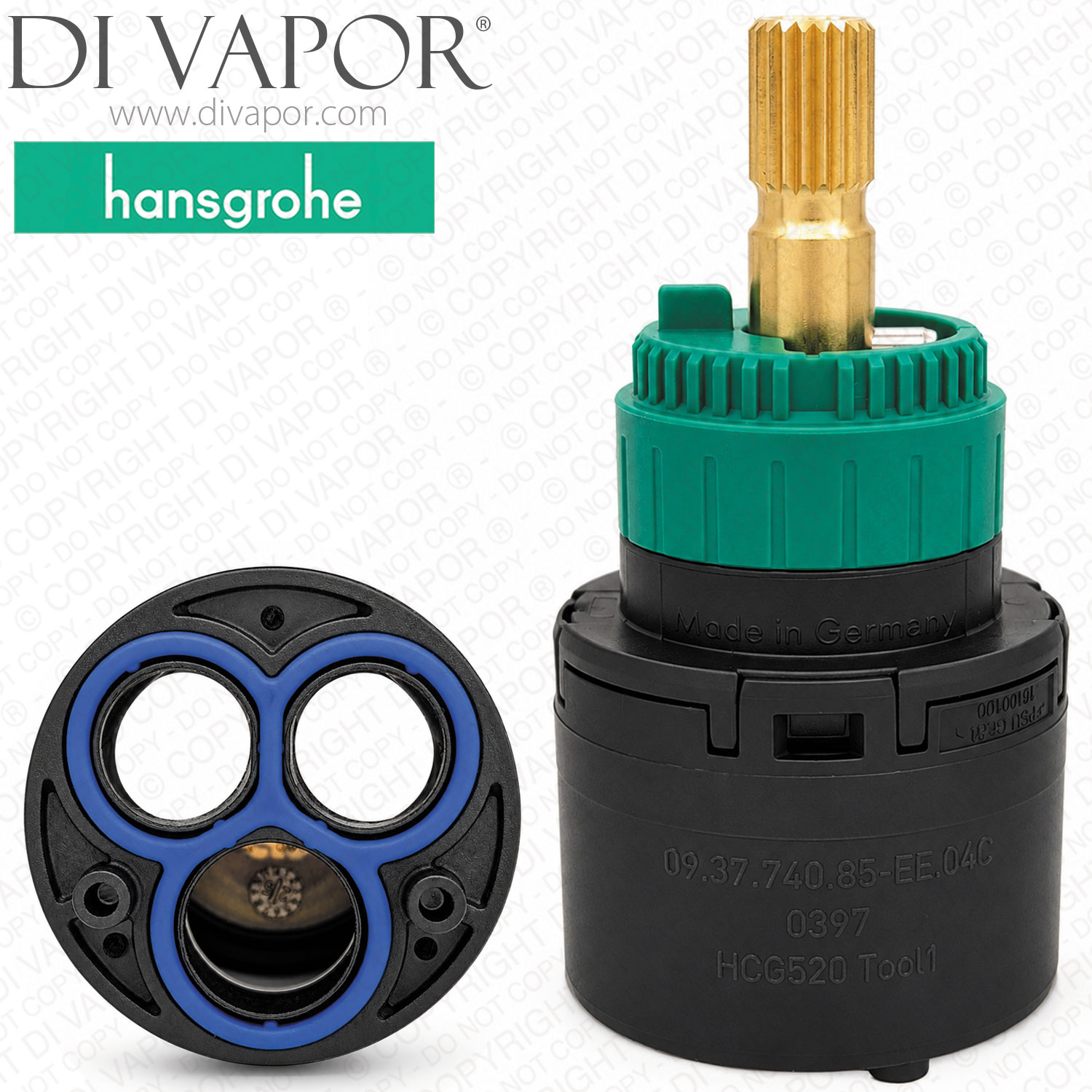

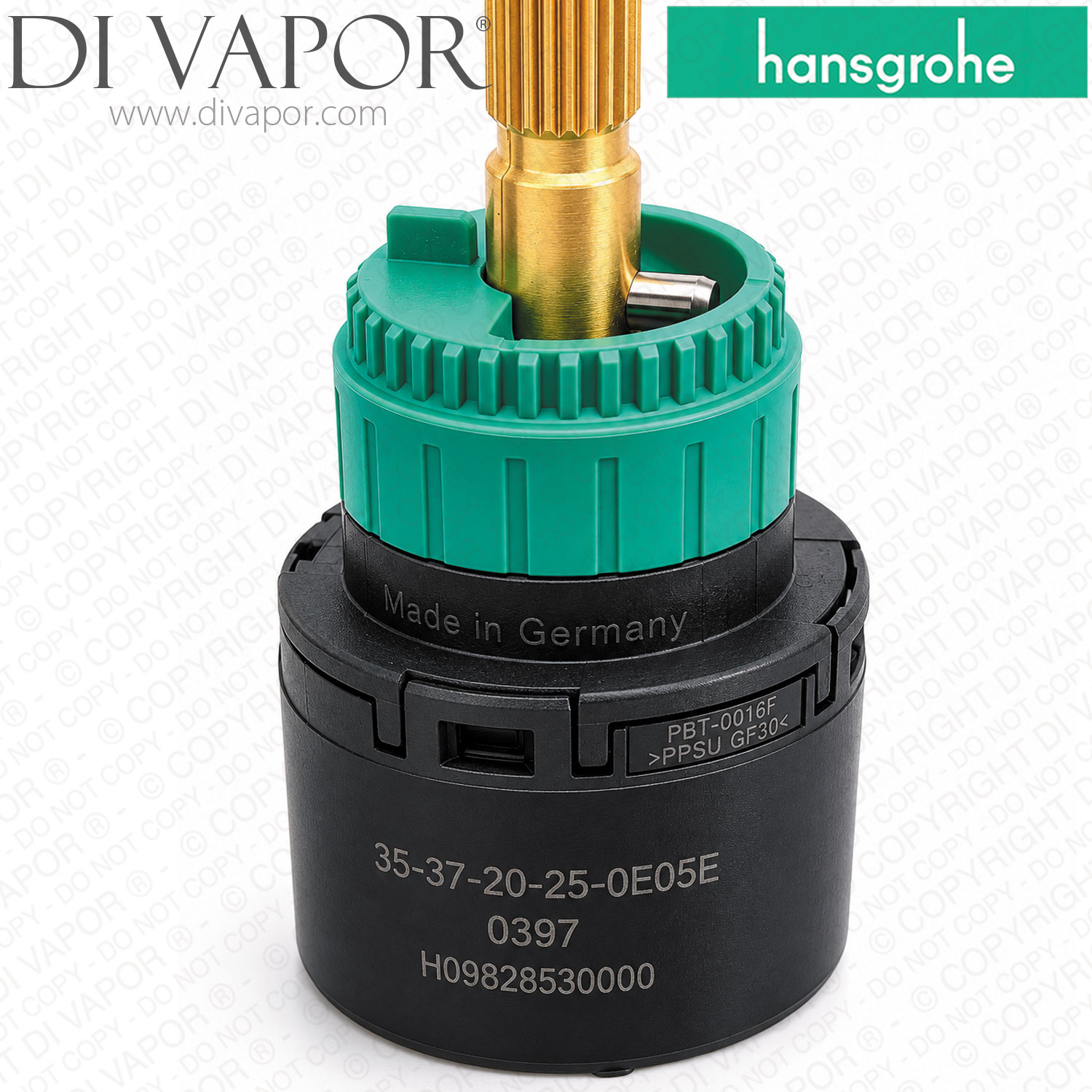

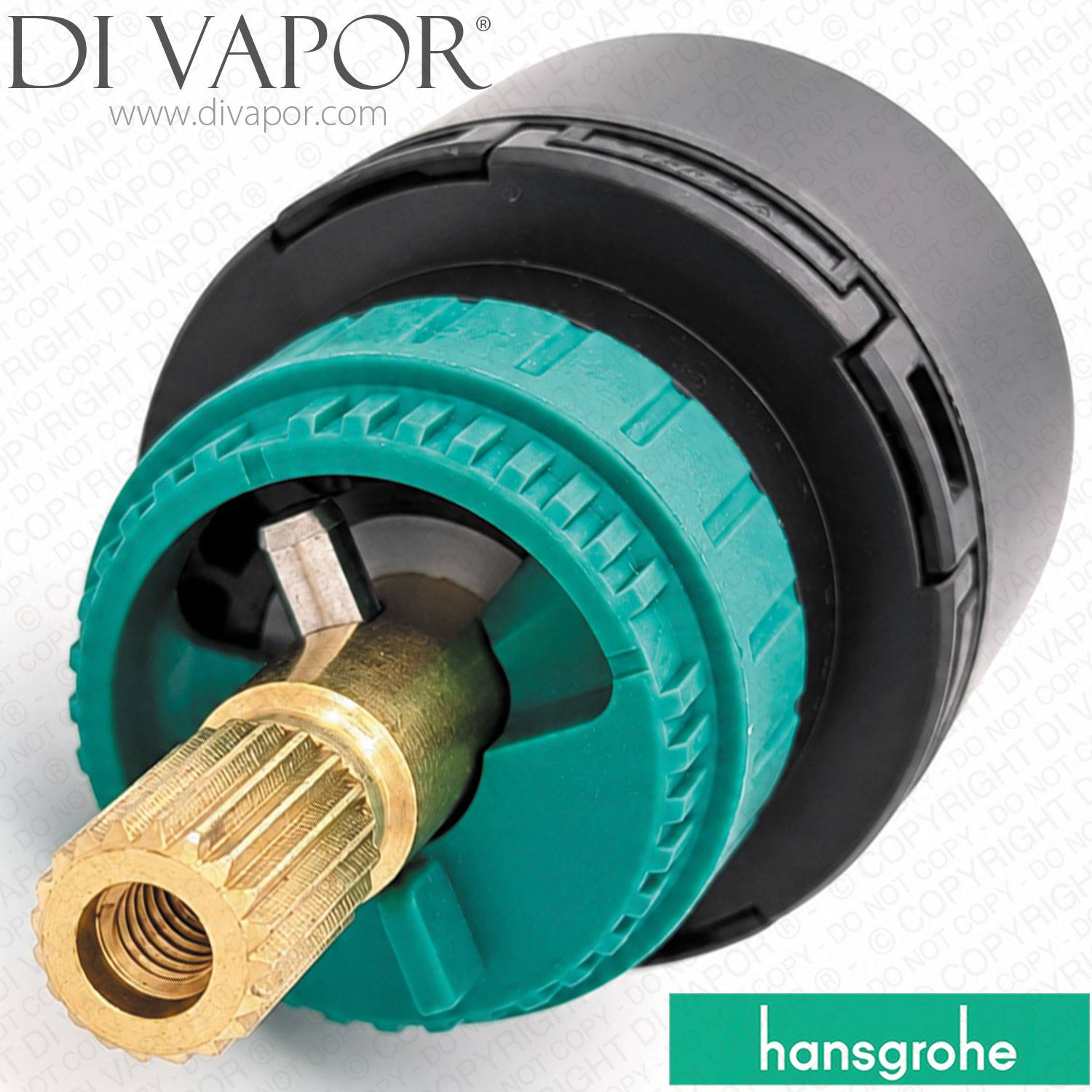

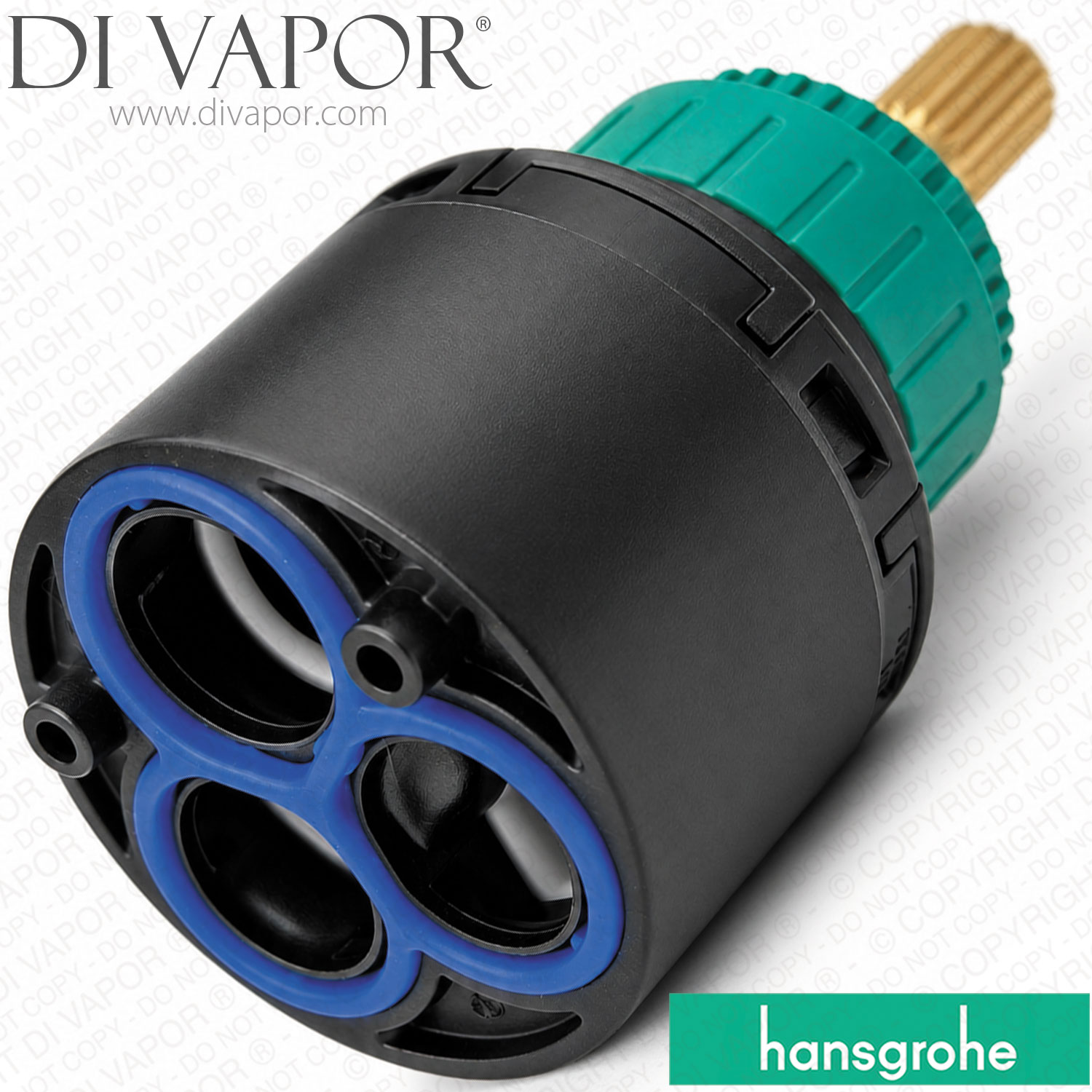

Hansgrohe 98283000 Ceramic Shut-Off and Diverter Cartridge for Bath and Shower Mixers

The Hansgrohe 98283000 is a ceramic shut-off unit with selector for specified Hansgrohe and AXOR bath mixers, shower controls and showerpipe systems. It combines water shut-off and outlet selection within the control assembly.

Operated by the mixer handle, this cartridge controls the water supply to the selected outlet. It is separate from the temperature-control cartridge and does not regulate the blend of hot and cold water. Persistent dripping from the shower head or bath spout when the control is turned off, or difficulty selecting an outlet, can indicate a fault with the shut-off selector.

Technical Details

- - Part code: 98283000

- - Additional designation: AUV32

- - Part type: ceramic shut-off unit with selector

- - Function: water shut-off and outlet selection

- - Retaining-nut spanner size shown in the cartridge service instructions: 27 mm

- - Retaining-nut tightening torque shown in the cartridge service instructions: 8 Nm

Before Ordering

Check the complete mixer or shower model code, its production version and the part specified for the shut-off selector position. Products within the same range can use different cartridges. The 27 mm measurement is the service-tool size, not the cartridge body diameter, and should not be used to identify the part. Temperature-control cartridges, handle adapters and separate on-off cartridges are different components.

Confirmed Models and Applications using 98283000

The following applications are specific to the model codes and versions listed. Match the complete code and version rather than relying on the range name alone.

Concealed Controls

- - Hansgrohe Ecostat S 15758000 concealed thermostat for 2 functions, 05/14 to 02/18

- - Hansgrohe Ecostat S 15758000 concealed thermostat for 2 functions, version from 03/18

- - Hansgrohe Ecostat S 15758340 concealed thermostat for 2 functions, version from 01/19

- - Hansgrohe Ecostat S 15758670 concealed thermostat for 2 functions, version from 06/20

- - Hansgrohe Ecostat S 15758990 concealed thermostat for 2 functions, version from 06/20

- - Hansgrohe Ecostat S 15790000 concealed thermostat for 2 functions, version from 04/19

- - Hansgrohe Ecostat E 15708000 concealed thermostat for 2 functions, 05/14 to 03/18

- - Hansgrohe Ecostat Square 15714000 concealed thermostat for 2 functions, version from 10/17

- - Hansgrohe PuraVida iControl 15777400 concealed shut-off and diverter valve for 3 functions, 09/09 to 08/15

- - Hansgrohe PuraVida iControl 15777000 concealed shut-off and diverter valve for 3 functions, version from 09/15

- - Hansgrohe Metris iControl E 31958000 concealed shut-off and diverter valve, 06/11 to 04/19

- - Hansgrohe iControl S 15955000 concealed shut-off and diverter control, 07/09 to 08/15 and 09/15 to 07/16

- - Hansgrohe iControl E 15958000 concealed shut-off and diverter control, 07/09 to 12/14

The 3-function designation above describes the complete PuraVida control assembly. It should not be used to identify 98283000 as a general-purpose 3-way cartridge.

Exposed and Floor-Standing Bath Mixers

- - Hansgrohe Ecostat E 15774000 exposed bath thermostat, version from 08/19

- - Hansgrohe Ecostat E 15785000 Nordic 150cc exposed bath thermostat, version from 04/19

- - Hansgrohe Ecostat S 13148000 exposed bath thermostat, version from 08/10

- - Hansgrohe Versostat 15348000 exposed bath thermostat, version from 01/14

- - AXOR Citterio M 34435000 exposed bath thermostat, 07/08 to 03/13

- - AXOR Citterio M 34435000 exposed bath thermostat, version from 04/13

- - AXOR Urquiola 11422000 floor-standing bath thermostat, version from 04/09

- - Hansgrohe Ecostat Comfort 13114000 exposed thermostatic bath mixer, 09/11 to 06/12 and version from 07/12

ShowerTablet and Showerpipe Systems

- - Hansgrohe ShowerTablet 350 13107000 exposed bath thermostat, 10/17 to 12/20

- - Hansgrohe ShowerTablet 600 13108400 exposed thermostat for 2 functions, version from 10/17

- - Hansgrohe Raindance E Showerpipe 360 27112000, versions 06/11 to 08/11, 09/11 to 11/12, 12/12 to 09/13, 10/13 to 08/14, 09/14 to 01/15 and from 02/15

- - Hansgrohe Croma 100 Showerpipe 27169000, versions 06/08 to 05/11 and 06/11 to 12/14

- - Hansgrohe Croma 100 EcoSmart Showerpipe 27159000, versions 01/09 to 07/10, 08/10 to 05/11 and 06/11 to 12/14

- - Hansgrohe Croma 100 bath Showerpipe 27143000, 02/09 to 12/14

- - Hansgrohe Croma 100 EcoSmart bath Showerpipe 27144000, 02/09 to 12/13

- - AXOR Starck Nature 240 1jet 12670XX9

Installation

Isolate the water supplies before dismantling the control. Follow the instructions for the exact mixer, including the retaining-nut tightening requirement and the handle assembly sequence. Handle-fixing arrangements and screw torques vary between models; do not apply the retaining-nut torque to the handle screws. After reassembly, check shut-off, outlet selection and all disturbed joints for leaks.

Related Spares You May Need

These parts serve different positions and model versions within the assemblies listed above. Select only the parts specified for your mixer and the fault being repaired; they are not all required when changing 98283000. The thermostatic sealing set below is for the separate temperature-control assembly, not an internal repair kit for this selector cartridge.

- - Hansgrohe 95252000 handle spindle adapters, for the specified concealed Ecostat handle assemblies

- - Hansgrohe 95843000 handle fixing set, for selected Ecostat control assemblies

- - Hansgrohe 98915000 control handle, used on Ecostat S 13148000

- - Hansgrohe 95433000 handle cap, associated with the Ecostat S 13148000 handle assembly

- - Hansgrohe 95836000 Ecostat Comfort control handle, used on Ecostat Comfort 13114000

- - Hansgrohe 98282000 thermostatic cartridge, the separate temperature-regulating component in assemblies that specify this code

- - Hansgrohe 92373000 reverse-supplies thermostatic cartridge, only for assemblies that specify the cartridge for exchanged hot and cold connections

- - Hansgrohe 98303000 ceramic temperature-control cartridge assembly, the separate mixing cartridge in AXOR Starck Nature 12670XX9

- - Hansgrohe 95037000 thermostatic cartridge sealing set, for the temperature-control side of specified assemblies, including Ecostat S 15790000

- - Hansgrohe 96623000 on-off flow cartridge, for applicable earlier Metris iControl E 31958000 assemblies that specify this code for the separate shut-off position, not as a substitute for 98283000

- - Hansgrohe 98153000 O-ring, 30 x 5 mm, for specified concealed control assemblies

- - Hansgrohe 98133000 O-ring, 16 x 2 mm, for specified concealed Ecostat and iControl assemblies

- - Hansgrohe 98127000 pair of O-rings, used within the AXOR Urquiola 11422000 assembly

- - Hansgrohe 96454000 fixing screw set, for specified concealed control assemblies

- - Hansgrohe 96525000 screw set, for specified concealed control assemblies

- - Hansgrohe 94073000 noise reduction set, used in specified concealed Ecostat and iControl assemblies

- - Hansgrohe 94074000 non-return valve set, used in AXOR Urquiola 11422000 and AXOR Starck Nature 12670XX9

- - Hansgrohe 96737000 non-return valve, used in selected exposed Ecostat, Versostat and AXOR Citterio M assemblies

- - TACSIL 3g cartridge silicone grease, an optional maintenance consumable for use where specified by the fitting instructions

Help Identifying Your Part

Use the Di Vapor part identification service with photographs of the complete mixer, its controls and the removed cartridge, together with any visible codes, before ordering an unidentified part.
