Hansgrohe 96765000 Flow Cartridge - Anti-Clockwise Close
Send a photo of your item and we'll help confirm it.
Summary

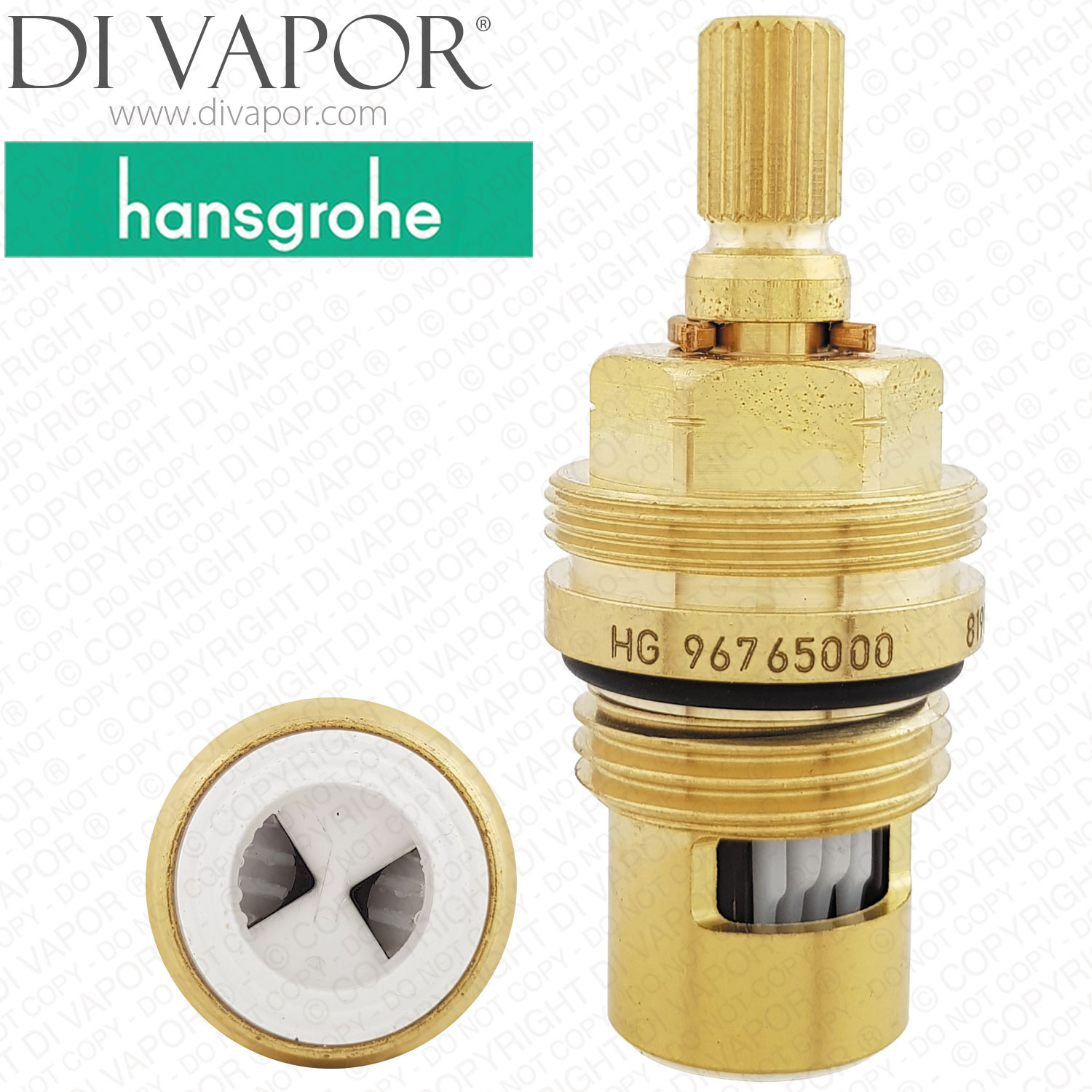

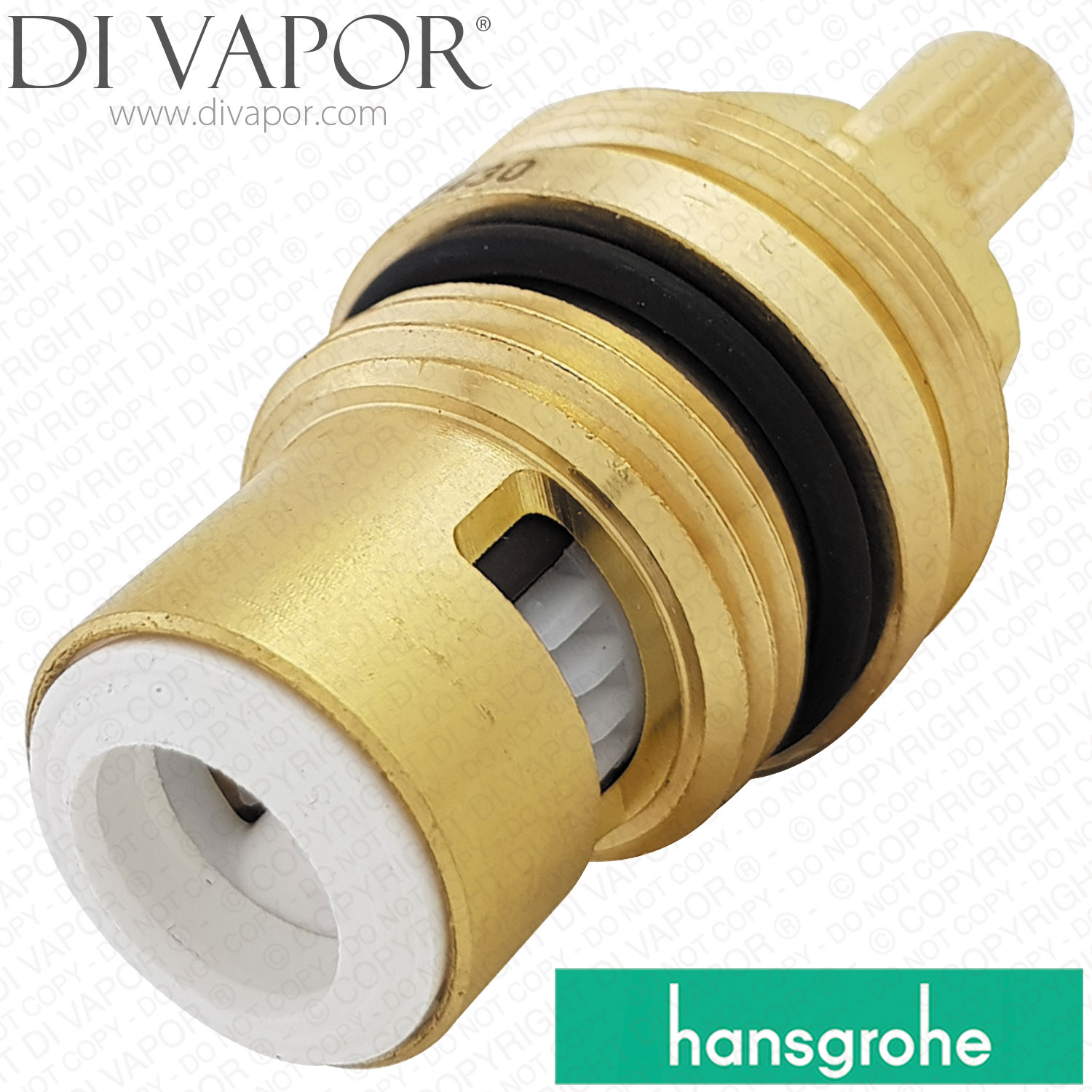

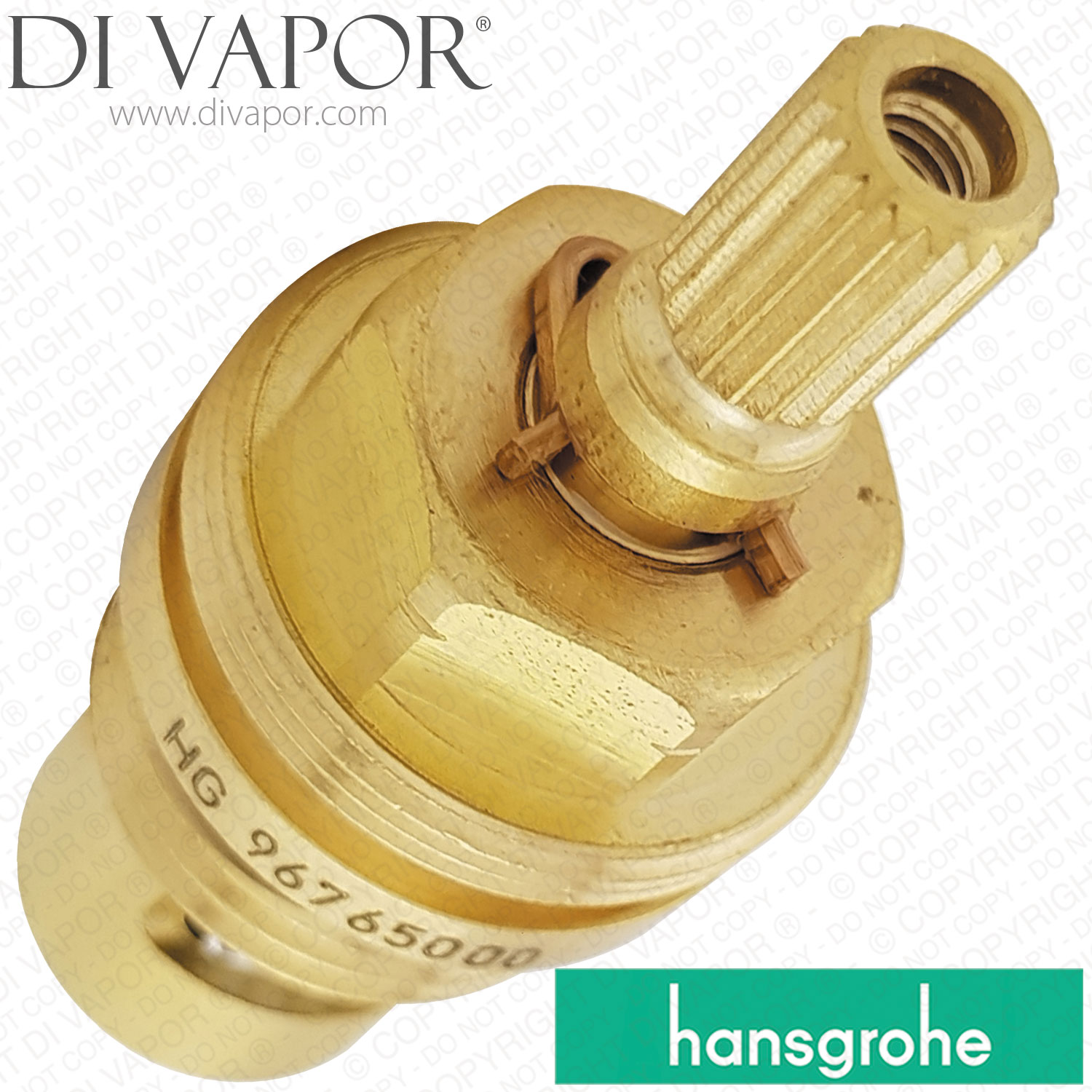

Hansgrohe 96765000 Flow Cartridge Anti-Clockwise Close for Basin Mixer Taps
This Hansgrohe tap spare measures:
| Diameter | 18.5mm |
|---|---|
| Diameter at widest point | 23.8mm |
| Total Height | 48.4mm |
| Brass Spindle | 7.6mm |
| Splines | 20 |
| Closing | Left-hand close (anticlockwise close) |
Hansgrohe flow cartridge 96765000 is used is tap:
- Hansgrohe Axor Starck
Hansgrohe 96765000 is an anti-clockwise close flow cartridge used for water flow shut-off control in selected Hansgrohe and AXOR 3-hole basin mixer taps. It is a tap flow cartridge, not a thermostatic cartridge, and is used where the existing cartridge closes anti-clockwise.
This cartridge helps restore correct handle operation and water shut-off. A worn flow cartridge can cause stiff handle movement, poor flow control, incomplete shut-off, or water dripping from the basin tap spout when the tap is turned off.
Technical Details
| Manufacturer code | 96765000 |
|---|---|
| Di Vapor Part Number | H-96765000 |
| Cartridge type | flow cartridge / shut-off unit |
Before Ordering
Check the close direction, spline count, spindle diameter, and cartridge body measurements before ordering. This is the anti-clockwise close version and should not be ordered in place of the clockwise close Hansgrohe 96766000 unless that is the cartridge required by the tap position.
Confirmed Models
- Hansgrohe 10133000 AXOR Starck Classic 3-Hole Basin Mixer 90 with Pop-Up Waste Set 08/94 - 02/10
- Hansgrohe 71133000 Logis 3-Hole Basin Mixer 150 with Pop-Up Waste Set 04/14 - 12/14
- Hansgrohe 71133000 Logis 3-Hole Basin Mixer 150 with Pop-Up Waste Set >01/15
- Hansgrohe 71323000 Logis Classic 3-Hole Basin Mixer 150 with Pop-Up Waste Set 01/15 - 02/18
- Hansgrohe Axor Starck
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Hansgrohe 96351000 Cartridge Shut-Off Unit (Left Close)
- Hansgrohe 96766000 Flow Cartridge - Clockwise Close - Compatible Replacement
- Hansgrohe 96350000 Cartridge Shut-Off Unit (Right Close) Compatible Spare
- Hansgrohe 96364000 O-ring Set 32x2.5mm
- Hansgrohe 98127000 Pair of O-Rings
- Hansgrohe 94184000 Handle Fixing Adapter
- Hansgrohe 97357000 Stop Valve
