Hansgrohe 16391000 Control Handle

Summary

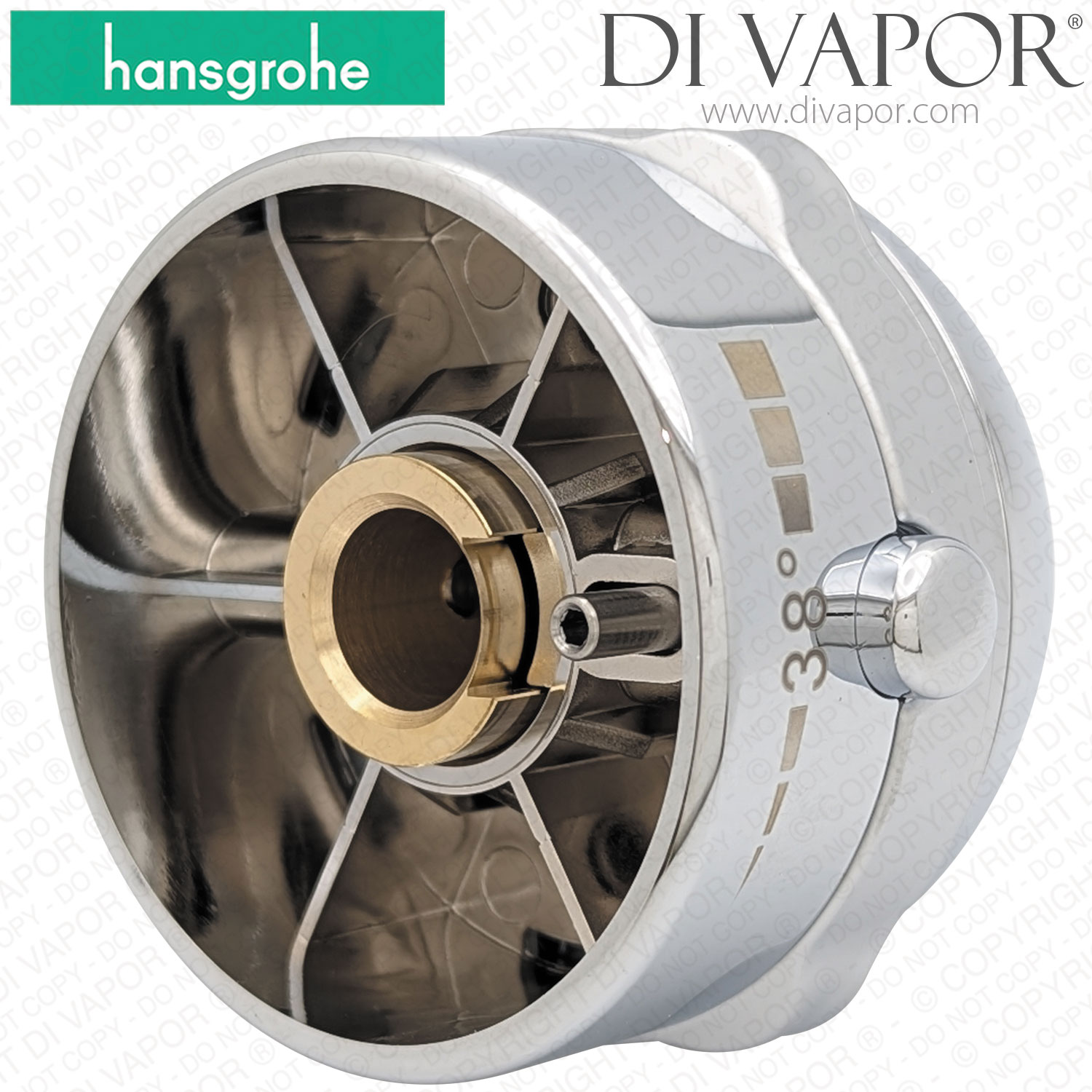

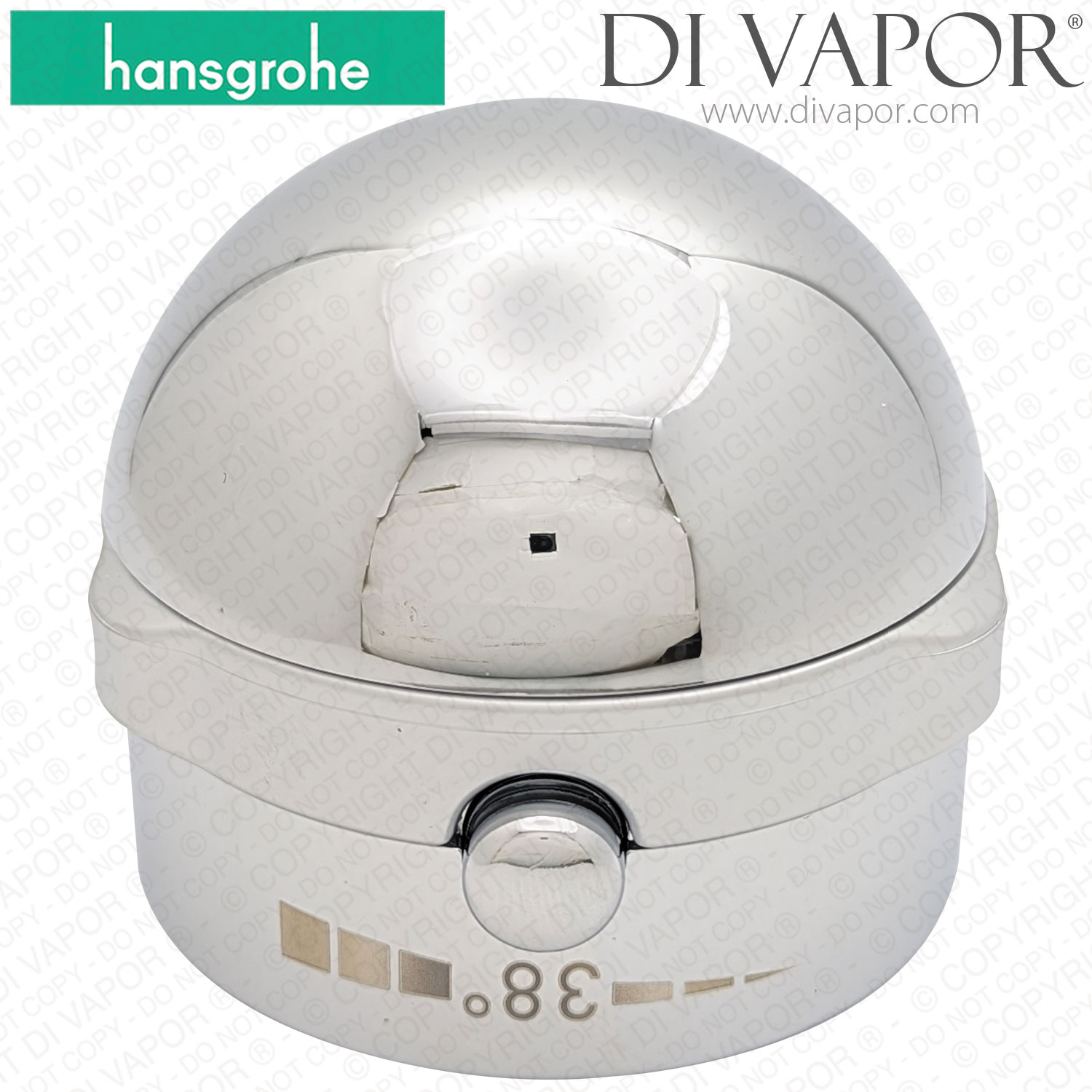

Hansgrohe 16391000 AXOR Thermostatic Mixer Control Handle - Chrome

The Hansgrohe 16391000 is a chrome thermostatic mixer control handle used to adjust the water temperature on selected historical AXOR Arco, AXOR Allegroh and AXOR Uno Color thermostatic valves and bath mixers. This listing is for the temperature-control handle, rather than the separate flow-control or diverter handle.

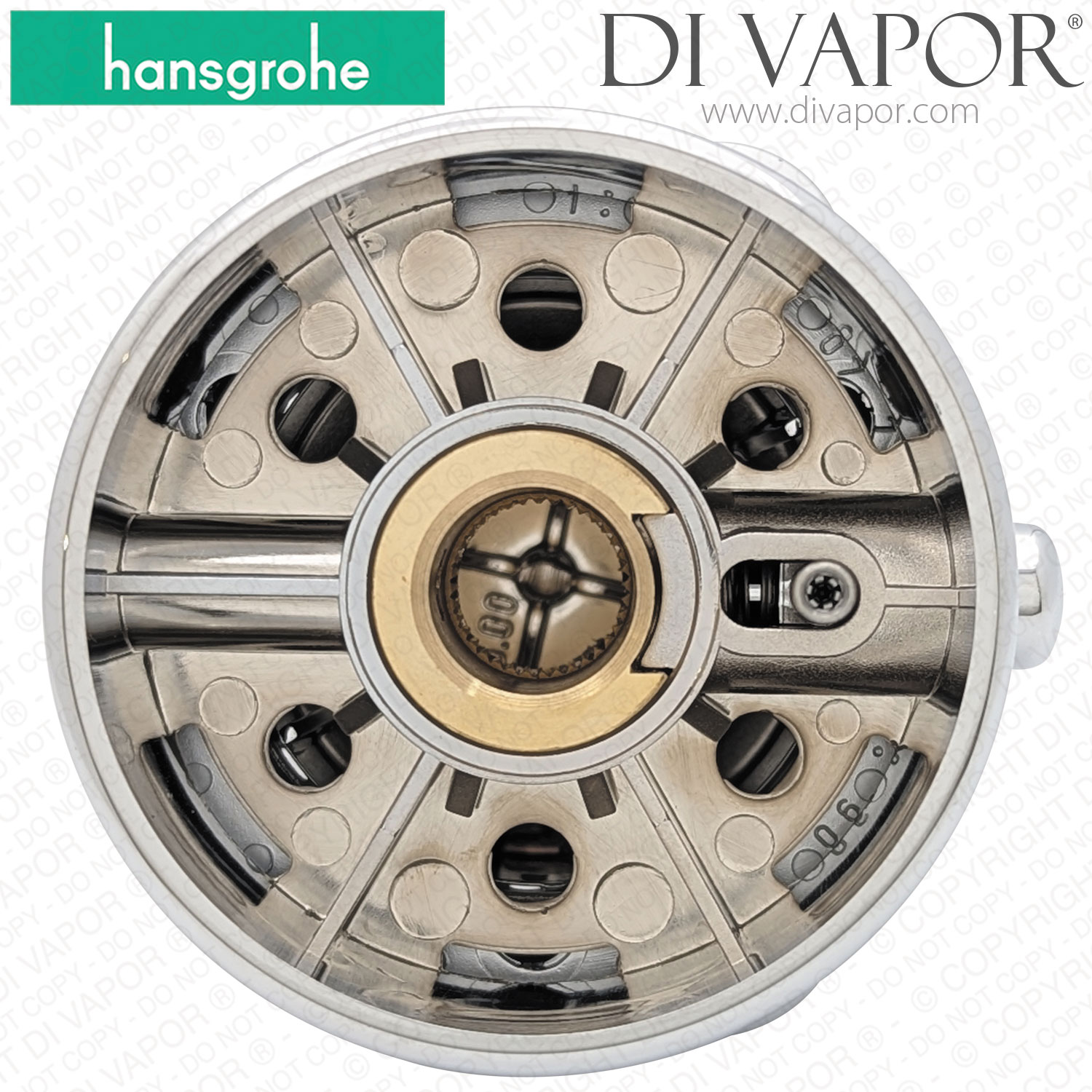

The handle fits onto the thermostatic control spindle and is secured by a screw fixing. It incorporates the position for the red temperature-safety push button used on selected AXOR thermostat handle assemblies.

Technical Details

• Historical exploded diagrams may show the finish-variable reference 16391XXX; 16391000 is the chrome-finish code.
• No superseding or replacement part code has been confirmed.

Confirmed Compatible Models

• AXOR Arco thermostat for concealed installation 11375000, produced from February 1998 to February 2003.
• AXOR Arco 4-hole thermostatic bath mixer 11461000, produced from September 1998 to May 2005.
• AXOR Arco 4-hole thermostatic bath mixer 11466000, produced from September 1998 to December 2004.
• AXOR Arco finish set for thermostatic mixer 11700000, produced from April 2001 to April 2002 and from May 2002 to September 2004.
• AXOR Arco concealed thermostatic mixer 11710000, produced from April 2001 to July 2004.
• AXOR Arco concealed thermostatic mixer 11720000, produced from July 2001 to August 2004.
• AXOR Arco finish set for thermostatic mixer 11700090, produced from April 2001 to April 2002 and from May 2002 to June 2005.
• AXOR Arco thermostat for concealed installation 11375090, produced from February 1998 to June 2003.
• AXOR Arco concealed thermostatic mixer 11710090, produced from April 2001 to June 2005.
• AXOR Arco concealed thermostatic mixer 11720090, produced from July 2001 to June 2005.
• AXOR Arco 4-hole thermostatic bath mixer 11461090, produced from September 1998 to June 2005.
• AXOR Arco 4-hole thermostatic bath mixer 11466090, produced from September 1998 to June 2005.
• AXOR Allegroh XX Allegroh/Arco thermostatic finish set 16376000, produced from March 1989 to October 2002.
• AXOR Allegroh II Allegroh/Arco thermostatic finish set 16378000, produced from March 1989 to March 2002.
• AXOR Allegroh II Allegroh/Arco thermostatic finish set 16378090, produced from May 1991 to March 2002.
• AXOR Allegroh XX Allegroh/Arco thermostatic finish set 16376090, produced from May 1991 to November 2002.
• AXOR Uno Color thermostat for concealed installation 13375070, produced from February 1998 to May 2003.
• AXOR Uno Color II finish set for 1/2-inch thermostat 13176070, produced from June 1996 to January 1999.
• AXOR Uno Color finish set for 3/4-inch thermostat 13178070, produced from June 1996 to January 1999.
• AXOR Uno Color 4-hole thermostatic rim-mounted bath mixer 13461070, produced from September 1998 to May 2003.
• AXOR Uno Color 4-hole thermostatic tile-mounted bath mixer 13466070, produced from September 1998 to May 2003.

Before Ordering

• Compare the original handle code, finish, shape and screw fixing with 16391000 before ordering.
• Older AXOR Allegroh and AXOR Arco installations were produced with both DN15 1/2-inch and DN20 3/4-inch thermostatic valves.
• Confirm the installed valve size before ordering a replacement thermostatic cartridge, because the DN15 and DN20 cartridges are different parts.
• This listing is for the thermostatic control handle; valve cartridges and other service components are available separately.

Related Spares You May Need

• Hansgrohe 92601000 Thermostatic Cartridge - DN15, for applicable 1/2-inch AXOR thermostat installations.
• Hansgrohe 92631000 Thermostatic Cartridge for 3/4-inch Valves, for applicable DN20 AXOR thermostat installations.
• Hansgrohe 97212000 AXOR Red Push Button, used in selected AXOR thermostatic control-handle assemblies.

Customers who cannot confirm the original AXOR model or valve size should identify the installed valve before ordering related internal components.
