Hansgrohe 94103000 Diverter Cartridge for Ecostat 2001 Bath Shower Mixer

Summary

Hansgrohe 94103000 Diverter Cartridge for Ecostat 2001 Bath Shower Mixer from 1993 until 1999

This Hansgrohe diverter selector assembly spare part fits in showers:

• Hansgrohe Axor Arco
• Hansgrohe Axor Carlton
• Hansgrohe Axor Mondaro
• Hansgrohe Axor Uno Color
• Hansgrohe Ecostat 1001
• Hansgrohe Ecostat 2001
• Hansgrohe Metris
• Hansgrohe Metropol
• Hansgrohe Mondial

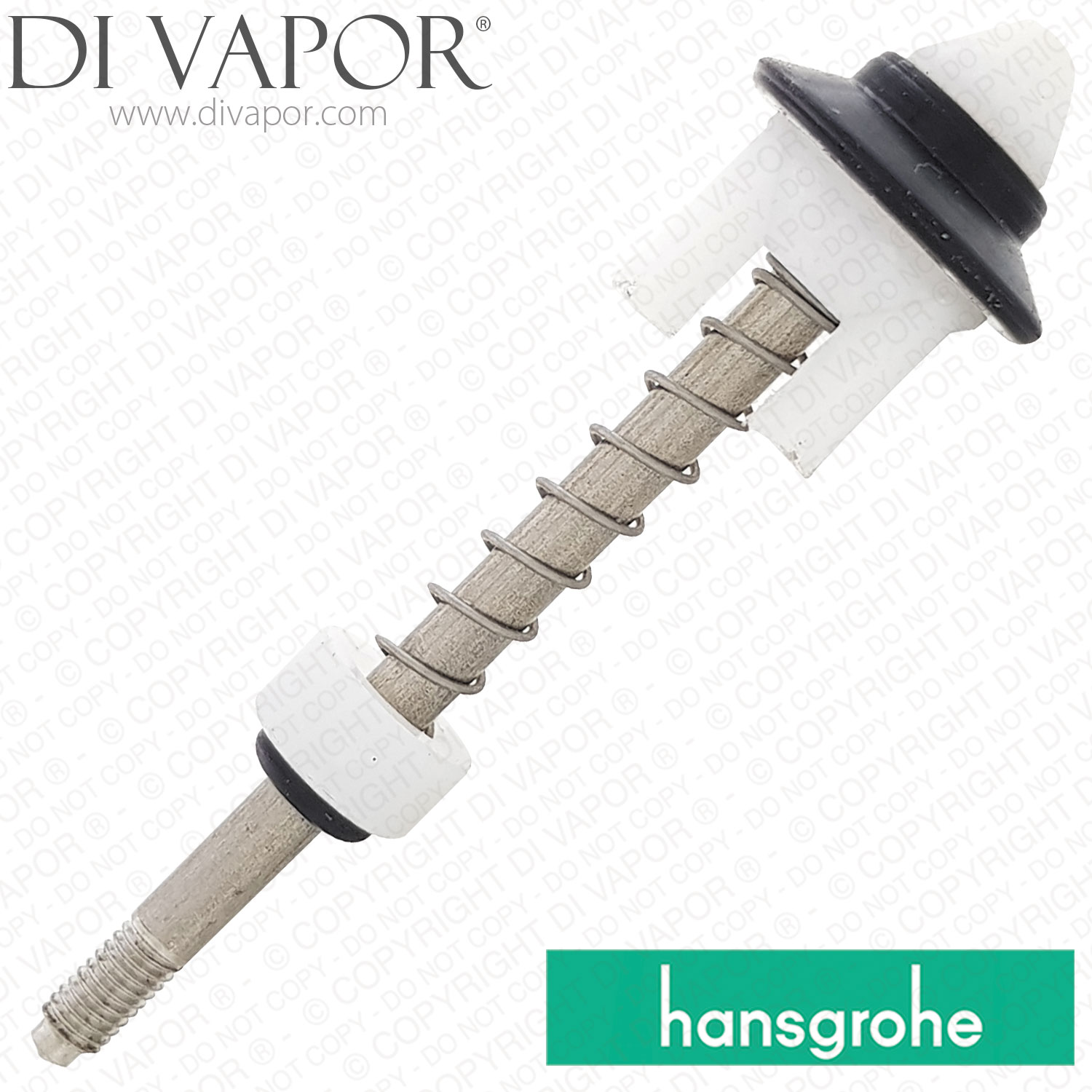

The Hansgrohe 94103000 is a diverter selector assembly used in selected Hansgrohe and AXOR bath/shower mixers. It changes the mixed-water supply between the bath spout and the shower outlet.

The selector is mechanically operated by the external diverter control. On documented automatic-return bath mixers, pulling the control directs water to the shower outlet, and the mixer returns to bath-spout operation after the water is shut off.

A worn or sticking selector can cause difficulty changing outlets, failure to remain on the shower setting, or water passing from the outlet that has not been selected. Water dripping from the bath spout or shower outlet when the mixer is turned off may also be caused by worn selector seals or the main flow cartridge, so the fault should be diagnosed before ordering.

Technical Details

• External diverter knobs are model and finish specific
• No superseded or replacement manufacturer code has been verified for 94103000
• Hansgrohe 94121000 is a separate selector and is not a superseded code for 94103000
• Match the part using the complete mixer article number, production period and spare-parts diagram rather than appearance or partial measurements alone

Confirmed Models

• AXOR Arco 11400000 Single Lever Bath/Shower Mixer - production 05/91 - 09/07
• AXOR Carlton 17430000 2-Handle Bath Mixer for Exposed Installation - production 05/94 - 12/17
• AXOR Carlton 17430090 2-Handle Bath Mixer for Exposed Installation - production 05/94 - 12/17
• AXOR Carlton 17470810 2-Handle Rim-Mounted Bath Mixer DN15 - production 07/00 - 10/09
• AXOR Mondaro 18430010 Two Handle Bath/Shower Mixer G 1/2 - production 08/93 - 09/04
• Hansgrohe Ecostat 1001 13243000 Exposed Thermostatic Bath/Shower Mixer
• Hansgrohe Ecostat 2001 13340060 Exposed Thermostatic Bath/Shower Mixer G 1/2 - production 05/93 - 09/99
• Hansgrohe Metris 31400000 Exposed Single Lever Bath Mixer
• Hansgrohe Metropol 14400XXX Exposed Single Lever Bath Mixer range
• Hansgrohe Mondial 15431XXX Two Handle Bath Mixer range
• Hansgrohe Picta 31410000 Single Lever Bath Mixer DN15 for Exposed Fitting - production 04/96 - 03/01

Before Ordering

Check the complete mixer article number, finish and production period against the original spare-parts diagram. Hansgrohe bath/shower mixers within the same range can use different selector assemblies across different production periods.

Isolate the hot and cold water supplies before dismantling the mixer. Inspect the selector-area O-rings, external diverter control and main mixer cartridge while the valve is open, as these components can produce similar symptoms.
