Dornbracht 9015050200190 Single-lever cartridge

SUMMARY

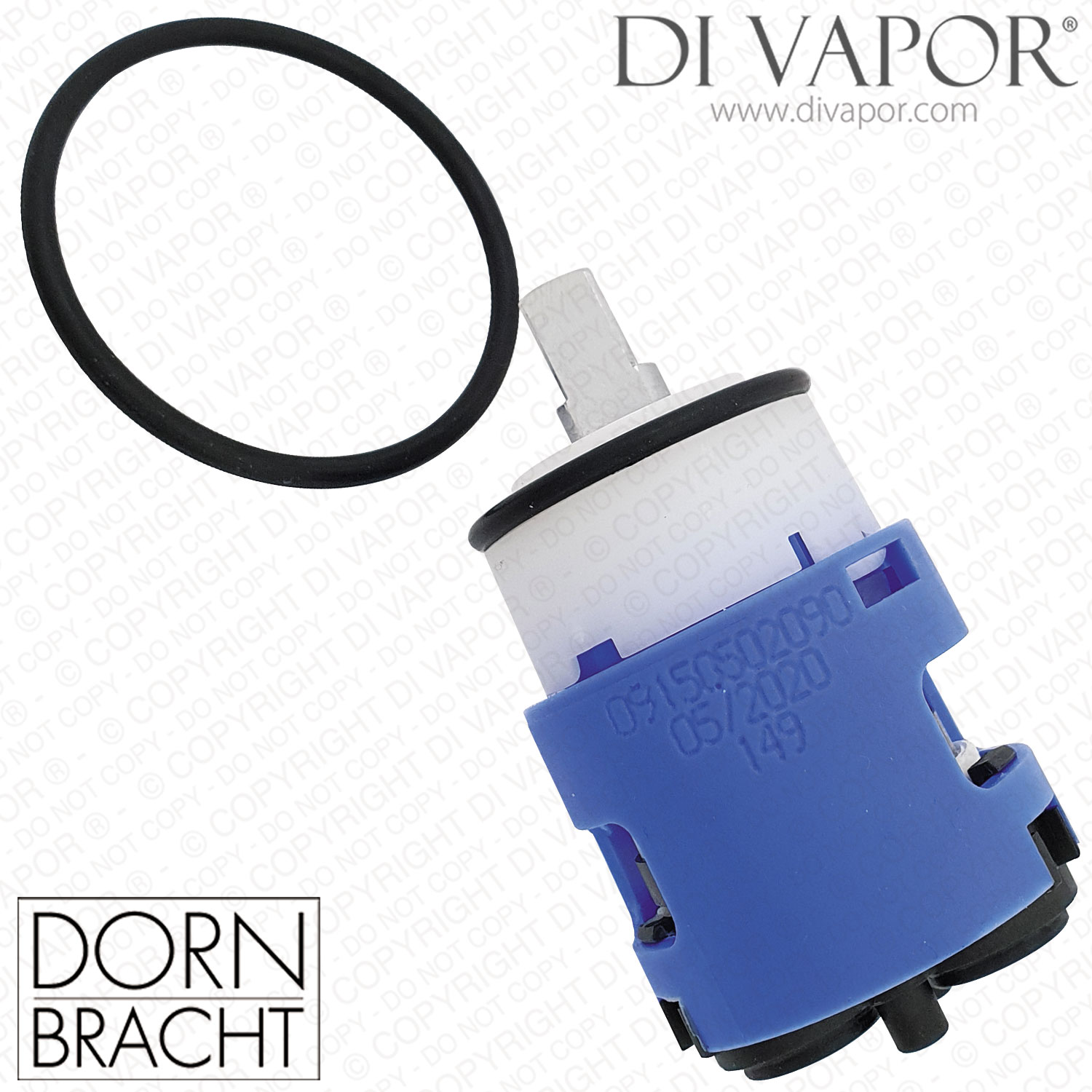

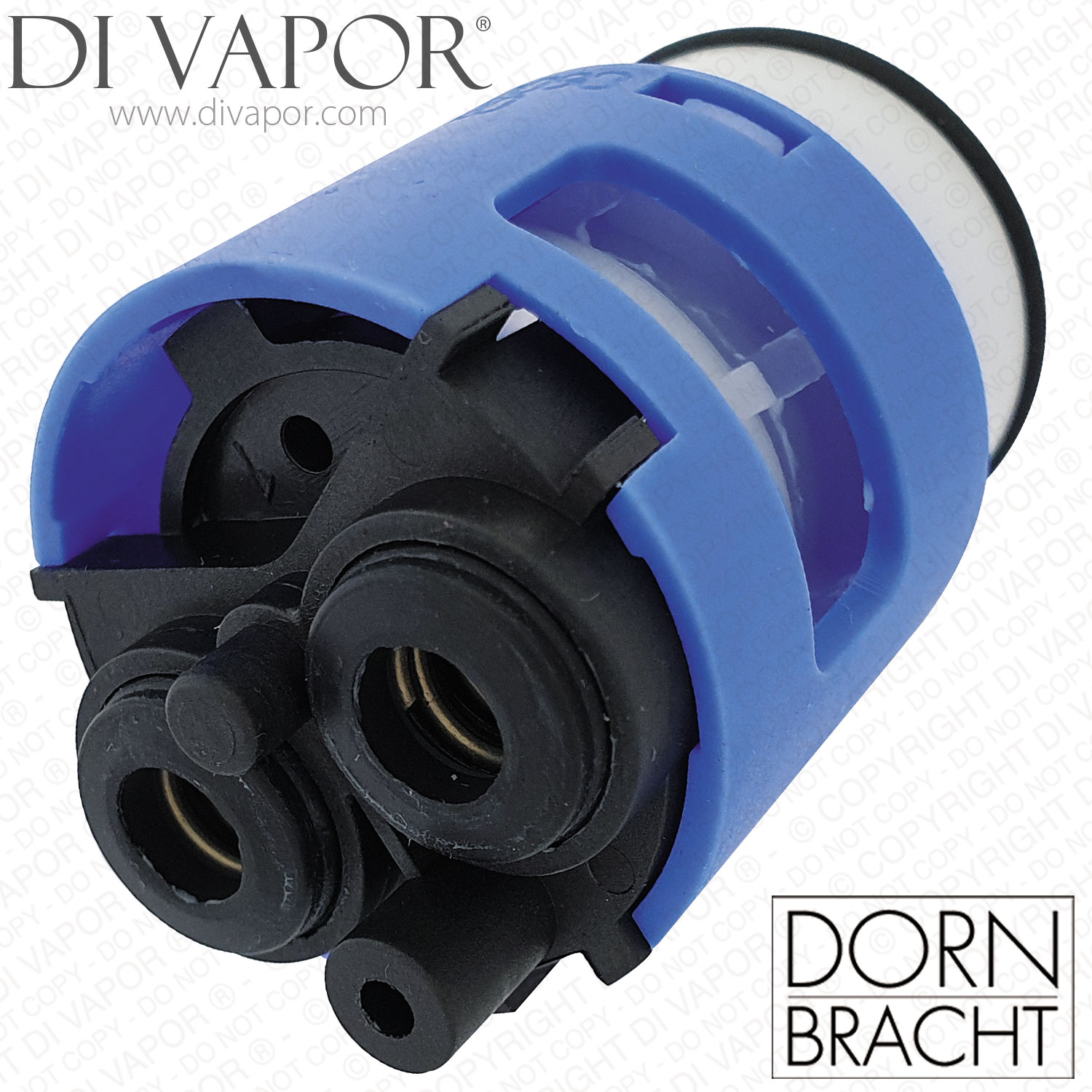

Dornbracht 9015050200190 is a blue and white single-lever mixer cartridge with head screws used only in Edition OBINA 540 WT EHM. The manufacturer code format 90 15 05 020 01 90 refers to the same cartridge.

This cartridge is the internal control component that regulates mixed water flow and temperature from the single lever. Replacing a worn cartridge can help restore smooth lever operation and proper water shut-off.

Technical Details

- - Colour: blue / white

- - With head screws

- - Manufacturer nominal size: 38 x 70 mm

- - Measured diameter: 38.2 mm

- - Measured total length: 72.2 mm including locating pin

- - Top metal handle connector: 6.8 mm x 6.8 mm

Before you order check

- - Check the exact cartridge code is 9015050200190 or 90 15 05 020 01 90

- - Check your fitting is Edition OBINA 540 WT EHM

- - Do not order by diameter alone

Verified Used In

- - Edition OBINA 540 WT EHM

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
