Hansgrohe 98185000 O-Ring

SUMMARY

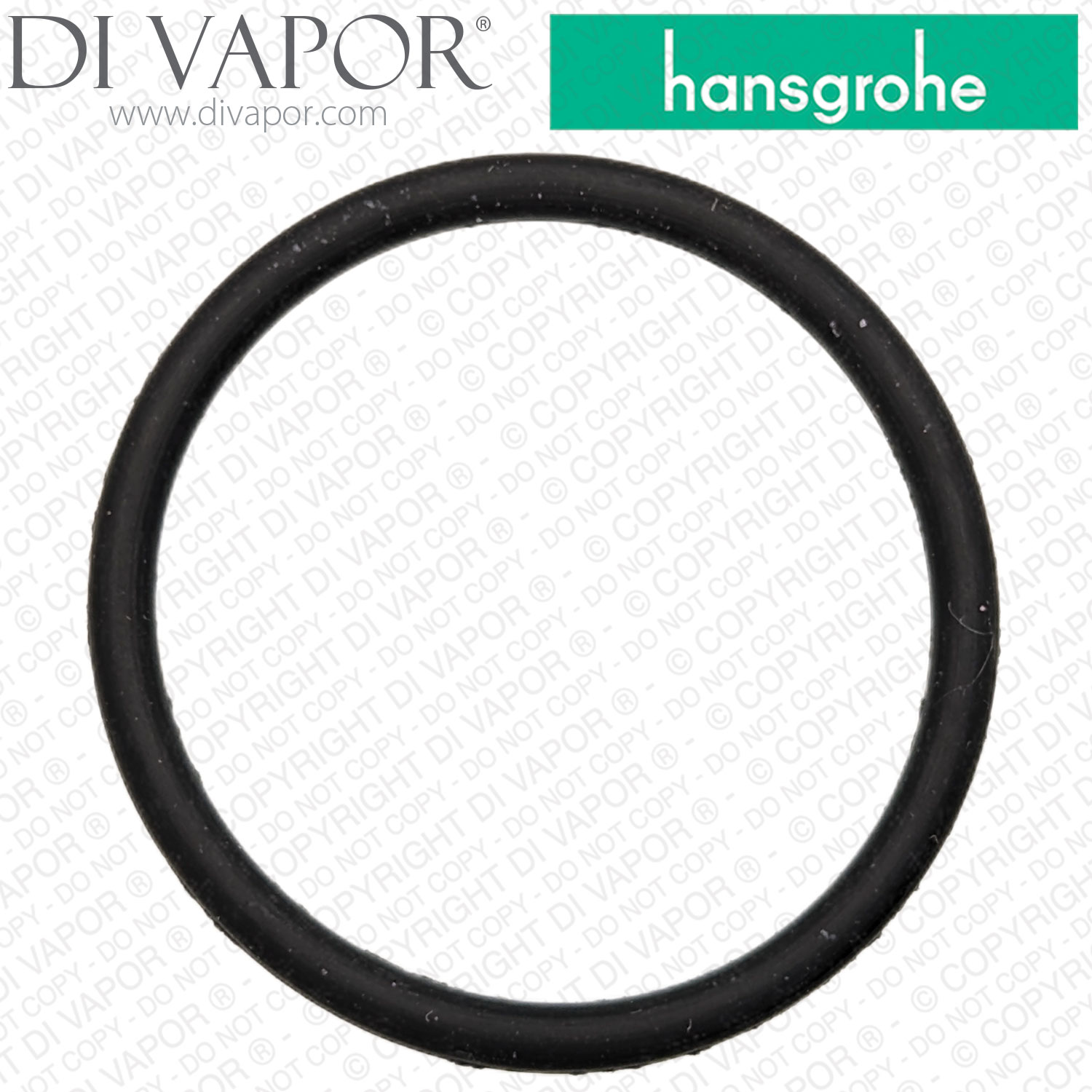

Hansgrohe 98185000 O-Ring Seal 22x2mm for Bathroom Mixers and Shower Fittings

The Hansgrohe 98185000 is a 22 x 2 mm O-ring sealing ring used at selected joints within applicable Hansgrohe and AXOR bathroom mixers and shower fittings. Its installation position depends on the parent product and may include mixer connections, bath-spout and diverter assemblies, shower arms or ceiling connectors.

The O-ring forms a watertight seal between mating components. A worn, flattened, hardened, split, twisted or displaced seal can allow water to escape around the relevant joint. Check the complete product article number and construction period before ordering because visually similar fittings may use a different O-ring size.

Technical Details

- - Hansgrohe part code: 98185000

- - Part type: O-ring sealing ring

- - Size: 22 x 2 mm

- - Installation position: product-specific

- - Thread and handedness: not applicable

- - Supersession status: no replacement or superseded code confirmed

Confirmed Models and Applications

- - Hansgrohe Metris single lever basin mixer 200 without waste set 31185000 - construction periods: 06/2012 to 01/2016

- - Hansgrohe Talis E 4-hole rim-mounted bath mixer 71748000 - construction period: from 01/2016

- - Hansgrohe Metris single lever basin mixer 200 with pop-up waste set 31183000 - construction periods: 01/2011 to 01/2016

- - Hansgrohe Vernis Blend ceiling connector 100 mm 27804000 - construction period: from 04/2021

- - Hansgrohe Vernis Blend shower arm 240 mm 27809000 - construction period: from 01/2021

- - Hansgrohe Vernis Blend concealed single-lever shower mixer 1 outlet 71667000 - construction period: from 06/2022

- - Hansgrohe Vivenis 4-hole rim-mounted bath mixer 75444000 - construction period: from 06/2021

- - Hansgrohe Vivenis concealed single-lever mixer 1 outlet 75615000 - construction period: from 06/2021

- - Hansgrohe Vivenis 4-hole rim-mounted bath mixer matt black 75444670 - construction period: from 06/2021

- - Hansgrohe Vivenis concealed single-lever mixer 1 outlet matt black 75615670 - construction period: from 06/2021

- - Hansgrohe Talis E 4-hole rim-mounted bath mixer brushed bronze 71748140 - construction period: from 07/2019

- - Hansgrohe Talis E 4-hole rim-mounted bath mixer brushed black chrome 71748340 - construction period: from 07/2019

- - Hansgrohe Talis E 4-hole rim-mounted bath mixer matt black 71748670 - construction period: from 10/2019

- - Hansgrohe DuoTurn Q concealed single-lever mixer 2 outlets chrome 75414000 - construction period: from 09/2023

- - Hansgrohe DuoTurn Q concealed single-lever mixer 2 outlets matt black 75414670 - construction period: from 09/2023

- - Hansgrohe Vernis Blend ceiling connector 30 cm 27805000

- - Hansgrohe 71605000 Logis Single Lever Shower Mixer for Concealed Installation for Ibox Universal - from 10/19

- - Hansgrohe 31685000 Metris Single Lever Shower Mixer for Concealed Installation for Ibox Universal - from 10/19

- - Hansgrohe Metropol single-lever basin mixer 230 32511000 - from 10/17

- - Hansgrohe Finoris concealed single-lever bath mixer 76416000 from 06/21

- - Hansgrohe Finoris concealed single-lever shower mixer 76615000

- - Hansgrohe Vernis Shape concealed single-lever bath mixer 71469000 - from 04/21

- - Hansgrohe Metris concealed single-lever bath mixer 31487000 - 01/11 to 01/13, from 01/16 and 02/13 to 12/15

- - Hansgrohe Metris 3-hole rim-mounted single-lever bath mixer 31190000 - from 09/11

- - Hansgrohe Metropol concealed single-lever bath mixer 32546990 from 07/19

- - Hansgrohe Vernis Shape ceiling connector 10 cm 26406000

- - Hansgrohe Vernis Shape shower arm 24 cm 26405000

- - Hansgrohe Talis E concealed shower mixer 71765990 - from 07/19

- - Hansgrohe PuraVida bath mixer article families 15446XX1 and 15456XX1

Ordering and Installation Checks

- - Isolate the water supply and release pressure before dismantling the fitting

- - Confirm the complete parent product code and construction period against the relevant spare-parts diagram

- - Inspect the sealing groove and adjoining surfaces for scale, scoring or debris

- - Apply lubricant only where specified by the product service instructions

- - Do not stretch, twist or pinch the new O-ring during installation

Related Spares You May Need

- - Hansgrohe 98217000 O-Ring - 9 x 2.5 mm

- - Hansgrohe 98189000 O-Ring - 14 x 2.5 mm

- - Hansgrohe 98183000 O-Ring - 23 x 2.5 mm

These are separate O-ring sizes used at different sealing positions and are not required for every product using 98185000.
