Grohe 19332000 34mm Hex Socket Box Spanner

SUMMARY

GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower Cartridges

GROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the specified screw couplings and cartridge-retaining components during dismantling and reassembly.

On the thermostatic assemblies listed below, the spanner operates the retaining ring during compact cartridge removal and refitting. The two ends have different service applications, so check the required tool against the exact mixer and maintenance operation. This is a service spanner, not a universal extractor for seized cartridges.

Technical Details

- - Product code: 19332000

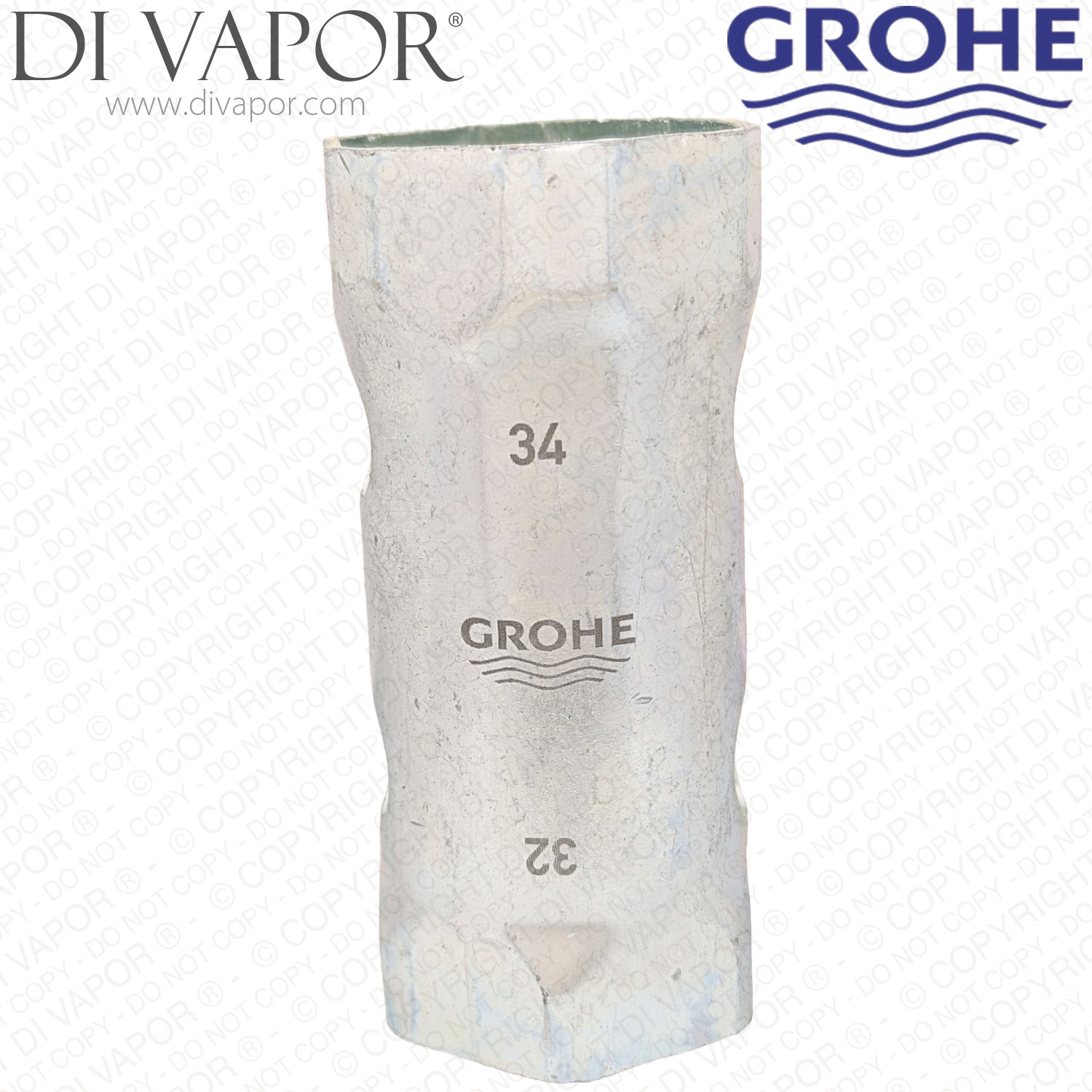

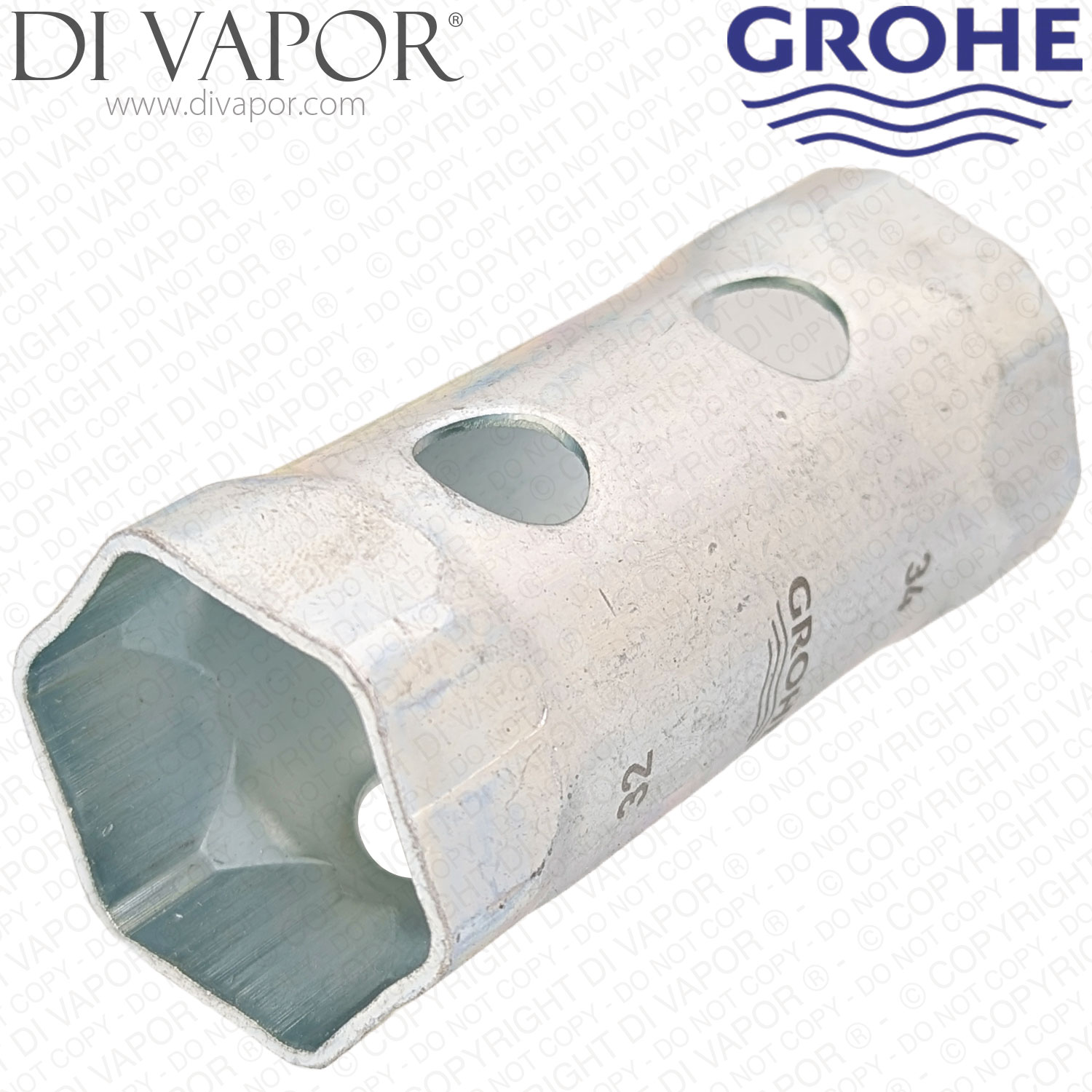

- - Tool type: double-ended tubular hex socket box spanner

- - Larger socket: 34 mm across the flats, marked SW34 on the dimensional drawing

- - Smaller socket: 32 mm across the flats, marked SW32 on the dimensional drawing

- - Overall length: 100 mm

- - Colour: chrome

- - Larger-end application: assembly and dismantling work involving the central screw coupling and compact thermostatic cartridge assembly

- - Smaller-end application: assembly and dismantling work on specified 35 mm cartridge installations

- - Service-diagram reference: 19 332

Confirmed Service Applications

- - GROHE 35500000 Rapido T concealed thermostatic mixer, for servicing the thermostatic cartridge retaining-ring assembly

- - GROHE 35050000 Rapido T concealed thermostatic mixer, for servicing the thermostatic cartridge retaining-ring assembly

- - GROHE 34169001 Grohtherm 2000 thermostatic shower mixer, for servicing the thermostatic cartridge retaining ring

Before You Order

Check the complete mixer model code, production version and specified retaining component before ordering. The cartridge-size reference above describes a service application, not a third socket size. Do not select the tool from cartridge diameter alone, or assume that every mixer within the same range uses the same service tools.

Related Spares You May Need

Select the cartridge and retaining ring for the exact mixer and hot and cold water supply arrangement. The following parts are supplied separately and are not interchangeable options for every valve.

- - GROHE 47743000 retaining ring, used in the 34169001 thermostatic cartridge assembly

- - GROHE 47439000 compact thermostatic cartridge, the standard cartridge listed for 34169001

- - GROHE 47175000 reverse TurboStat thermostatic cartridge, the reverse-feed option for 34169001 installations with cold on the left and hot on the right; fitting this version removes the Cool Touch function

- - GROHE 47765000 retaining ring, used in the Rapido T 35500000 and 35050000 thermostatic cartridge assemblies

- - GROHE 47483000 TurboStat thermostatic cartridge, the standard cartridge shown for the Rapido T 35500000 assembly

- - GROHE 47186000 reverse TurboStat thermostatic cartridge, the optional reverse-feed cartridge for Rapido T 35500000 installations with cold on the left and hot on the right

- - GROHE 47950000 thermostatic cartridge, for the Rapido T 35050000 TMV2 valve application

- - GROHE 46558000 low-pressure single-lever tap cartridge, for mixer installations whose servicing instructions specify tool 19332000

Servicing Note

Isolate both hot and cold water supplies before dismantling the mixer, and follow its specific maintenance procedure. Other tools may be required for handles, connections or separate valve components. After thermostatic cartridge maintenance, refit the cartridge in the correct orientation and readjust the outlet temperature as instructed for the mixer.

For help identifying the required tool or service part, contact us with photographs and the complete mixer model code.
