Grohe 47483000 Turbostat Thermoelement 3/4 Inch Thermostatic Cartridge for THM,BIV and Grohtherm Valves
SUMMARY
Grohe 47483000 Turbostat 3/4 Inch Thermostatic Cartridge for Grohtherm THM and Rapido T Valves

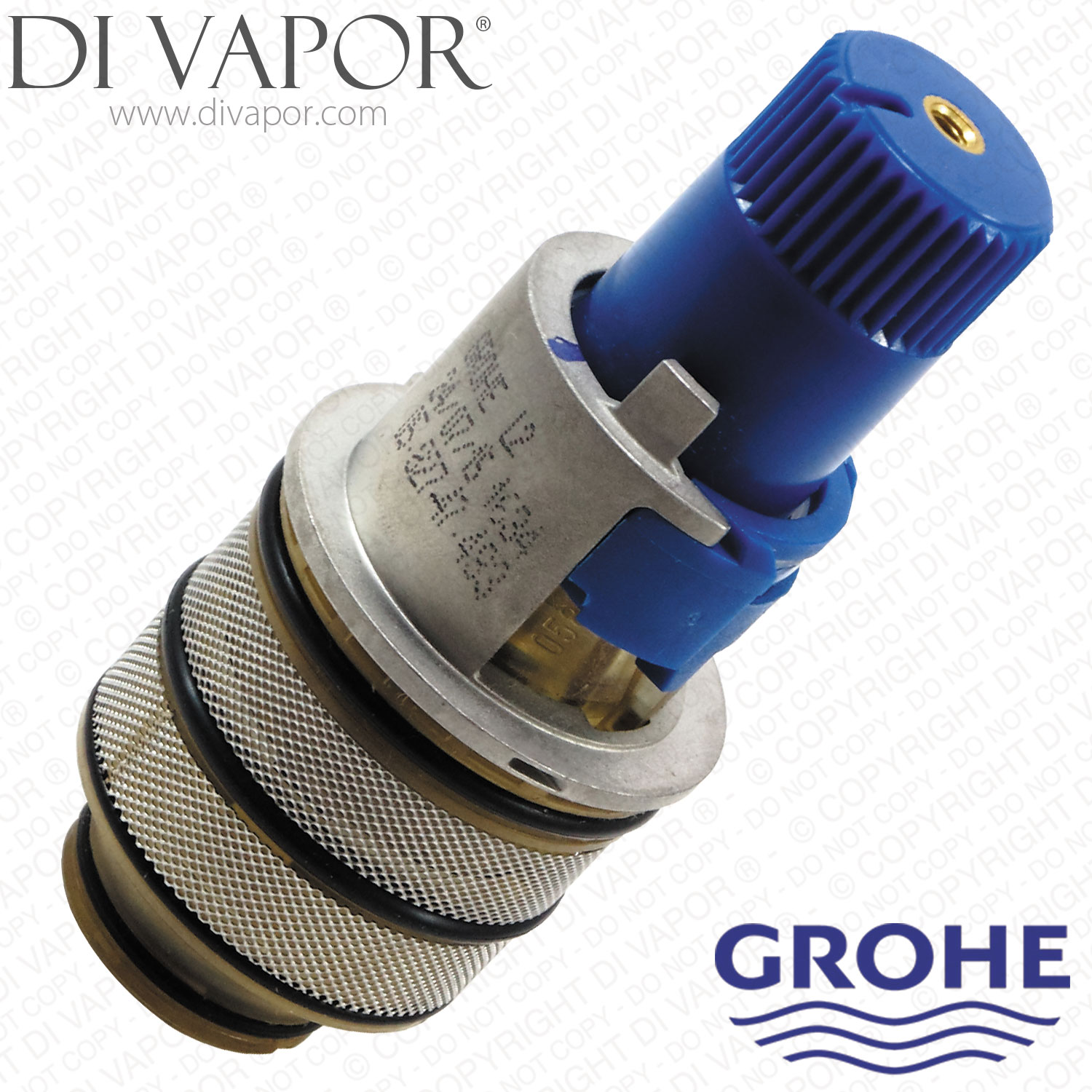

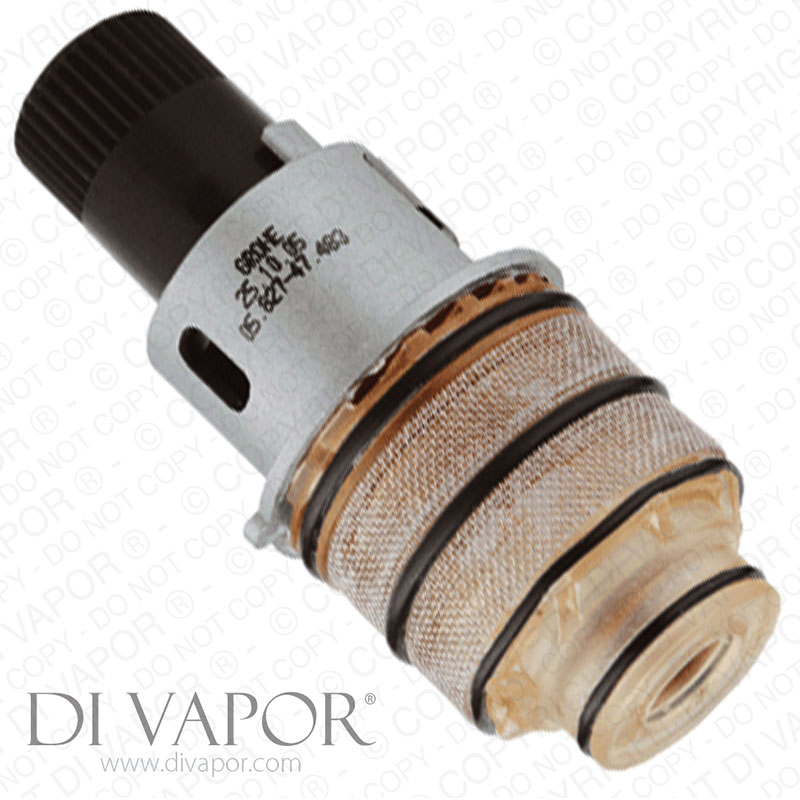

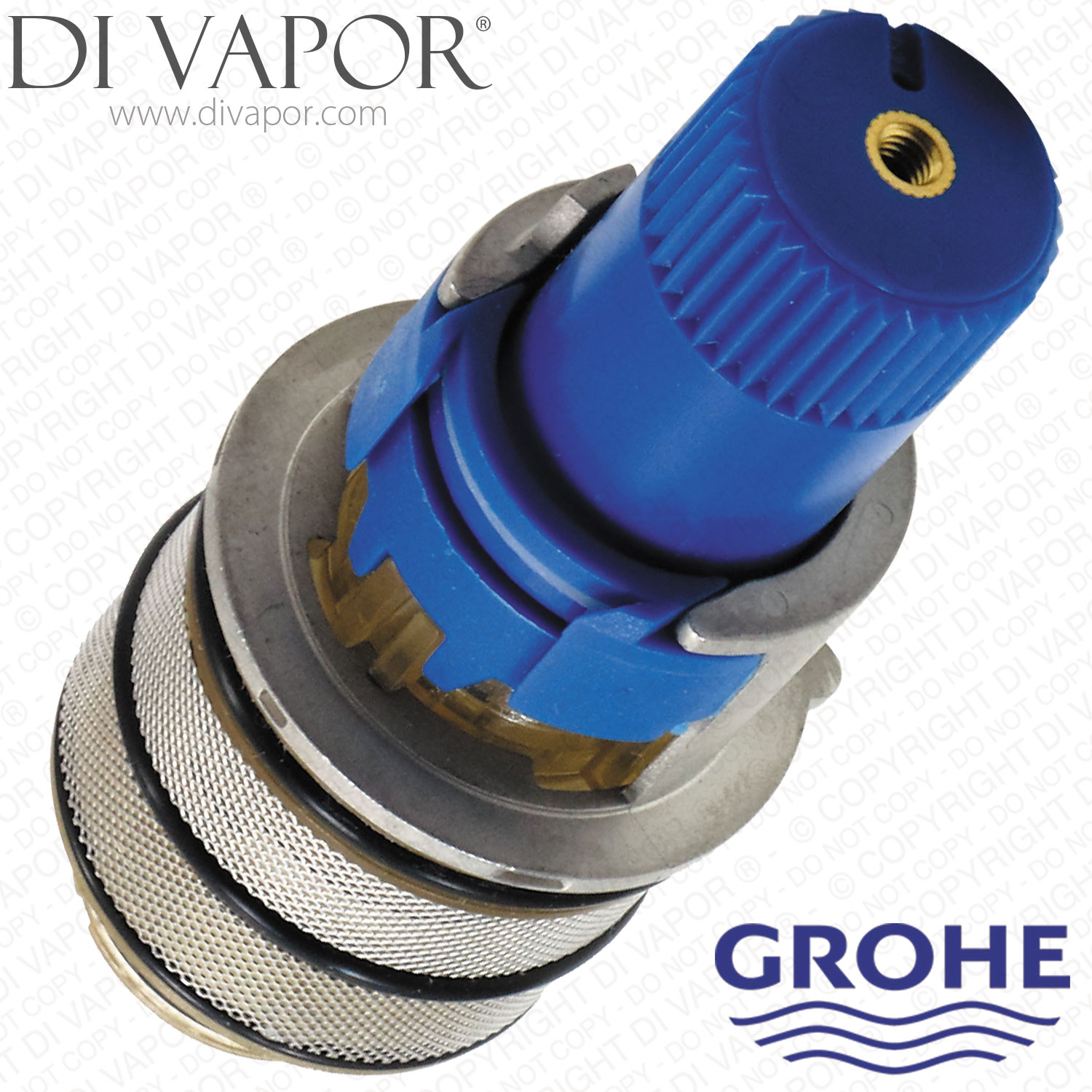

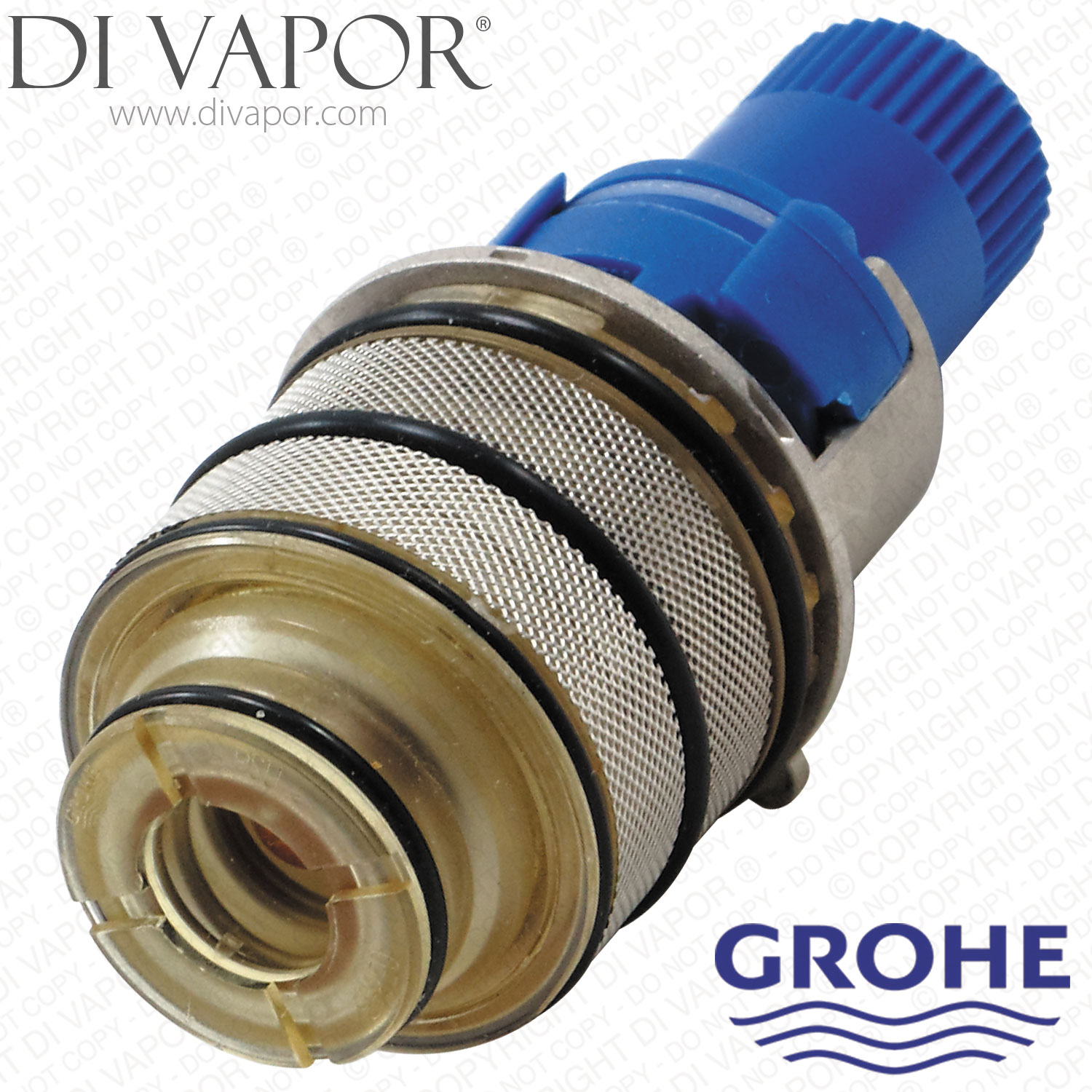

GROHE 47483000 is a 3/4 inch Turbostat thermostatic cartridge used as the temperature-control element in selected GROHE Grohtherm, Grohmaster, THM and Rapido T thermostatic shower valve installations. The cartridge contains a wax thermoelement within its barrel and regulates the hot and cold water mix to maintain the selected outlet temperature.
The 47483000 is a push-fit thermostatic cartridge with four external O-rings. When servicing the valve, check the exact valve model and required cartridge code before ordering because other 3/4 inch GROHE thermostatic cartridges are available for different waterway arrangements.
Technical Details
- - Manufacturer article: 47483000
- - Cartridge type: thermostatic cartridge / thermoelement
- - Size: 3/4 inch
- - Installation: push-fit
- - Thermostatic mechanism: wax thermoelement
- - External seals: 4 O-rings
Confirmed Compatible Models
- - GROHE Grohmaster 34221 / 34221000 Grohtherm 2000 EV
- - GROHE Grohmaster 34218 / 34218000 Grohtherm 2000 BIV
- - GROHE Grohtherm 2000 34235 / 34235000 Thermostatic Shower Mixer 3/4 Inch
- - GROHE Grohtherm 2000 34216 / 34216000 Thermostatic Shower Mixer 3/4 Inch
- - GROHE 34214 / 34214000 Concealed Body for THM Thermostat Shower Mixer 3/4 Inch
- - GROHE 19359000 Grohtherm 3000 Thermostat Shower Mixer
- - GROHE 35500000 Rapido T Universal Concealed Thermostatic Valve Mixer
Before Ordering
Check the valve model and required service article before ordering. GROHE 47186000 is also a 3/4 inch thermostatic cartridge but is the reverse-waterways version for installations where the hot and cold feeds are reversed; it must not be treated as a superseding code for 47483000.
Installation Note
Before refitting the push-fit cartridge, clean the valve bore and sealing surfaces and apply a light film of suitable silicone grease to the O-rings so they enter the housing without twisting or pinching.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - GROHE 47364000 Aquadimmer Flow Cartridge
- - GROHE 47186000 3/4 Inch Reverse Turbostat Thermostatic Cartridge - reverse-waterways version for reversed hot and cold feeds
- - GROHE 45346000 1/2 Inch Carbodur Half Turn Flow On/Off Cartridge
- - GROHE 12702000 Adapter - discontinued listing

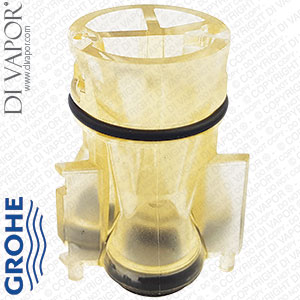

- - GROHE 12701000 Adapter for Aquadimmer 47364000 Cartridges
- - GROHE 07025000 3/4 Inch Shower Cartridge Valve On/Off
- - GROHE 47765000 Retaining Ring
- - GROHE 47753000 Non-Return Valve for Grohtherm Grohmaster and THM Valves
