Grohe 19571002 Eurostyle Cosmopolitan Two-Hole Basin Mixer S-Size Spare Parts

SUMMARY

Spares for Grohe 19571002 Eurostyle Cosmopolitan Two-Hole Basin Mixer S-Size

- Wall Mounted

- Set for Final Installation for 23 571 000

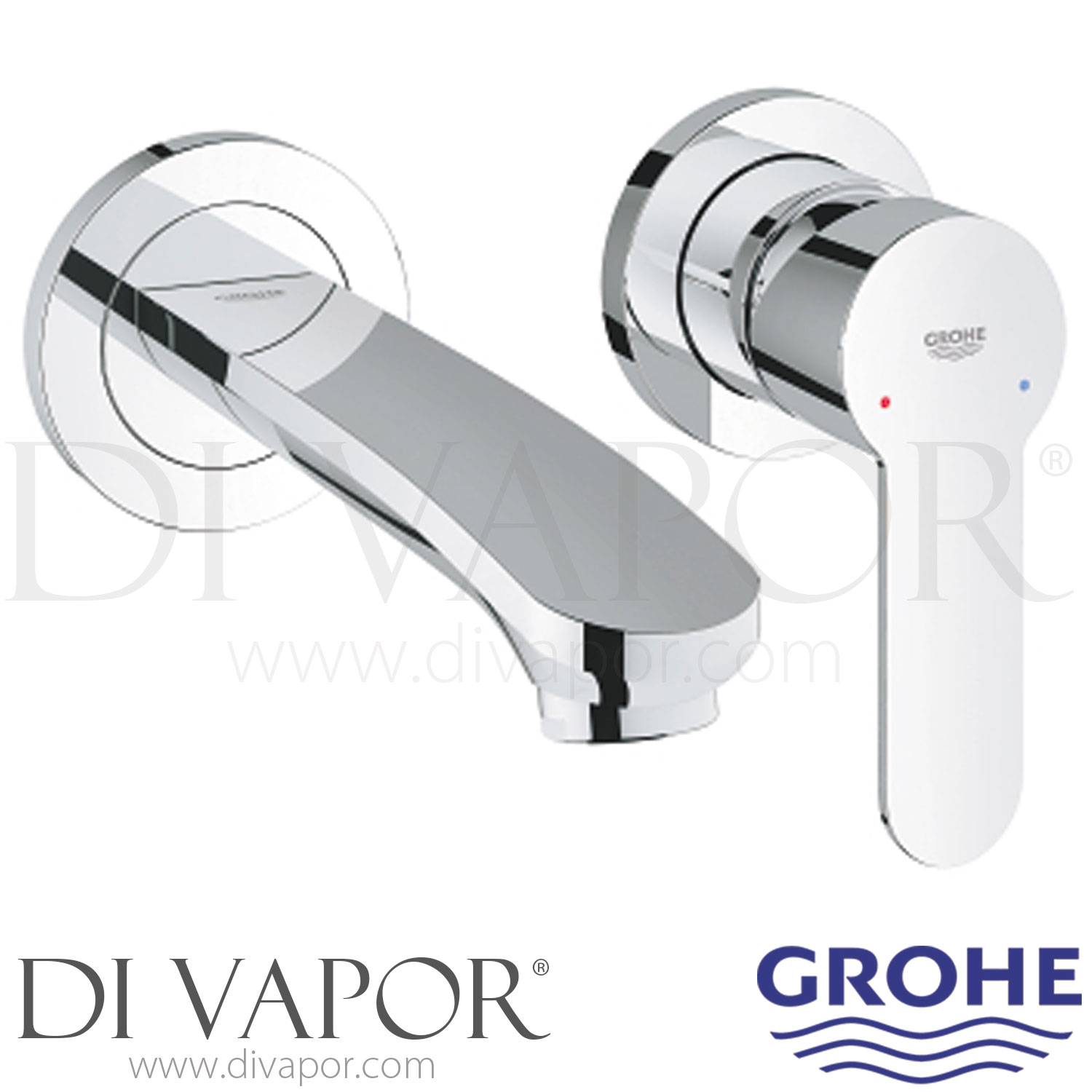

The GROHE 19571002 Eurostyle Cosmopolitan is a two-hole wall-mounted basin mixer in S-Size, designed as the visible final-installation trim set for a concealed mixer body. The chrome trim incorporates the operating lever and basin spout, while the water-control components are housed within the concealed body installed behind the wall.

This mixer is used with GROHE concealed bodies 23 571 000 and 32 635 000. When servicing the installation, Grohe spare parts should be identified against the concealed body as well as the visible 19571002 trim, because components such as the ceramic cartridge are fitted within the concealed valve rather than the external trim set.

Technical Details

- - Brand: GROHE

- - Range: Eurostyle Cosmopolitan

- - Category: Basin mixer

- - Article number: 19571002

- - Size: S-Size

- - Installation: Wall-mounted concealed installation

- - Configuration: Two-hole single-lever basin mixer final-installation trim

- - Concealed body: Not included

- - Concealed bodies used: 23 571 000 and 32 635 000

- - Centre distance: 110 mm

- - Projection: 171 mm

- - Finish: Chrome

- - Escutcheon: Metal

- - Lever: Metal

- - Outlet: GROHE AquaGuide adjustable mousseur

- - Flow rate: 13.00 litres per minute at 3 bar

- - EAN: 4005176886973

Concealed Bodies Used With This Mixer

- - GROHE 23571000 Single-Lever Mixer 1/2 Inch Universal Concealed Body Spare Parts

- - GROHE 32635000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts

Before You Order

Check the mixer article number and the concealed body fitted behind the wall before ordering internal service parts. The visible 19571002 trim can be used with more than one concealed body, so confirming the installed valve helps ensure the correct cartridge and servicing components are selected.
