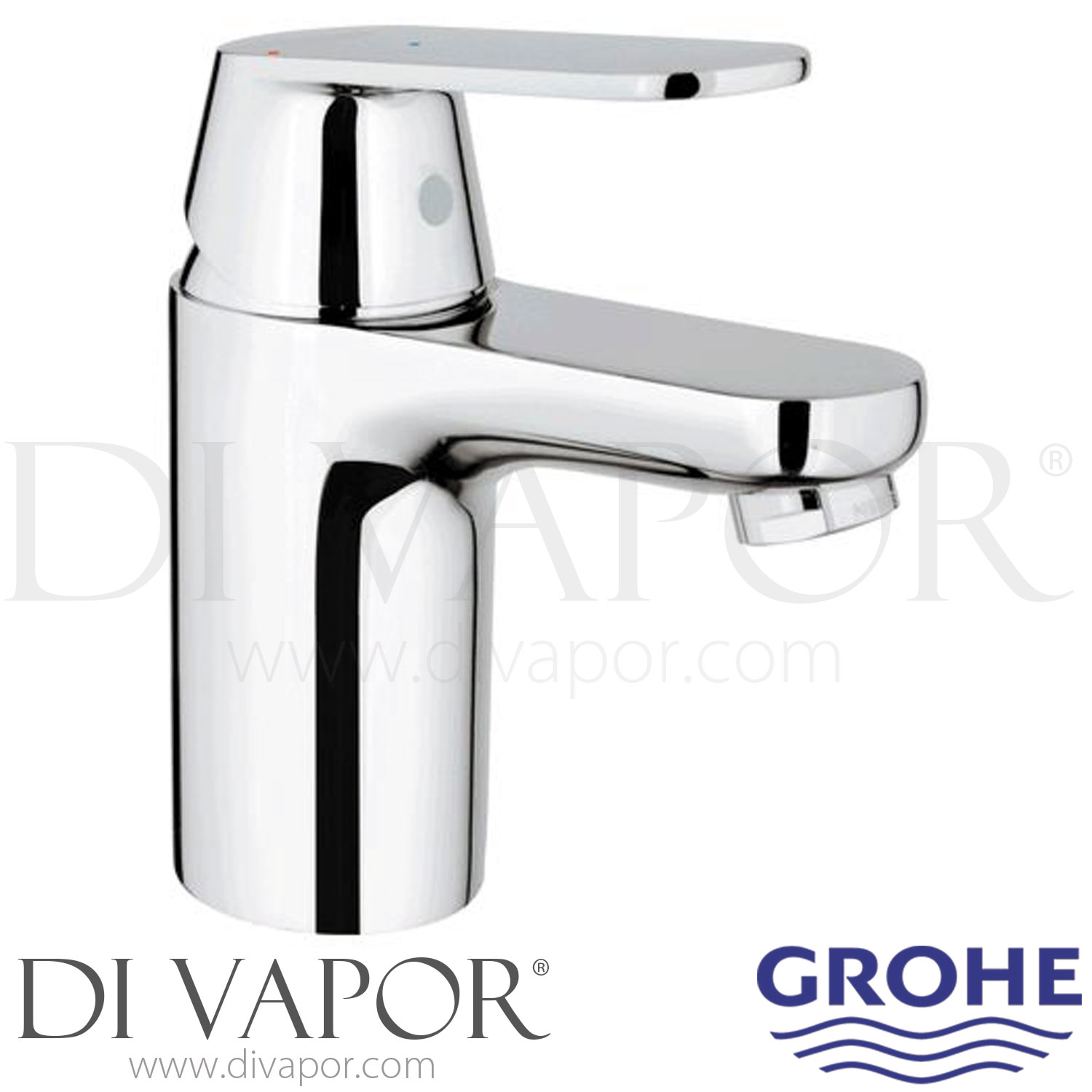

Grohe 2337600E Eurosmart Cosmopolitan Single-Lever Basin Mixer S-Size Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

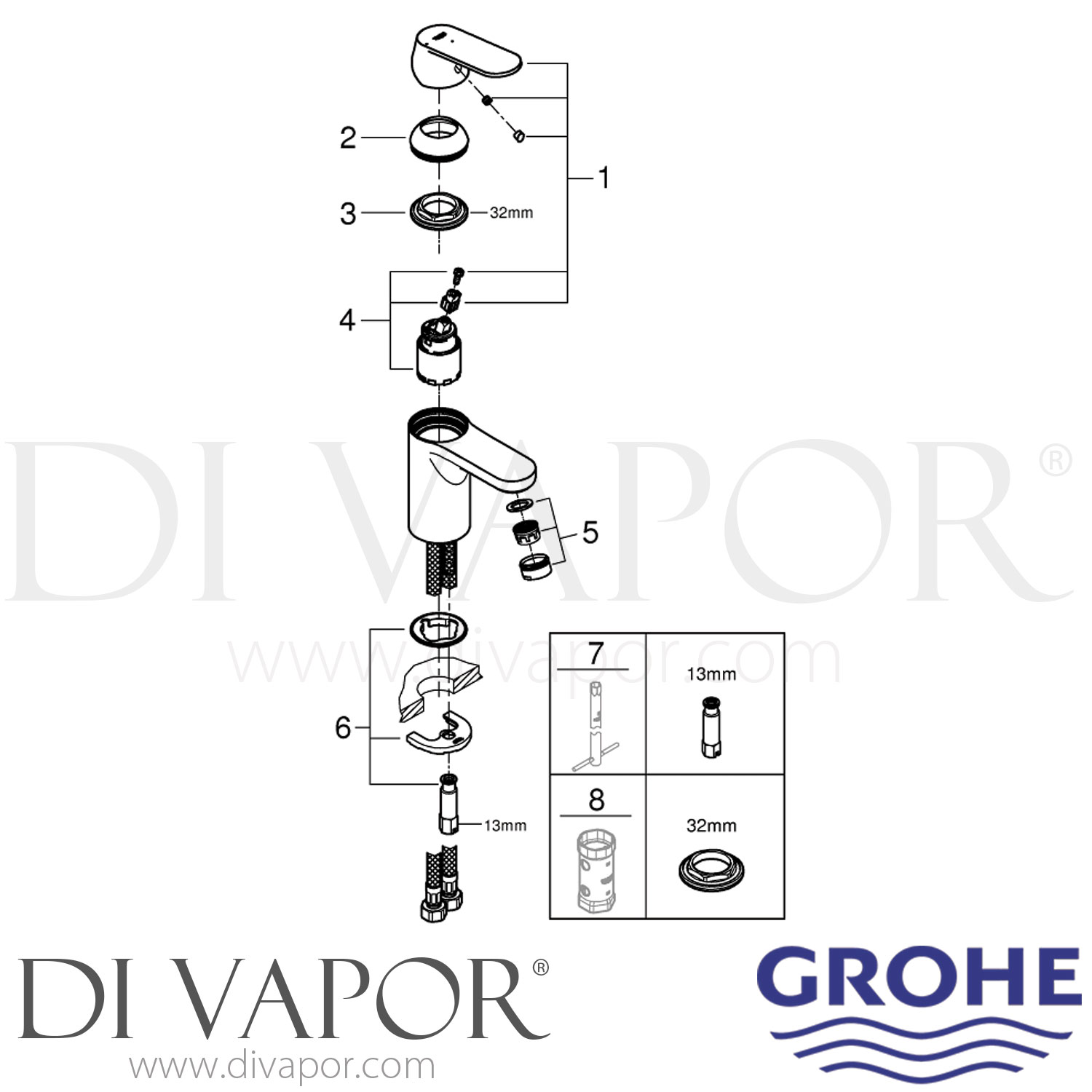

Spares for Grohe 2337600E Eurosmart Cosmopolitan Single-Lever Basin Mixer S-Size
The Grohe 2337600E Eurosmart Cosmopolitan is a chrome S-Size single-lever basin mixer with a fixed spout, smooth body and no waste set. This page identifies service components for the 2337600E mixer configuration used from August 2017 onwards.
The mixer uses a 35 mm GROHE SilkMove Energy Saving ceramic cartridge. Cold water flows when the lever is in its central position, helping to reduce unnecessary hot-water use. The tap also incorporates an adjustable flow limiter, an adjustable temperature limiter, a GROHE Water Saving aerator and flexible supply hoses.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurosmart Cosmopolitan. |
| Category | Basin mixer. |
| Model code | 2337600E. |
| Mixer type | Single-lever S-Size basin mixer. |
| Finish | Chrome. |
| Installation | Single-hole monobloc installation. |
| Body type | Smooth body without a waste set. |
| Cartridge type | 35 mm ceramic cartridge with Energy Saving cold-start function. |
| Adjustable minimum flow rate | 2.5 l/min. |
| Aerator flow rate | 5.7 l/min. |
| Overall closed height | 148 mm. |
| Spout outlet height | 78 mm. |
| Spout reach | 92 mm. |
| Mixer base diameter | 50 mm. |
| Mounting opening | 34 mm. |
| Maximum mounting-surface thickness | 30 mm. |
| Flexible hose length | 375 mm. |
| Supply connection size | G3/8. |
Before You Order Check
Confirm that the model code on the original tap documentation is 2337600E. Similar Grohe Eurosmart Cosmopolitan basin mixers can use different cartridges, handles, aerators and mounting components. Compare the required spare-part code with the existing component before ordering.
