Grohe 2339600E Eurosmart Cosmopolitan Single-Lever Basin Mixer (1/2 Inch) M-Size Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 2339600E Eurosmart Cosmopolitan Single-Lever Basin Mixer 1/2 Inch M-Size

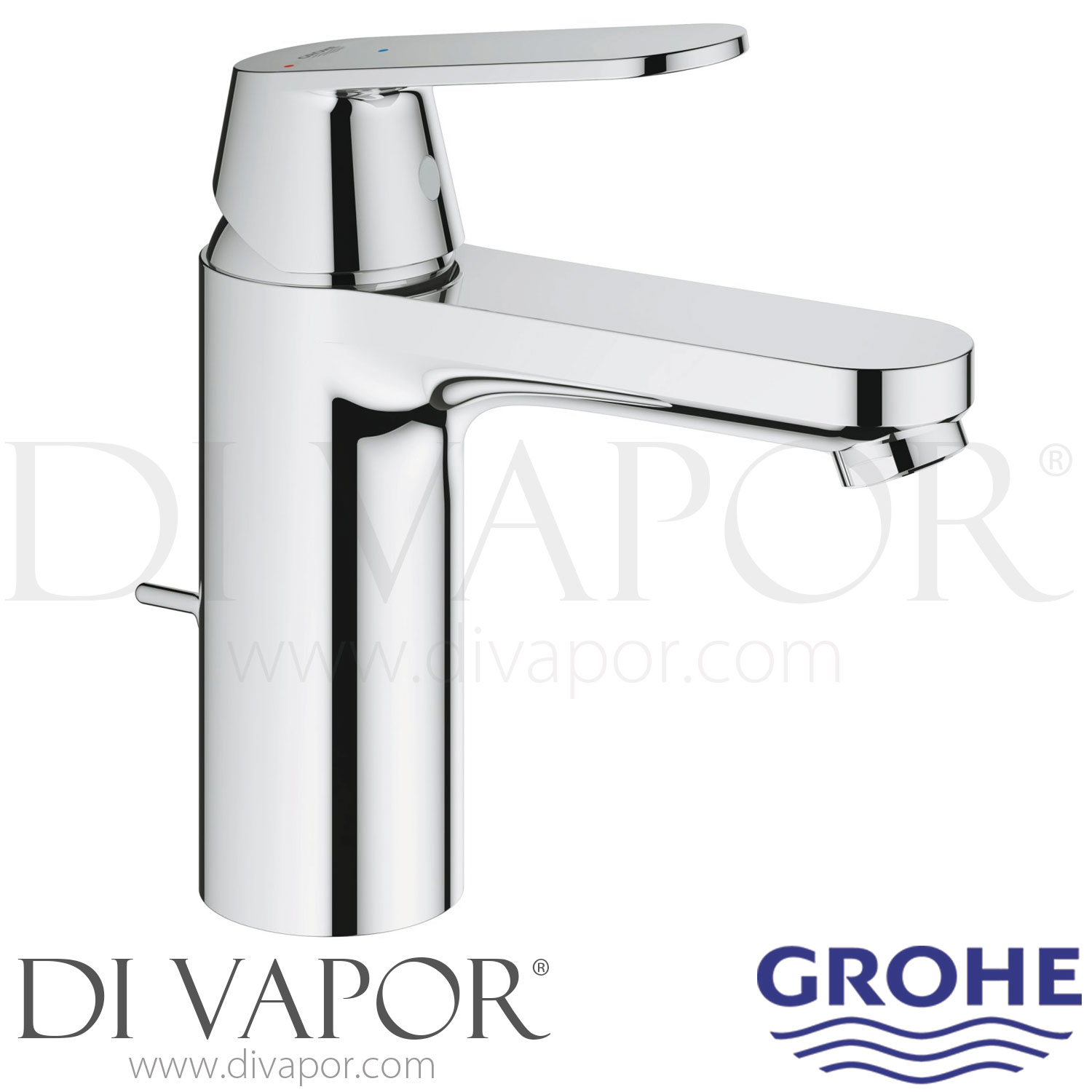

GROHE 2339600E is an Eurosmart Cosmopolitan single-lever monobloc basin mixer in chrome, designed for single-hole installation and supplied with a pop-up basin waste. The M-Size mixer controls hot and cold water through one metal lever, with a central cold-start position that helps avoid unnecessary hot-water demand.
The mixer uses a 35mm GROHE SilkMove Energy Saving ceramic cartridge to regulate water flow and temperature. Its FastFixation mounting arrangement secures the tap to the basin, while the operating rod connects the rear control to the 1 1/4 inch pop-up waste below.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurosmart Cosmopolitan. |
| Category | Basin mixer. |
| Product code | 2339600E. |
| Product type | Single-lever monobloc basin mixer with pop-up waste. |
| Size classification | M-Size. |
| Finish | Chrome. |
| Installation | Single-hole deck mounting. |
| Cartridge | 35mm ceramic cartridge. |
| Supply connections | G3/8 flexible hoses. |
| Waste connection | G1 1/4 pop-up waste. |
| Spout projection | 122mm. |
| Spout outlet height | 98mm. |
| Tap-hole diameter | 34mm. |
| Maximum mounting-surface thickness | 30mm. |
| Maximum flow rate | 5 litres per minute at 3 bar. |
| Minimum recommended operating pressure | 1.0 bar. |
Important Production Date Check

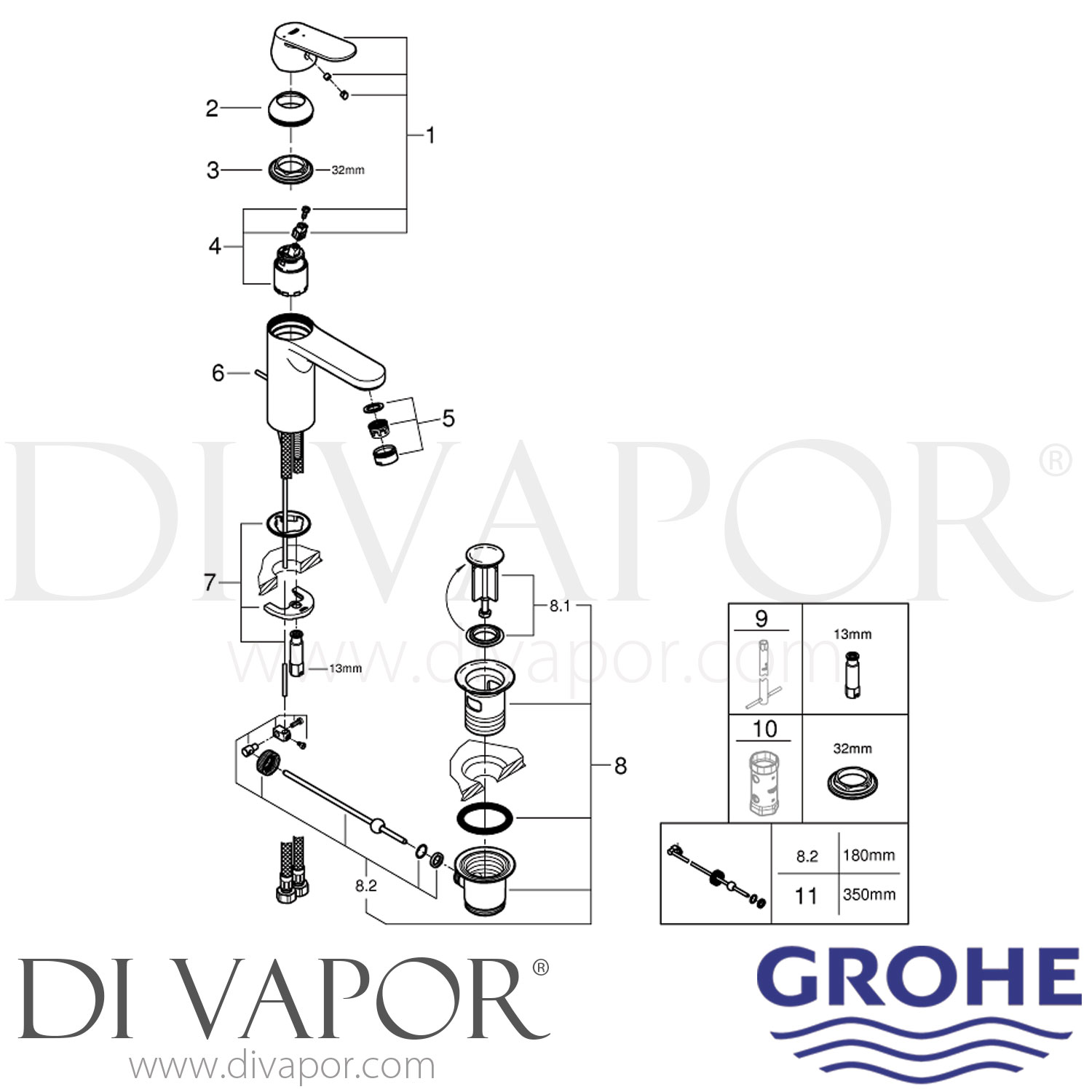

- GROHE uses separate spare-parts diagrams for mixers produced from December 2012 to August 2017 and from August 2017 onwards.
- The earlier diagram lists GROHE 46375000 as a separate temperature limiter, while the later diagram does not list this component separately.
- Both production periods list GROHE 46863000 as the ceramic cartridge.
Before You Order Check
Compare the mixer code and production date with the existing installation before selecting internal parts. Isolate the water supplies before servicing, flush debris from the pipework and inspect the cartridge housing, waste linkage and mounting components for scale or wear before reassembly.
