Grohe 33555002 Eurosmart Single-Lever Shower Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for GROHE 33555002 Eurosmart Single Lever Shower Mixer 1/2 Inch

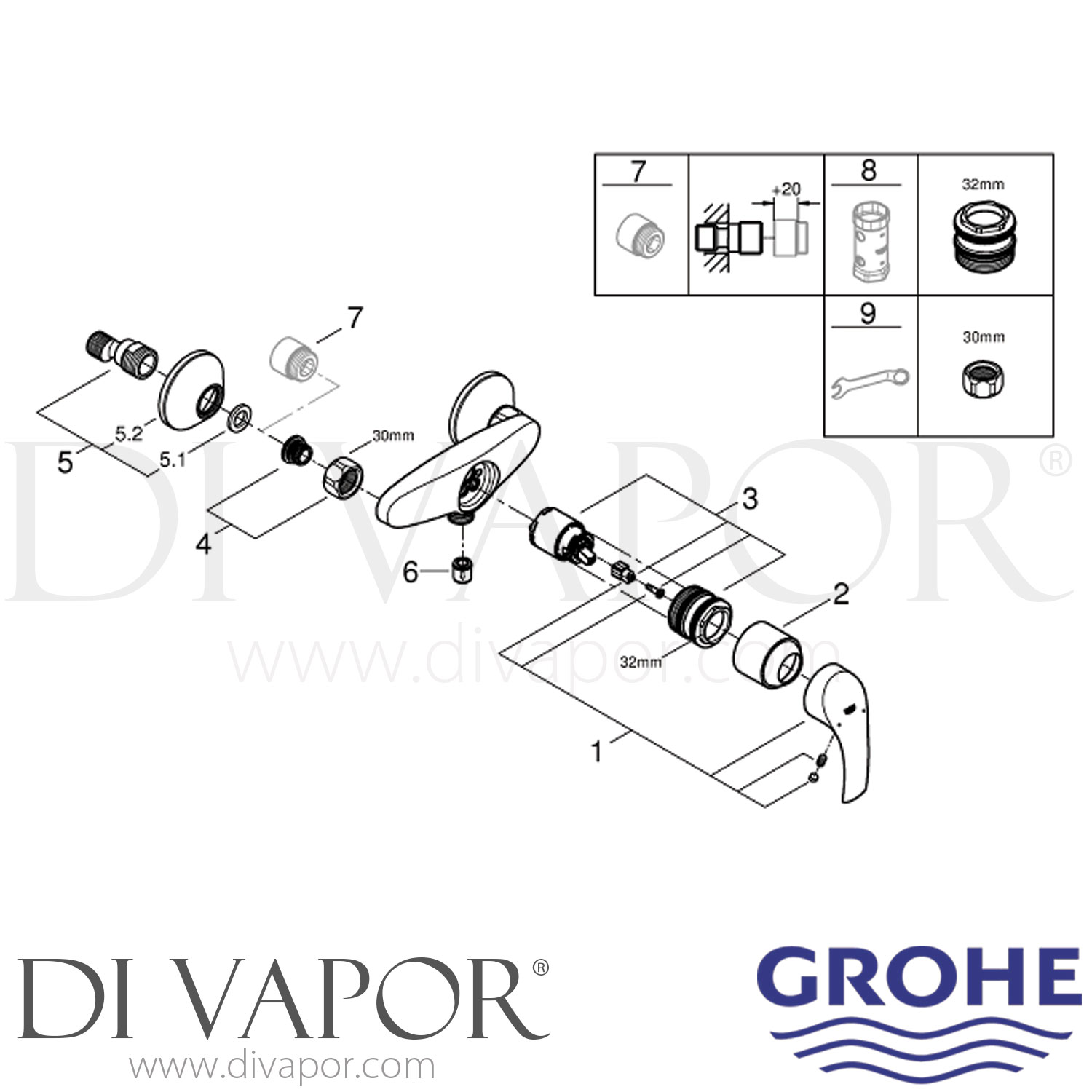

The GROHE 33555002 Eurosmart is an exposed wall-mounted single-lever shower mixer with 1/2 inch connections. This components page groups the identified service parts and accessories for maintaining the exact 33555002 mixer.
The metal operating lever controls a 35mm GROHE SilkMove ceramic cartridge which regulates the water flow and mixed-water temperature. The mixer has a bottom shower outlet with an integrated non-return valve and uses S-unions with metal wall escutcheons for the wall connections.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurosmart |
| Category | Shower mixer |
| Model code | 33555002 |
| Mixer type | Exposed wall-mounted single-lever manual mixer |
| Temperature control | Manual mixing through the operating lever |
| Thermostatic control | No |
| Finish | Chrome |
| Inlet connection size | G1/2 |
| Shower outlet size | G1/2 |
| Inlet centres | 150mm with a 15mm adjustment allowance |
| Cartridge | 35mm GROHE SilkMove ceramic cartridge 46374000 |
| Escutcheon diameter | 70mm |
| Maximum projection | 183mm |
| Flow rate | 16 litres per minute at 3 bar |
| Additional controls | Integrated temperature limiter and adjustable flow-rate limiter |
| Backflow protection | Integrated non-return valve in the shower outlet |
Before You Order Check
Confirm that the mixer article number is 33555002 and compare the required component code with the existing part before ordering. Other GROHE Eurosmart article numbers can use different cartridges, levers and internal service parts despite having a similar external appearance.
GROHE 46374000 35mm SilkMove Ceramic Lever Cartridge for Single-Lever MixersGROHE 46374000 is a 35mm SilkMove ceramic lever cartridge used to control mixed water flow and temperature in selected GROHE single-lever basin mixers, bidet mixers, kitchen and sink mixers, bath mixers a...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...
