Grohe 34169001 Grohtherm 2000 Thermostatic Shower Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 34169001 Grohtherm 2000 Thermostatic Shower Mixer 1/2 Inch

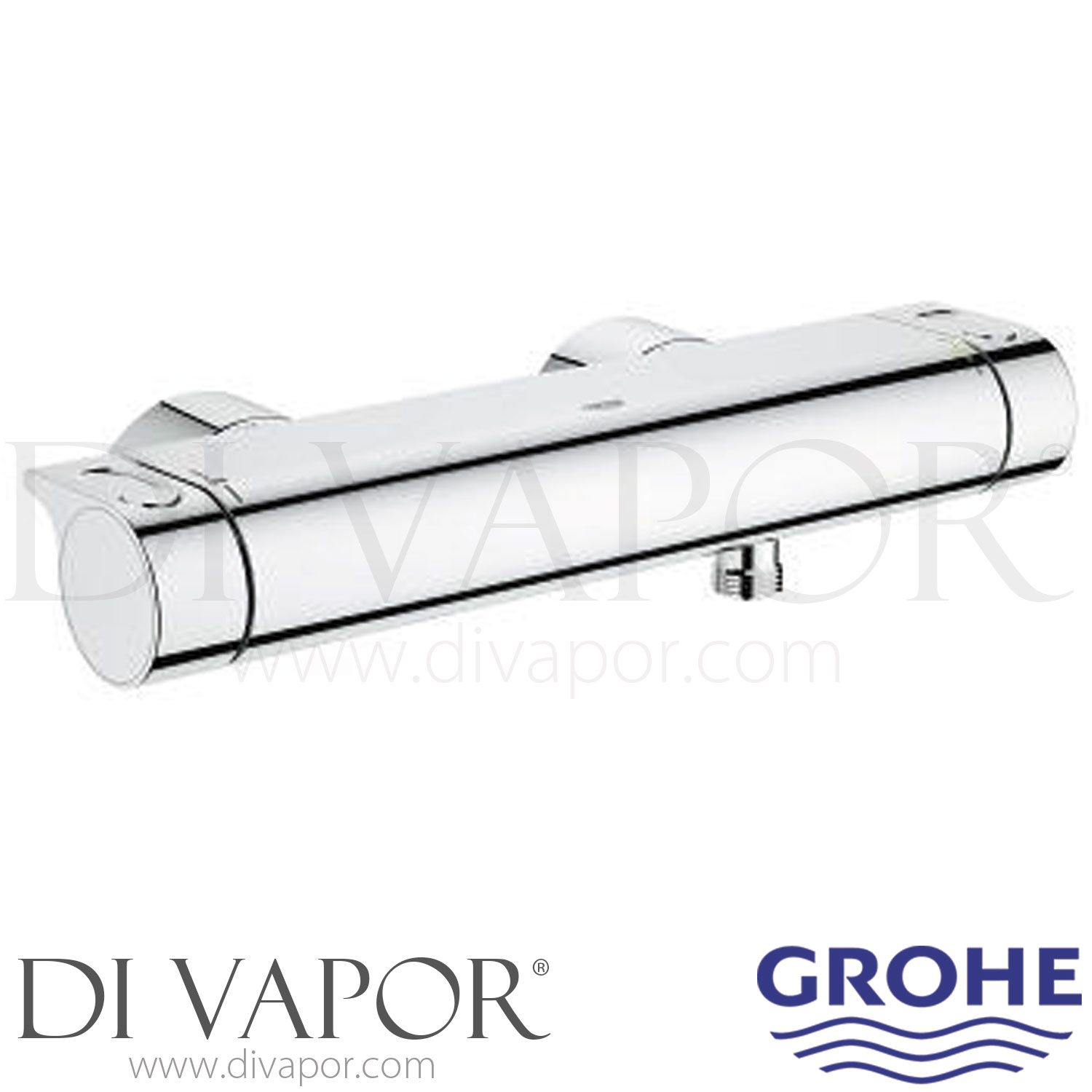

Grohe 34169001 Grohtherm 2000 is a wall-mounted, exposed thermostatic shower mixer with 1/2 inch connections, designed to regulate mixed-water temperature and control shower flow. The chrome valve combines thermostatic temperature regulation with separate flow control for surface-mounted shower installations.

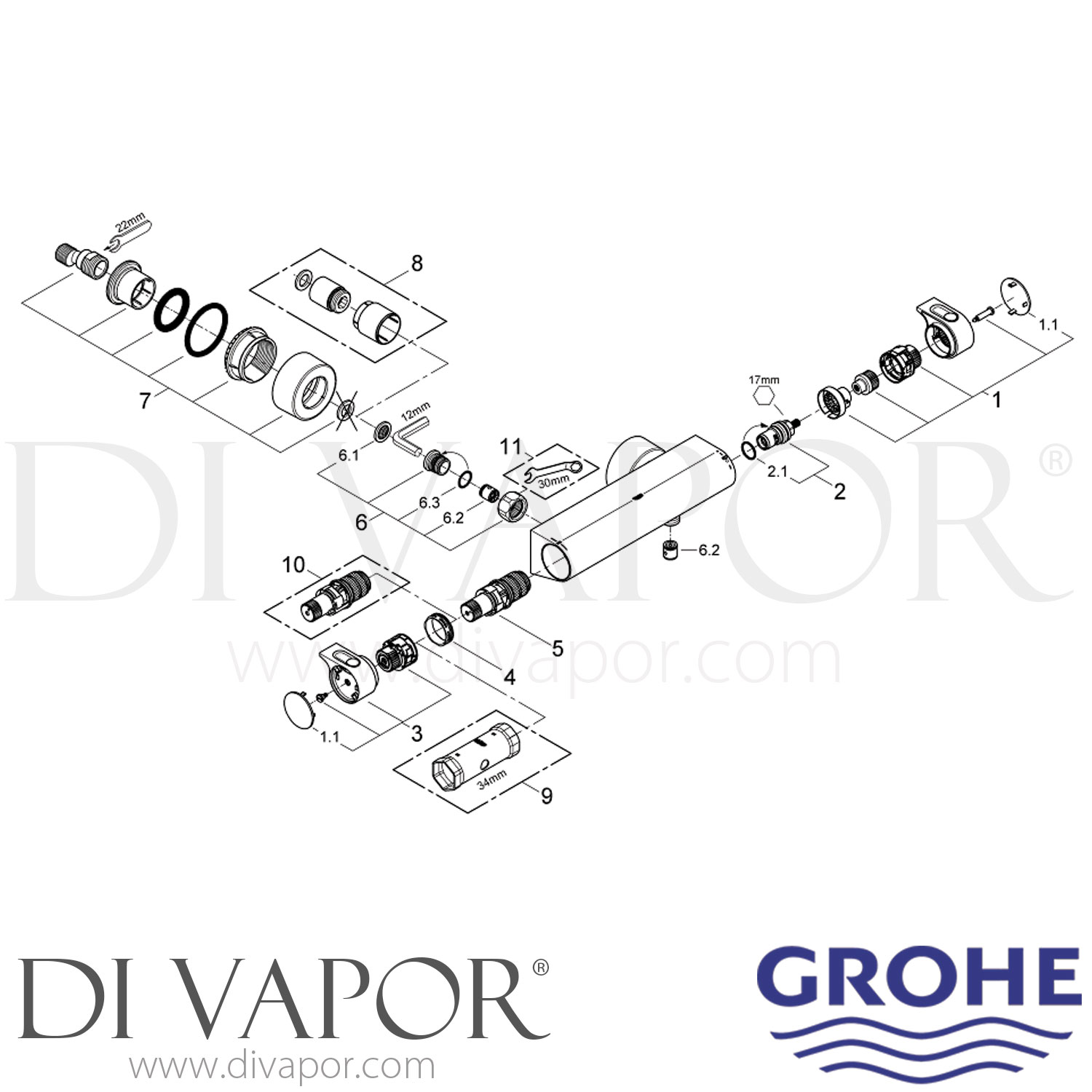

The mixer uses Grohe TurboStat temperature control, SafeStop at 38 degrees C, CoolTouch safety housing, integrated non-return valves, dirt strainers and a bottom G1/2 shower outlet. Grohe shower spare parts for this valve include the thermostatic cartridge, flow cartridge, control handles, retaining ring, seals, non-return valve and service tools.
For a standard installation, the hot supply is on the left and the cold supply is on the right. Where the supplies are reversed, Grohe specifies the 47175000 reverse thermostatic cartridge for hot-right and cold-left installations; the CoolTouch function is not available with this reversed-supply configuration. Before ordering, check the mixer code, supply orientation and the specific spare required against the existing valve.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Grohtherm 2000 |
| Category | Thermostatic shower mixer |
| Product code | 34169001 |
| Installation | Wall-mounted, exposed |
| Finish | Chrome |

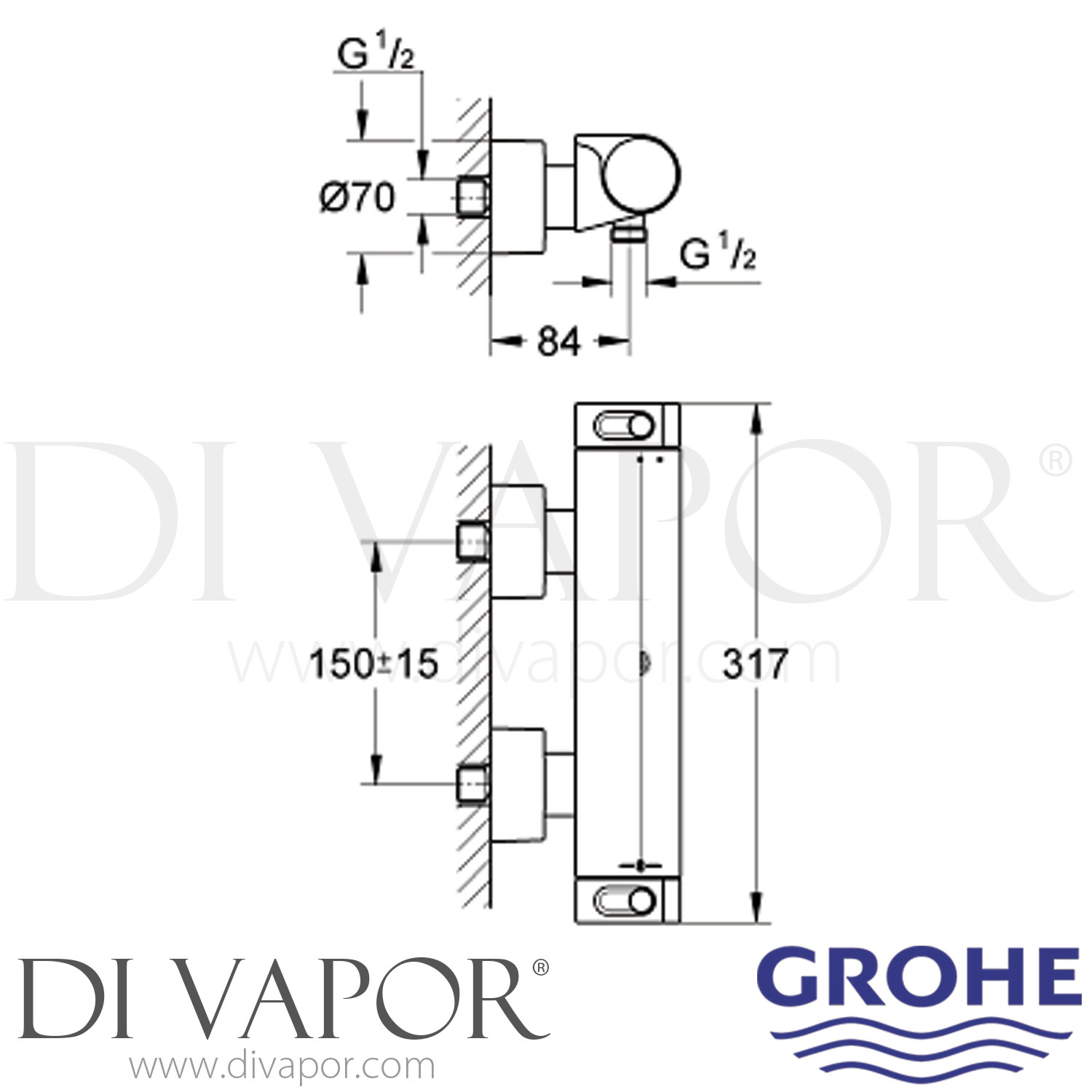

| Connection centres | 150 mm, with +/- 15 mm adjustment |
| Shower outlet | G1/2, bottom outlet |
| Recommended flow pressure | 1-5 bar |
| Maximum operating pressure | 10 bar |
| Approximate flow rate | 26 litres per minute at 3 bar |
| Safety stop | 38 degrees C |
| EAN | 4005176926518 |
GROHE 47916000 Grohtherm 2000 Aqua Paddle Shower Flow Control Handle ChromeThe GROHE 47916000 is a chrome Aqua Paddle shut-off and flow-control handle for selected Grohtherm 2000 exposed thermostatic shower mixers. It is the external operating control for shower water flow, not t...
Grohe 45346000 1/2" carbodur half turn flow cartridge for hot taps / showers. This flow cartridge controls the on and off water flow function and is a genuine Grohe product. Measurements: Turn Orientation: Clockwise Close Turn: Half Turn Total Length: 56mm Diameter at wid...
GROHE 0392400M Pack of 10 O-Rings 18.2mm x 1.7mmGROHE 0392400M is a service pack of 10 O-rings, each measuring 18.2 mm outside diameter with a 1.7 mm cross-section. The seals are used in identified GROHE tap and shower assemblies, including 1/2-inch ceramic headparts and selected...
GROHE 47917000 Temperature Control Handle Chrome for Grohtherm 2000The GROHE 47917000 is a chrome temperature control handle for the Grohtherm 2000 thermostatic shower and bath/shower mixers listed below. It is the external temperature-adjustment control, not the flow-control han...
GROHE 47743000 Thermostatic Cartridge Retaining Ring for Shower and Bath MixersThe GROHE 47743000 is a thermostatic cartridge retaining ring for the specified shower mixers, bath/shower mixers and concealed thermostatic mixer assemblies listed below. It fits behind the temperatur...
The 47439000 (47.439) cartridge is used in the following Grohe shower valves: - Grohe 1/2” Grohtherm 3000 Cosmopolitan 34275 Thermostatic shower mixer valve - Grohe 1/2” Grohtherm 2000 Special 34205 Thermostatic shower mixer valve - Grohe 1/2” Concealed body for THM 3...
Grohe 08565000 Non-Return Valve for Selected Mixers and Shower SystemsGROHE 08565000 is a non-return valve used in selected GROHE mixers, shower systems, shower outlets and pull-out spray assemblies. The valve allows water to pass in the intended direction while helping to preven...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...
Grohe 47175000 1/2 Inch Reverse Turbostat Thermostatic Cartridge for Grohtherm,Allure,THM and Rainshower Valves The Grohe 47175000 is used in the following Grohe valves: - Grohe Rainshower 27374 Shower system for wall mounting - Grohe Grohtherm 1000 34323 Thermostatic ba...
