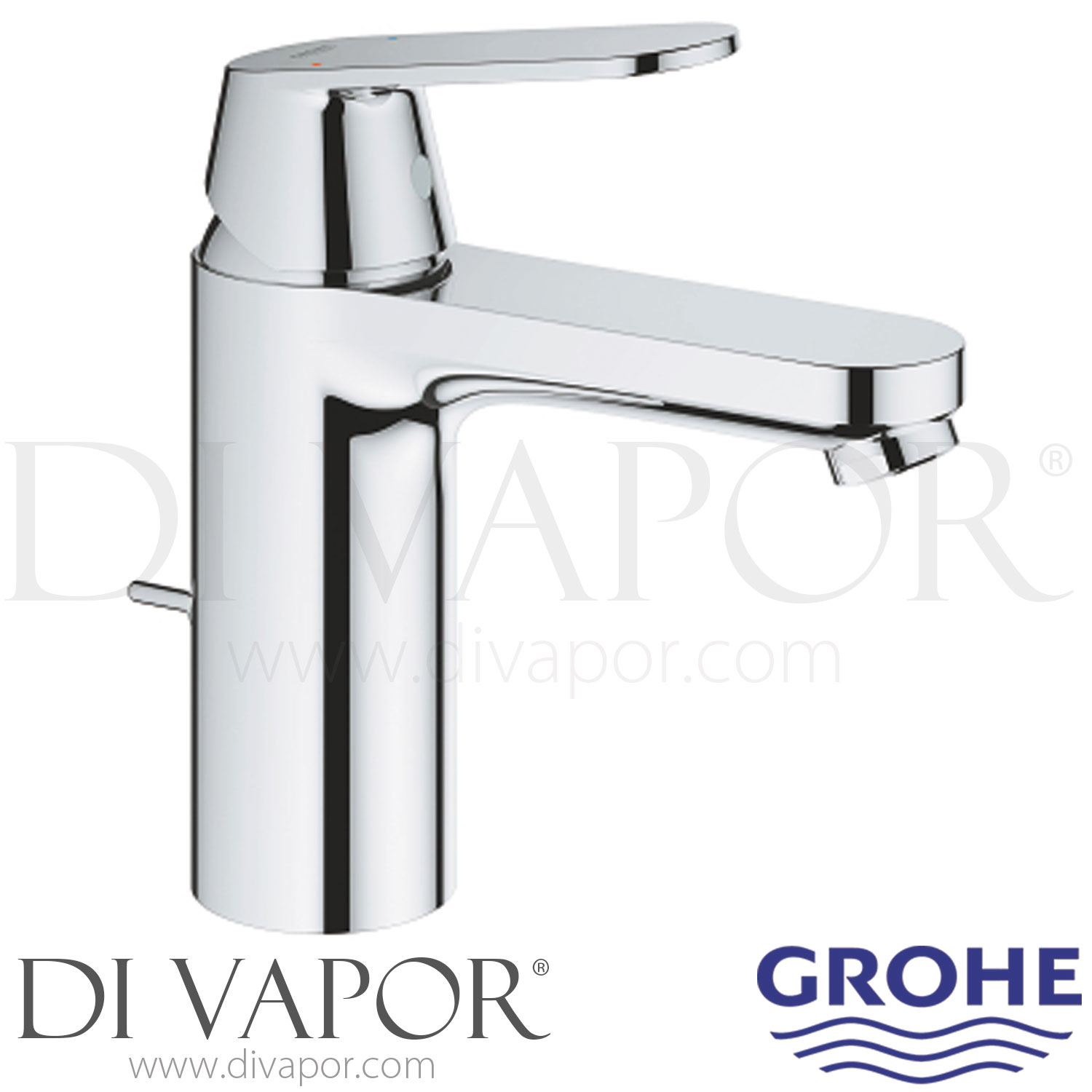

Grohe 23325000 Eurosmart Cosmopolitan Single-Lever Basin Mixer (1/2 Inch) M-Size Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spare parts for the Grohe 23325000 Eurosmart Cosmopolitan single-lever basin mixer in chrome. This M-Size monobloc tap is installed through a single basin hole and uses one lever to control the hot and cold water flow and mixed-water temperature.
The mixer incorporates a 35 mm Grohe SilkMove ceramic cartridge, an adjustable flow-rate limiter, flexible inlet hoses and a mechanical pop-up waste set. A worn cartridge can cause dripping from the tap outlet after the lever is closed, stiff lever movement or inconsistent control of the water flow and temperature.
Technical Details
| Brand | GROHE. |
|---|---|
| Range | Eurosmart Cosmopolitan. |
| Category | Basin mixer. |
| Model code | 23325000. |
| Size classification | M-Size. |
| Installation type | Single-hole monobloc installation. |
| Finish | Chrome. |
| Cartridge | 35 mm Grohe SilkMove ceramic cartridge. |
| Maximum flow rate | 5 litres per minute at 3 bar. |
| Spout outlet height | Approximately 98 mm. |
| Spout projection | Approximately 123 mm. |
| Tap base diameter | Approximately 50 mm. |
| Mounting body diameter | Approximately 34 mm. |
| Maximum mounting-surface thickness | Approximately 30 mm. |
| Flexible hose connections | G3/8. |
| Pop-up waste connection | G1 1/4 inch. |
Before You Order Check
Confirm that the model reference is 23325000 and compare the required component with the existing part before ordering. The standard 07052000 waste linkage rod and optional 07341000 350 mm rod must not be assumed to be interchangeable because the correct rod depends on the installation dimensions and waste-linkage arrangement.
