Grohe 2337800E Eurosmart Cosmopolitan Single-Lever Basin Mixer (1/2 Inch) S-Size Spare Parts
SUMMARY
Spares for Grohe 2337800E Eurosmart Cosmopolitan S-Size 1/2 Inch Basin Mixer

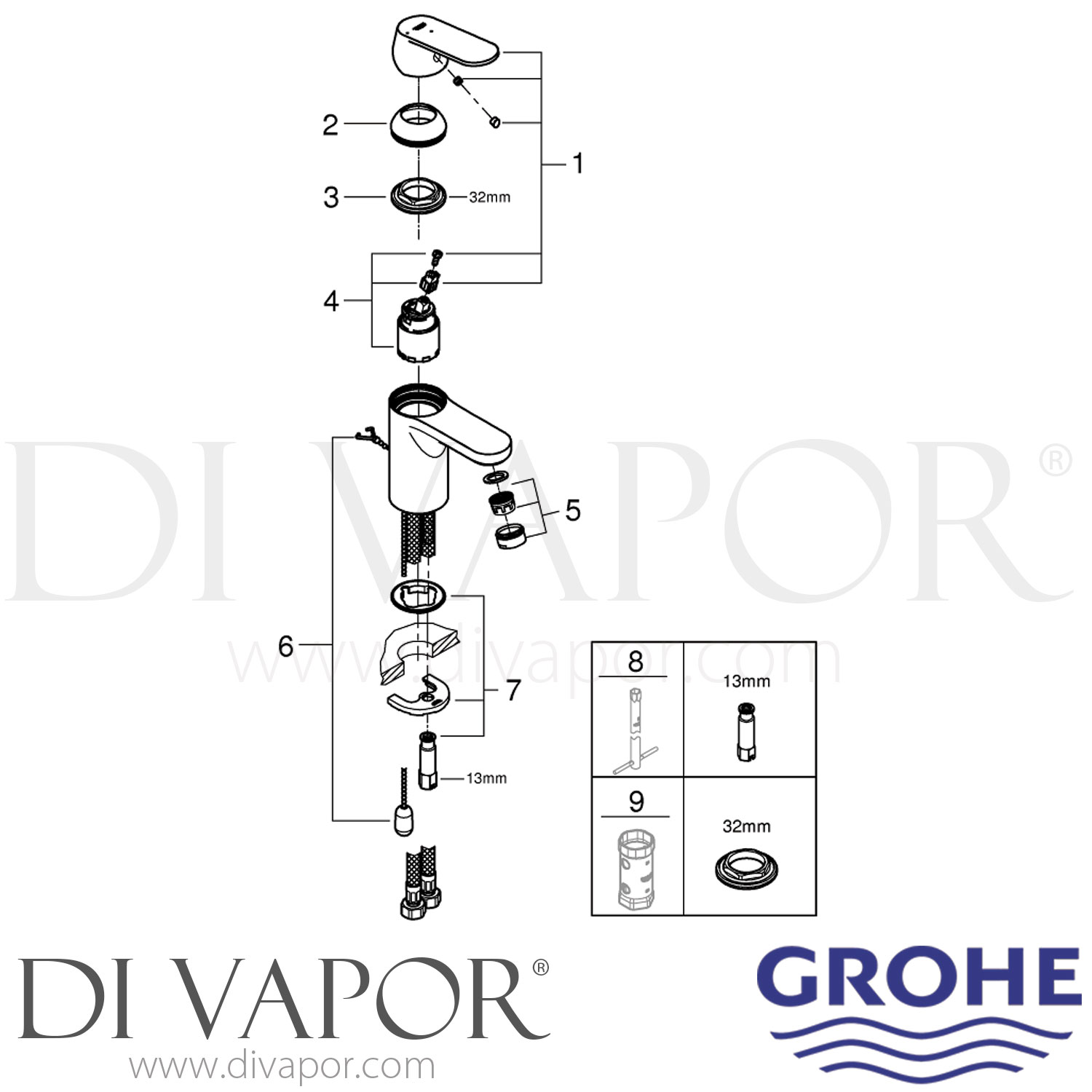

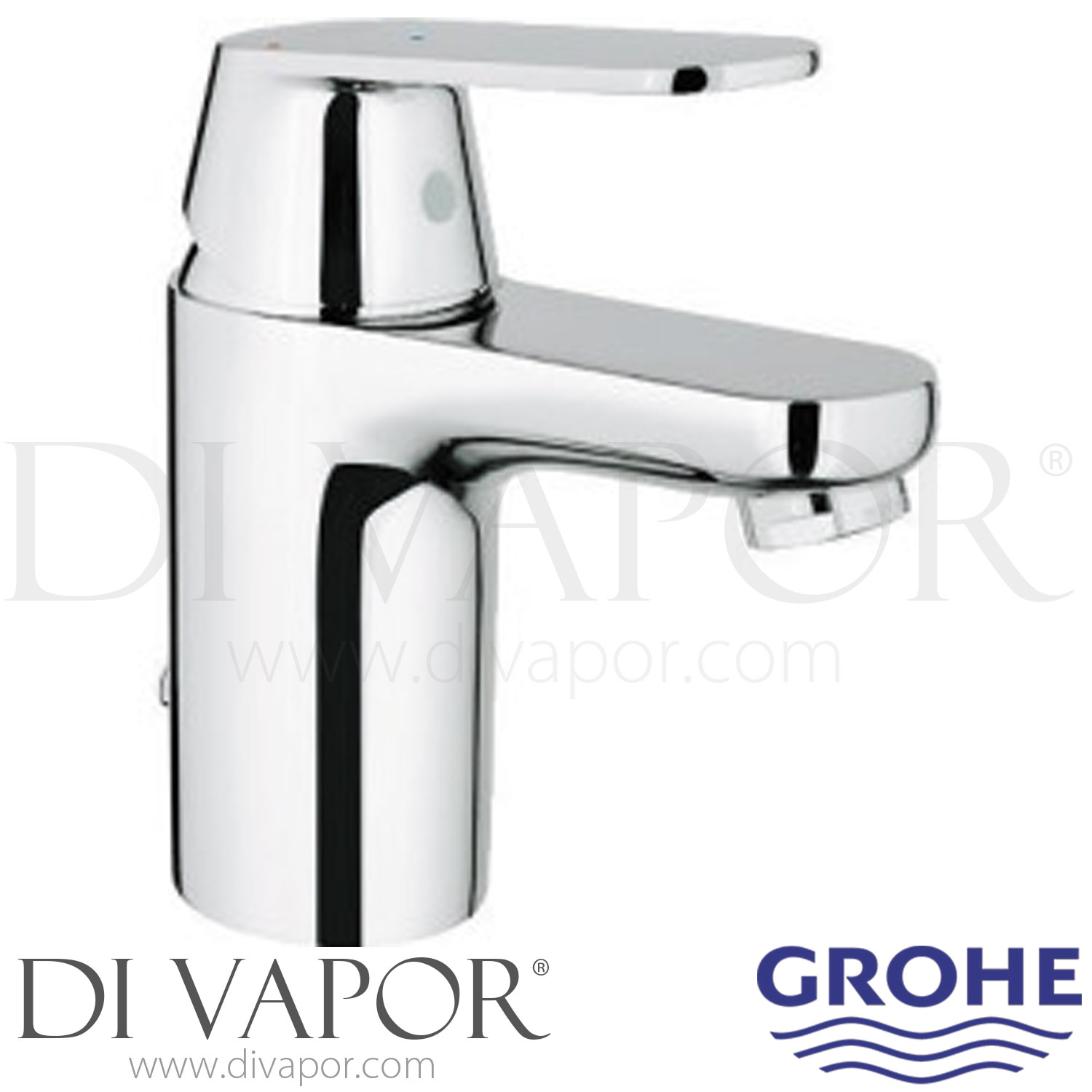

GROHE 2337800E is a Eurosmart Cosmopolitan single-lever basin mixer in the S-Size format, designed for single-hole installation and finished in chrome. This page identifies the service parts used within the 2337800E basin mixer.
The mixer uses a 35mm ceramic cartridge to control the water flow and temperature. Its cold-start arrangement supplies cold water when the lever is in the central position, helping to avoid unnecessary hot-water use. The mixer also incorporates an adjustable flow limiter, an integrated temperature limiter and a retractable chain for operating a suitable basin waste.
Technical Details
- - Brand: GROHE
- - Range: Eurosmart Cosmopolitan.
- - Category: Basin mixer.
- - Product code: 2337800E.
- - EAN: 4005176936647.
- - Size: S-Size.
- - Installation: Single-hole deck-mounted installation.
- - Control: Single metal lever.
- - Cartridge: GROHE SilkMove 35mm ceramic cartridge.
- - Finish: Chrome with GROHE LongLife finish.
- - Maximum flow rate: 5 litres per minute at 3 bar.
- - Adjustable minimum flow rate: Approximately 2.5 litres per minute.
- - Waste operation: Retractable chain.
- - Flexible hose connections: G3/8.
- - Tap height with the lever lowered: 148mm.
- - Maximum height with the lever raised: 186mm.
- - Spout outlet height: 78mm above the mounting surface.
- - Spout projection: 92mm.
- - Spout outlet angle: 22 degrees.
- - Base diameter: 50mm.
- - Required mounting-hole diameter: 34mm.
- - Maximum mounting-surface thickness: 30mm.
Before You Order Check
Confirm that the product code marked on the mixer documentation is 2337800E and compare the required spare-part code with the component being removed. Other Eurosmart Cosmopolitan basin mixers may use different cartridges, aerators, waste arrangements or mounting parts despite having a similar external appearance.
