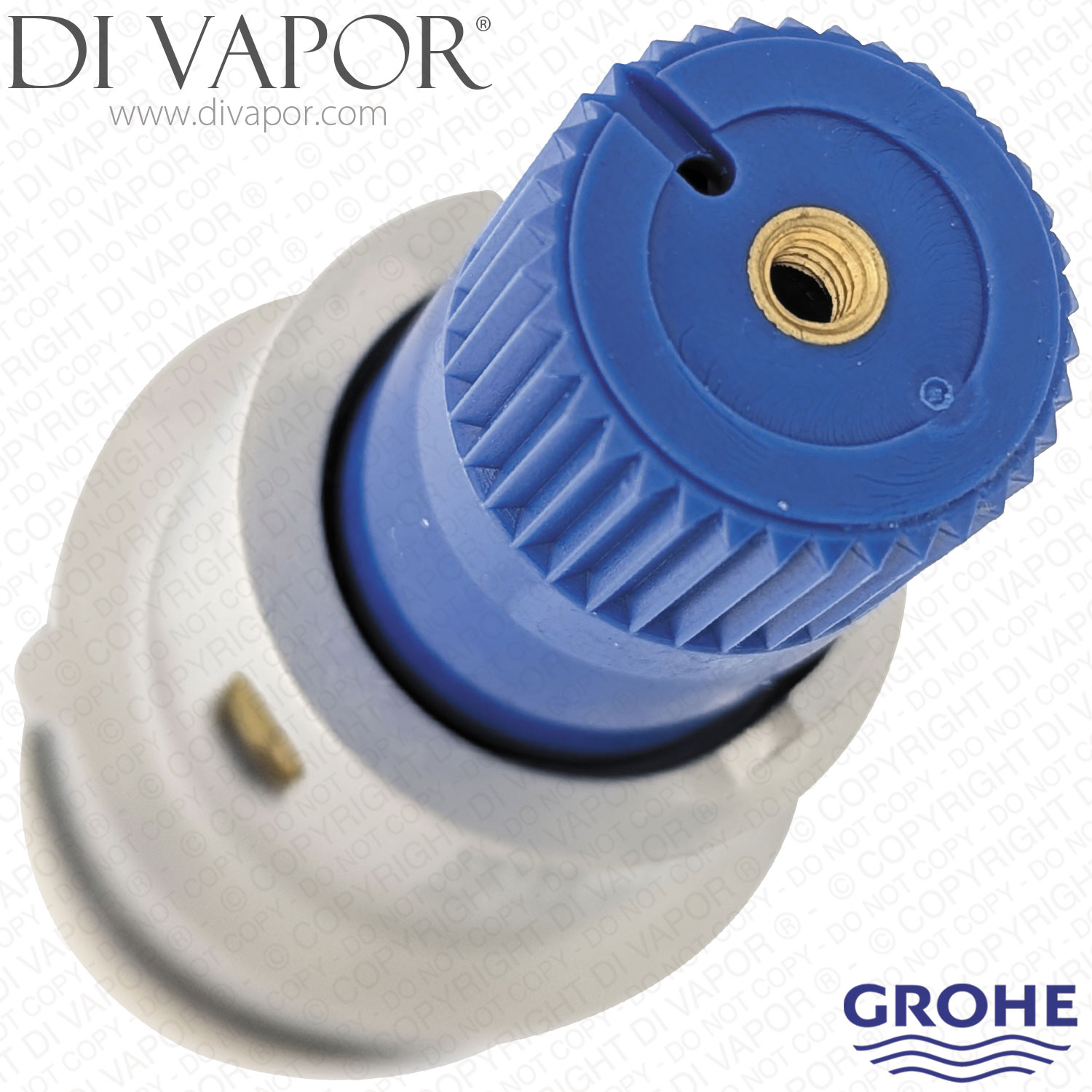

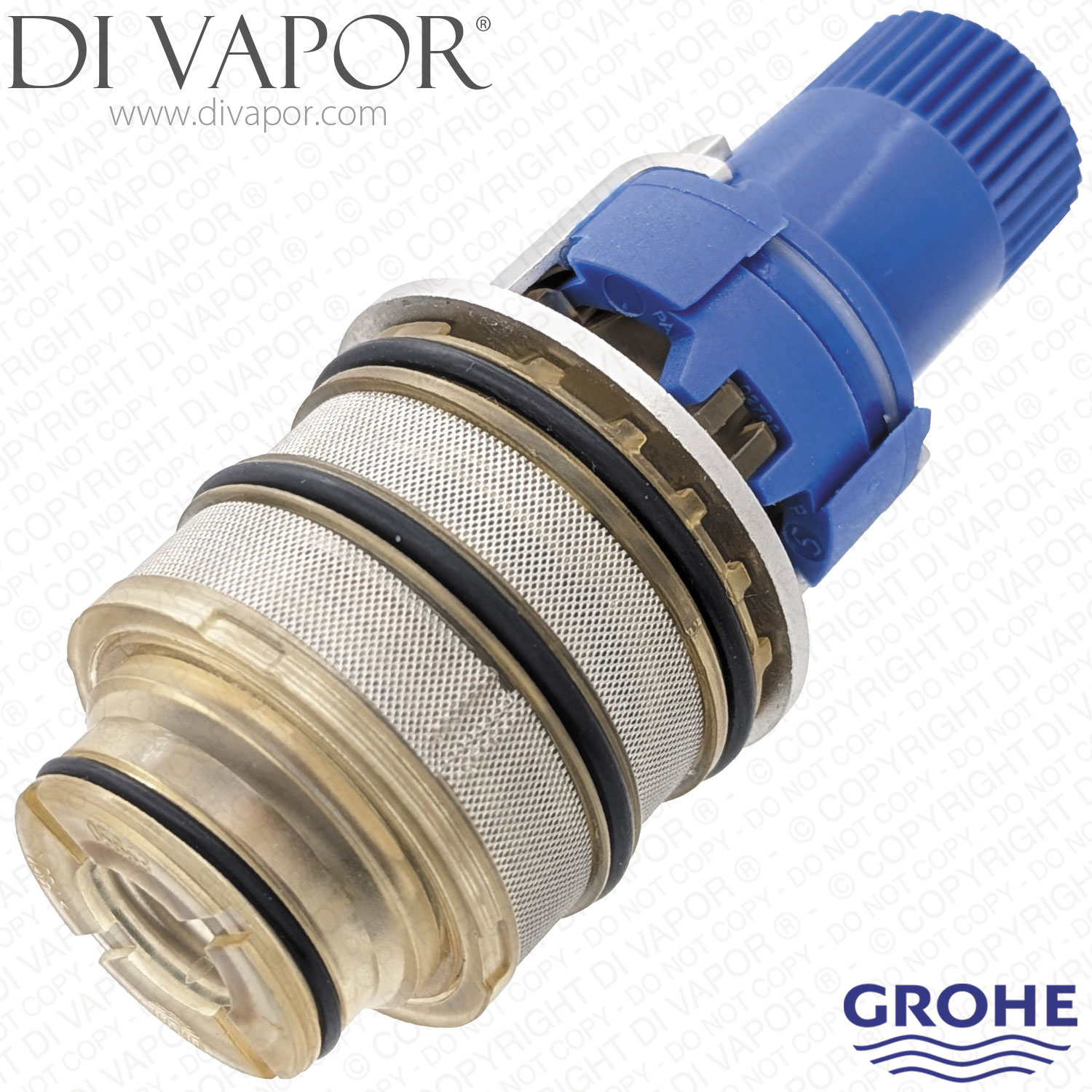

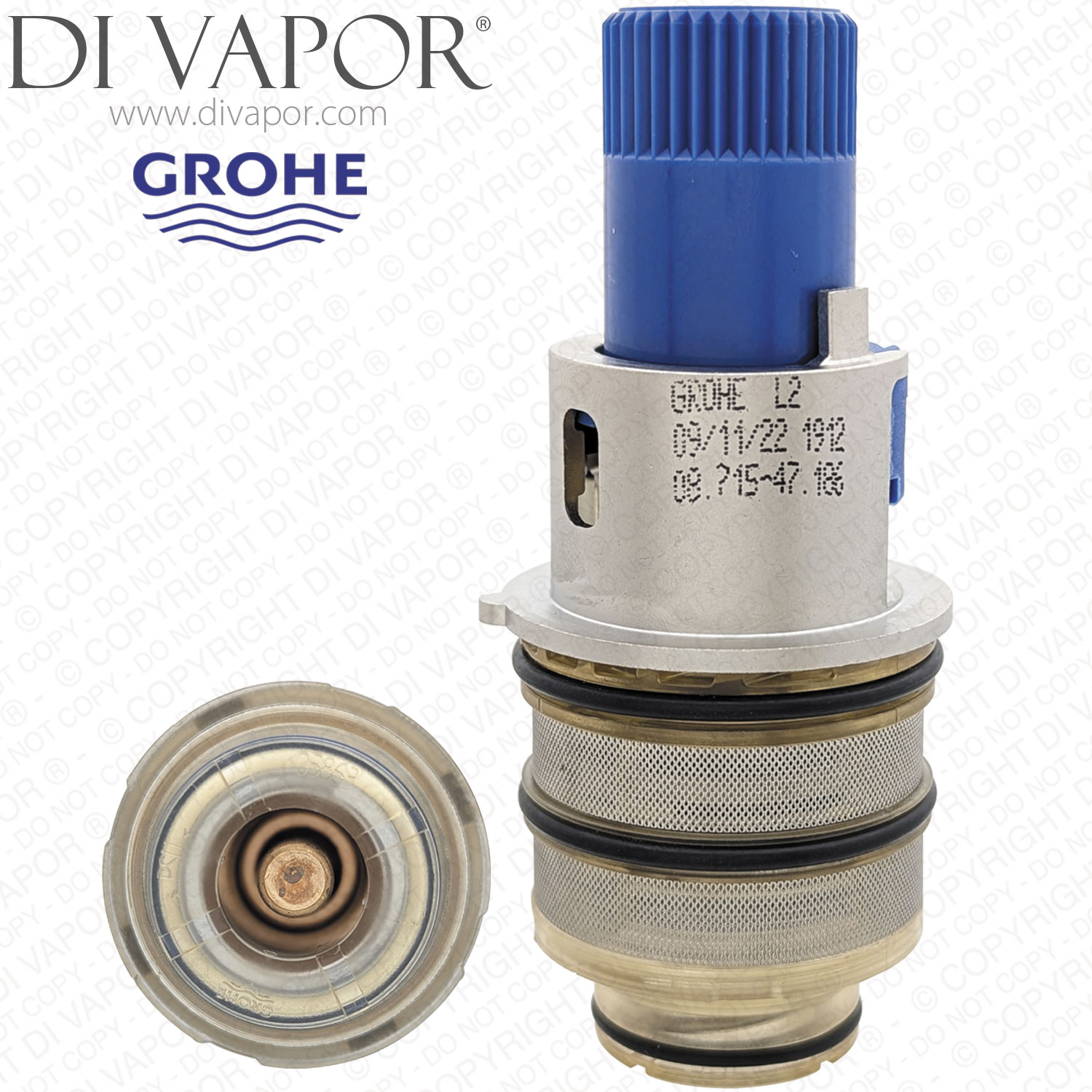

Grohe 47186000 3/4" Reverse Turbostat Thermostatic Cartridge for Grohtherm and THM Valves
Send a photo of your item and we'll help confirm it.
Summary
Grohe 47186000 thermostatic cartridge for 3/4" shower valves. This is a reverse thermostatic cartridge and is Grohe's patented Turbostat technology.
***IMPORTANT*** This is the REVERSE version of the cartridge for valves that have the hot and cold feeds reversed.
Used in the following Grohe models:
- Grohe 3/4" Grohtherm 2000 34282 Comfort set Grohtherm 2000
- Grohe 3/4"Concealed body for THM 34214 Thermostat shower mixer
May also be known as:
- Grohe 47186
- Grohe 47 186000
- Grohe 47 186
Grohe 47186000 is a 3/4 Inch reverse TurboStat thermostatic cartridge used for temperature control in selected Grohtherm, THM, Tenso, Grandera, Allure and concealed thermostatic shower systems. This is specifically the reverse-waterways version for installations where the cold supply is on the left and the hot supply is on the right.
The cartridge uses GROHE TurboStat technology with a wax thermoelement to regulate the mixed-water temperature. When selecting Grohe spare parts for these valves, check the actual hot and cold supply orientation rather than relying on cartridge appearance alone, as the standard-waterways cartridge is a different part.
Technical Details
| Product code | 47186000 |
|---|---|
| Part type | 3/4 Inch reverse TurboStat thermostatic compact cartridge |
| Function | thermostatic mixed-water temperature control |
| Supply orientation | left cold / right hot |
| Thermostatic technology | GROHE TurboStat |
| Thermostatic element | wax thermoelement |
| Overall length | approximately 93.61mm |
| Diameter | approximately 40.73mm |
| Gauze filters | 2 |
| O-rings | 3 |
| Construction | brass and plastic |
| Other references | 47186 / 47 186000 / 47 186 |
Before You Order
Check the supply orientation at the valve before ordering. Grohe 47186000 is intended for reversed installations with cold on the left and hot on the right. Grohe 47483000 is the separate standard-waterways cartridge and is not a superseding code for 47186000.
Confirmed Models and Systems
- Grohe 34282 Grohtherm 2000 Comfort Set
- Grohe 34214 Concealed Body for THM Thermostat Mixer 3/4 Inch
- Grohe 19354000 Grohtherm 2000 Thermostat Shower Mixer
- Grohe 19355000 Grohtherm 2000 Shower
- Grohe 19469000 Grohtherm 3000 Cosmopolitan Central Thermostatic Mixer
- Grohe 19359000 Grohtherm 3000 Thermostat Shower Mixer
- Grohe 19402000 Tenso Thermostat Shower Mixer
- Grohe 19403000 Tenso Thermostat with Integrated 2-Way Diverter
- Grohe 19352001 Grohtherm 2000 Central Thermostatic Mixer
- Grohe 27618000 Grohtherm F Thermostatic Trim with Integrated 2-Way Diverter
- Grohe 27619000 Grohtherm F Thermostatic Trim
- Grohe 19937000 Grandera Thermostatic Shower Mixer with Integrated 2-Way Diverter
- Grohe 19934000 Grandera Thermostatic Shower Mixer
- Grohe 19941IG0 Grandera Thermostat for Bath and/or Shower
- Grohe 19446000 Allure Thermostat with Integrated 2-Way Diverter
- Grohe 19792A00 Allure Brilliant Thermostat with Integrated 2-Way Diverter
- Grohe 19792AL0 Allure Brilliant Thermostat with Integrated 2-Way Diverter
- Grohe 19567LS0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter
- Grohe 19568LS0 Grohtherm 3000 Cosmopolitan Thermostatic Shower Mixer
- Grohe 34582000 Grohtherm 1000 Perfect Shower Set with Euphoria Cosmopolitan 180
- Grohe 34631000 Grohtherm 2000 Perfect Shower Set with Rainshower Cosmopolitan 210
- Grohe 19354001 Grohtherm 2000 Thermostatic Shower Mixer
- Grohe 35500000 Rapido T Thermostatic Mixer for Concealed Installation
Verified Application Context
- Grohe 19985000 Grohtherm 1000 Thermostatic Shower Mixer with Integrated 2-Way Diverter - this trim set requires the Grohe 35500000 Rapido T concealed thermostatic mixer; 47186000 is the reversed-supply cartridge for that concealed body and should only be used where the installation has cold on the left and hot on the right
- Grohe 19984000 Grohtherm 1000 Thermostatic Shower Mixer - this trim set requires the Grohe 35500000 Rapido T concealed thermostatic mixer; 47186000 is the reversed-supply cartridge for that concealed body and should only be used where the installation has cold on the left and hot on the right
- Grohe 19358000 Grohtherm 3000 Thermostat with Integrated 2-Way Diverter - this final installation set is used with the Grohe 35500000 Rapido T concealed thermostatic mixer; 47186000 is the reversed-supply cartridge for that concealed body and should only be used where the installation has cold on the left and hot on the right
- Grohe 35050000 Rapido T Thermostatic Mixer for Concealed Installation - GROHE directly specifies 47186000 as the optional 3/4 Inch thermostatic compact cartridge for changed or reversed waterways
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - for lubricating cartridge O-rings during servicing
- Grohe 47483000 TurboStat Thermoelement 3/4 Inch Thermostatic Cartridge - standard-waterways counterpart to the reverse 47186000 cartridge
