Grohe 34229002 Precision Trend Thermostatic Shower Mixer (1/​2 Inch) Spare Parts

SUMMARY

Spares for GROHE 34229002 Precision Trend Thermostatic Shower Mixer 1/2 Inch

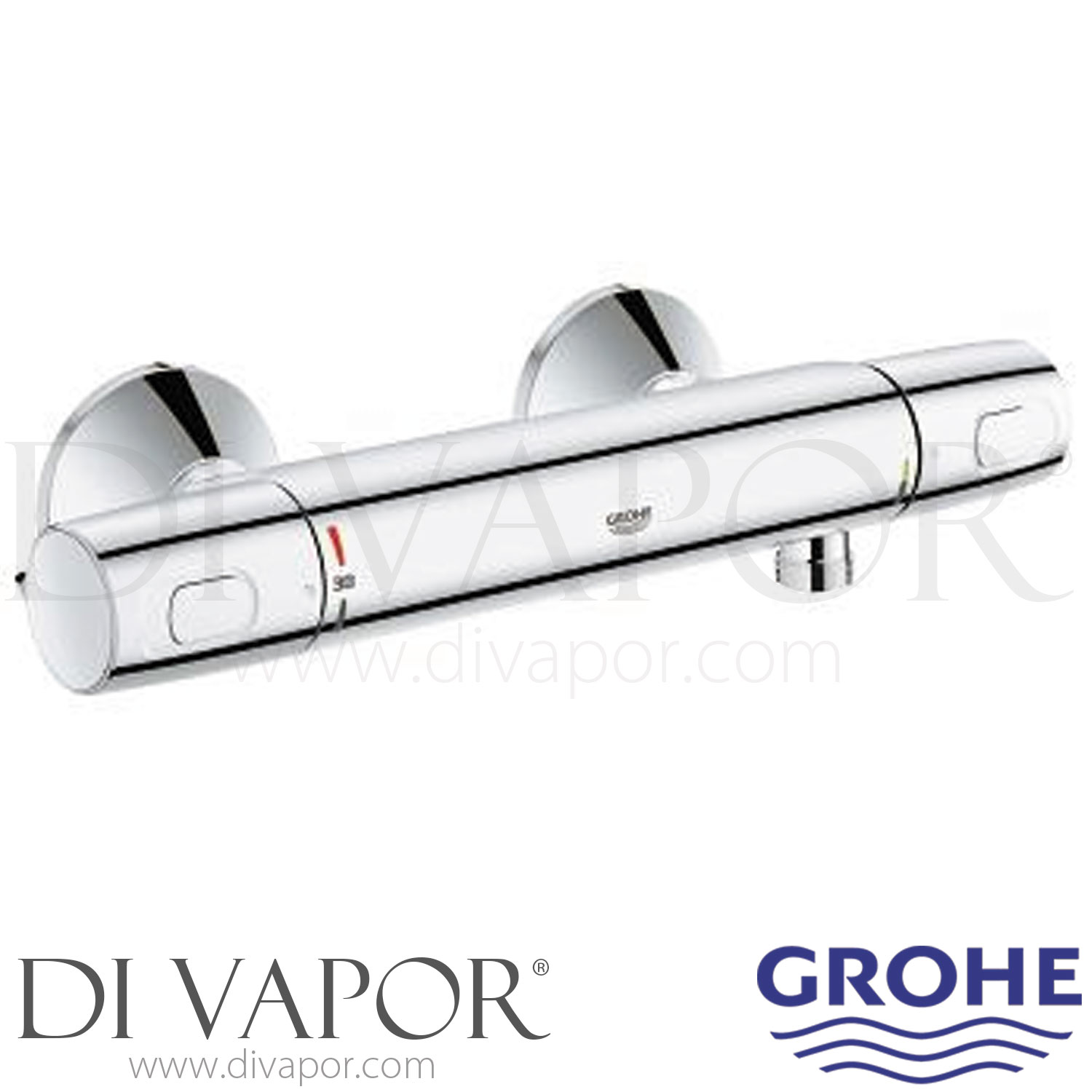

The GROHE 34229002 Precision Trend is an exposed wall-mounted thermostatic shower mixer with separate temperature and water-flow controls. This spare-parts page is for identifying and ordering components used within the exact 34229002 shower mixer.

The mixer uses a thermostatic cartridge to regulate the mixed-water temperature and a ceramic headpart to control the on/off water flow. Common reasons for servicing the valve include unstable temperature, difficulty reaching the selected temperature, stiff controls, restricted flow or water continuing to drip from the shower outlet after the mixer has been turned off.

Technical Details

- - Brand: GROHE.

- - Range: Precision Trend.

- - Category: Shower mixer.

- - Product code: 34229002.

- - Mixer type: Exposed wall-mounted thermostatic shower mixer.

- - Finish: Chrome.

- - Connection size: 1/2 inch.

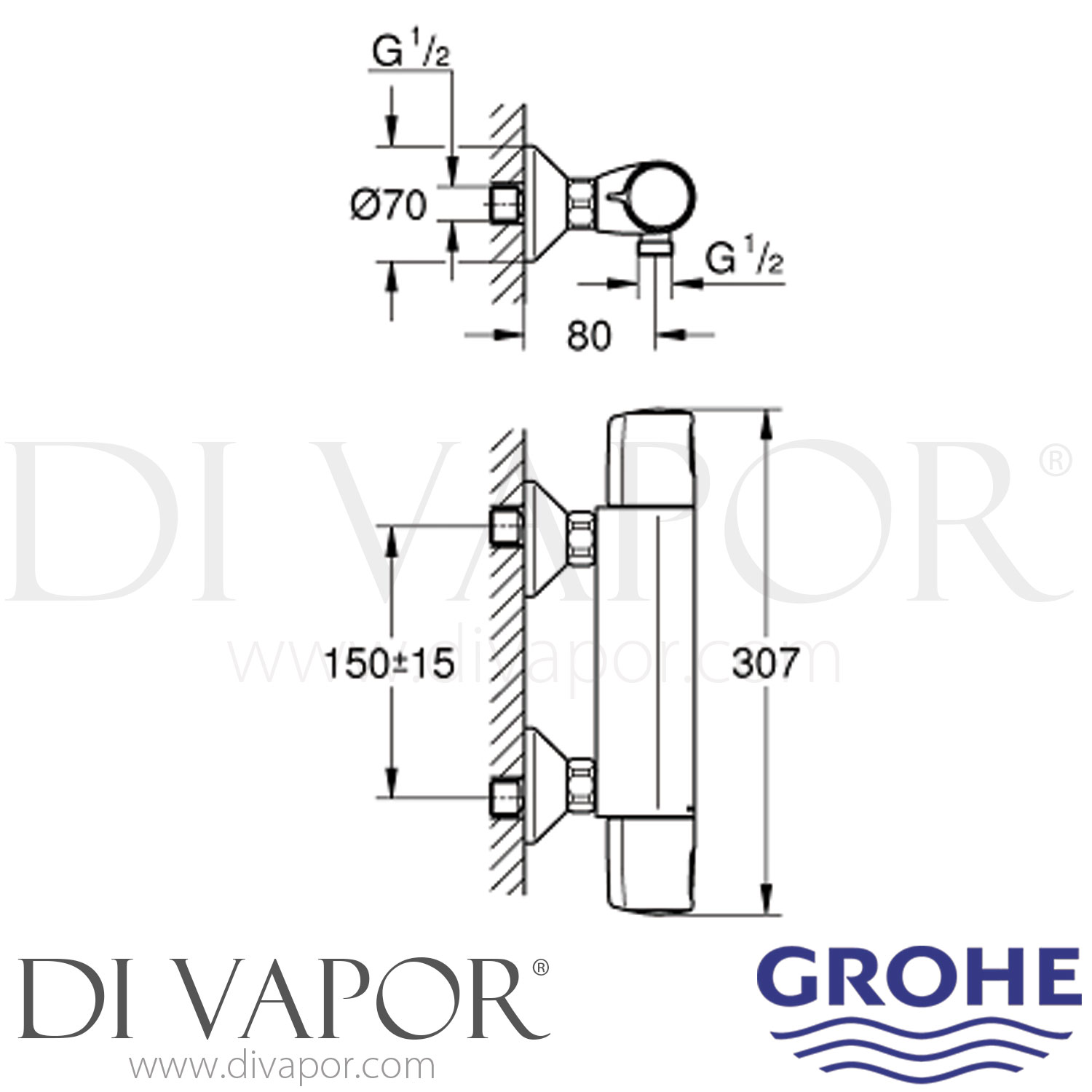

- - Overall mixer body length: 307mm.

- - Supply connection centres: 150mm +/- 15mm.

- - Projection from the wall connection line to the outlet centre: 80mm.

- - Escutcheon diameter: 70mm.

- - Hot and cold inlet connections: G 1/2.

- - Shower outlet: Bottom G 1/2 connection.

- - Temperature safety stop: 38 degrees C.

- - Additional temperature limiter: 43 degrees C SafeStop Plus limiter included.

- - Temperature control: GROHE TurboStat compact cartridge with wax thermoelement.

- - Flow control: G 1/2 ceramic headpart with 180-degree operation and FlowControl button.

- - Additional features: GROHE CoolTouch body, GROHE LongLife chrome finish, built-in non-return valves, dirt strainers, S-unions and metal escutcheons.

Before You Order Check

Confirm that the mixer body is marked with code 34229002 and compare the required component with the existing part before ordering. The standard thermostatic cartridge shown for this mixer is 47439000. The reverse 47175000 cartridge is an optional configuration and must not be ordered in place of 47439000 unless the existing installation uses the reverse cartridge arrangement.

Isolate the hot and cold water supplies before dismantling the mixer. Flush the supply pipework, clean the inlet strainers and inspect the non-return valves during servicing. The temperature control may require recalibration after a thermostatic cartridge has been installed.
