Grohe 31484001 Get Single-Lever Sink Mixer (1/​2 Inch) Spare Parts

SUMMARY

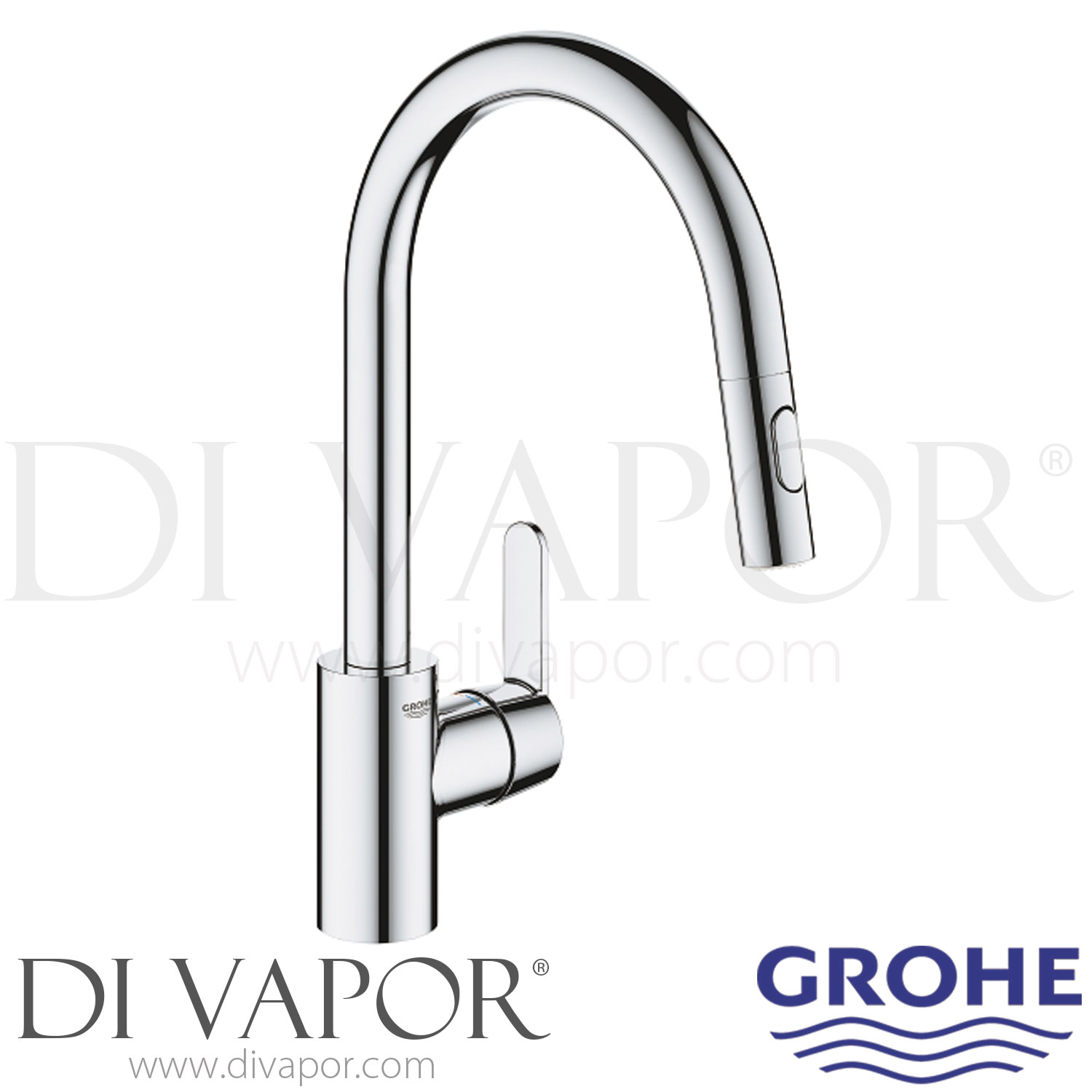

Spares for Grohe 31484001 Get Single-Lever Pull-Out Kitchen Sink Mixer Chrome

Grohe 31484001 is a Get single-lever kitchen sink mixer with a high C-shaped spout, chrome finish and pull-out dual-spray outlet. This monobloc mixer is designed for single-hole installation and provides additional reach for rinsing the sink, filling tall containers and directing water around larger cookware.

The pull-out outlet switches between a laminar stream and a SpeedClean shower jet. A 360-degree swivel spout provides unrestricted movement, while the 35 mm GROHE SilkMove ceramic cartridge controls water flow and temperature through the single lever. GROHE EasyDocking guides the hose and outlet back into the spout after use.

Technical Details

- - Range: GROHE Get.

- - Category: Kitchen tap.

- - Product code: 31484001.

- - Installation type: Single-hole monobloc installation.

- - Finish: Chrome.

- - Spout type: High tubular C-shaped spout.

- - Outlet type: Pull-out dual-spray outlet.

- - Spray patterns: Laminar stream and SpeedClean shower jet.

- - Spout swivel area: 360 degrees.

- - Cartridge: 35 mm GROHE SilkMove ceramic cartridge.

- - Overall mixer height: 381 mm.

- - Spout outlet height: 188 mm.

- - Spout projection: 223 mm.

- - Maximum pull-out extension shown: 340 mm.

- - Required tap hole diameter: 34 mm.

- - Base diameter: 51 mm.

- - Maximum mounting-surface thickness: 60 mm.

- - Flexible inlet connection size: G 3/8.

- - Adjustable flow-rate limiter.

- - Protected against backflow.

- - GROHE QuickMount installation system.

Before you order check

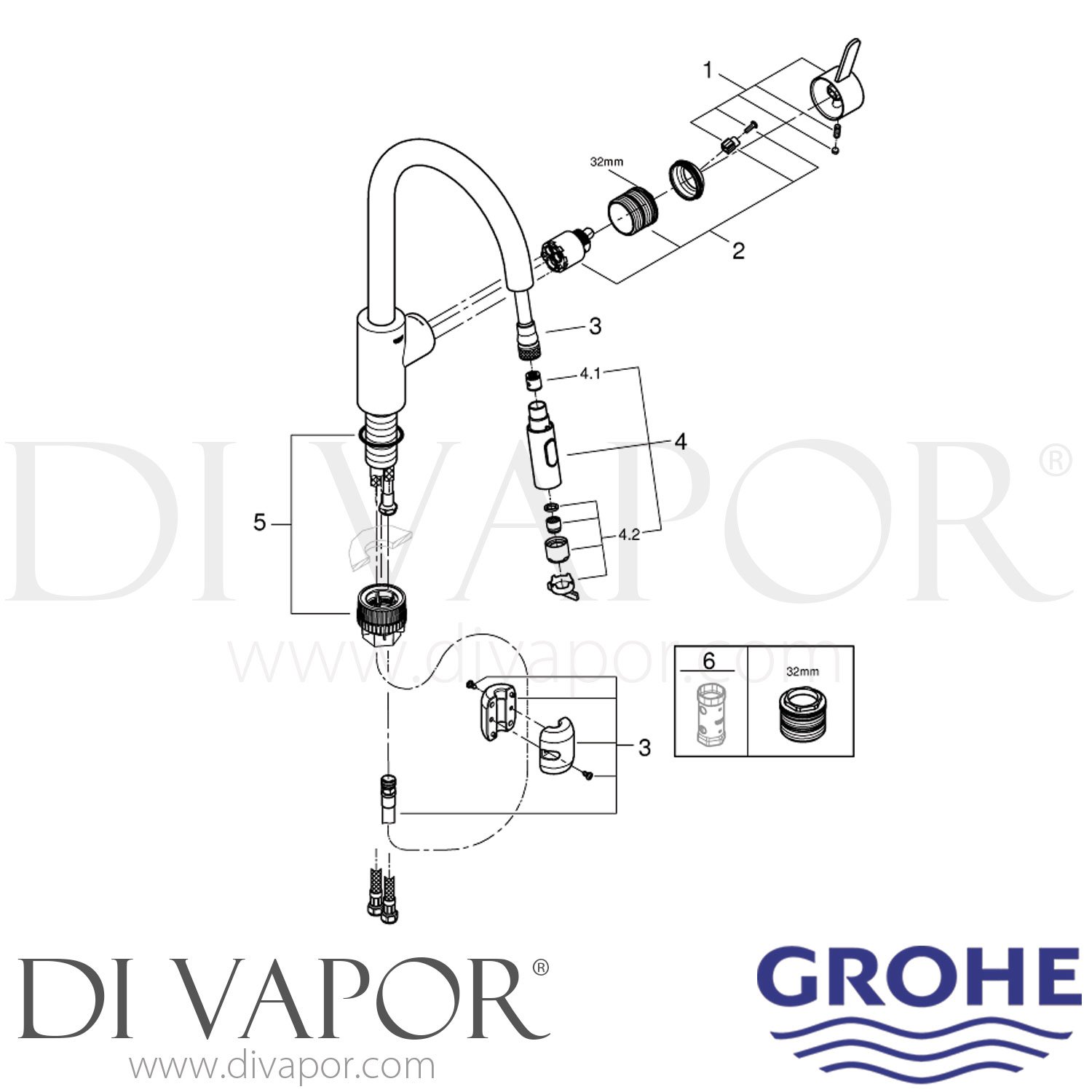

Confirm that the mixer code is 31484001 and compare the required component with the tap diagram. The 1/2 Inch wording forms part of the mixer designation, while the technical drawing shows G 3/8 flexible inlet connections. Isolate the water supplies before servicing, flush debris from the pipework and check hose washers, connections and sealing surfaces before reassembly.
