Grohe 3224010L Concetto Single-Lever Basin Mixer (1/​2 Inch) S-Size Tap Spare Parts

SUMMARY

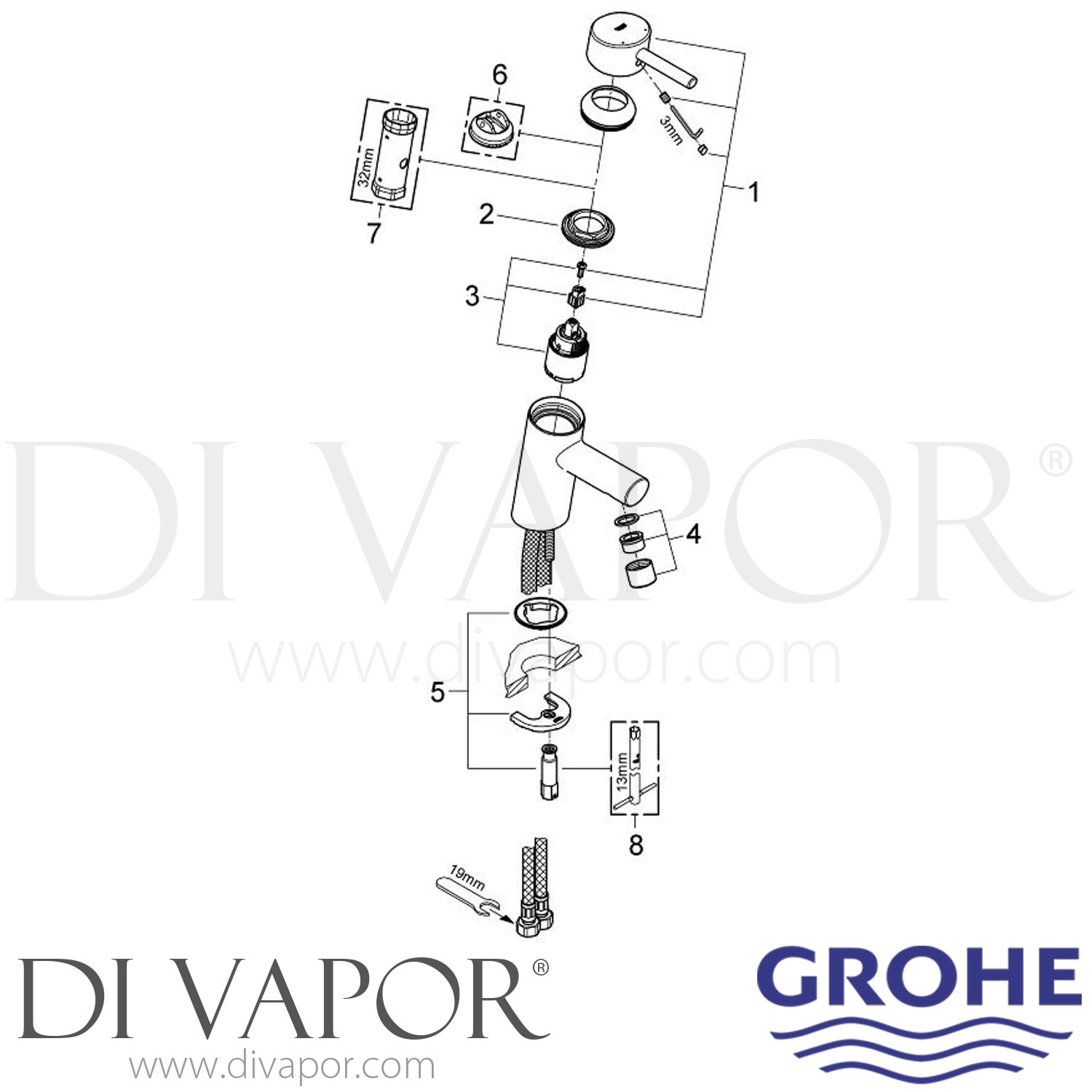

Spares for Grohe 3224010L Concetto Single-Lever Basin Mixer 1/2 Inch S-Size

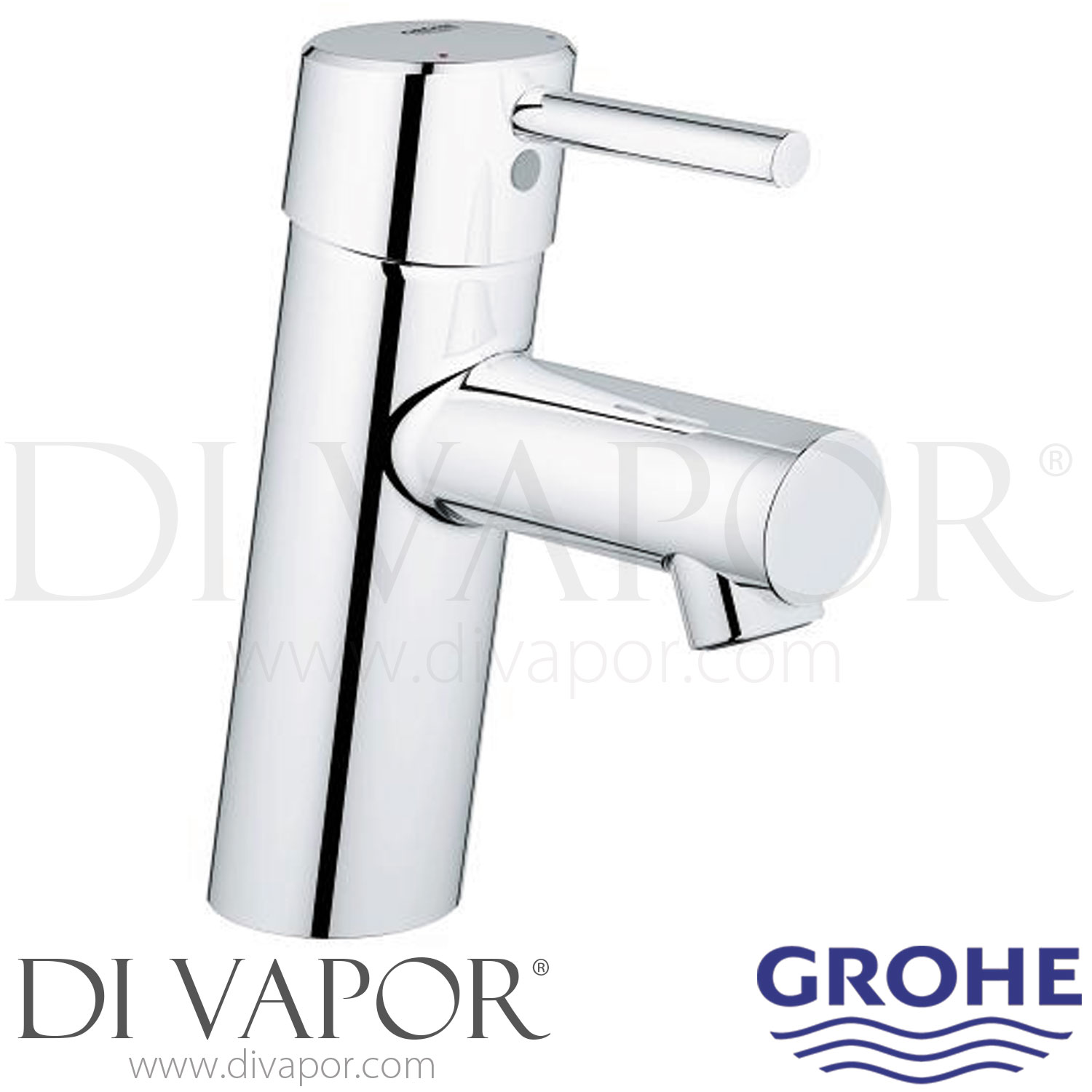

The Grohe 3224010L Concetto is a chrome S-size single-lever basin mixer with a smooth body and one-hole deck-mounted installation. This page identifies service parts for maintaining the mixer and restoring correct lever operation, water-flow control and mixed-water temperature adjustment.

The mixer uses a 35mm ceramic single-lever cartridge. The lever controls the hot and cold supplies through the cartridge, while the retaining screw coupling secures the cartridge inside the tap body.

Technical Details

- - Range: Grohe Concetto.

- - Category: Basin mixer.

- - Model code: 3224010L.

- - GROHE drawing designation: 32 240.

- - Size: S-size.

- - Finish: Chrome.

- - Installation type: One-hole deck-mounted installation.

- - Body configuration: Smooth body without pop-up waste control.

- - Cartridge type: 35mm ceramic single-lever cartridge.

- - Overall mixer height: 187mm.

- - Spout outlet height: 151mm.

- - Spout projection: 103mm.

- - Required tap-hole diameter: 34mm.

- - Maximum mounting-surface thickness: 30mm.

- - Flexible hose length: 350mm.

- - Flexible hose connections: G3/8.

- - Cold-water connection: Right.

- - Hot-water connection: Left.

Cartridge Servicing

Isolate both water supplies before dismantling the mixer. The lever retaining screw is removed using a 3mm Allen key. When fitting the cartridge, ensure its seals sit correctly in their grooves and that the locating pins align with the corresponding openings in the mixer body.

Before You Order Check

Confirm that the mixer is marked 3224010L or corresponds to GROHE drawing 32 240. Do not confuse this smooth-body mixer with the separate 32 202 configuration that incorporates pop-up waste controls.
