Grohe 3282700E Eurosmart Cosmopolitan Single-Lever Basin Mixer (1/​2 Inch) S-Size Tap Spare Parts

SUMMARY

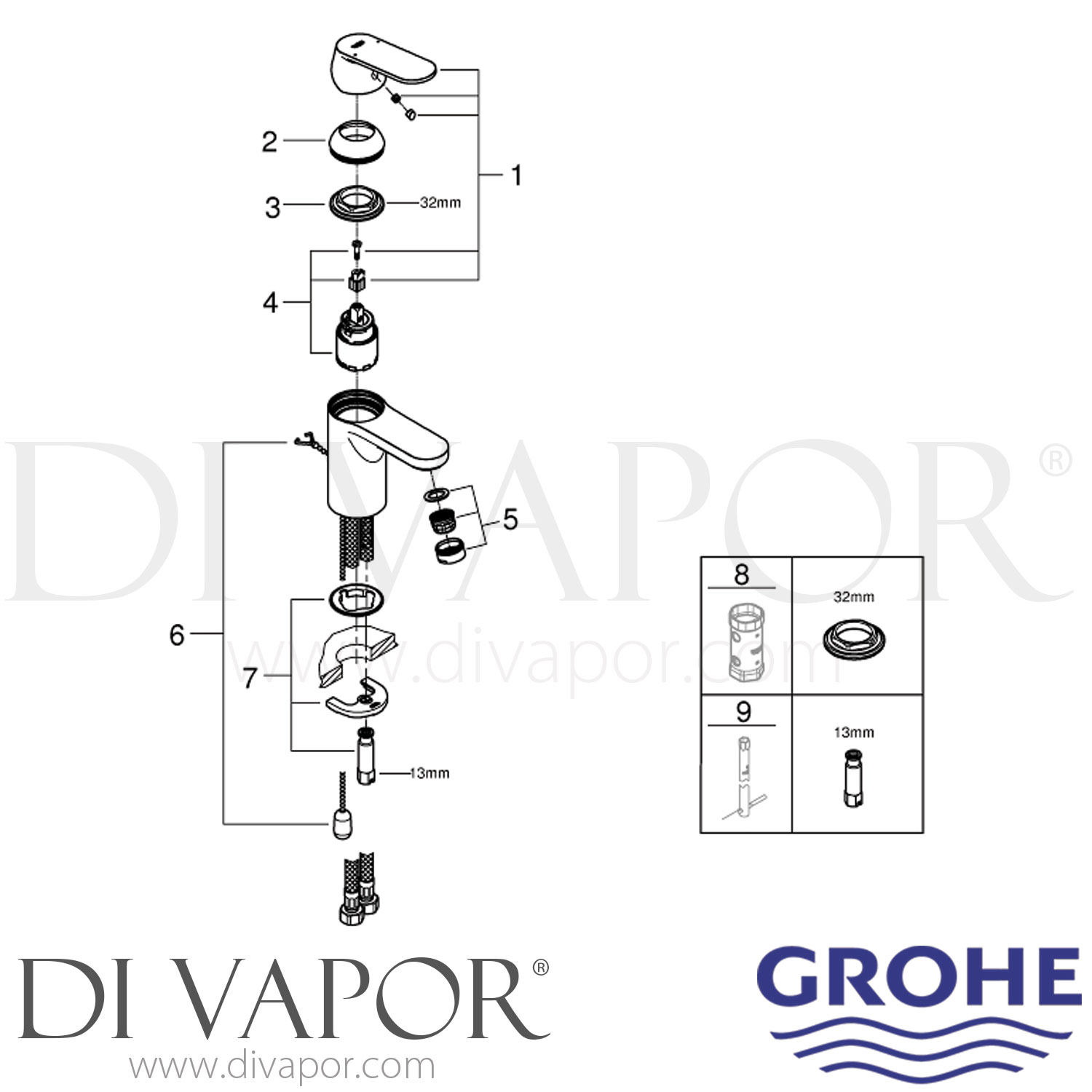

Spares for GROHE 3282700E Eurosmart Cosmopolitan Single-Lever Basin Mixer 1/2 Inch S-Size Chrome

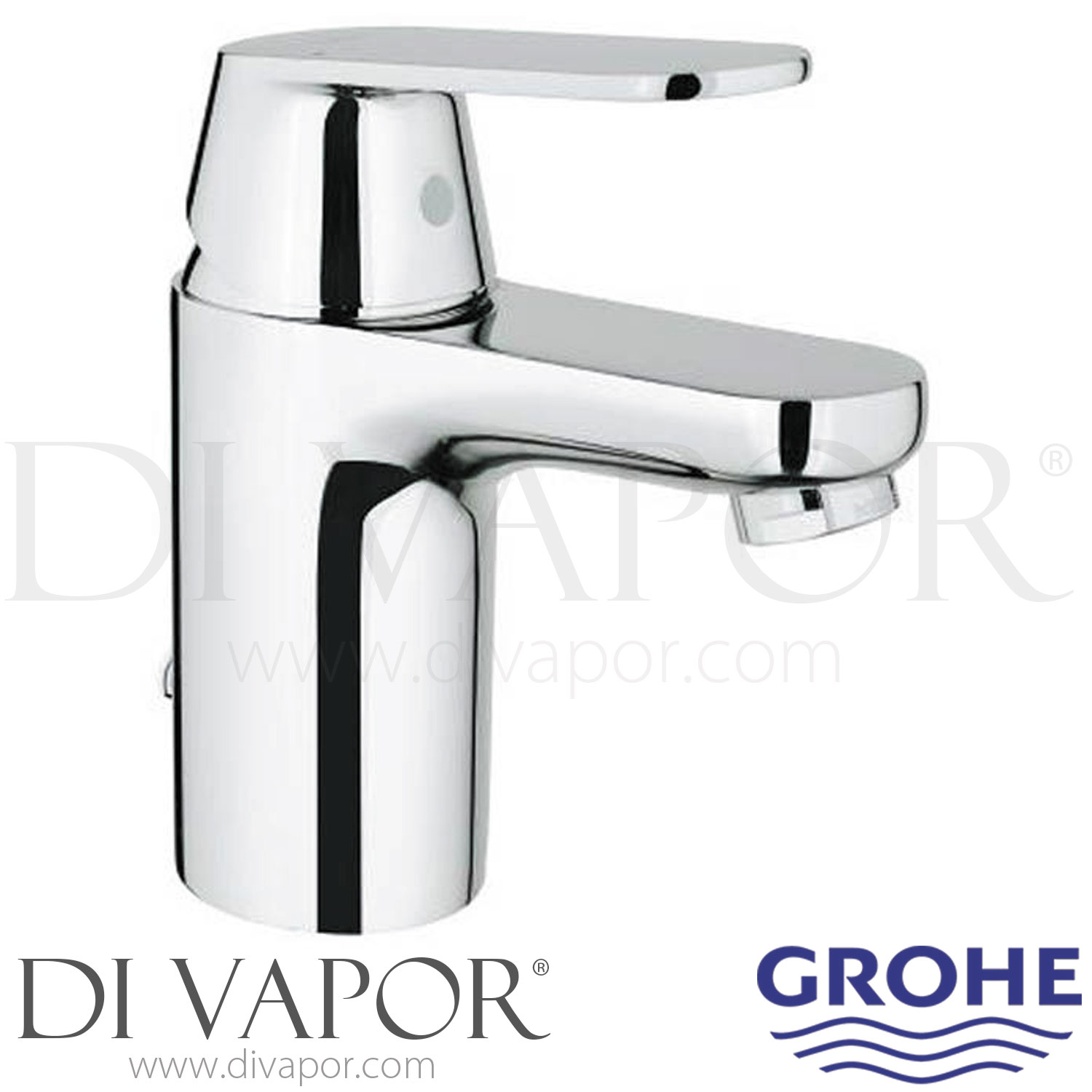

The GROHE 3282700E Eurosmart Cosmopolitan is a chrome single-lever basin mixer designed for single-hole installation on a bathroom wash basin. This spare-parts guide covers the service components available for the exact 3282700E GROHE tap.

The mixer uses a 35mm ceramic mixing cartridge to regulate water flow and temperature through the operating lever. A worn cartridge can cause stiff or uneven lever movement, poor temperature control, difficulty shutting off the water or dripping from the spout when the tap is turned off.

Technical Details

- - Brand: GROHE

- - Product code: 3282700E

- - Range: Eurosmart Cosmopolitan

- - Category: Basin mixer

- - Product type: Single-lever basin mixer 1/2 inch S-Size

- - Finish: Chrome

- - Installation: Single-hole deck-mounted installation

- - Cartridge type: GROHE SilkMove 35mm ceramic cartridge

- - Overall mixer height: 186mm

- - Spout outlet height: 77mm

- - Spout projection: 93mm

- - Mixer body diameter: 50mm

- - Required mounting-hole diameter: 34mm

- - Maximum mounting-surface thickness: 30mm

- - Flexible hose length: 370mm

- - Flexible hose connection size: G3/8

- - Maximum flow rate: 5 litres per minute at 3 bar

- - Additional features: Adjustable flow-rate limiter, SpeedClean mousseur, flexible connection hoses and retractable chain

Before You Order Check

Confirm that the complete mixer is marked or documented as GROHE 3282700E. GROHE basin mixers with similar Eurosmart Cosmopolitan styling can use different cartridges, levers, mousseurs and mounting components. Compare the product code and the removed component before ordering.

Installation Note

Isolate the hot and cold water supplies before dismantling the mixer. Take care not to damage the cartridge seating surface or sealing components, and tighten the cartridge retaining coupling evenly during reassembly.
