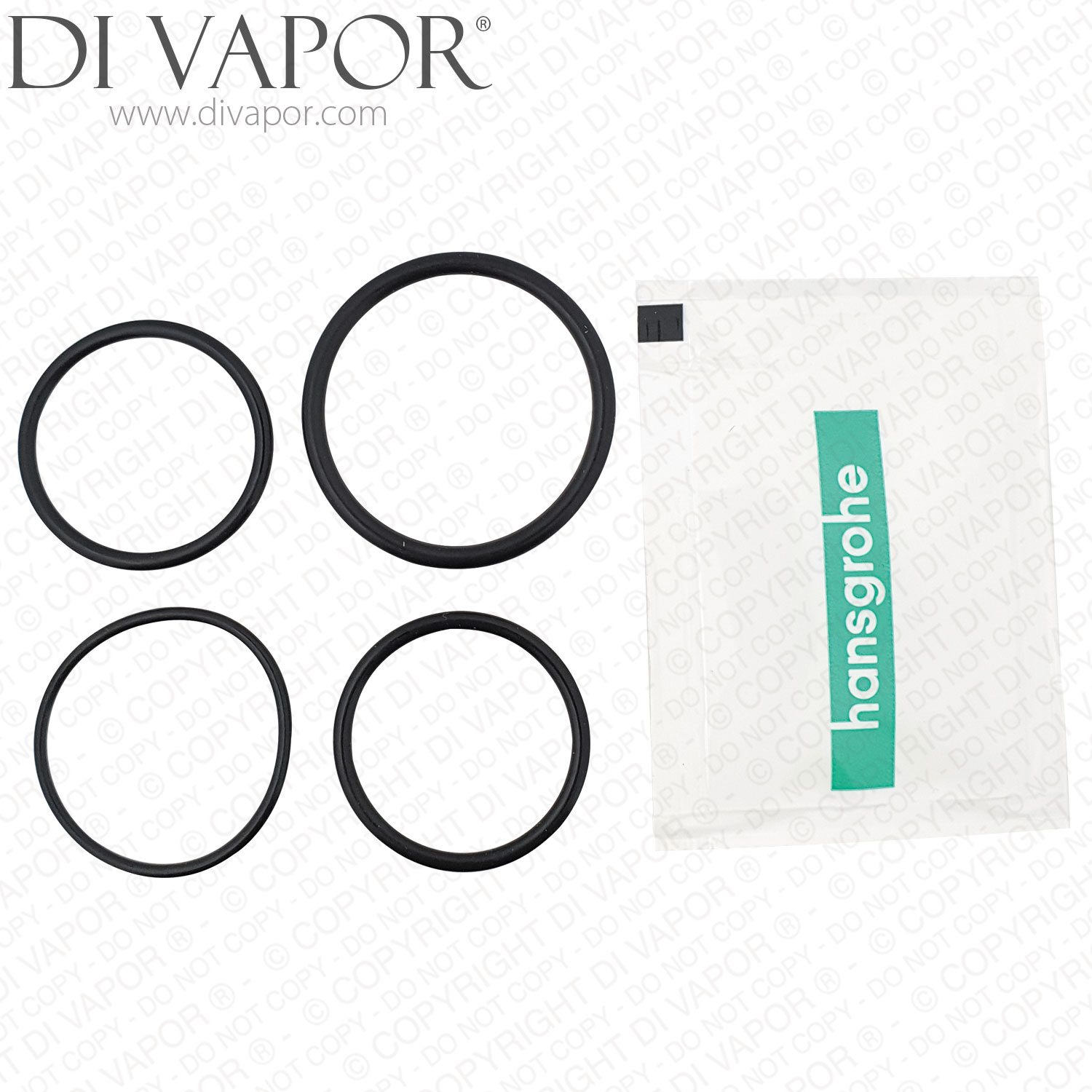

Hansgrohe 95037000 Thermostatic Cartridge Seal Kit

SUMMARY

Hansgrohe 95037000 Thermostatic Cartridge Seal Kit

The Hansgrohe 95037000 is an MTC thermostatic cartridge seal kit used when servicing the cartridge position in selected Hansgrohe AXOR and Pharo thermostatic mixer assemblies. This listing is for the sealing set only; a complete thermostatic cartridge is not included.

The seals provide the sealing interfaces around the thermostatic cartridge within the valve assembly. Renew the set when the existing seals are worn, flattened, split or damaged during cartridge removal, and confirm the exact valve and cartridge code before ordering.

Technical Details

- - Manufacturer code: 95037000

- - Di Vapor Part Number: HG-95037000

- - Part type: MTC thermostatic cartridge sealing set

- - Supplied item: seal kit only

- - Complete thermostatic cartridge: not included

- - Current Hansgrohe 15790000 spare-parts diagram position: 19

- - Standard-supply cartridge shown for 15790000: 98282000

- - Reverse-supplies cartridge shown as an alternative for 15790000: 92373000

- - Legacy manufacturer diagrams also show the sealing set with thermostatic cartridge 94282000

- - No superseding or replacement code has been confirmed for 95037000

Confirmed Compatible Models

- - Hansgrohe 15790000 Ecostat S Thermostat for Concealed Installation for 2 Functions from April 2019

- - AXOR Citterio E 36413XX1

- - AXOR Montreux 16821XX1

- - AXOR Starck 10720XX1

- - AXOR Starck Organic 12715XX1

- - AXOR Citterio 39720XX1

- - AXOR Citterio 39725XX1

- - AXOR Citterio M 34725XX1

- - AXOR Soft Cube 04985XX0

- - AXOR Urquiola 11732XX1

- - Hansgrohe Marin2 Showerpipe 27200000

- - Pharo Shower Panel Prestige thermostatic assemblies shown with 95037000 in the manufacturer service documentation

Before Ordering

- - Check the valve or shower system model code and compare it with the relevant spare-parts diagram.

- - Confirm whether the installation uses the standard 98282000 cartridge, the reverse-supplies 92373000 cartridge or the legacy 94282000 cartridge.

- - Do not select this sealing set from cartridge diameter or appearance alone.

- - Isolate the water supplies before dismantling the valve and apply only a light coating of suitable silicone grease to the seals during reassembly.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - for lightly lubricating cartridge O-rings and seals during installation.

- - Hansgrohe 94282000 Thermostatic Cartridge for Axor Pharo and Other Valves - complete legacy thermostatic cartridge shown with 95037000 in selected assemblies.

- - Hansgrohe 97195000 Shower Head - overhead shower head shown as a related spare for selected Hansgrohe shower panel applications; confirm the shower panel code before ordering.

- - Hansgrohe 95252000 Handle Spindle Spline Adapters - Griffadapter - handle-to-spindle adapter kit shown on the 15790000 components page.

- - Hansgrohe 98153000 30x5mm O-Ring - associated valve seal shown on the 15790000 components page.

- - Hansgrohe 96454000 Fixing Screw Set - fixing screws shown for the concealed thermostat assembly.

- - Hansgrohe 98282000 Thermostatic Cartridge for Ecostat Axor Verostat Croma and Raindance Shower Valves - complete standard-supply thermostatic cartridge shown for 15790000.

- - Hansgrohe 92373000 Thermostatic Cartridge - Reverse Supplies 30747400 - alternative cartridge only where exchanged hot and cold connections are confirmed.

- - Hansgrohe 98283000 Axor Starck Diverter Cartridge Shut off Unit with Selector - shut-off and outlet selector cartridge shown on the 15790000 components page.

- - Hansgrohe 96525000 Screw Set - associated screw set shown for the valve assembly.

- - Hansgrohe 98133000 16x2mm O-Ring - associated O-ring shown on the 15790000 components page.

- - Hansgrohe 94073000 Noise Reduction Set - noise-reduction component shown for the concealed thermostat assembly.
