Hansgrohe 25937000 On/​Off Control

SUMMARY

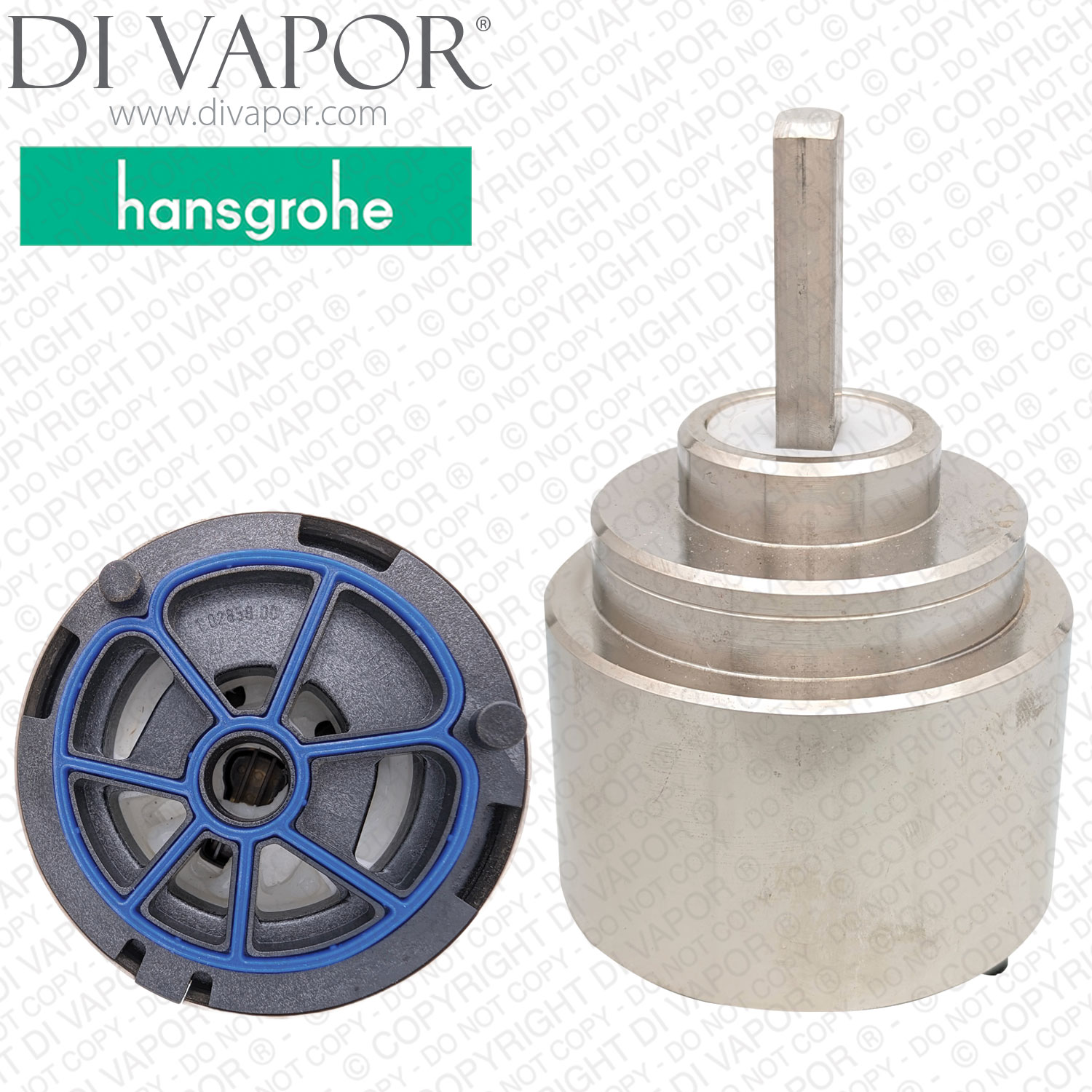

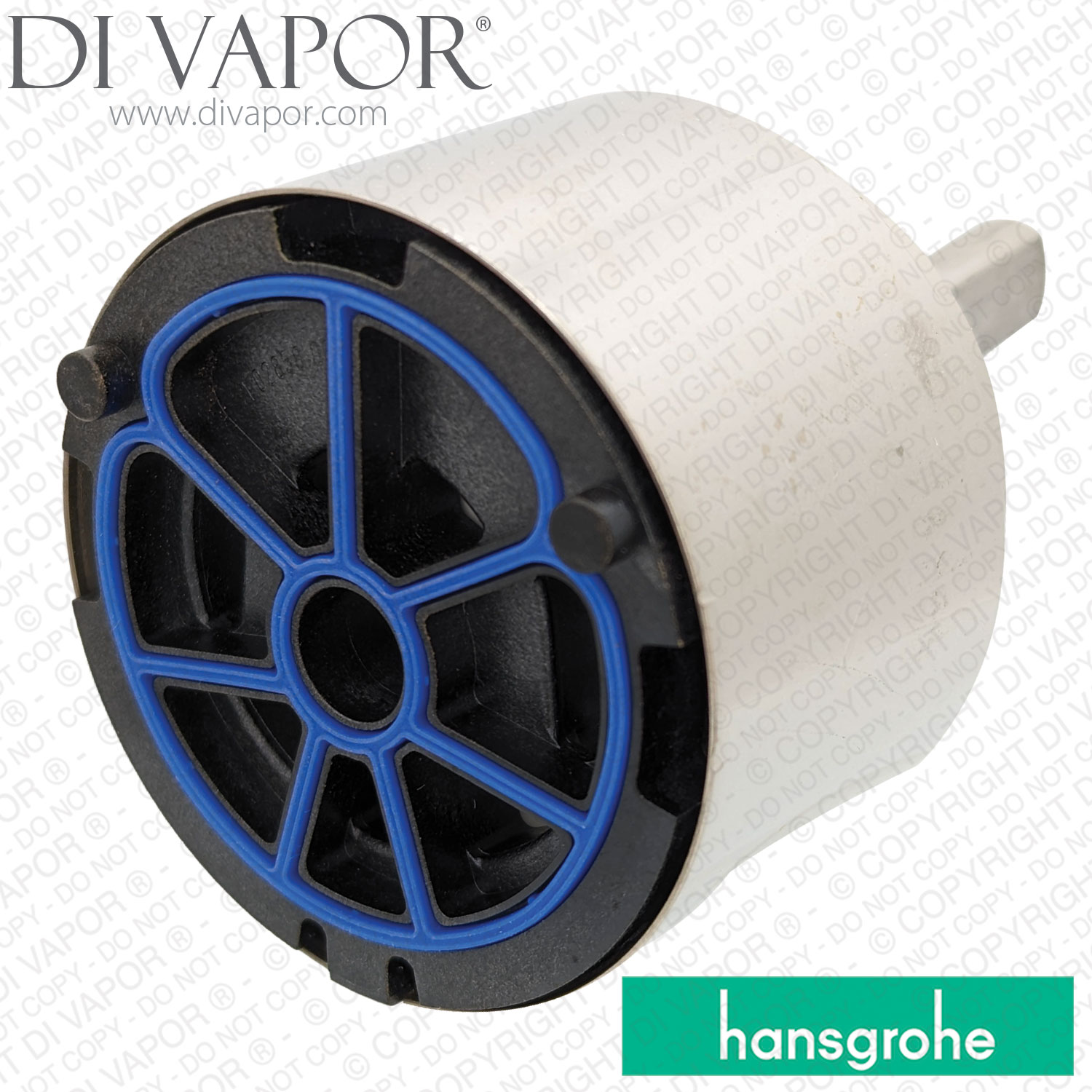

Hansgrohe 25937000 PHARO Shower Panel Shut-Off and Changeover Cartridge

The Hansgrohe 25937000 is an internal shut-off and changeover cartridge for selected PHARO shower panels and shower temples. Hansgrohe identifies the part as a shut-off/changeover insert, while the PHARO Prestige M20 spare-parts diagram describes it as the cartridge on/off control.

The cartridge controls the water flow and changes between the available shower functions or outlets. A worn or restricted cartridge can cause a stiff control, failure to select the required outlet, failure to shut off the flow, or water continuing to drip or pass from a shower head or outlet after the control has been turned off.

Technical Details

- - Manufacturer code: 25937000

- - Part type: internal shut-off and outlet-changeover cartridge

- - Application: selected PHARO shower panels and shower temples

- - Position in the PHARO Prestige M20 spare-parts assembly: 10

- - Quantity shown in the PHARO Prestige M20 assembly: 1

Before Ordering

- - Confirm the complete shower-panel article number and construction period before ordering.

- - Compare the code on the removed cartridge with 25937000 because later Prestige configurations can use a different control cartridge.

- - Do not select the cartridge from its appearance or the Prestige range name alone.

- - Isolate the hot and cold water supplies before dismantling the shower panel.

Hansgrohe-Listed Applications for 25937000

- - PHARO Shower Panel Prestige M20 article numbers 26100000, 26100880 and 26100800 - production 05/04 to 12/09 and 06/01 to 04/04.

- - PHARO Shower Panel Prestige M20 article number 26100090 - production 05/04 to 12/09 and 06/01 to 03/05.

- - PHARO Shower Panel Prestige M20 article numbers 26101000, 26101090, 26101800, 26101880, 26101810, 26102000, 26102090, 26102800, 26102880, 26102810, 26103000, 26103090, 26103800, 26103880, 26104000 and 26104800 - production 05/04 to 12/09 and 06/01 to 05/04.

- - PHARO Shower Panel Prestige M20 article numbers 26103810, 26104090 and 26104880 - production 05/04 to 12/09 and 06/03 to 05/04.

- - PHARO Shower Panel Prestige M20 article number 26104810 - production 05/04 to 12/09 and 05/02 to 05/04.

- - PHARO Shower Panel Prestige ML20 article number 26110000 - production 06/01 to 09/02.

- - PHARO Shower Panel Prestige ML20 article numbers 26111000, 26111090, 26111800, 26111810, 26111880, 26112000, 26112090, 26112800, 26112880, 26113000, 26113090, 26113800, 26113810, 26113880, 26114000, 26114090, 26114800, 26114810 and 26114880 - production 05/04 to 12/09 and 06/01 to 05/04.

- - PHARO Shower Panel Prestige ML20 article number 26112810 - production 05/04 to 12/09 and 06/02 to 05/04.

- - PHARO Shower Panel Helis ML20 article number 26300000 - production 08/04 to 06/08 and 03/03 to 07/04.

- - PHARO Shower Panel Lift M20 article numbers 26845000, 26845090, 26846000, 26846090, 26847000, 26847090, 26848000 and 26848090 - production 02/99 to 02/07.

- - Mediano Shower Panel Lift article number 26855000 - production 01/01 to 12/05.

- - PHARO Shower Temple Cocoon article numbers 29450000, 29451000 and 29452000 - production 06/00 to 12/03.

- - PHARO Shower Temple Cocoon article number 29453000 - production 06/03 to 12/03.

Related Spares You May Need

- - Hansgrohe 94282000 Thermostatic Cartridge for Axor Pharo and Other Valves - thermostatic temperature-control cartridge shown in the same Prestige shower-panel assembly.

- - Hansgrohe 95037000 Thermostatic Cartridge Seal Kit - sealing set used with the thermostatic cartridge in the same assembly.

- - Hansgrohe 36391000 Ecostat Temperature Control Handle - chrome thermostat handle corresponding to the documented 36391XX1 handle family.

- - Hansgrohe 97108000 Spline Adapter for Handle - handle-to-control adapter listed for the PHARO Prestige M20 shower panel.
