Hansgrohe 98282000 Thermostatic Cartridge for Ecostat, Axor, Verostat, Croma and Raindance Shower Valves
SUMMARY
Hansgrohe 98282000 (also known as 98282) thermostatic cartridge for Aquafun, Axor, Ecostat, Raindance, Temple and Prestige Valves.
Included
- Hansgrohe 98282000 Replacement Thermostatic Cartridge
- Silicone Grease
- Installation Instruction Manual

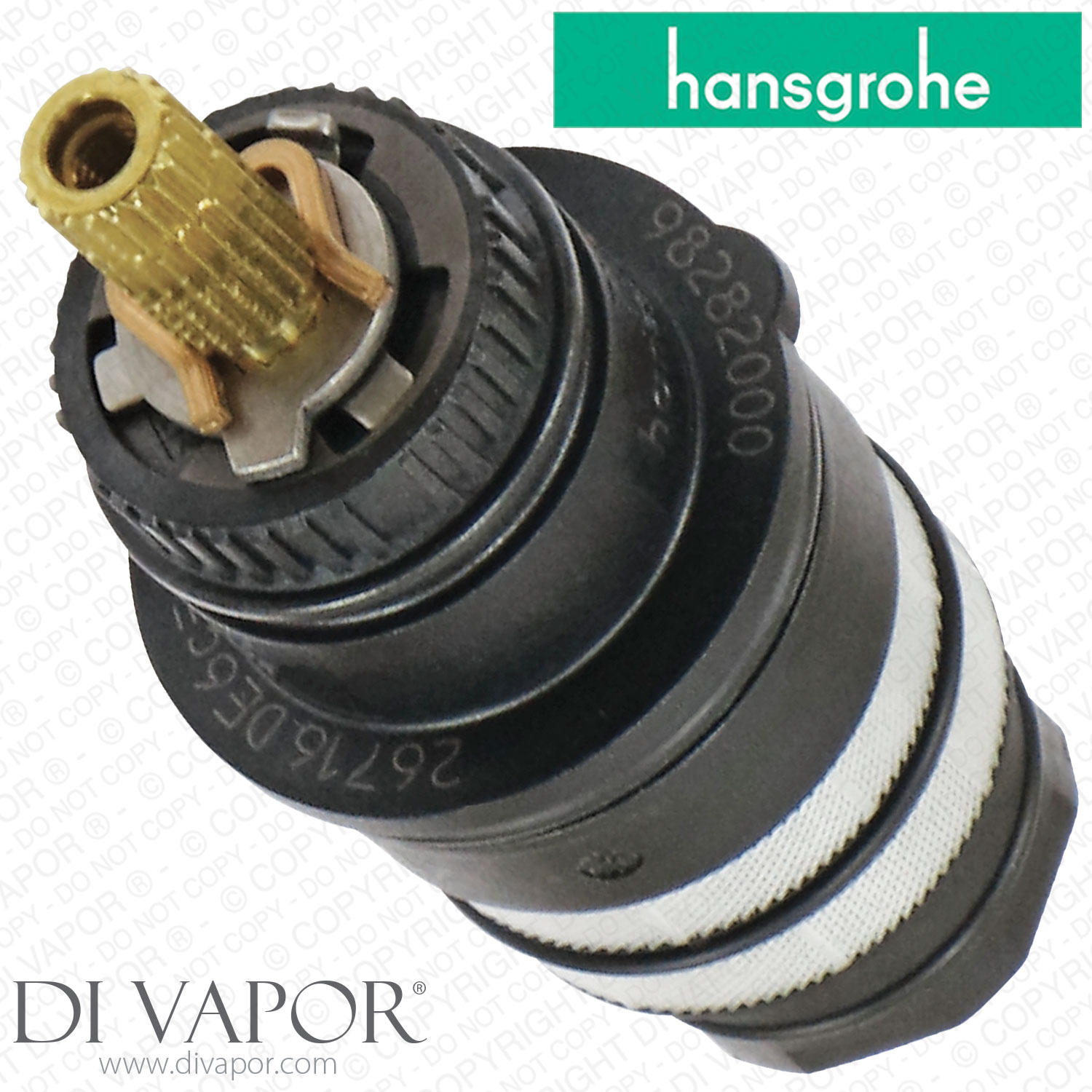

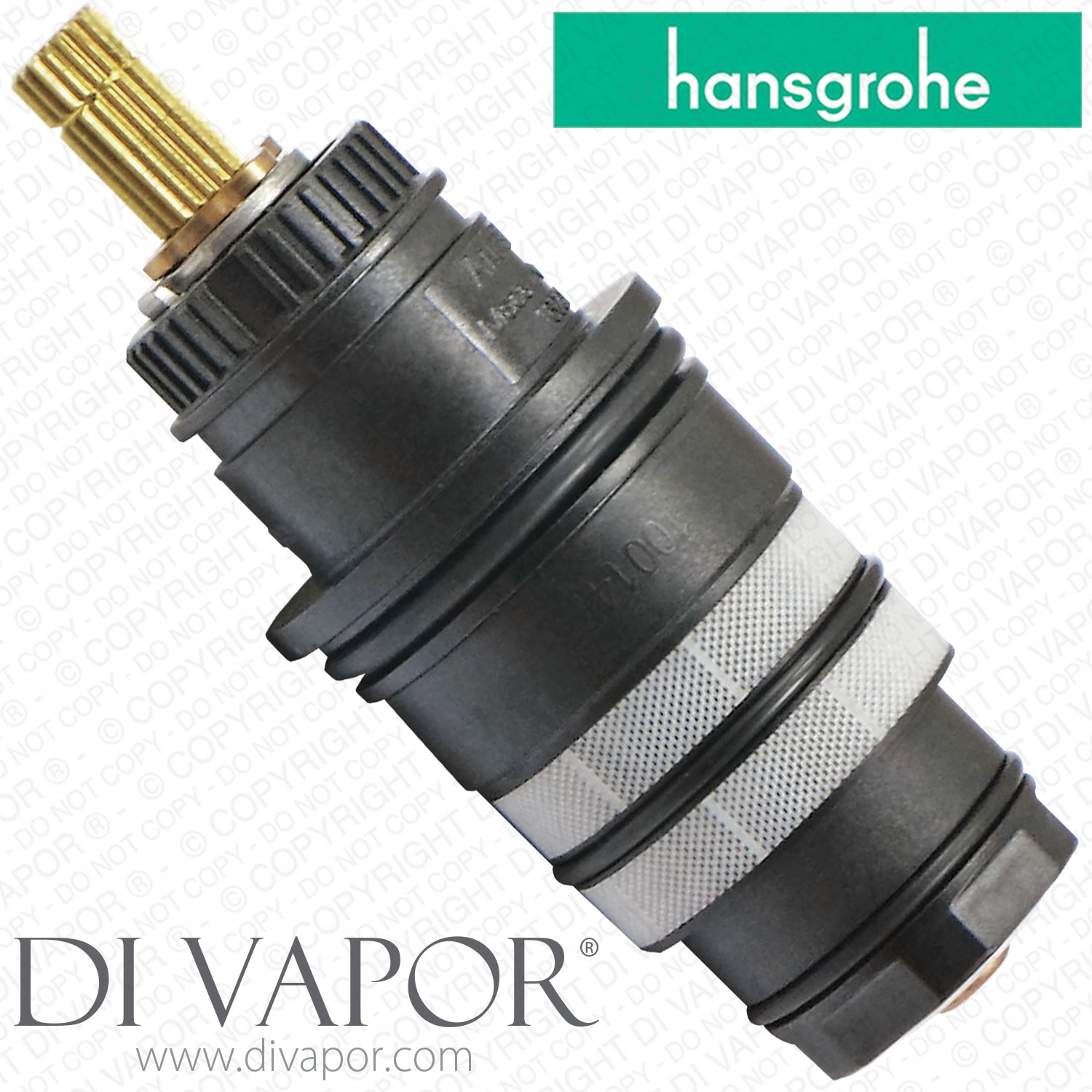

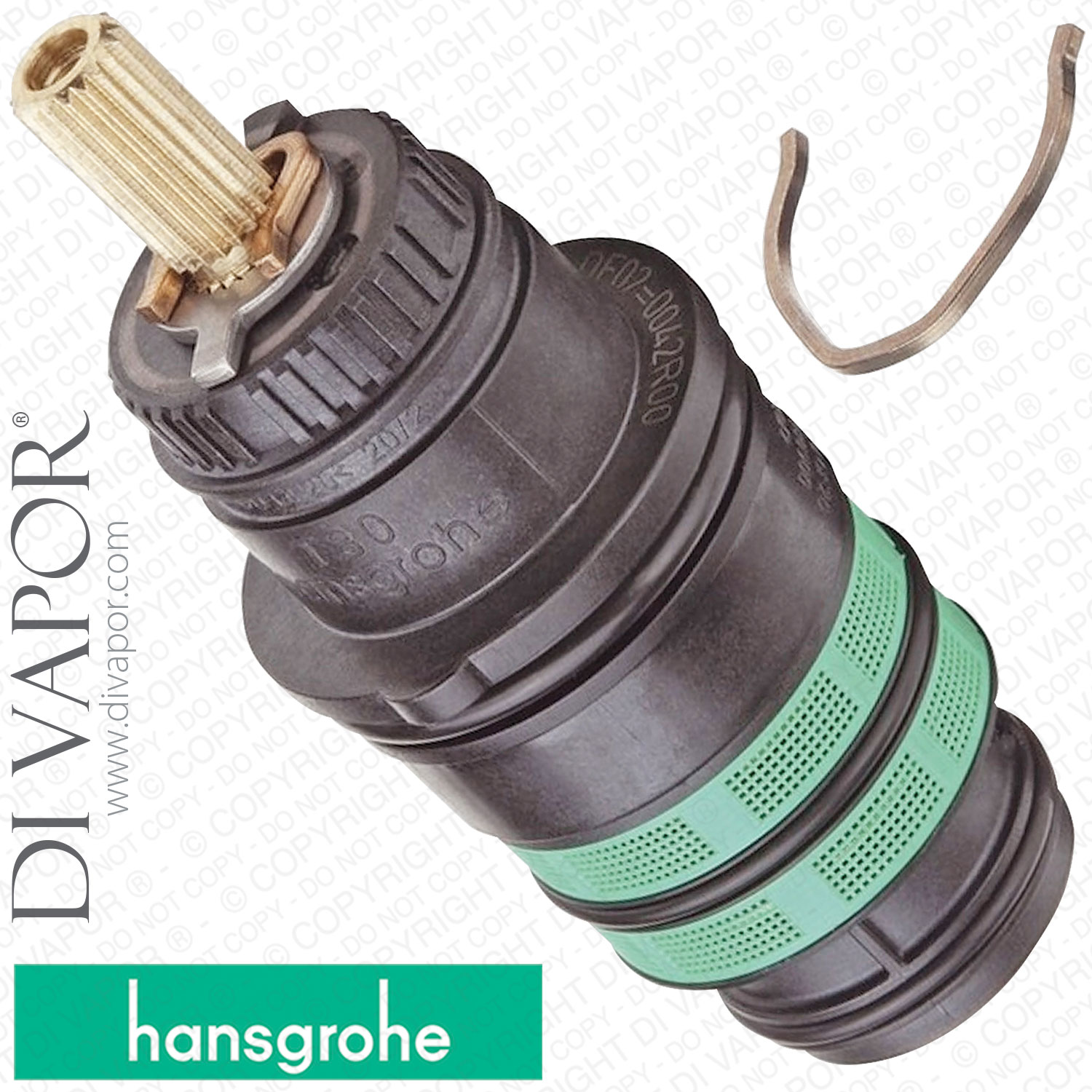

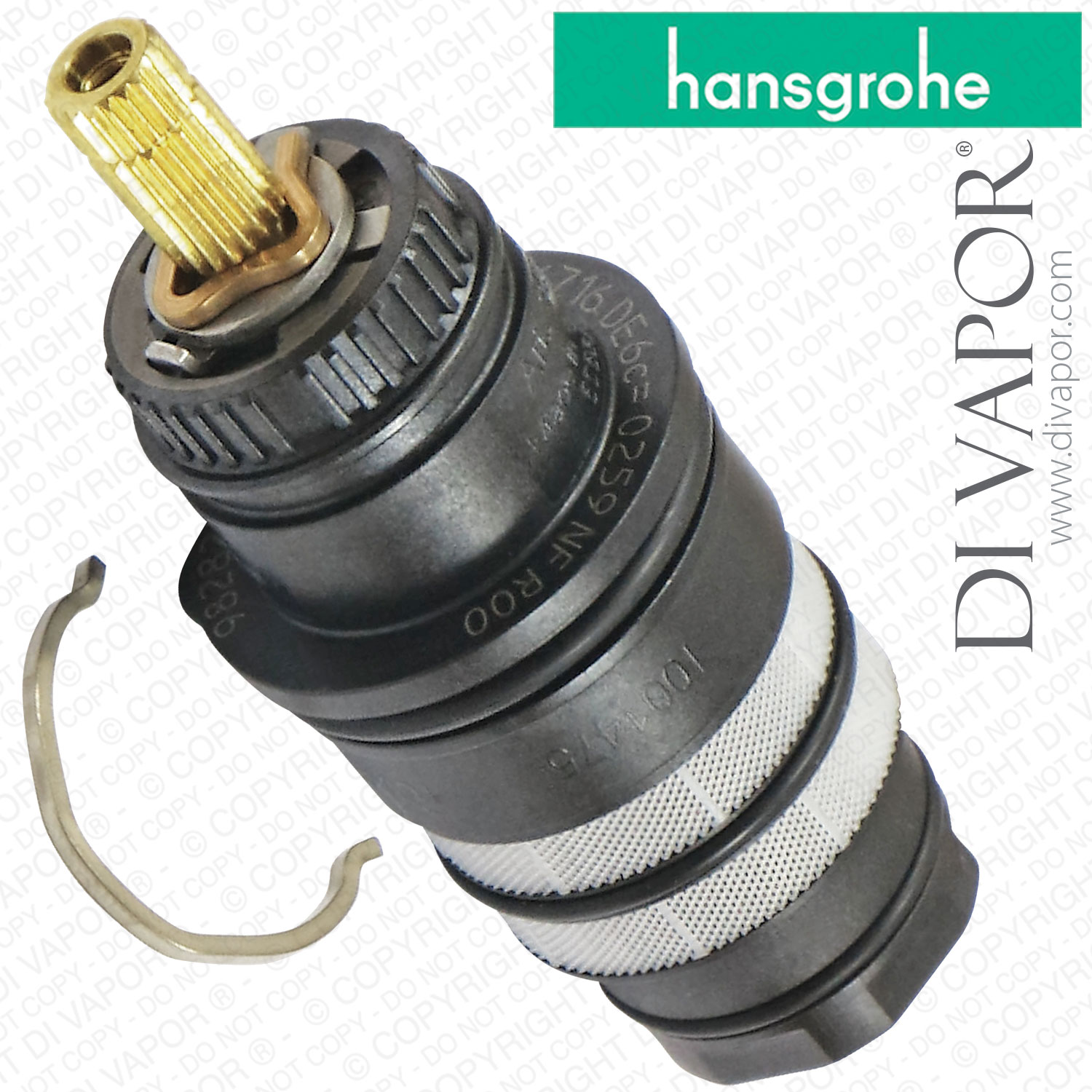

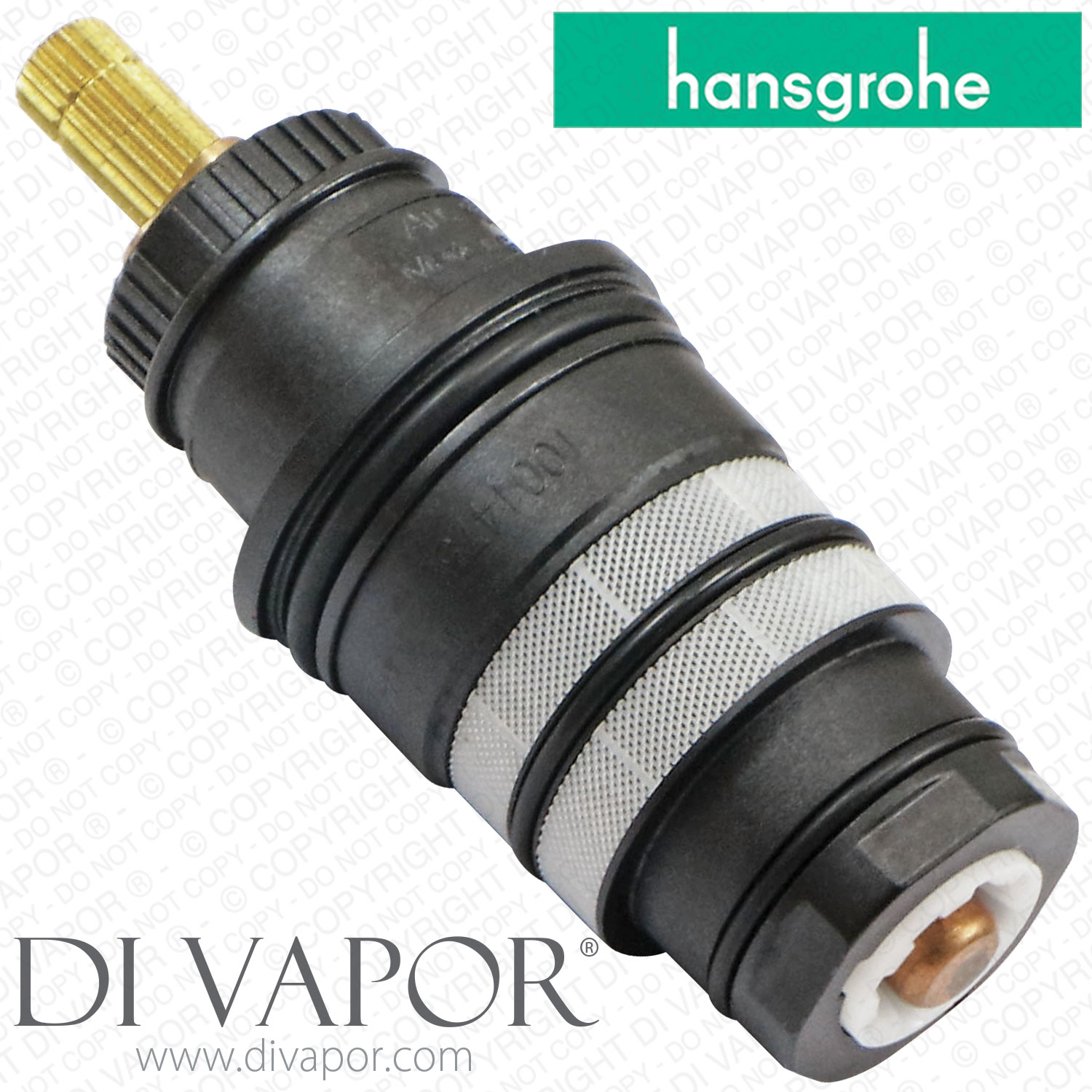

The Hansgrohe 98282000 thermostatic cartridge is a push-fit temperature-control cartridge for selected Hansgrohe and Axor thermostatic shower valves, bath shower mixers and showerpipes in the Ecostat, Axor, Versostat, Croma and Raindance ranges. It is also known as 98282 and is supplied with silicone grease and an installation instruction manual.
This Thermostat cartridge SMTC regulates the mixed water temperature inside the valve. Where the shower or bath shower mixer is receiving hot water but the outlet temperature is not getting hot enough or is difficult to control, the thermostatic cartridge is a key part to inspect before ordering.
Technical Details
- - Manufacturer code: 98282000
- - Di Vapor Part Number: HANS-98282000
- - Part type: thermostatic cartridge
- - Official spare description: Thermostat cartridge SMTC
- - Total cartridge length: 83.5mm
- - Width at widest point: 32.3
- - Width at top O-ring: 30.7mm
- - Width at middle O-ring: 28.5mm
- - Width at bottom O-ring: 23.8mm
- - Number of O-rings: 3
- - Number of filters: 2
- - Material: plastic polymer with brass spindle spline
- - Colour: black white and brass
- - Installation type: push fit
- - Article feature: wax capsule
- - Other markings may include 15415 DE6c= 0433NF R00 19480801 ART: 98282 Made in Germany T30 Hansgrohe PSU GF20 19001400 1001475
Before Ordering
- - Confirm the code on the removed cartridge or check the valve spare-parts diagram before ordering.
- - Check that the shower or mixer is receiving hot water from the hot supply before replacing the cartridge.
- - If the original installation has reversed hot and cold supplies check the separate reverse-supplies cartridge before ordering.
Confirmed Model Pages
- - Hansgrohe Ecostat - Ecostat S Thermostatic Shower Mixer for exposed fitting DN15 - > 07/2008
- - Hansgrohe Versostat Set - > 05/2010
- - Hansgrohe Ecostat - Ecostat Select Thermostatic Bath Mixer for exposed fitting DN15 - > 01/2011
- - Hansgrohe Ecostat - Ecostat E exposed bath and shower mixer - > 07/2008
- - Hansgrohe Axor Bouroullec - Showerpipe with Thermostatic Mixer DN15 - > 03/2011
- - Hansgrohe Axor Citterio M - Thermostatic shower mixer for exposed fitting - > 01/2008
- - Hansgrohe Ecostat E Thermostatic Bath Mixer for exposed fitting DN15 Finland - > 10/2008
- - Hansgrohe Ecostat - Ecostat E Thermostatic Shower Mixer for exposed fitting DN15 - > 07/2008
- - Hansgrohe Raindance - Raindance Showerpipe EcoSmart S 180 AIR for bath tub with 350mm shower arm - > 07/2010
- - Hansgrohe Croma 100 - Croma 100 showerpipe - > 06/2008
- - Hansgrohe Ecostat - Ecostat Select Thermostatic Shower Mixer for exposed fitting DN15 - > 01/2011
- - Hansgrohe Ecostat - Ecostat E exposed shower mixer - > 07/2008
- - Hansgrohe Ecostat - Ecostat S exposed bath and shower mixer - > 07/2008
- - Hansgrohe Axor Urquiola - Shower Column with thermostat DN15 - > 12/2009
- - Hansgrohe Raindance - Raindance Showerpipe S 240 AIR for bath tub with 350mm shower arm - > 02/2009
- - Hansgrohe Ecostat - Ecostat S Thermostatic Bath Mixer for exposed fitting DN15 - > 07/2008
- - Hansgrohe Ecostat S Thermostatic Bath Mixer for exposed fitting DN15 Finland - > 10/2008
- - Hansgrohe Axor Urquiola - Floor standing single lever bath and shower mixer - > 04/2009
- - Hansgrohe Ecostat - Ecostat E Thermostatic Bath Mixer for exposed fitting DN15 - > 07/2008
- - Hansgrohe Ecostat - Ecostat S exposed shower mixer - > 07/2008
- - Hansgrohe Axor Citterio M - Thermostatic bath and shower mixer for exposed fitting - > 01/2008
- - Hansgrohe Versostat Thermostatic Shower Mixer - > 12/2009
- - Hansgrohe Verso Showerpipe 240 - > 01/2011
- - Hansgrohe Versostat Thermostatic Bath Mixer - > 12/2009
- - Hansgrohe Ecostat E Thermostatic Bath Mixer for exposed fitting DN15 Sweden - > 07/2008
- - Hansgrohe Raindance - Raindance Showerpipe EcoSmart S 180 AIR for bath tub with 350mm shower arm - 02/2009 - 06/2010
- - Hansgrohe Axor Bouroullec - Thermostatic Shower Mixer for exposed fitting DN15 - > 03/2011
- - Hansgrohe Croma 100 - Croma 100 Showerpipe EcoSmart - > 01/2009
- - Hansgrohe Raindance - Raindance Showerpipe S 240 for bath tub with 460mm shower arm - > 02/2009
- - Hansgrohe Croma 100 Showerpipe for bath tub EcoSmart - > 02/2009
- - Hansgrohe Croma 100 - Croma 100 Showerpipe for bath tub - > 02/2009
- - Hansgrohe Axor Bouroullec - Thermostatic Bath Mixer for exposed fitting DN15 - > 03/2011
- - Hansgrohe Raindance - Raindance Showerpipe EcoSmart S 180 for bath tub with 460mm shower arm - > 07/2010
- - Hansgrohe Raindance - Raindance Showerpipe EcoSmart S 180 for bath tub with 460mm shower arm - 02/2009 - 06/2010
- - Hansgrohe Raindance - Raindance E Showerpipe 420 DN15 - > 07/2009
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

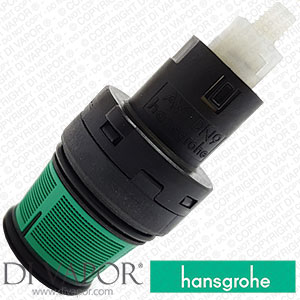

- - Hansgrohe 95758000 Shut Off Unit - Push Button On / Off Cartridge
- - Hansgrohe 95843000 Ecostat Comfort Handle Fixing Set

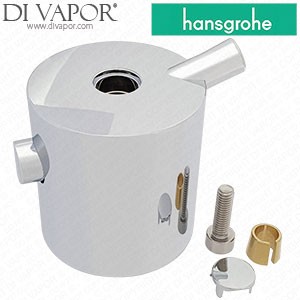

- - Hansgrohe 98915000 Croma Handle

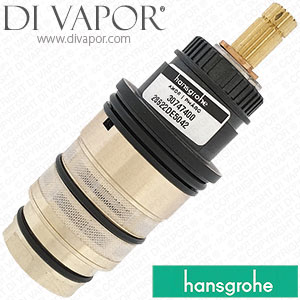

- - Hansgrohe 92373000 Thermostatic Cartridge - Reverse Supplies (30747400)
- - Hansgrohe 95252000 Handle Spindle Spline Adapters - Griffadapter
- - Hansgrohe 98153000 30x5mm O-Ring
- - Hansgrohe 96454000 Fixing Screw Set

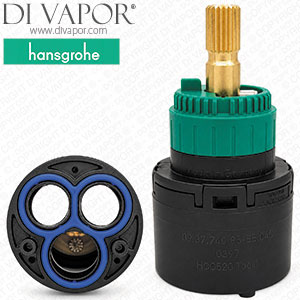

- - Hansgrohe 98283000 Axor Starck Diverter Cartridge Shut off Unit with Selector
