Hansgrohe 95804000 Escutcheon - 19795518 ZNAI4 Round Chrome Faceplate
Part number: HG-95804000
Only 5 left in stock.
Price: £97.20
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Hansgrohe 95804000 Escutcheon - 19795518 ZNAI4 Round Chrome Faceplate

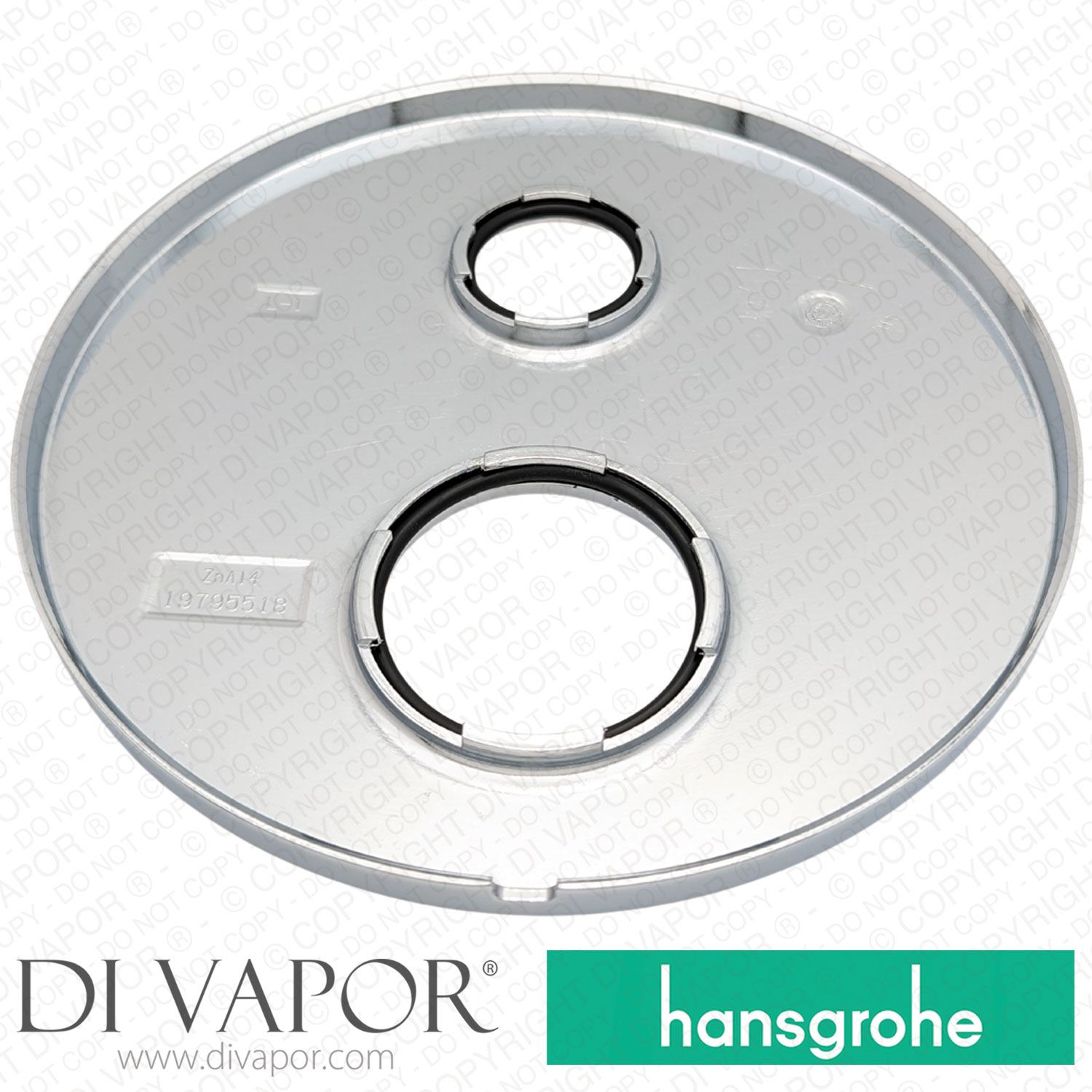

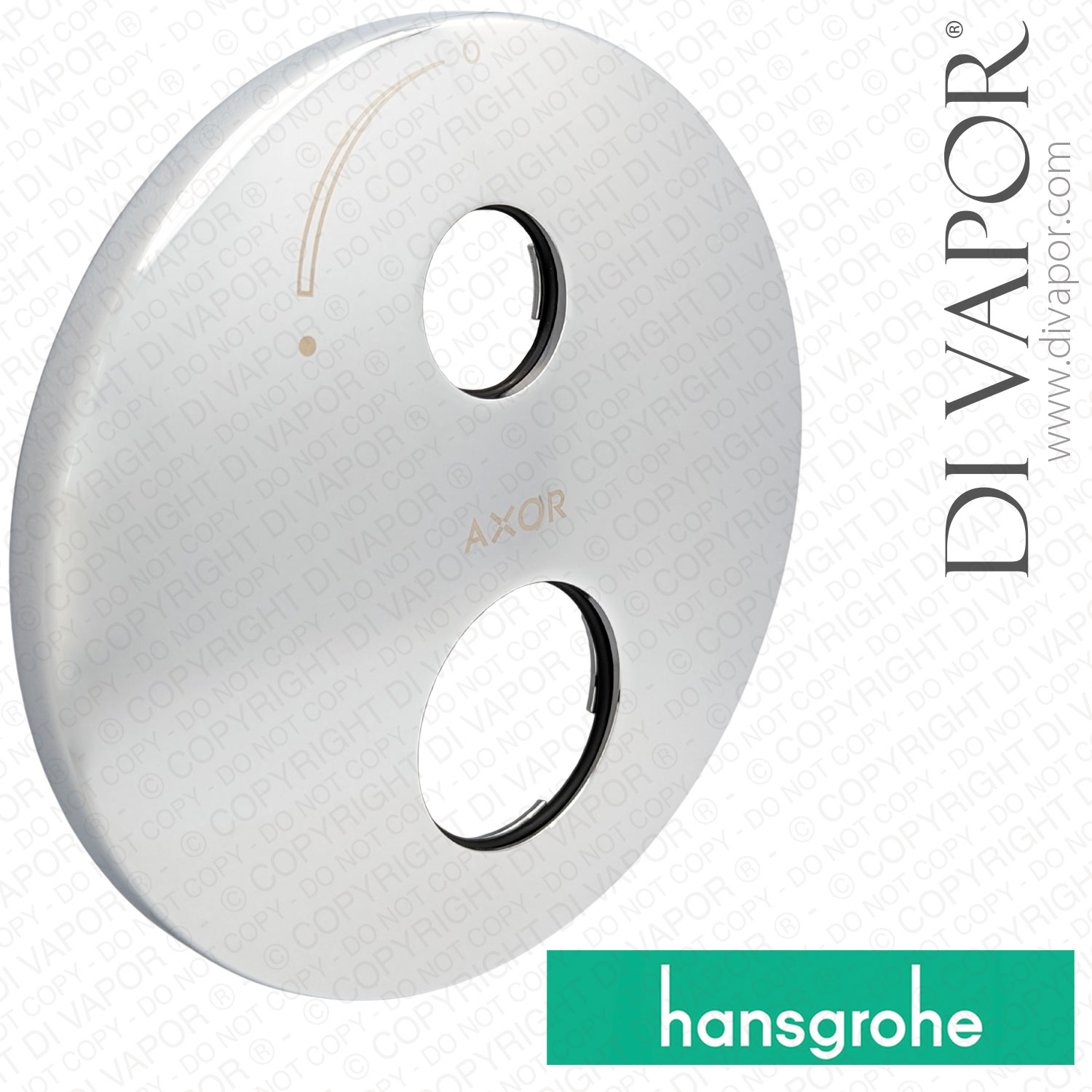

The Hansgrohe 95804000 escutcheon is a round chrome faceplate for selected concealed AXOR thermostatic shower valves. Additional references 19795518 and ZNAI4.
This 170 mm external trim plate covers the finished wall opening around the concealed valve and provides separate apertures for the temperature and shut-off or flow controls. The escutcheon does not regulate water temperature or flow; handles, sleeves, mounting parts and internal valve components are separate spare positions.
Technical Details
| Brand | AXOR / Hansgrohe. |
|---|---|
| Manufacturer code | 95804000. |
| Part type | round two-control shower valve escutcheon / faceplate. |
| Finish | chrome. |
| Outside diameter | 170 mm. |
| Application | selected concealed AXOR thermostatic valves with separate temperature and shut-off or flow controls. |
| Installation position | visible external trim fitted over the concealed valve and finished wall opening. |
Confirmed Compatible Models
- AXOR Starck Thermostat for Concealed Installation with Shut-Off Valve 10700000 from 06/11.
- AXOR Uno Thermostat for Concealed Installation with Shut-Off Valve 38700000 from 06/11 to 08/12.
- AXOR Uno Thermostat for Concealed Installation with Shut-Off Valve 38700000 from 09/12.
- AXOR Starck Thermostatic Trim with Volume Control 10700001 from 06/13.
- AXOR Starck Thermostatic Trim with Volume Control and Diverter 10720001 from 06/13.
Before Ordering
- Confirm the complete eight-digit valve model code and its production period before ordering.
- Earlier AXOR Starck 10700000 valves produced from 07/08 to 05/11 use escutcheon 96551000 rather than 95804000.
- Earlier AXOR Uno 38700000 valves produced from 04/01 to 04/02 use escutcheon 96551000 rather than 95804000.
- AXOR Uno 38720000 and European AXOR Starck 10720000 shut-off and diverter variants use escutcheon 95805000 rather than 95804000.
- Do not identify the correct faceplate from the 170 mm diameter alone. Compare the original part code, valve model, production period and control-opening arrangement.
Related Spares You May Need
Handles Trim and Fixings
- Hansgrohe 10391000 AXOR Starck Temperature Control Handle.
- Hansgrohe 38391000 Thermostatic Handle for AXOR Uno Valves.
- Hansgrohe 96520000 Flow Control Handle.
- Hansgrohe 96421000 AXOR Valve Handle.
- Hansgrohe 97669000 M4 x 8mm Hollow Set Screw.
- Hansgrohe 92160000 M4x35 Hexagon Socket Screw.
- Hansgrohe 97108000 Spline Adapter for Handle.
- Hansgrohe 96435000 Handle Spindle Adapters.
- Hansgrohe 96439000 Chrome Sleeve.
- Hansgrohe 96446000 Chrome Sleeve.
- Hansgrohe 95508000 O-Ring.
- Hansgrohe 96447000 Sub Plate.
- Hansgrohe 96454000 Fixing Screw Set.
Valve Service Parts
Where both original and compatible cartridge options are listed, select the correct single option for the valve rather than ordering both versions.
- Hansgrohe 94282000 Compatible Brass Thermostatic Cartridge 94282000-CP.
- Hansgrohe 94282000 Thermostatic Cartridge.
- Hansgrohe 95037000 Thermostatic Cartridge Seal Kit.
- Hansgrohe 94009000 Compatible Flow Cartridge 94009000-CS.
- Hansgrohe 94009000 1/2 On/Off 1/4-Turn Flow Cartridge.
- Hansgrohe 98158000 39x2mm O-Ring.
- Hansgrohe 96525000 Screw Set.
- Hansgrohe 98133000 16x2mm O-Ring.
- Hansgrohe 94073000 Noise Reduction Set.
- Hansgrohe 94074000 Pair of Non-Return Valves DW15 / DN10.
