Hansgrohe 36391000 Ecostat Temperature Control Handle
Send a photo of your item and we'll help confirm it.
Summary

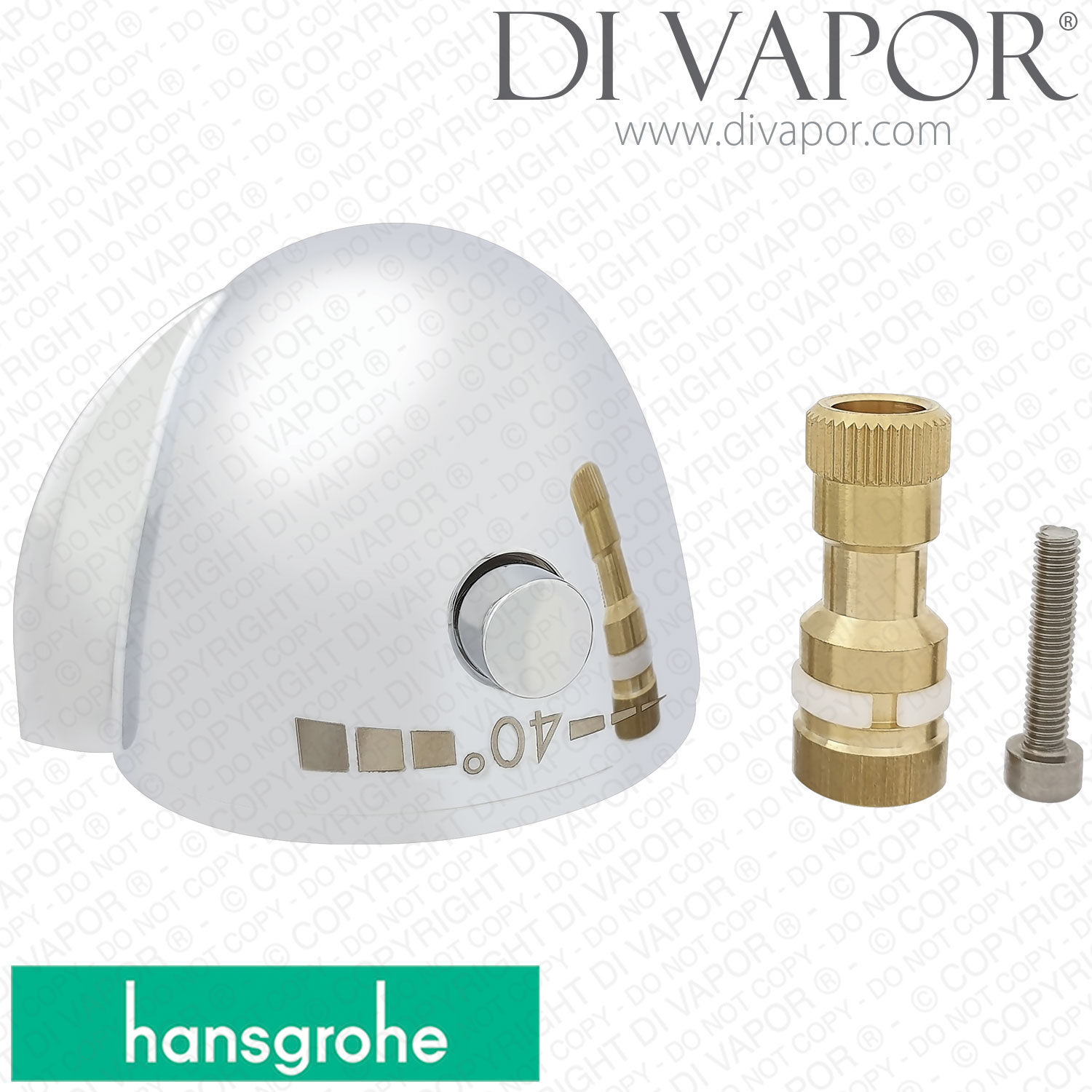

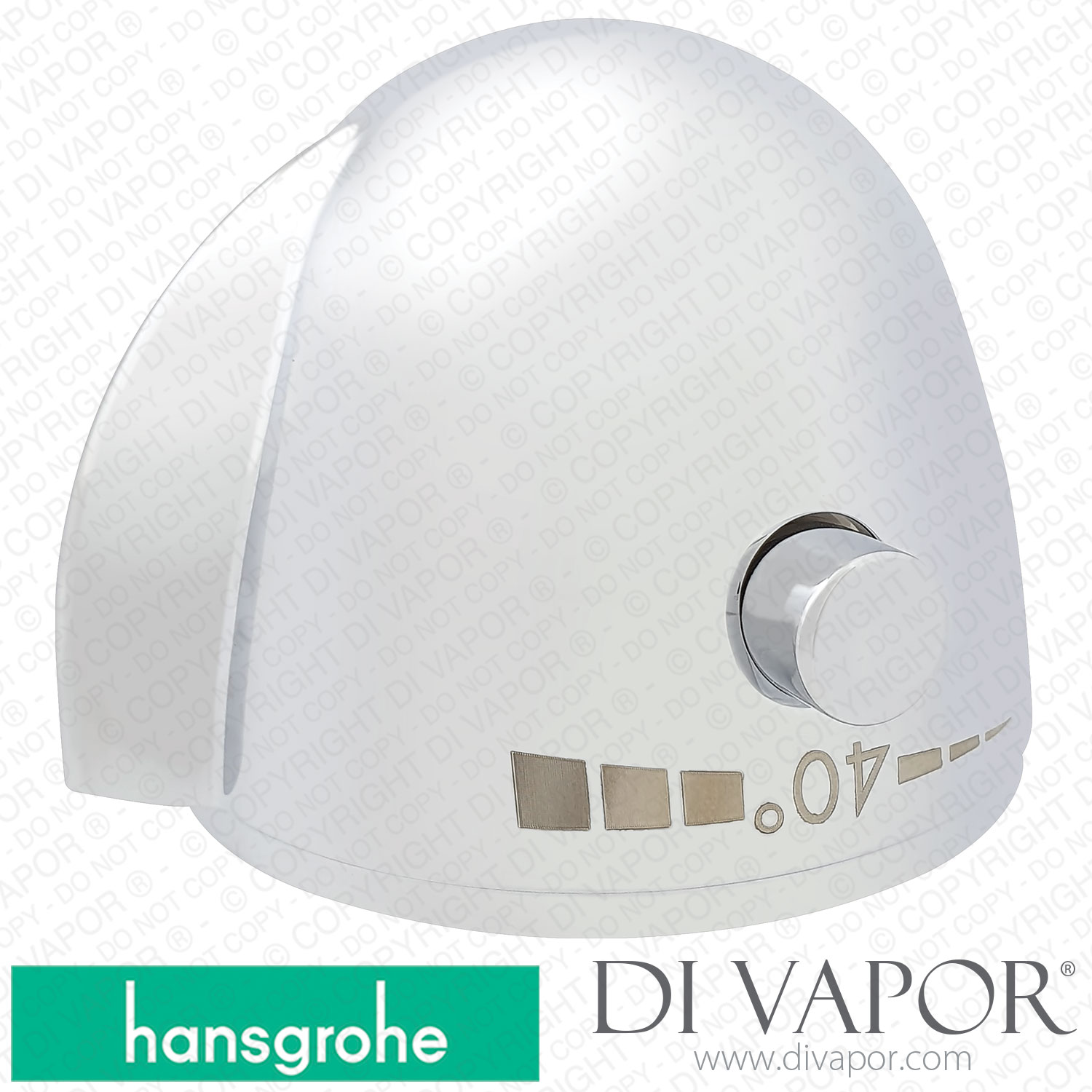

Hansgrohe 36391000 Ecostat Temperature Control Handle
The Hansgrohe 36391000 is a chrome thermostat temperature-control handle for the AXOR Allegroh Novo concealed thermostatic mixer and the confirmed Pharo Aquafun and Bath-Shower Combination systems listed below. It provides the user interface for selecting and adjusting the mixed-water temperature at the thermostatic control.

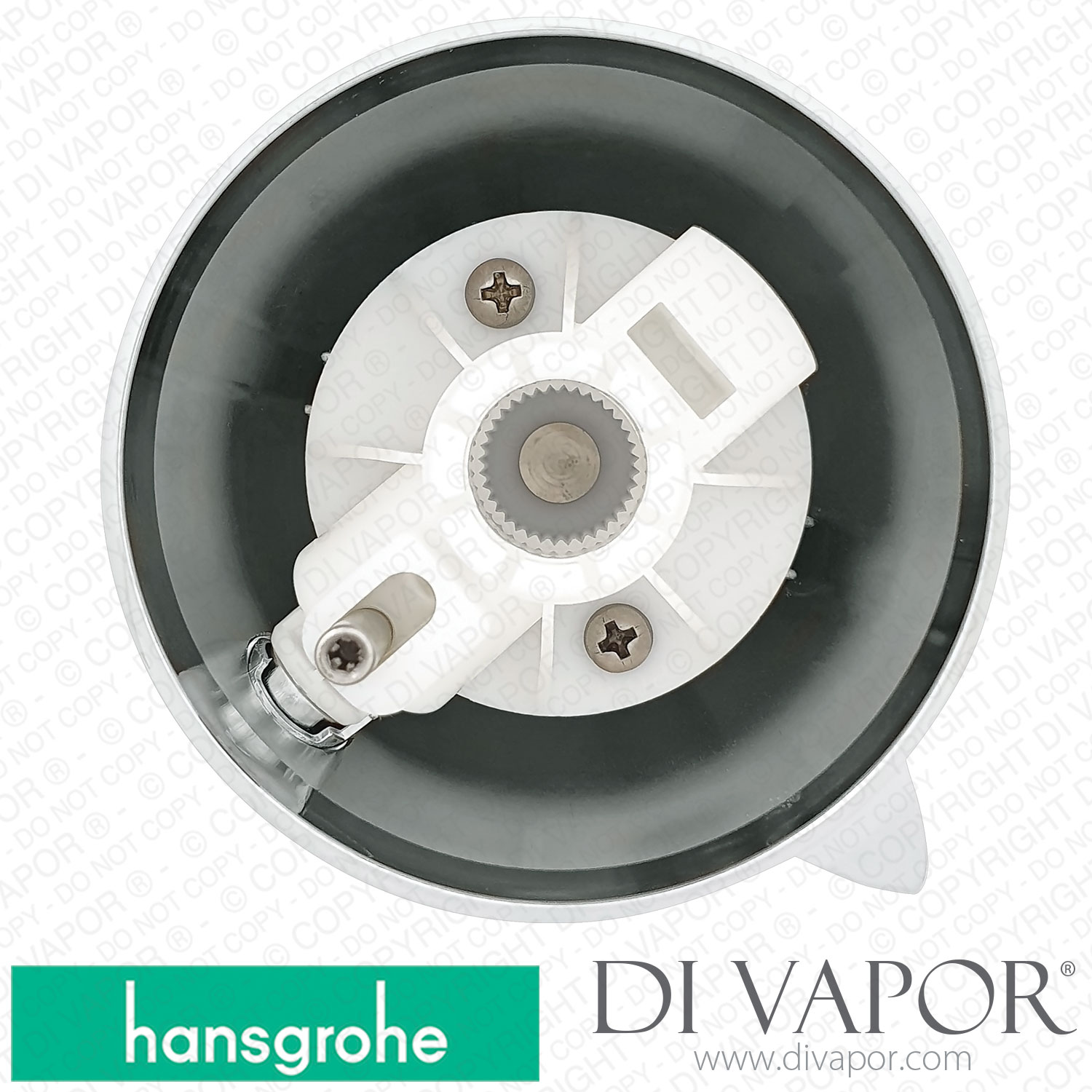

The handle fits over the thermostat control interface and should be selected by the exact mixer or shower-system model rather than by appearance alone. Check the spindle adapter and fixing arrangement when replacing a damaged, loose or non-engaging handle, as associated interface parts may also require attention.
Technical Details
| Manufacturer code | 36391000. |
|---|---|
| Part type | thermostat temperature-control handle. |
| Range | AXOR Allegroh Novo. |
| Finish | chrome. |
| Application | concealed thermostatic mixer and documented Pharo shower and bath-shower systems. |
| Older production fitting, shown before June 2013 | 3 mm hex fixing, tightened to 2 Nm. |
| Later production fitting, shown from July 2013 | revised push-fit attachment arrangement. |
| Calibration position | align the handle at 38 degrees C after checking and setting the outlet temperature. |
| Supersession status | no replacement or superseding code has been confirmed for 36391000. |
Confirmed Compatible Models
- AXOR Allegroh Novo thermostatic mixer for concealed installation.
- Pharo Aquafun 75 Shower / M 40, 21107000.
- Pharo Aquafun 85 Shower / M 40, 21108000.
- Pharo Aquafun 85 Steam / ST 40, 21118000.
- Pharo Aquafun 85 Comfort, 21112000.
- Pharo Aquafun 85 Deluxe, 21128000.
- Pharo Aquafun 95 Shower / M 40, 21109000.
- Pharo Aquafun 95 Steam / ST 40, 21119000.
- Pharo Aquafun 95 Comfort, 21113000.
- Pharo Aquafun 95 Deluxe / DL 40, 21129000.
- Pharo Aquafun 120 Steam L, 21110000.
- Pharo Aquafun 120 Steam R, 21111000.
- Pharo Aquafun 120 Comfort L, 21114000.
- Pharo Aquafun 120 Comfort R, 21115000.
- Pharo Aquafun 120 Deluxe L, 21120000.
- Pharo Aquafun 120 Deluxe R, 21121000.
- Pharo Aquafun 140 DL 10 Comfort, 21116000.
- Pharo Aquafun 140 DL 10 Deluxe, 21124000.
- Pharo Bath-Shower Combination 200 right-hand version, 2272XXXX.
- Pharo Bath-Shower Combination 200 left-hand version, 2272XXXX.
Before Ordering
- Confirm the exact mixer or shower-system code, and compare the existing handle shape and control layout.
- Check whether the installation has the older screw-fixed arrangement or the later push-fit arrangement before dismantling.
- Do not assume handle fitment solely because the valve uses a 94282000 thermostatic cartridge.
- Inspect the handle spline adapter and surrounding seals while the control is dismantled.
Related Spares You May Need
- Hansgrohe 94282000 Thermostatic Cartridge for AXOR Pharo and Other Valves - complete thermostatic cartridge documented with this handle in selected AXOR and Pharo assemblies.
- Hansgrohe 94282000 Thermostatic Cartridge - Compatible Brass Replacement - 94282000-CP - this is the alternative brass cartridge option; select this or the original cartridge according to the required repair.
- Hansgrohe 97108000 Spline Adapter for Handle - handle-to-spindle interface used in documented AXOR and Pharo applications.
- Hansgrohe 95037000 Thermostatic Cartridge Seal Kit - sealing set shown with the legacy 94282000 thermostatic cartridge assembly.
- Hansgrohe 95033000 16mm Non Return Valve - check valve used in the associated concealed thermostat assembly.
- Hansgrohe 96364000 O-ring Set 32x2.5mm - associated sealing set for the documented thermostat assembly.
For an uncertain identification, compare the complete control, removed handle, attachment method and any visible codes before ordering.
