Hansgrohe 94074000 Non Return Valves DW15 /​ DN10

SUMMARY

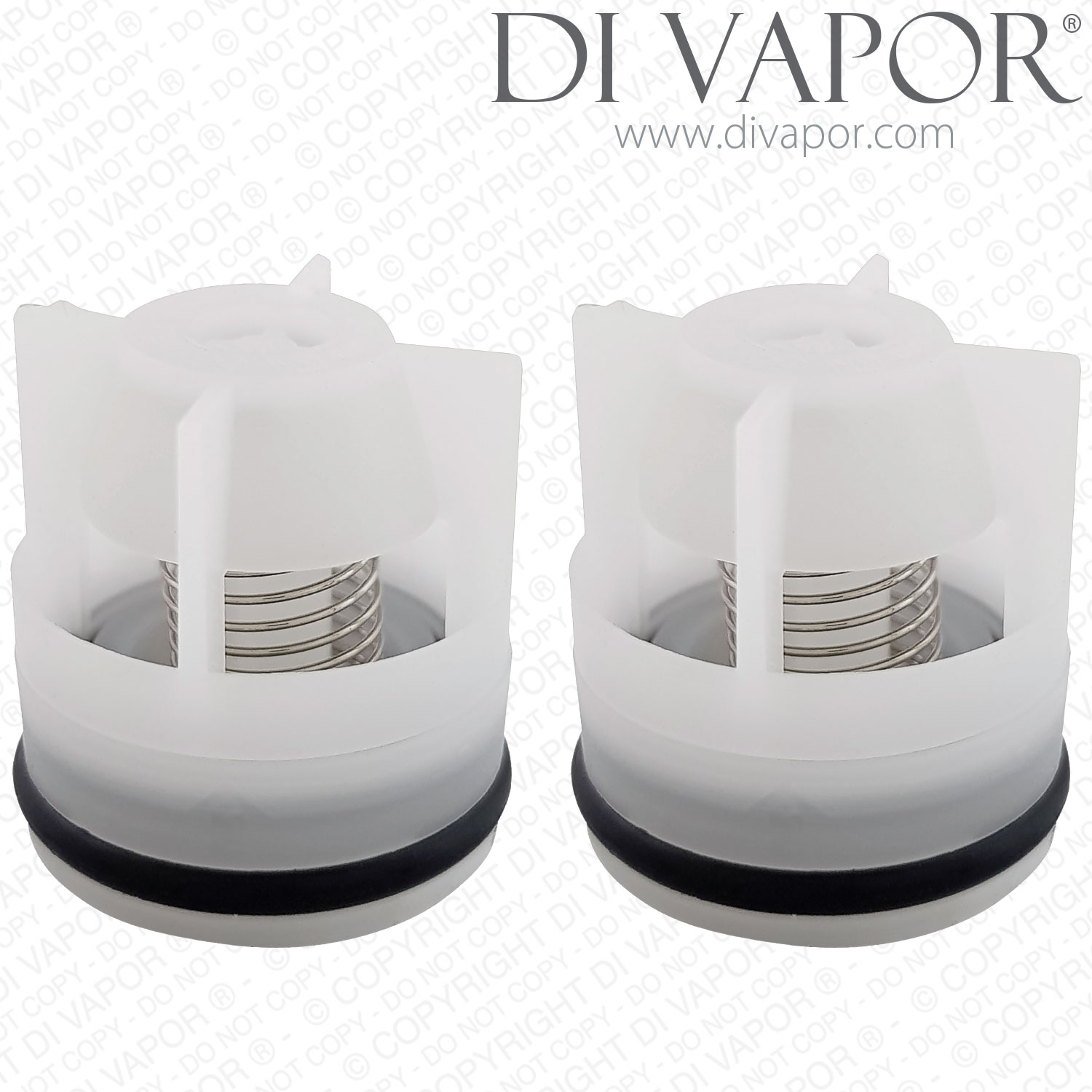

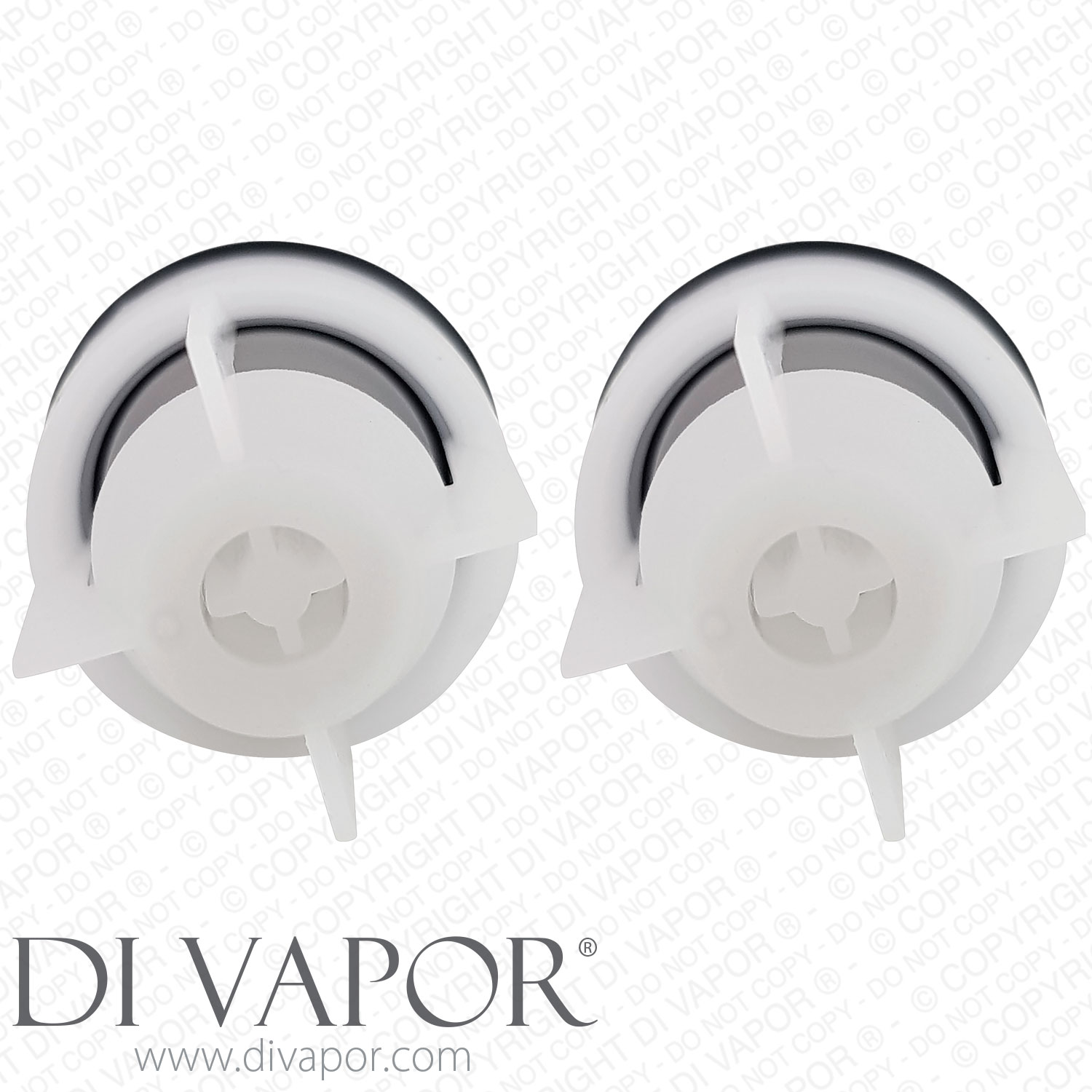

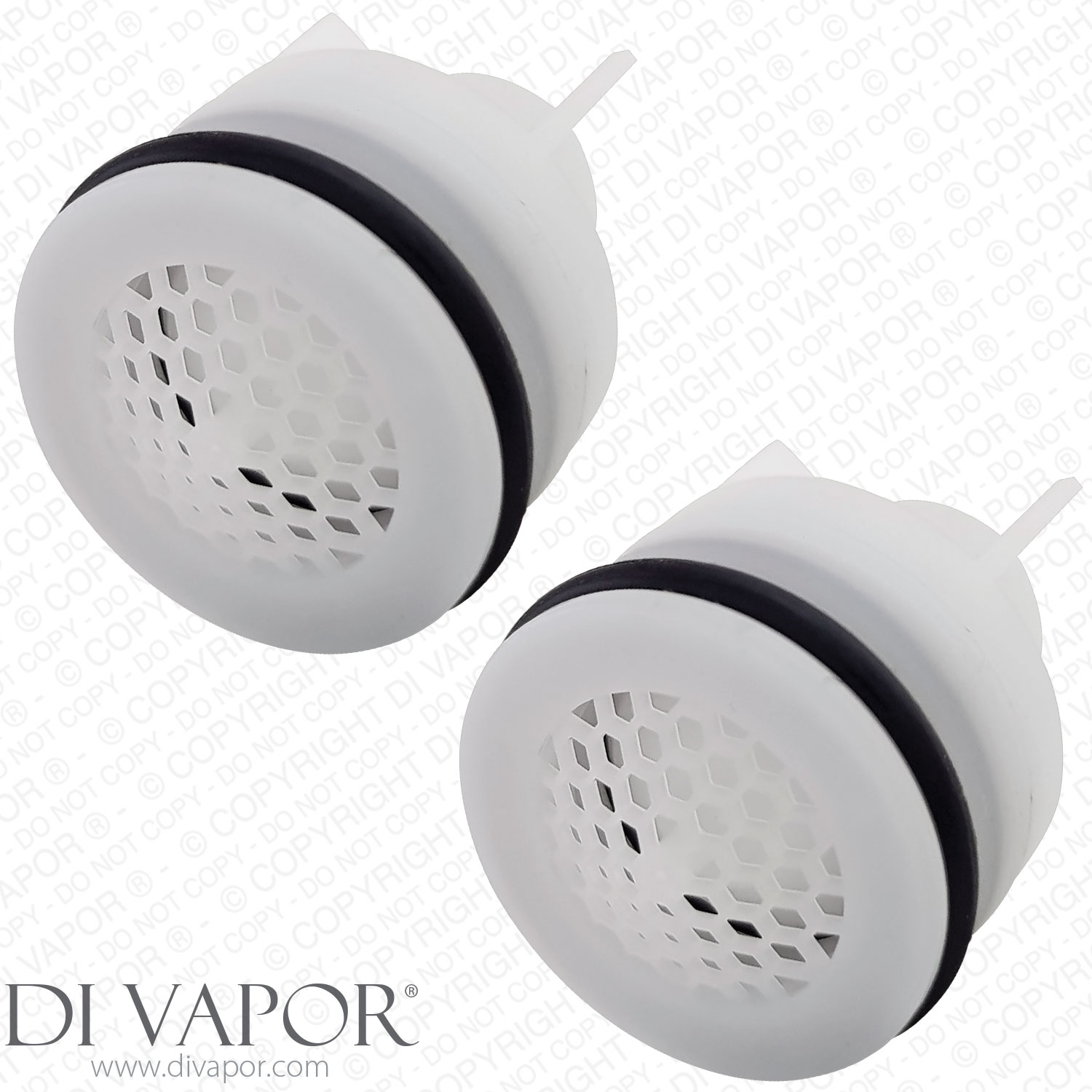

Hansgrohe 94074000 DW15 / DN10 Non-Return Valve Set of 2

The Hansgrohe 94074000 is a two-piece DW15 / DN10 non-return valve set used within selected Hansgrohe and AXOR bath mixers, exposed shower mixers, showerpipes, shower panels, wall outlets, bidet fittings and kitchen mixers.

Each valve permits water to travel in the intended direction while restricting reverse flow through the fitting. Replacing worn, obstructed or damaged inserts can restore correct one-way operation where the host product has been confirmed for part 94074000.

Technical Details

- - Manufacturer code: 94074000.

- - Part type: non-return valve / backflow-preventer insert set.

- - Manufacturer designation: DW15 backflow preventer set.

- - Di Vapor catalogue designation: DW15 / DN10.

- - Pack quantity: 2 pieces.

- - 94074000 remains the current code with no confirmed superseded part number.

- - 95033000 is a separate DW16 valve and must not be treated as a replacement for 94074000.

- - Install each valve in the flow direction indicated by the arrow on the insert and follow the service diagram for the exact host product.

Check Before Ordering

This valve set is used across many product families and construction periods. Confirm the complete Hansgrohe or AXOR article number and production date before ordering. Do not identify the part from outside diameter or appearance alone.

Confirmed Compatible Models

Current Hansgrohe application records include the following product families and article numbers:

- - Hansgrohe Logis 4-hole rim-mounted bath mixer 71314000.

- - Hansgrohe Logis 4-hole rim-mounted bath mixer 71314000 - production 04/14 to 12/14.

- - Hansgrohe Talis S exposed shower mixer 72600000 - production from 10/15.

- - Hansgrohe Metris exposed shower mixer 31680000 - production from 01/11.

- - Hansgrohe Raindance E Showerpipe 360 1jet with ShowerTablet Select 300 27288400.

- - Hansgrohe Raindance Select E Showerpipe 300 3jet with ShowerTablet Select 300 27127000.

- - Hansgrohe Raindance Select E Showerpipe 300 3jet with ShowerTablet Select 300 27127400.

- - Hansgrohe 71310000 Logis 3-Hole Rim Mounted Single Lever Bath Mixer for Secuflex >01/15

- - Hansgrohe 71310000 Logis 3-Hole Rim Mounted Single Lever Bath Mixer for Secuflex 04/14 - 12/14

- - Hansgrohe basic set for 2-hole rim-mounted thermostatic bath mixer 13550180 - production 11/01 to 07/07.

- - Hansgrohe basic set for 2-hole rim-mounted thermostatic bath mixer 13550180 - production from 08/07.

- - Hansgrohe ShowerTablet Select thermostatic bath mixer 300 13151400 - production from 06/13.

- - Hansgrohe ShowerTablet Select thermostatic bath mixer 300 13151000 - production from 06/13.

- - Hansgrohe ShowerTablet Select thermostatic shower mixer 300 13171000 - production from 06/13.

- - Hansgrohe ShowerTablet Select thermostatic shower mixer 300 13171400 - production from 06/13.

- - Hansgrohe Talis E 3-hole rim-mounted single lever bath mixer for Secuflex 71730000 - production from 01/16.

- - Hansgrohe FixFit wall outlet E with non-return valve 27458000 - production 04/90 to 11/00 and from 12/00.

- - Hansgrohe Metropol exposed shower mixer with loop handle 74560000 - production from 04/17.

- - Hansgrohe Focus exposed shower mixer with two flow rates: 31968000.

- - Hansgrohe Metris 4-hole rim-mounted bath mixer: 31442000.

- - Hansgrohe Metropol 3-hole rim-mounted single lever bath mixer with lever handle: 32551000.

- - Hansgrohe FixFit wall outlet S with shower holder: 26487000.

- - Hansgrohe FixFit wall outlet Square with shower holder: 26486000.

- - Hansgrohe Raindance Shower Panel Lift 180 2jet for exposed installation 27008000 - production from 04/12.

- - Hansgrohe Raindance Shower Panel Lift 180 2jet for exposed installation 27008400 - production from 11/11.

- - Hansgrohe bidet spray 1jet with shower holder and 160 cm pressure shower hose 32128000 - production 02/03 to 03/08.

- - Hansgrohe bidet spray 1jet with shower holder and 160 cm pressure shower hose 32128000 - production 04/08 to 10/10.

- - Hansgrohe bidet spray 1jet with shower holder and 160 cm pressure shower hose 32128000 - production 11/10 to 08/12.

- - Hansgrohe bidet spray 1jet with shower holder and 160 cm pressure shower hose 32128000 - production 09/12 to 08/13.

- - Hansgrohe bidet spray 1jet with shower holder and 160 cm pressure shower hose 32128000 - production 09/13 to 06/15.

- - Hansgrohe bidet spray 1jet with shower holder and 160 cm pressure shower hose 32128000 - production from 07/15.

- - Hansgrohe Metris single lever floor-standing bath mixer 31471000 - production 01/15 to 07/22.

- - Hansgrohe Metris single lever floor-standing bath mixer 31471000 - production from 08/22.

- - Hansgrohe Logis 3-hole rim-mounted single lever bath mixer 71313000 - production 04/14 to 12/14 and from 01/15.

- - Hansgrohe Metropol 4-hole rim-mounted bath mixer with loop handles 74553000 - production from 04/17.

- - Hansgrohe Metris 3-hole rim-mounted single lever bath mixer 31190000 - production from 09/11.

- - Hansgrohe Talis S 3-hole rim-mounted single lever bath mixer for Secuflex 72416000 - production from 01/16.

- - Hansgrohe Talis E 4-hole rim-mounted bath mixer 71748000 - production from 01/16.

- - Hansgrohe Talis E 4-hole rim-mounted bath mixer 71748140 - production from 07/19.

- - Hansgrohe Talis E 4-hole rim-mounted bath mixer 71748340 - production from 07/19.

- - Hansgrohe Talis E 4-hole rim-mounted bath mixer 71748990 - production from 11/19.

- - Hansgrohe Talis E single lever exposed shower mixer 71760000 - production from 10/15.

- - Hansgrohe Talis E single lever exposed shower mixer 71760700 - production from 11/19.

- - Hansgrohe Talis E single lever exposed shower mixer 71760340 - production from 11/19.

- - Hansgrohe Talis E single lever exposed shower mixer 71760990 - production from 07/19.

- - Hansgrohe Talis E single lever exposed shower mixer 71760140 - production from 07/19.

- - Hansgrohe Talis E single lever exposed shower mixer 71760670 - production from 08/19.

- - Hansgrohe Talis S 4-hole rim-mounted bath mixer: 72419000.

- - Hansgrohe Focus exposed shower mixer: 31960000.

- - Hansgrohe wall outlet Australia with female connection: 27459000.

- - Hansgrohe Metropol 3-hole rim-mounted single lever bath mixer with lever handle for Secuflex: 32550000.

- - Hansgrohe FixFit wall outlet S with non-return valve: 27456000.

- - Hansgrohe 71630000 Logis Single Lever Shower Mixer for Exposed Installation with Centre Distance 15.3 CM 04/14 - 06/14

- - Hansgrohe 71630000 Logis Single Lever Shower Mixer for Exposed Installation with Centre Distance 15.3 CM 07/14 - 11/17

- - Hansgrohe FixFit wall outlet with non-return valve: 26457000 and 26457330.

- - Hansgrohe FixFit wall outlet E with shower holder: 26485000.

- - Hansgrohe Raindance Select E Showerpipe 300 2jet EcoSmart with ShowerTablet Select 300: 27283000.

- - Hansgrohe FixFit wall outlet S with non-return valve and synthetic joint: 26453000, 26453140, 26453340, 26453670, 26453700 and 26453990.

- - Hansgrohe FixFit wall outlet Square with non-return valve: 26455000, 26455340, 26455140, 26455990, 26455700, 26455670, 26455330, 26455310, 26455300, 26455820, 26455950, 26455800 and 26455250.

- - Hansgrohe Raindance Select E Showerpipe 300 2jet with ShowerTablet Select 300: 27126000.

- - Hansgrohe FixFit wall outlet Porter 300 with holder and shelf: 26456400 and 26456000.

- - Hansgrohe Logis 2-handle exposed shower mixer: 71263000.

- - Hansgrohe Logis exposed shower mixer with two flow rates: 71601000.

- - Hansgrohe Talis M51 single lever kitchen mixer 200 with pull-out spray 2jet and sBox 73851000 - production from 04/17.

- - Hansgrohe Logis single lever exposed shower mixer 71600000 - production 04/14 to 06/14.

- - Hansgrohe Logis single lever exposed shower mixer 71600000 - production from 07/14.

- - Hansgrohe Focus exposed shower mixer with extra-long handle 31916000 - production from 12/13.

- - Hansgrohe Metropol 4-hole rim-mounted bath mixer with lever handles 32553000 - production from 04/17.

- - Hansgrohe Metropol single lever exposed shower mixer with lever handle 32560000 - production from 04/17.

- - Hansgrohe Metropol single lever exposed shower mixer with lever handle 32560990 - production from 11/19.

- - Hansgrohe Metropol single lever exposed shower mixer with lever handle 32560670 - production from 07/19.

- - Hansgrohe Metropol single lever exposed shower mixer with lever handle 32560340 - production from 07/19.

- - Hansgrohe Metropol single lever exposed shower mixer with lever handle 32560140 - production from 07/19.

- - Hansgrohe Metropol single lever exposed shower mixer with lever handle 32560700 - production from 11/19.

- - Hansgrohe Metropol 4-hole rim-mounted bath mixer with lever handle for Secuflex: 32552000.

- - Hansgrohe Focus M42 kitchen mixer 220 with pull-out spray and sBox: 71820800 and 71820000.

- - Hansgrohe Focus M42 kitchen mixer 220 with pull-out spray: 71800800 and 71800000.

- - Hansgrohe Focus M42 kitchen mixer 180 with pull-out spray and sBox: 71821800 and 71821000.

- - Hansgrohe Focus M42 kitchen mixer 180 with pull-out spray: 71801800 and 71801000.

- - Hansgrohe Rainfinity wall outlet Porter 500 with holder on the left and shelf: 26843000 and 26843700.

- - Hansgrohe Rainfinity wall outlet Porter 500 with holder on the right and shelf: 26858000 and 26858700.

- - Hansgrohe Rainfinity Showerpipe 360 1jet concealed: 26842000 and 26842700.

- - Hansgrohe Vernis Blend exposed shower mixer with two flow rates: 71646000.

- - Hansgrohe Vernis Blend exposed shower mixer: 71640000 and 71640670.

- - Hansgrohe Vernis Shape exposed shower mixer: 71650670 and 71650000.

- - Hansgrohe Vivenis single lever exposed shower mixer 75620700 - production from 06/21.

- - Hansgrohe Vivenis single lever exposed shower mixer 75620670 - production from 06/21.

- - Hansgrohe Vivenis single lever exposed shower mixer 75620000 - production from 06/21.

- - Hansgrohe Vivenis single lever exposed shower mixer 75623000 - production from 07/25.

- - Hansgrohe Vivenis single lever exposed shower mixer 75623140 - production from 07/25.

- - Hansgrohe Vivenis single lever exposed shower mixer 75623340 - production from 07/25.

- - Hansgrohe Vivenis single lever exposed shower mixer 75623670 - production from 07/25.

- - Hansgrohe Vivenis single lever exposed shower mixer 75623700 - production from 07/25.

- - Hansgrohe Finoris single lever exposed shower mixer 76620000 - production from 06/21.

- - Hansgrohe Finoris single lever exposed shower mixer 76620700 - production from 06/21.

- - Hansgrohe Finoris single lever exposed shower mixer 76620670 - production from 06/21.

- - Hansgrohe Logis E single lever exposed shower mixer 71602000 - production from 04/17.

- - Hansgrohe FixFit Q wall outlet with holder 26887000 - Chrome.

- - Hansgrohe FixFit Q wall outlet with holder 26887670 - Matt Black.

- - Hansgrohe FixFit Q wall outlet with holder 26887700 - Matt White.

- - Hansgrohe FixFit Q wall outlet with holder 26887340 - Brushed Black Chrome.

- - Hansgrohe FixFit Q wall outlet with holder 26887140 - Brushed Bronze.

- - Hansgrohe FixFit Q wall outlet with holder 26887990 - Polished Gold Optic.

- - Hansgrohe FixFit S wall outlet with holder 26888000 - Chrome.

- - Hansgrohe FixFit S wall outlet with holder 26888670 - Matt Black.

- - Hansgrohe FixFit S wall outlet with holder 26888700 - Matt White.

- - Hansgrohe FixFit S wall outlet with holder 26888340 - Brushed Black Chrome.

- - Hansgrohe FixFit S wall outlet with holder 26888140 - Brushed Bronze.

- - Hansgrohe FixFit S wall outlet with holder 26888990 - Polished Gold Optic.

- - Hansgrohe FixFit E wall outlet with holder 26889000 - Chrome.

- - Hansgrohe FixFit E wall outlet with holder 26889670 - Matt Black.

- - Hansgrohe FixFit E wall outlet with holder 26889700 - Matt White.

- - Hansgrohe FixFit E wall outlet with holder 26889340 - Brushed Black Chrome.

- - Hansgrohe FixFit E wall outlet with holder 26889140 - Brushed Bronze.

- - Hansgrohe FixFit E wall outlet with holder 26889990 - Polished Gold Optic.

- - Hansgrohe Rebris S exposed shower mixer: 72640000 and 72640670.

- - Hansgrohe Rebris S exposed shower mixer with two flow rates: 72643000 and 72643670.

- - Hansgrohe Rebris E exposed shower mixer: 72650000 and 72650670.

- - Hansgrohe Tecturis S exposed shower mixer: 73622670 and 73622000.

- - Hansgrohe article number 28338000.

- - Hansgrohe FixFit Fine S wall outlet with non-return valve 28882140 - Brushed Bronze - production from 04/25.

- - Hansgrohe FixFit Fine S wall outlet with non-return valve 28882000 - Chrome - production from 04/25.

- - Hansgrohe FixFit Fine S wall outlet with non-return valve 28882340 - Brushed Black Chrome - production from 04/25.

- - Hansgrohe FixFit Fine S wall outlet with non-return valve 28882670 - Matt Black - production from 04/25.

- - Hansgrohe FixFit Fine S wall outlet with non-return valve 28882700 - Matt White - production from 04/25.

- - Hansgrohe FixFit Fine S wall outlet with non-return valve 28882990 - Polished Gold Optic - production from 04/25.

- - Hansgrohe FixFit Fine E wall outlet with non-return valve 28883000 - Chrome - production from 04/25.

- - Hansgrohe FixFit Fine E wall outlet with non-return valve 28883140 - Brushed Bronze - production from 04/25.

- - Hansgrohe FixFit Fine E wall outlet with non-return valve 28883340 - Brushed Black Chrome - production from 04/25.

- - Hansgrohe FixFit Fine E wall outlet with non-return valve 28883670 - Matt Black - production from 04/25.

- - Hansgrohe FixFit Fine E wall outlet with non-return valve 28883700 - Matt White - production from 04/25.

- - Hansgrohe FixFit Fine E wall outlet with non-return valve 28883990 - Polished Gold Optic - production from 04/25.

- - Hansgrohe FixFit Fine Q wall outlet with non-return valve 28884990 - Polished Gold Optic - production from 04/25.

- - Hansgrohe FixFit Fine Q wall outlet with non-return valve 28884000 - Chrome - production from 04/25.

- - Hansgrohe FixFit Fine Q wall outlet with non-return valve 28884140 - Brushed Bronze - production from 04/25.

- - Hansgrohe FixFit Fine Q wall outlet with non-return valve 28884340 - Brushed Black Chrome - production from 04/25.

- - Hansgrohe FixFit Fine Q wall outlet with non-return valve 28884670 - Matt Black - production from 04/25.

- - Hansgrohe FixFit Fine Q wall outlet with non-return valve 28884700 - Matt White - production from 04/25.

- - Hansgrohe Activera S Showerpipe 240 1jet EcoSmart Reno Varia 28074000 - Chrome - production from 05/25.

- - Hansgrohe Activera S Showerpipe 240 1jet EcoSmart Reno Varia 28074670 - Matt Black - production from 05/25.

Additional Confirmed Di Vapor Applications

- - Hansgrohe 37600810 AXOR Terrano single lever exposed shower mixer DN15 09/99-12/09.

- - Hansgrohe 4817830 Locarno 4-hole rim-mounted bath mixer from 04/21.

- - Hansgrohe 10456800 AXOR Starck single lever floor-standing bath mixer with pin handle from 11/16.

- - Hansgrohe 26396000 Showerarc 05/05-12/10.

- - Hansgrohe 28380000 Secuflex rim-mounted bath set 03/07-04/09.

- - Hansgrohe 14102000 Ecos 4-hole rim-mounted bath mixer from 01/18.

- - Hansgrohe 28380000 Secuflex rim-mounted bath set from 11/10.

- - Hansgrohe 28382000 rim-mounted bath set 10/17-12/19.

- - Hansgrohe 19418000 rim-mounted bath set with hand shower from 01/17.

- - Hansgrohe 26870000 PHARO Shower Panel Lift 2 M 20 wall or corner version without light 10/14-12/15.

- - Hansgrohe 39400000 AXOR Citterio single lever exposed bath mixer with lever handle 04/03-06/09.

- - Hansgrohe 18450820 AXOR Massaud single lever floor-standing bath mixer 11/16-04/20.

- - Hansgrohe 16882000 AXOR Montreux wall outlet stop with non-return valve and shut-off valve from 04/06.

- - Hansgrohe 10905810 AXOR Starck shower column DN15 07/00-09/07.

- - Hansgrohe 17883000 AXOR Carlton FixFit Stop wall outlet with shut-off valve from 08/01.

- - Hansgrohe 39882000 AXOR Citterio wall outlet stop with non-return valve and shut-off valve from 04/03.

- - Hansgrohe 16882830 AXOR Montreux wall outlet stop with non-return valve and shut-off valve 04/06-12/19.

- - Hansgrohe 11422000 AXOR Urquiola floor-standing bath thermostat from 04/09.

- - Hansgrohe 10821340 AXOR Starck single lever kitchen mixer 270 with pull-out spray from 11/19.

- - Hansgrohe 46442009 AXOR Edge single lever floor-standing bath mixer Diamond Cut 2 Ticks from 04/20.

- - Hansgrohe 31460000 Metris S single lever exposed bath mixer with lever handle 05/09-10/11.

Related Spares You May Need

- - Hansgrohe 97195000 Shower Head - a system-level related spare for selected shared PHARO shower-panel assemblies and not a required companion part for every installation using 94074000.

FAST DELIVERY

• Delivery of this item is priced as a 'TBC'. UK delivery costs £TBC incl. VAT.
• For all in-stock spare parts the typical UK delivery timescale is 2-5 working days.
• If you need a part urgently then we can provide a next-day (delivered Mon-Fri) UK delivery service for all in-stock small parcels ordered before 3.00pm, Monday - Friday.
• Next day delivery is available to select at an additional charge during the checkout.
• We delivery WORLDWIDE. For more information about international deliveries, read our delivery page.

RETURNS

• If you need to return a part then please telephone Di Vapor on 0121 705 0866 with the reasons for the return within 14 days of receiving the goods.
• For more information please see our terms and conditions.
