Hansgrohe 96439000 Sleeve - Chrome

Summary

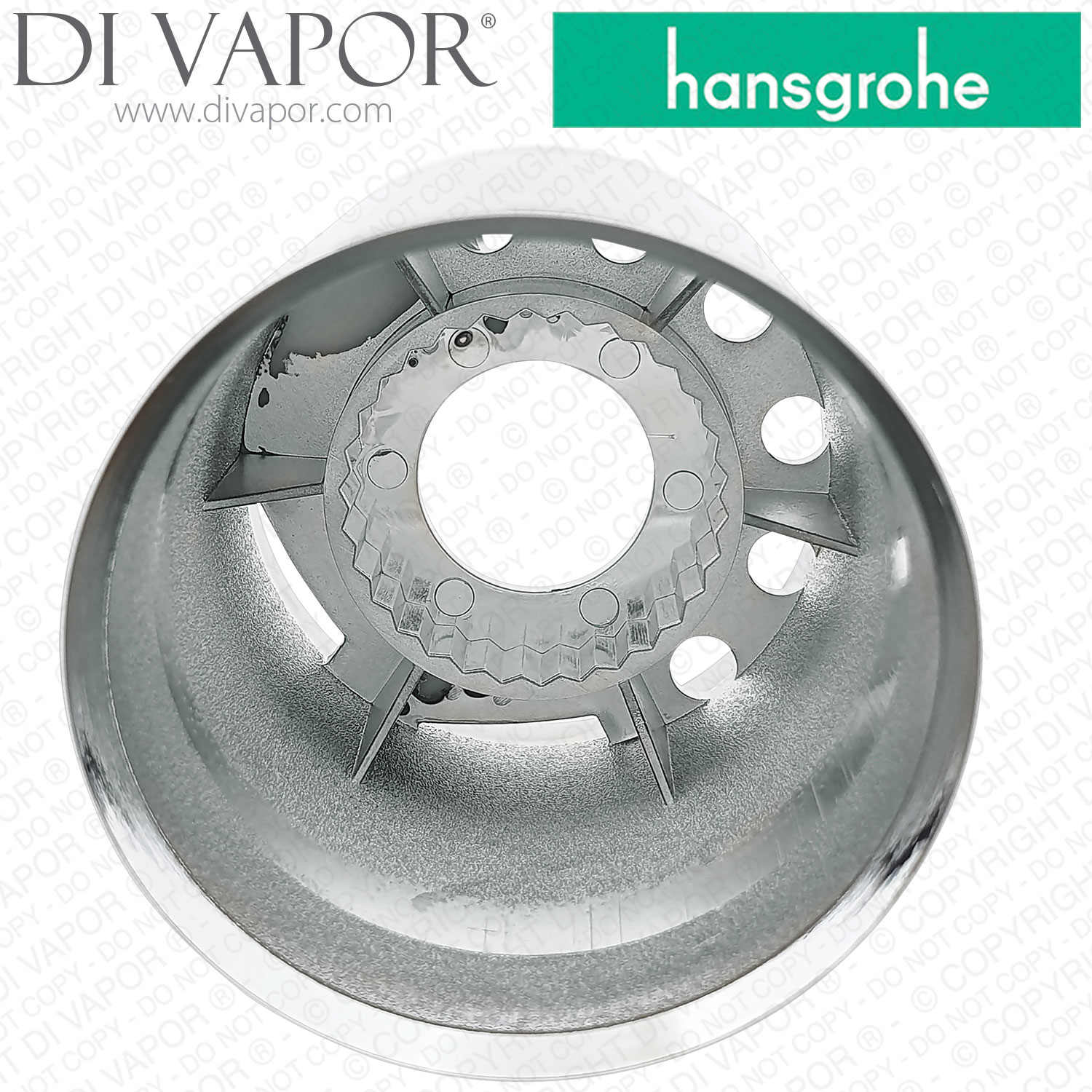

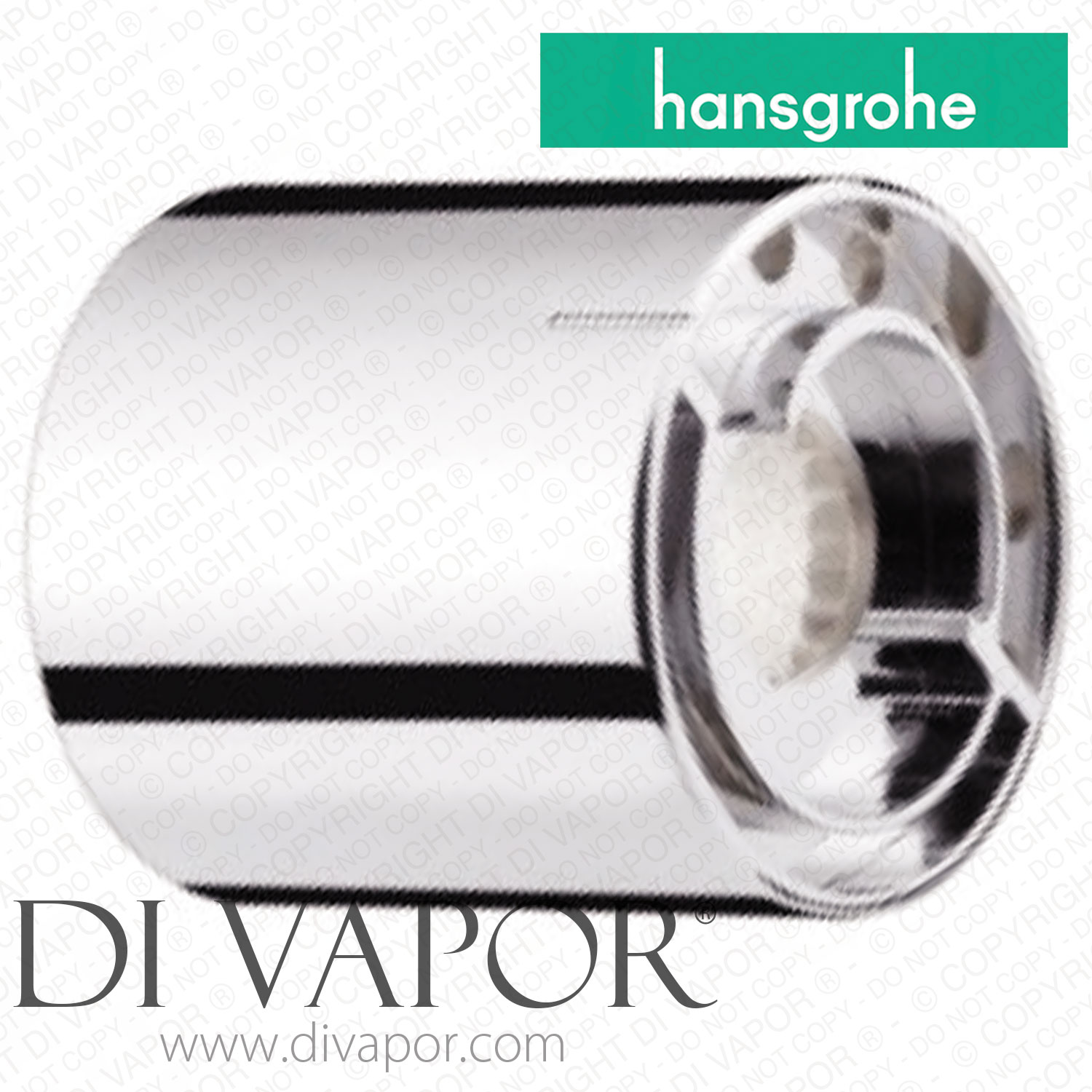

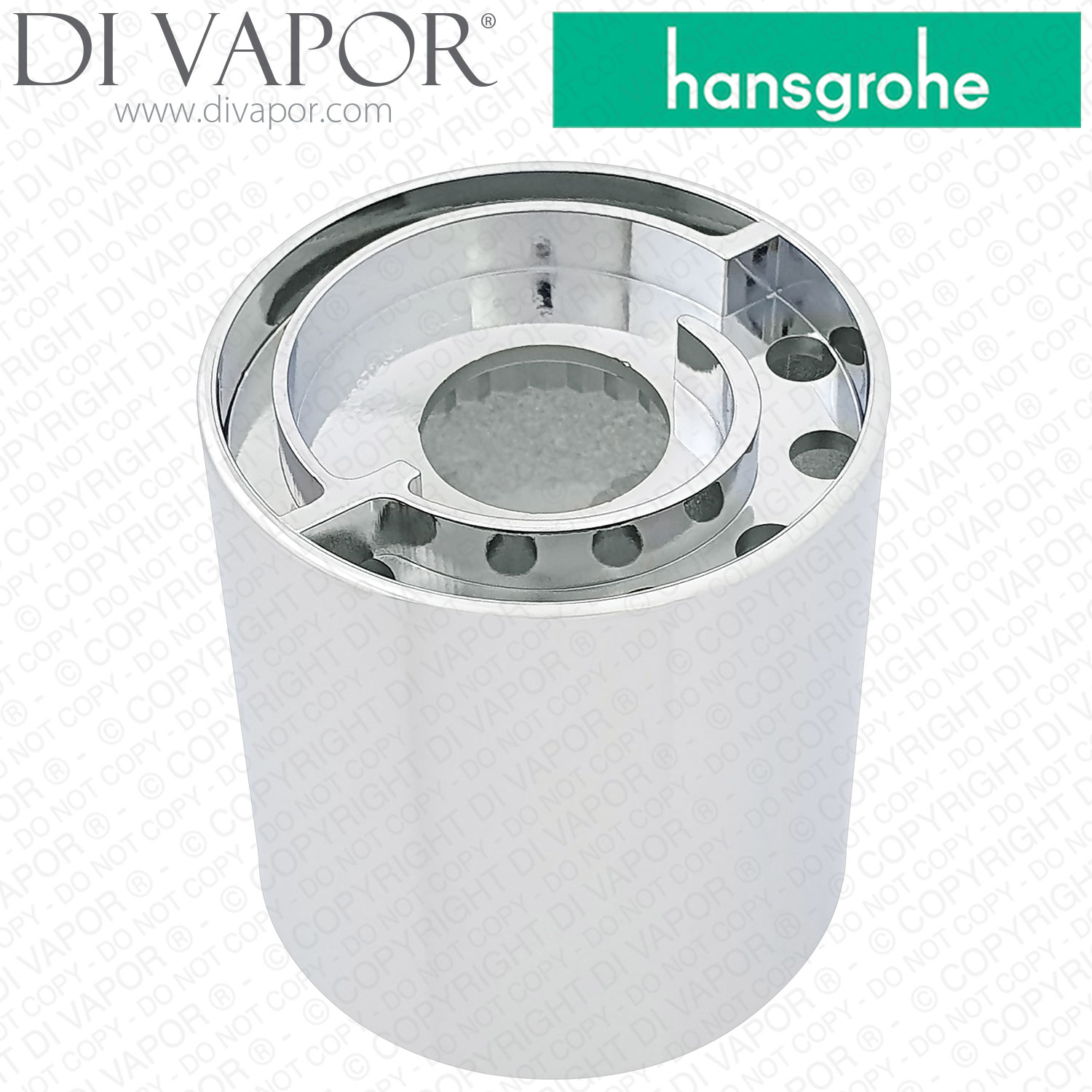

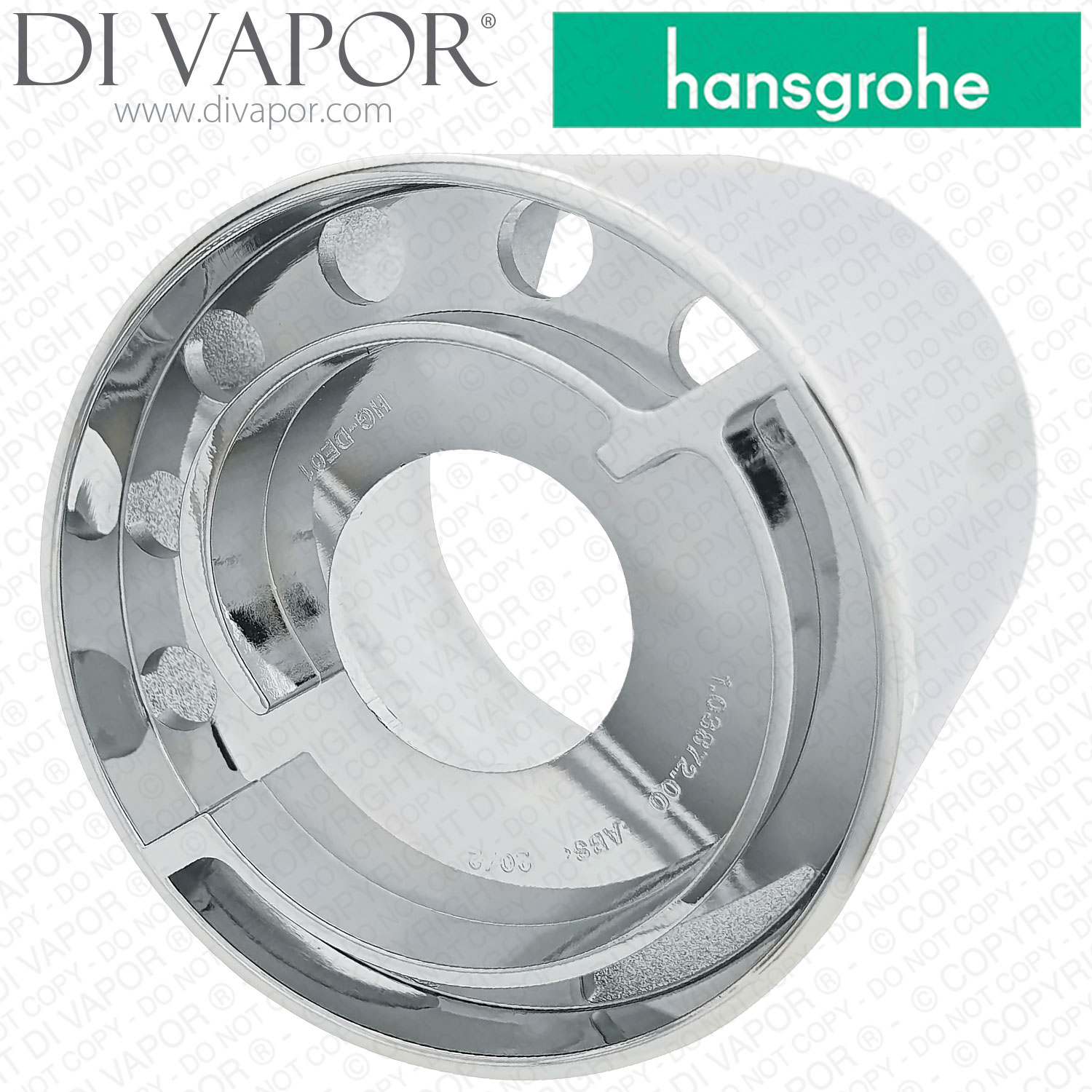

Hansgrohe 96439000 Thermostatic Mixer iBox Chrome Sleeve 49mm

The Hansgrohe 96439000 is a chrome sleeve for the thermostatic mixer control used in selected concealed Hansgrohe and AXOR iBox valve assemblies. It fits over the thermostatic control area behind the visible trim plate and is supplied as the sleeve only, not as a complete faceplate, handle, cartridge or valve.

This part is intended to renew a missing, damaged or worn outer sleeve while retaining the existing valve assembly. The 49mm diameter is an identification measurement only and must not be used by itself to determine fitment.

Technical Details

• No superseded or replacement manufacturer code has been identified.

Before Ordering

Check the complete valve article number and, where applicable, the production period before ordering. Do not identify this sleeve from its diameter or appearance alone. On the Terrano 37710000 installation, the sleeve is fitted over the thermostatic cartridge with the sleeve notch positioned at 12 o'clock before the faceplate is installed; this orientation should not be assumed for other valve assemblies.

Confirmed Models and Systems

• Hansgrohe Terrano concealed thermostat 37710000.
• Hansgrohe Metris Puro and Talis Puro concealed thermostat 15722000.
• Hansgrohe PuraVida concealed thermostat family 15775xx1.
• AXOR Allegroh thermostatic bath and shower mixer 36720000.
• AXOR Allegroh thermostatic mixer 36700000.
• AXOR Allegroh recessed shower 36710000.
• AXOR Arco and Uno 11720.
• AXOR Arco shower 11700.
• AXOR Azzur shower valve 34700.
• AXOR Azzur shower valve 34720.
• AXOR Carlton thermostatic mixer with lever handle 17710000 - production 04/01 to 06/08.
• AXOR Carlton thermostatic mixer with lever handle 17710000 - production 07/08 to 04/11.
• AXOR Citterio M thermostat with shut-off and diverter valve 34725000 - production 01/08 to 06/08.
• AXOR Citterio M thermostat with shut-off and diverter valve 34725000 - production 07/08 to 05/11.
• AXOR Citterio M thermostat with shut-off and diverter valve 34725000 - production 06/11 to 08/12.
• AXOR Mondaro shower valve 18710000.
• AXOR Starck thermostat with shut-off and diverter valve 10720000 - production 07/01 to 06/08.
• AXOR Starck thermostat with shut-off and diverter valve 10720000 - production 07/08 to 05/11.
• AXOR Starck thermostat with shut-off and diverter valve 10720000 - production from 06/11.
• AXOR Starck thermostat with shut-off valve 10700000 - production 04/01 to 04/02.
• AXOR Starck thermostat with shut-off valve 10700000 - production 07/08 to 05/11.
• AXOR Starck thermostat with shut-off valve 10700000 - production from 06/11.
• AXOR Starck X dual-outlet thermostat 10726000.
• AXOR Starck X single-outlet thermostat 10706000.
• AXOR Steel bath and shower valve 35720800.
• AXOR Steel shower valve 35700800.
• AXOR Citterio M thermostat with shut-off valve 34705000 - production 01/08 to 06/08.
• AXOR Citterio M thermostat with shut-off valve 34705000 - production 07/08 to 05/11.
• AXOR Citterio M thermostat with shut-off valve 34705000 - production 06/11 to 08/13.
• AXOR Citterio M thermostat with shut-off valve 34705000 - production from 09/13.
• Hansgrohe Ecostat E 15700.
• Hansgrohe Ecostat E thermostat for concealed installation with shut-off valve 31572000 - production 09/11 to 12/17.
• Hansgrohe Ecostat S dual-outlet thermostat 15721000.
• Hansgrohe Project shower valve 15740800.
• Hansgrohe Terrano range article numbers 37720 to 37725.

Related Spares You May Need

• Hansgrohe 96446000 Chrome Sleeve for iBox shut-off handle - 30mm diameter. This is a separate sleeve for the shut-off control and is not a replacement for 96439000.
