Hansgrohe 01800180 iBox Universal Basic Set for all Hansgrohe Concealed Shower Mixer Valves

SUMMARY

Hansgrohe 01800180 iBox Universal Basic Set for Concealed Shower Bath and Thermostat Finish Sets

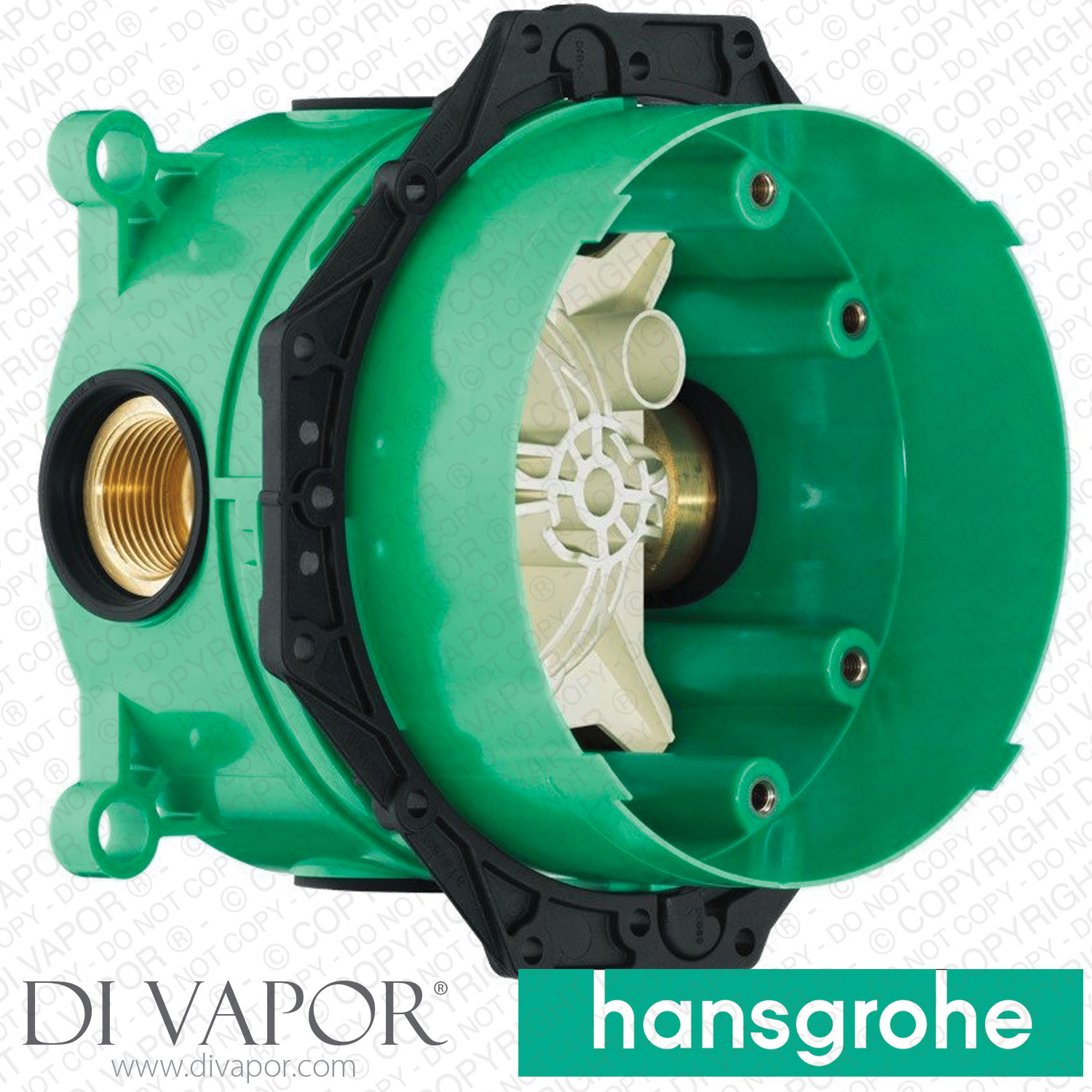

The Hansgrohe 01800180 iBox Universal Basic Set is a concealed installation basic set for Hansgrohe shower, bath tub and thermostat finish sets. This is the in-wall body used behind the finished trim set, providing the concealed connection base for compatible Hansgrohe iBox Universal installations.

Check the existing concealed installation, finish set code, pipework connection and required mounting depth before ordering, especially where an older iBox1 installation is being replaced or upgraded.

Technical Details

- - Hansgrohe article number: 01800180

- - Di Vapor Part Number: HANS-01800180

- - Part type: iBox Universal concealed basic set

- - Application: shower, bath tub and thermostat finish sets for concealed installation

- - Connection thread: Rp 3/4

- - Connection dimension: DN20

- - Installation type: rotationally-symmetric concealed installation

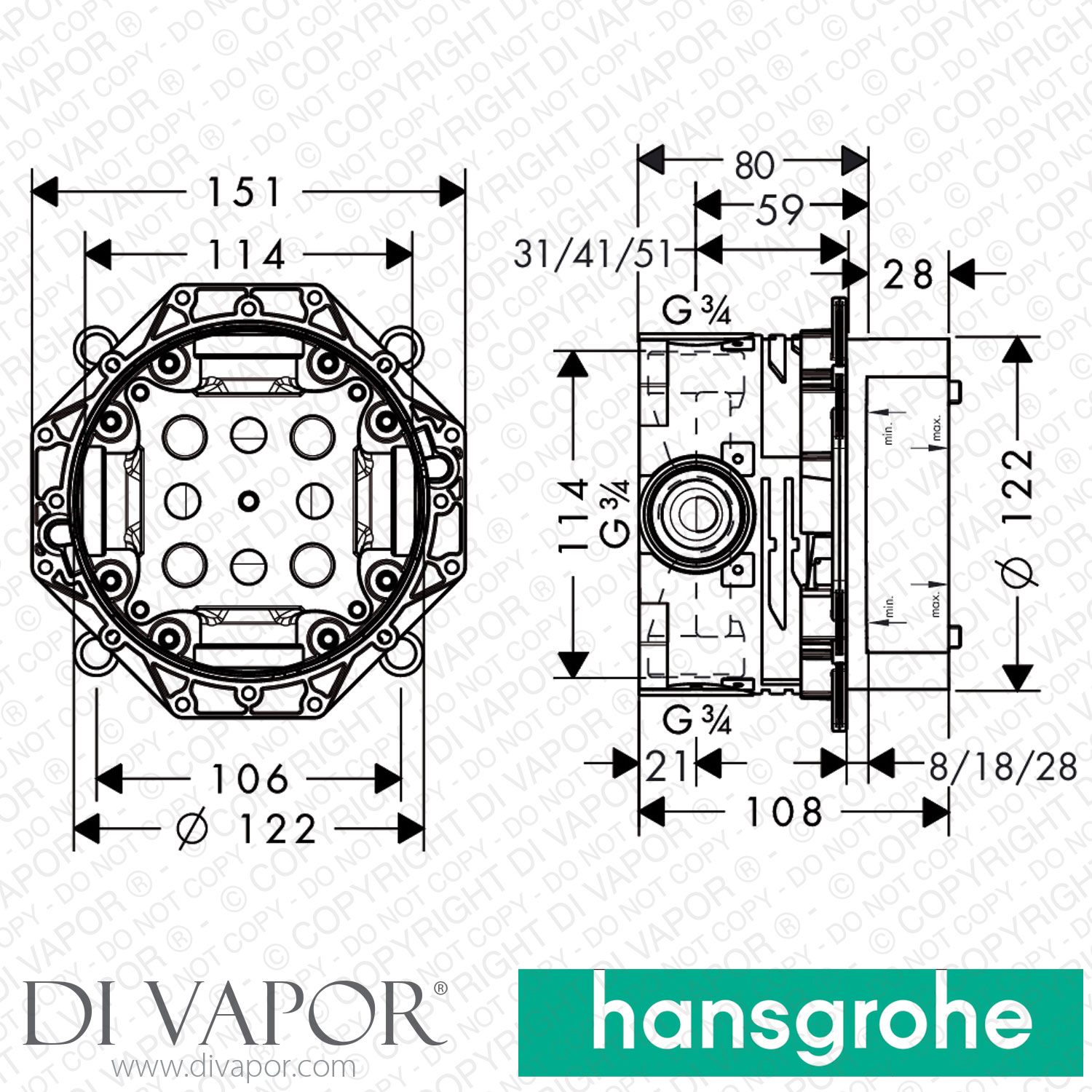

- - Mounting depth: 80mm minimum to 108mm maximum

- - Supplied with: basic set, adjustable clamping collar, seal, 1 plug DN20 and assembly instruction

- - Hansgrohe lists 01800180 as phasing-out and identifies 01500180 iBox universal 2 as the newer basic set. For concealed shower, bath tub and thermostat finish sets of iBox1 01800180, Hansgrohe states that 01500180 requires adapter plate 13588000.

Confirmed Hansgrohe Concealed Installation Use

Hansgrohe states that 01800180 is suitable for all shower, bath tub and thermostat finish sets for concealed installation.

- - Hansgrohe 31965000 Focus Single Lever Shower Mixer for Concealed Installation for Ibox Universal >10/19 Spare Parts

- - Hansgrohe 32475000 Talis S Single Lever Bath Mixer for Concealed Installation for Ibox Universal 09/02 - 12/07 Spare Parts

- - Hansgrohe 71765000 Talis E Single Lever Shower Mixer for Concealed Installation for Ibox Universal >10/19 Spare Parts

- - Hansgrohe Talis S Concealed Single Lever Manual Bath Mixer - 72405000 Spare Parts

- - Hansgrohe 71405000 Logis Single Lever Bath Mixer for Concealed Installation for Ibox Universal >01/17 Spare Parts

Check Before Ordering

- - Confirm the required base set is Hansgrohe 01800180 rather than the newer 01500180 iBox universal 2.

- - Confirm the installation depth is within the 80mm to 108mm range.

- - Confirm the pipework connection requirement is Rp 3/4 and DN20.

- - If replacing an existing concealed body, compare the current iBox version and the finish set being reused before ordering.

Related Spares You May Need

- - 150mm Universal Shower Hose - NXT734
