Grohe 47744000 Flow Control Handle

SUMMARY

GROHE 47744000 Grohtherm 2000 Shower and Bath Mixer Flow Control Handle Chrome

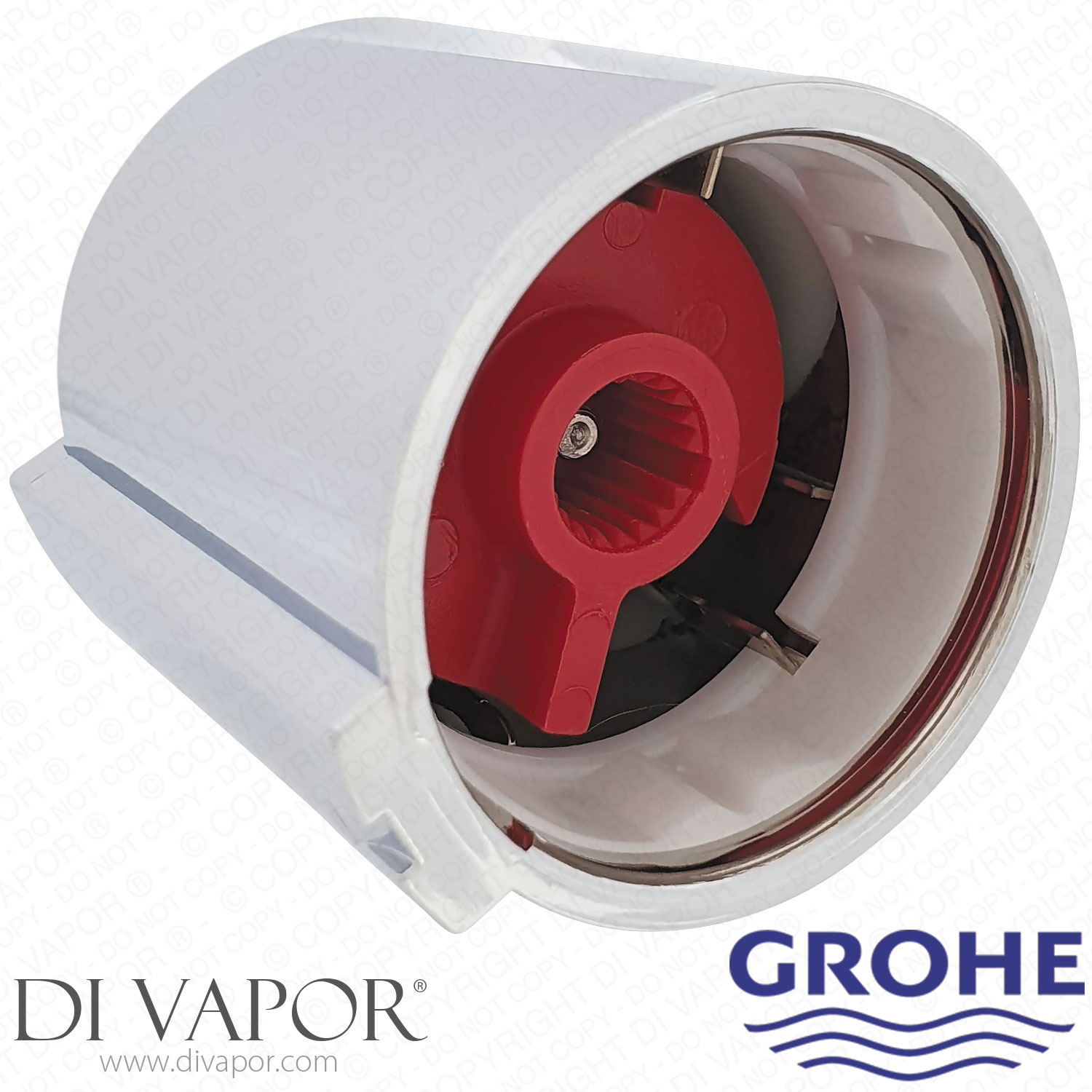

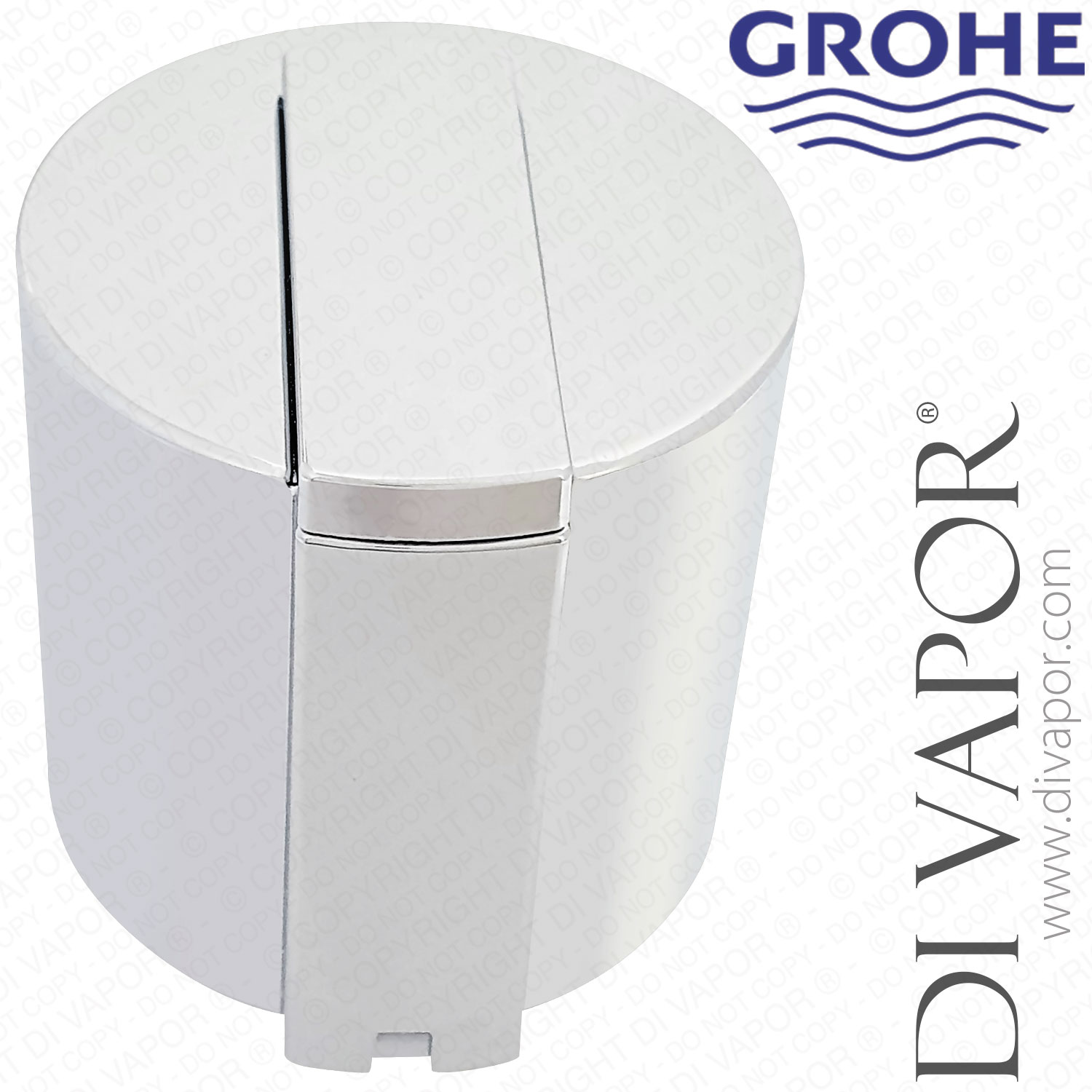

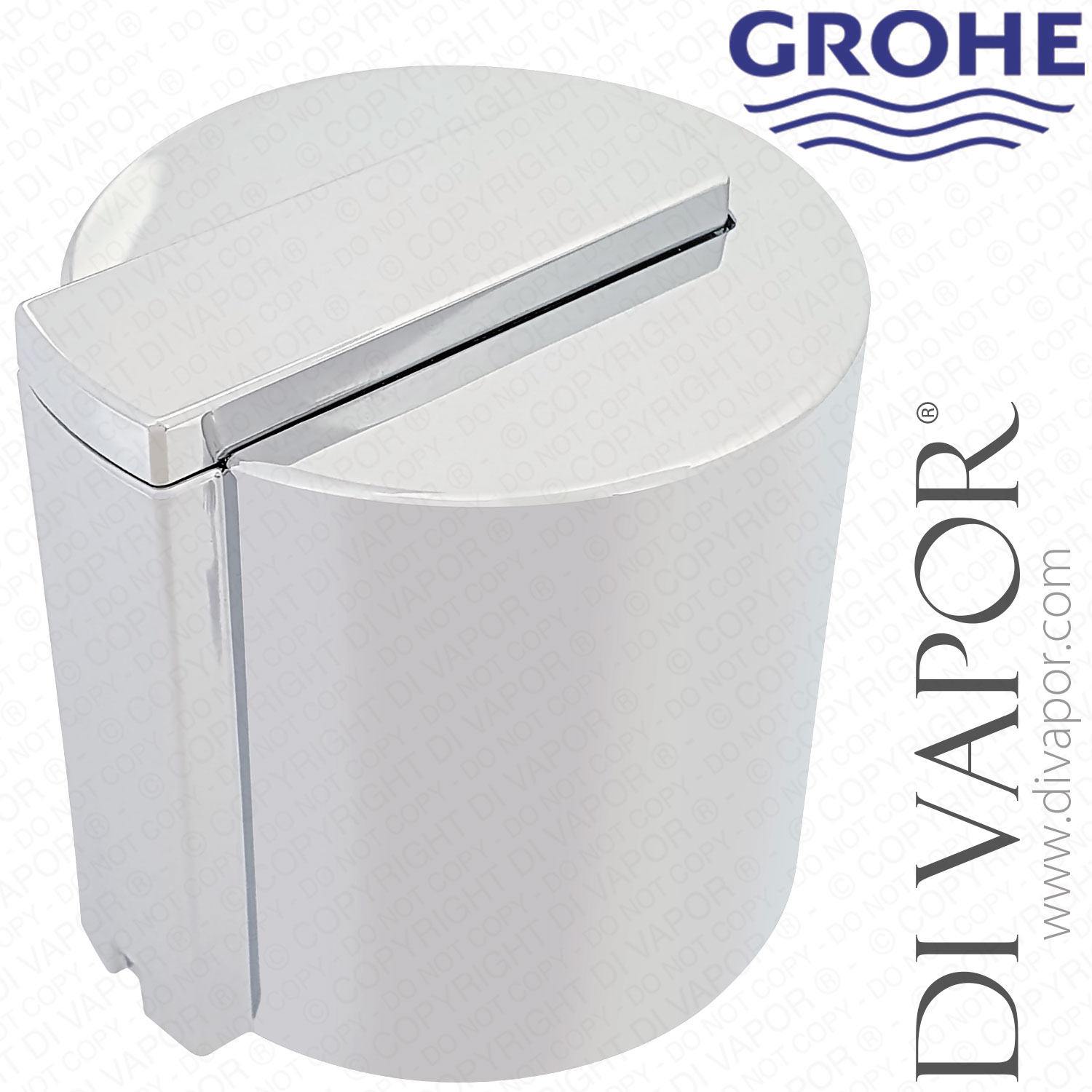

The GROHE 47744000 is a chrome flow and shut-off control handle for the Grohtherm 2000 shower mixers, bath/shower mixers and concealed valve trims listed below. It is the external operating handle for the flow-control side, not the thermostatic temperature-control handle or an internal cartridge.

The handle operates the mixer’s shut-off mechanism to control the water flow. On the specified Aquadimmer-equipped bath/shower and concealed diverter arrangements, it also operates outlet selection. Different mixers using this handle have different internal headparts or Aquadimmer cartridges, so the handle code alone must not be used to identify the internal valve.

Technical Details

- - Product code: 47744000

- - Part type: External flow and shut-off control handle

- - Finish: Chrome

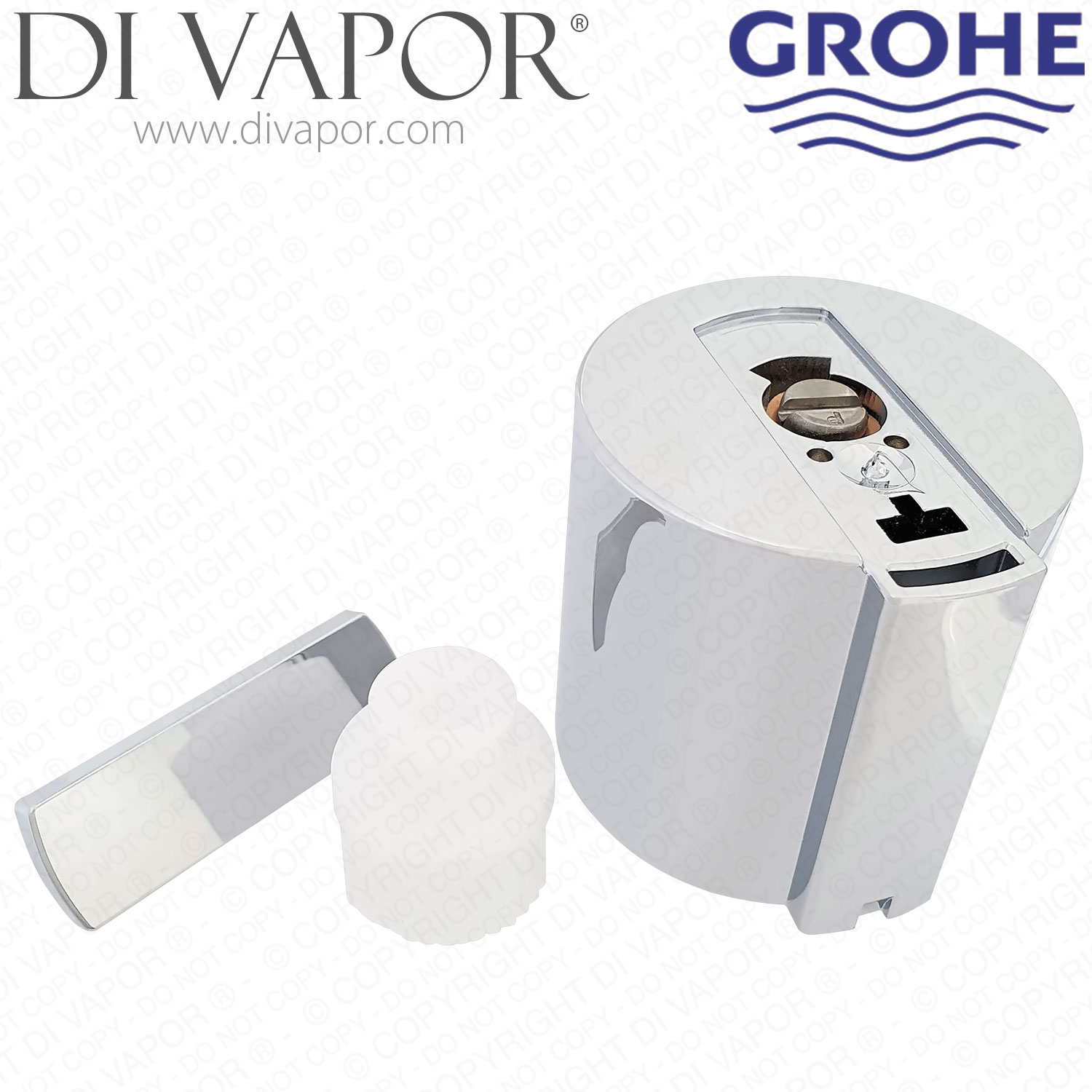

- - Fitting arrangement: Screw-retained handle with a cover cap over the fixing

- - Additional article references: 47744 000 and 47 744

- - Control function: Water flow and shut-off, with outlet selection on the specified Aquadimmer installations

Before You Order

Check the complete mixer or trim model number, the existing handle and its fixing arrangement before ordering. The Grohtherm 2000 name covers different products and generations, so the range name or a similar appearance is not sufficient to establish fitment. Confirm whether the damaged component is the handle, its cover cap, an associated insert or the internal valve. Check the supplied contents before ordering if you also require a fixing screw, cap or insert.

Confirmed Models Using 47744000

- - GROHE 19242 / 19242000 Grohtherm 2000 Concealed Thermostatic Bath/Shower Mixer Trim

- - GROHE 19243 / 19243000 Grohtherm 2000 Concealed Stop-Valve Exposed Trim

- - GROHE 19355 / 19355000 Grohtherm 2000 Concealed Thermostat with Integrated Two-Way Diverter

- - GROHE 34174 / 34174000 Grohtherm 2000 Thermostatic Bath/Shower Mixer

- - GROHE 34175 / 34175000 Grohtherm 2000 Thermostatic Bath/Shower Mixer

- - GROHE 34176 / 34176000 Grohtherm 2000 Thermostatic Bath/Shower Mixer

- - GROHE 34216 / 34216000 Grohtherm Automatic 2000 Exposed Thermostatic Shower Mixer

- - GROHE 34218 / 34218000 Grohmaster Grohtherm 2000 BIV Concealed Shower

- - GROHE 34221 / 34221000 Grohmaster Grohtherm 2000 EV Exposed Shower

- - GROHE 34235 / 34235000 Grohtherm 2000 Concealed Thermostatic Shower Mixer

- - GROHE 34283 / 34283000 Grohtherm 2000 Comfort Set

Related Spares You May Need

The following are separate, model-dependent service parts. They are not all required when renewing the handle, and a shared handle does not make the internal cartridges interchangeable. For concealed installations, identify the installed valve body as well as the visible trim before selecting internal parts.

Handle and Trim Components

- - GROHE 1007500M Handle Cover Caps, the separately identified cover-cap spare for this handle arrangement

- - 42T8M44 Pair of Handle Caps for GROHE Grohtherm 2000, a separate two-cap listing; check the cap requirement before selecting between the available listings

- - GROHE 47286000 Grohtherm 2000 Temperature-Control Handle, a separate temperature-side handle option, not the flow-control handle

- - GROHE 47749000 Grohtherm 2000 Chrome Cover Plate, for the specified concealed arrangements including 19242000, 19355000, 34218000 and 34235000

- - GROHE 10089000 Stop Ring, associated with the concealed control arrangements used by 19242000 and 19355000

Flow and Aquadimmer Service Parts

- - GROHE 47364000 Aquadimmer Flow Cartridge, for the specified concealed diverter arrangements used by 19355000 and 34283000, not every mixer fitted with this handle

- - GROHE 12433000 Aquadimmer Cartridge, for the 34174000, 34175000 and 34176000 bath/shower mixer arrangements

- - GROHE 47751000 Aquadimmer Waterway Adapter, used with 12433000 in those bath/shower mixers; this is an internal waterway component, not the handle's front insert

- - GROHE 49348000 Aquadimmer Cartridge and Adapter Assembly, combining 12433000 and 47751000; choose the combined assembly when both components are required rather than ordering them twice

- - GROHE 0305600M Aquadimmer Cartridge O-Ring, an associated seal for the 12433000 cartridge arrangement

- - GROHE 07025000 On/Off Headpart, the flow-side valve for the specified 34218000 and 34235000 arrangements

- - GROHE 07146000 On/Off Headpart, the flow-side valve for the specified 34216000 and 34221000 arrangements

Separate Temperature-Control Service Parts

- - GROHE 47483000 Turbostat Thermostatic Cartridge, used on the temperature-control side of the specified 34216000, 34218000, 34221000, 34235000 and 34283000 assemblies

- - GROHE 47765000 Retaining Ring, for the associated thermostatic cartridge arrangement, not the flow-handle fixing

- - GROHE 47439000 Compact Thermostatic Cartridge, used on the temperature-control side of the specified 34174000, 34175000 and 34176000 bath/shower mixers

- - GROHE 47743000 Retaining Ring, associated with that thermostatic cartridge arrangement

- - GROHE 47175000 Reverse Turbostat Thermostatic Cartridge, a reverse-feed option for the specified 34174000 installation; check the hot and cold supply arrangement before ordering

Other Model-Specific Valve Service Parts

- - GROHE 08565000 Non-Return Valve, associated with the 34174000, 34216000 and 34221 mixer assemblies

- - GROHE 47753000 Non-Return Valve, used in the specified concealed 34218000 and 34235000 assemblies

- - GROHE 0392400M Pack of 10 O-Rings, a valve-service seal listing for the 34221 assembly, not a handle-fixing kit

- - GROHE 19332000 34mm Hex Socket Box Spanner, for the applicable internal servicing operation, not automatically required for replacing the external handle

Handle Fault or Internal Valve Fault?

A damaged external handle and an internally leaking valve are different faults. If the handle operates normally but water continues to drip from the shower head or bath spout after shut-off, check the model-specific on/off headpart or Aquadimmer and its seals. Replacing the external handle should not be assumed to cure internal leakage. Temperature-regulation problems require separate investigation of the temperature-control side.

Fitting and Identification

Follow the fitting sequence for the exact mixer, noting the original handle position and the arrangement of any separate inserts or stop components before dismantling. For help identifying the correct handle or associated valve parts, contact us with the mixer model number and clear photographs of the complete valve, existing handle and fixing arrangement.
