GROHE 35500000 Rapido T Universal Concealed Thermostatic Valve Mixer

SUMMARY

GROHE 35500000 Rapido T Universal Concealed Thermostatic Valve Mixer

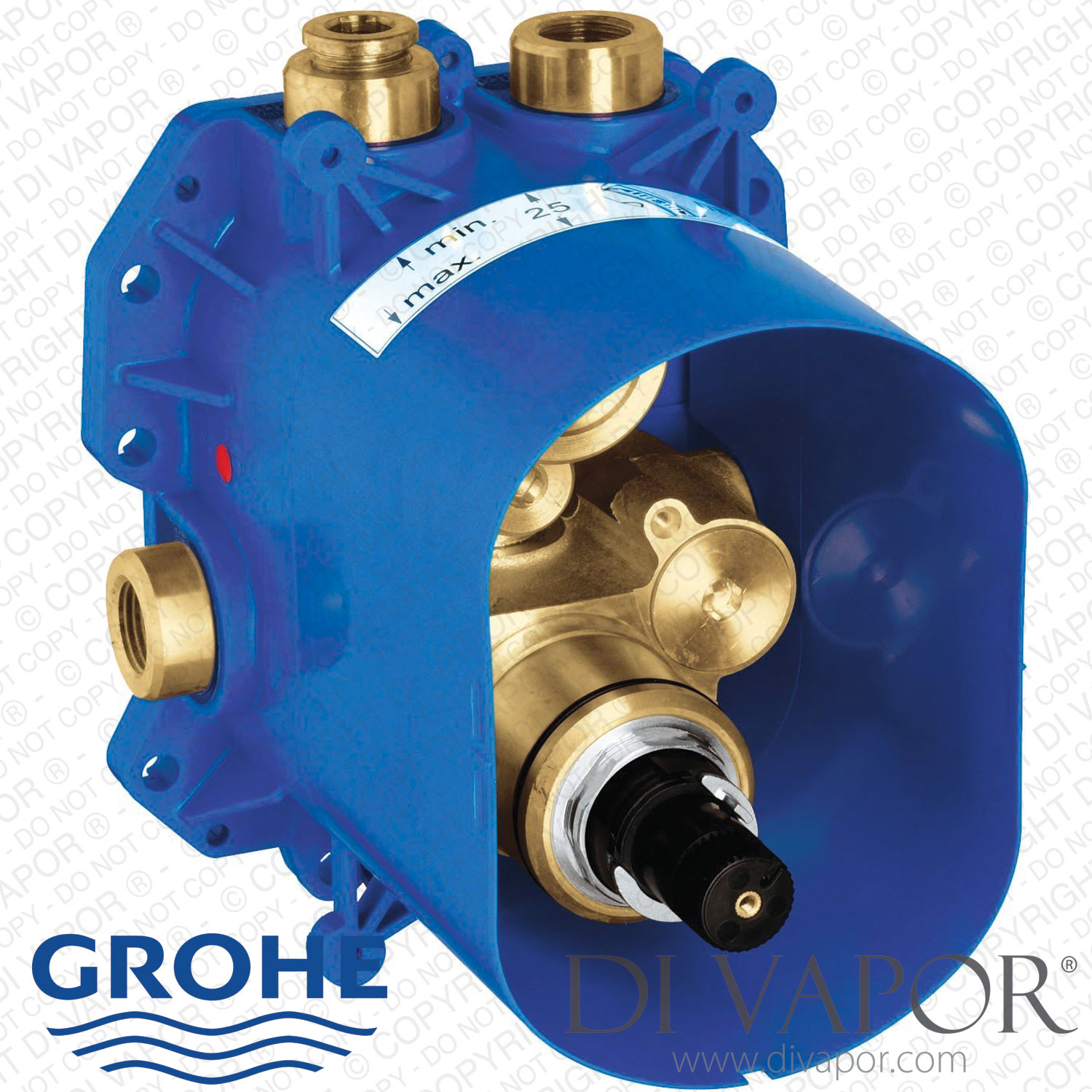

GROHE 35500000 Rapido T concealed thermostatic mixer valve is an in-wall thermostatic rough-in body for concealed bath shower and central thermostatic installations. The valve controls mixed-water temperature behind the finished wall and is designed to accept the appropriate GROHE finishing trim. The finishing trim is not included.

The Rapido T incorporates GROHE TurboStat temperature-control technology with a compact wax thermoelement cartridge. Depending on the finishing set and installation layout it can be configured for shower control bath and hand-shower diversion or as a central thermostatic mixer feeding separate controls.

Technical Details

- - Brand: GROHE

- - Range: Rapido T

- - Product code: 35500000

- - Part type: concealed thermostatic mixer valve / rough-in body

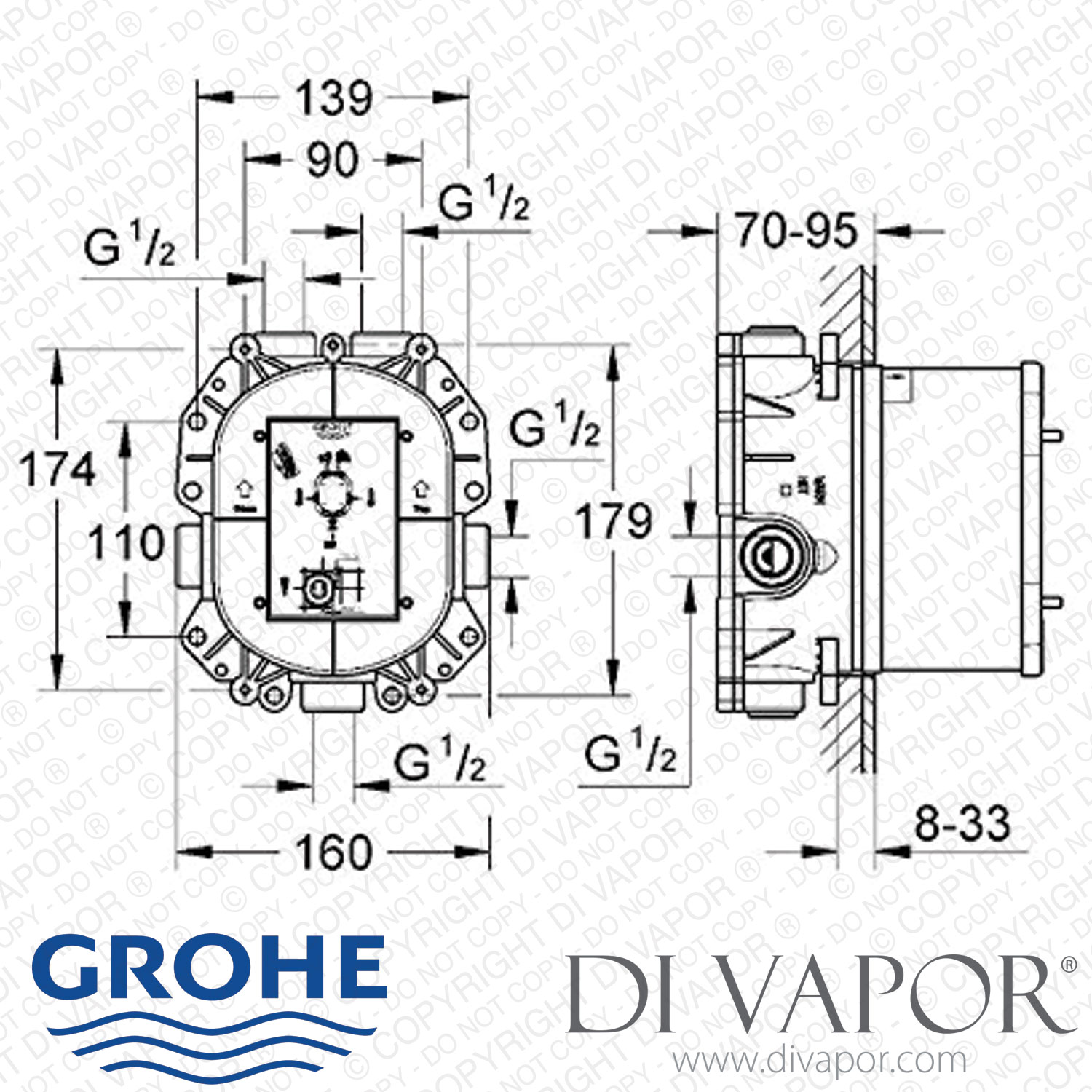

- - Installation depth: 70mm to 95mm

- - Water connections: G 1/2

- - Body material: DR brass

- - Normal supply orientation: hot on the left and cold on the right

- - Two upper 1/2 inch outlets which can be locked

- - One lower 1/2 inch outlet which requires a separate stop valve when used

- - Up to three outlets can be used depending on the installation

- - Maximum stated flow rate: up to 50 litres per minute when using three outlets

- - Minimum recommended pressure: 1.0 bar

- - Built-in non-return valves and dirt strainers

- - Thermostatic cartridge: GROHE TurboStat compact cartridge with wax thermoelement

- - Finishing trim set: not included

- - EAN: 4005176831522

Before You Order

Check the existing concealed body code and finishing-set code before ordering. GROHE 35500000 is a Rapido T thermostatic concealed body and must not be confused with other concealed platforms or Rapido T variants. A reverse-supply thermostatic cartridge is required only where the hot and cold feeds have been installed in the opposite orientation.

Confirmed Compatible Models

Central and Multiple-Outlet Finishing Sets

- - GROHE 29096000 Grohtherm Special central thermostatic trim

- - GROHE 19352000 Grohtherm 2000 central thermostatic mixer

- - GROHE 19352001 Grohtherm 2000 central thermostatic mixer

- - GROHE 19392000 Atrio Ypsilon central thermostatic trim

- - GROHE 19396000 Atrio Jota central thermostatic trim

- - GROHE 19418000 Grohtherm 2000+ Special central thermostatic trim

- - GROHE 19469000 Grohtherm 3000 Cosmopolitan central thermostatic mixer

- - GROHE 19887000 Allure Brilliant central thermostatic mixer

- - GROHE 19941000 Grandera central thermostatic trim

- - GROHE 19941IG0 Grandera central thermostatic trim

- - GROHE 19961000 Grohtherm Cube central thermostatic trim

- - GROHE 19356000 Grohtherm 3000+ central thermostatic trim

Bath Shower and Integrated Diverter Finishing Sets

- - GROHE 29095000 Grohtherm Special thermostatic bath shower mixer trim

- - GROHE 19355000 Grohtherm 2000+ thermostat with integrated diverter

- - GROHE 19355001 Grohtherm 2000 thermostat with integrated 2-way diverter

- - GROHE 19358000 Grohtherm 3000+ thermostat with integrated 2-way diverter

- - GROHE 19364000 Veris thermostat with integrated 2-way diverter

- - GROHE 19395000 Atrio thermostat with integrated 2-way diverter

- - GROHE 19399000 Atrio thermostat with integrated 2-way diverter

- - GROHE 19417000 Grohtherm 2000+ Special thermostat with integrated diverter

- - GROHE 19442000 Ondus thermostat with integrated 2-way diverter

- - GROHE 19446000 Allure thermostat with integrated 2-way diverter

- - GROHE 19468000 Grohtherm 3000 Cosmopolitan thermostat with integrated 2-way diverter

- - GROHE 19567000 Grohtherm 3000 Cosmopolitan thermostat with integrated 2-way diverter

- - GROHE 19792000 Allure Brilliant thermostat with integrated 2-way diverter

- - GROHE 19937000 Grandera thermostatic mixer with integrated 2-way diverter

- - GROHE 19937IG0 Grandera thermostatic mixer with integrated 2-way diverter

- - GROHE 19948000 Grandera thermostatic bath mixer with 2-way diverter

- - GROHE 19948IG0 Grandera thermostatic bath mixer with 2-way diverter

- - GROHE 19958000 Grohtherm Cube thermostat with integrated 2-way diverter

- - GROHE 19985000 Grohtherm 1000 thermostatic mixer with integrated 2-way diverter

- - GROHE 19986000 Grohtherm 1000 thermostatic bath mixer with integrated 2-way diverter

- - GROHE 27618000 Grohtherm F thermostatic trim with integrated 2-way diverter

Shower Finishing Sets

- - GROHE 19934000 Grandera thermostatic shower mixer

- - GROHE 19354000 Grohtherm 2000+ thermostatic shower mixer

- - GROHE 19354001 Grohtherm 2000 thermostatic shower mixer

- - GROHE 19359000 Grohtherm 3000+ thermostatic shower mixer

- - GROHE 19369000 Veris thermostatic shower mixer

- - GROHE 19380000 Allure thermostatic shower mixer

- - GROHE 19394000 Atrio thermostatic shower mixer

- - GROHE 19398000 Atrio thermostatic shower mixer

- - GROHE 19416000 Grohtherm 2000+ Special thermostatic shower mixer

- - GROHE 19443000 Ondus thermostatic shower mixer

- - GROHE 19467000 Grohtherm 3000 Cosmopolitan thermostatic shower mixer

- - GROHE 19568000 Grohtherm 3000 Cosmopolitan thermostatic shower mixer

- - GROHE 19791000 Allure Brilliant thermostatic shower mixer

- - GROHE 19934IG0 Grandera thermostatic shower mixer

- - GROHE 19959000 Grohtherm Cube thermostatic shower mixer

- - GROHE 19984000 Grohtherm 1000 thermostatic shower mixer

- - GROHE 29094000 Grohtherm Special thermostatic shower mixer trim

- - GROHE 27619000 Grohtherm F thermostatic trim

Confirmed Systems Using 35500000

- - GROHE 34572000 Grohtherm 3000 Cosmopolitan concealed system with Rainshower Allure 230

- - GROHE 34627000 Grohtherm 3000 Cosmopolitan concealed system with Rainshower Cosmopolitan 310 and Sena

- - GROHE 34571000 Grohtherm 3000 Cosmopolitan concealed system with Rainshower Cosmopolitan 310

- - GROHE 26262000 Grohtherm 3000 Cosmopolitan concealed system with Rainshower Cosmopolitan 210

- - GROHE 34630000 Grohtherm 3000 Cosmopolitan Perfect Shower Set with Rainshower Cosmopolitan 310

- - GROHE 34408000 Grohtherm 3000 Cosmopolitan Perfect Shower Set with Rainshower 210

- - GROHE 34399000 Grohtherm 3000 Cosmopolitan concealed shower system

- - GROHE 34631000 Grohtherm 2000 Perfect Shower Set with Rainshower Cosmopolitan 210

- - GROHE 34506000 Grohtherm Cube Perfect Shower Set with Rainshower Allure 230

- - GROHE 34614001 Grohtherm 1000 Perfect Shower Set with Tempesta 210

- - GROHE 34575001 Grohtherm 1000 Concealed Shower Set

- - GROHE 34634001 Grohtherm F Thermostat Complete Kit

Related Spares You May Need

- - GROHE 47483000 3/4 Inch TurboStat Thermostatic Cartridge - standard thermostatic cartridge used in the Rapido T 35500000

- - GROHE 47765000 Retaining Ring

- - GROHE 47753000 Non-Return Valve

- - GROHE 19332000 34mm Hex Socket Box Spanner - service tool listed for the valve

- - GROHE 29007000 Safety Combination for Rapido T - EN 1717 safety combination for relevant installations

- - GROHE 47186000 3/4 Inch Reverse TurboStat Thermostatic Cartridge - for reversed supplies with cold on the left and hot on the right

- - GROHE 47780000 27.5mm Rapido T Extension Kit

- - GROHE 12701001 Aquadimmer Rocket Waterway Cartridge Attachments - used with applicable Rapido T two-outlet Aquadimmer installations

- - GROHE 47364000 Aquadimmer Flow Cartridge - used with applicable finishing sets incorporating an integrated diverter

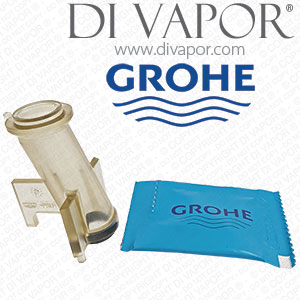

- - GROHE 12702000 Single Rocket Waterway Adapter - discontinued Rapido T-associated adapter

- - GROHE 28151000 Relaxaflex Shower Hose 1500mm - shower hose listed on the 35500000 component-spares page

The standard thermostatic cartridge for a normally plumbed Rapido T installation is 47483000. Do not order reverse cartridge 47186000 unless the supplies are reversed. Aquadimmer components are required only on installations using the corresponding diverter finishing set.
