Grohe 47809000 Grohtherm 3000 Cosmopolitan Trim Escutcheon Plate

SUMMARY

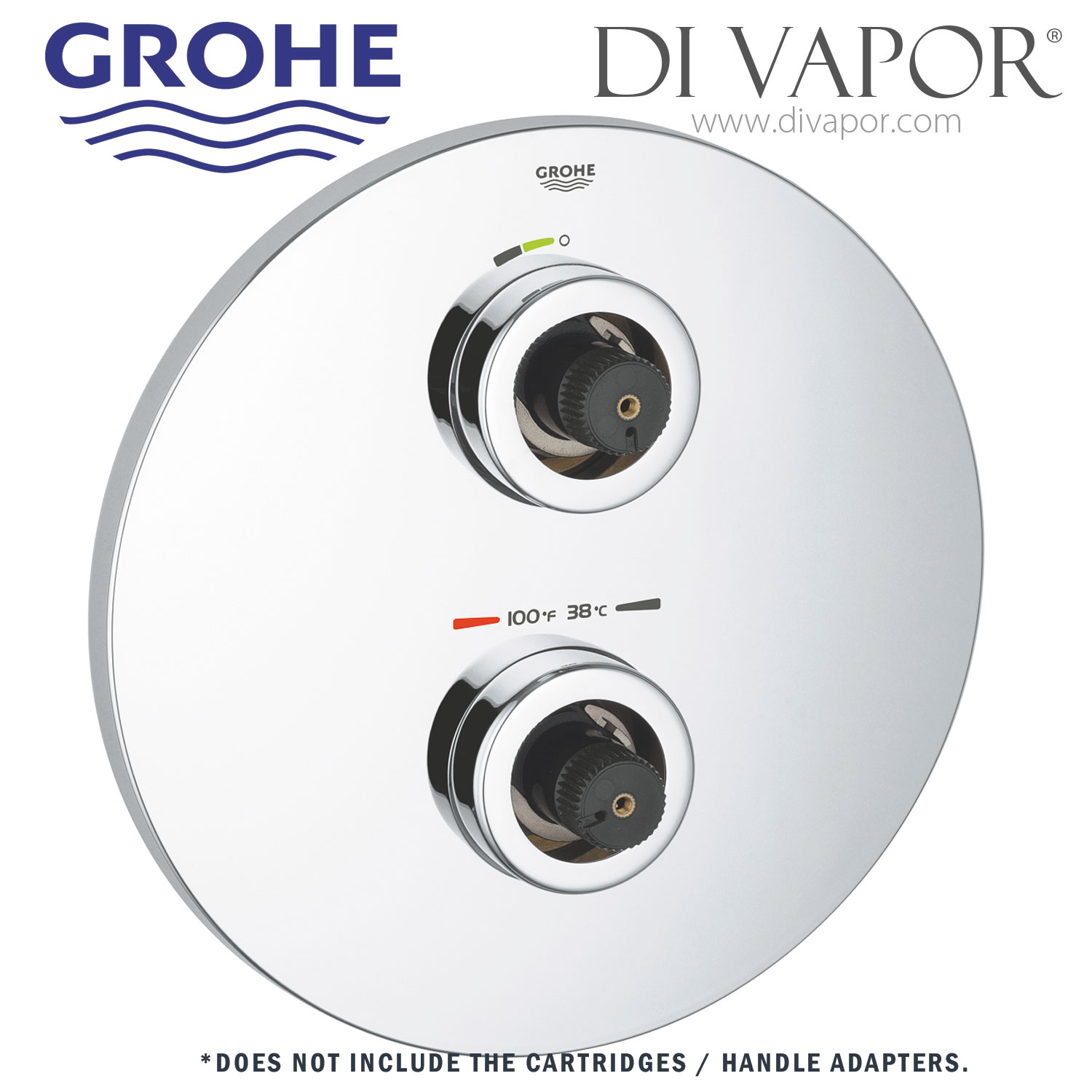

GROHE 47809000 Grohtherm 3000 Cosmopolitan 210mm Chrome Concealed Shower Escutcheon Plate

GROHE 47809000 is a round chrome escutcheon plate assembly for selected concealed thermostatic shower mixers. It is used in the specific Grohtherm 3000 Cosmopolitan, Grohtherm 2000 and Grohtherm 1000 installations listed below.

The escutcheon forms the visible wall trim around the separate temperature and flow controls, covering the concealed valve's installation opening. It can be used to renew a damaged or marked faceplate without replacing the complete shower mixer. This is an escutcheon assembly, not a complete shower valve or a finishing set containing the control handles and internal cartridges.

Technical Details

- - Part number: 47809000

- - Abbreviated spare-parts diagram reference: 47 809

- - Part type: concealed shower mixer escutcheon plate assembly

- - Plate diameter: 210 mm

- - Shape: round

- - Finish: chrome

- - Control openings: two, arranged vertically

- - Application: wall trim for selected concealed thermostatic shower mixers with separate temperature and flow controls

Confirmed Models

- - GROHE 19467000 Grohtherm 3000 Cosmopolitan Thermostatic Shower Mixer Components

- - GROHE 34278000 Grohtherm 3000 Cosmopolitan Thermostatic Shower Mixer 1/2 Inch Components

- - GROHE 19354001 Grohtherm 2000 Thermostatic Shower Mixer Components

- - GROHE 19984000 Grohtherm 1000 Thermostatic Shower Mixer Components

- - GROHE 34575000 Grohtherm 1000 Concealed Shower Set Components

- - GROHE 34575001 Grohtherm 1000 Concealed Shower Set Components

Before Ordering

Check the exact shower or finishing-set model, existing escutcheon reference, control-opening arrangement and mounting components. A matching diameter, similar appearance or shared concealed valve body does not establish fit. Different finishing sets within the same Grohtherm range can use different escutcheons. Contact us with clear photographs of the existing controls, plate and any identifying codes when the model is uncertain.

Related Spares You May Need

The following are separate service parts for the installations listed above. They are not included with the escutcheon and are not all required for a faceplate change. Select each component against the exact finishing set, concealed valve and installation version; the 34278000 uses a different internal cartridge arrangement from the Rapido T-based installations.

Controls and Adapters

- - GROHE 47812000 Temperature-Control Handle, for the applicable 19467000 and 34278000 control arrangements; check the required temperature-stop configuration

- - GROHE 47920000 Handle, for the 19354001 control arrangement

- - GROHE 12702000 Adapter, a discontinued reference for earlier control assemblies; check the existing adapter code before selecting service parts

- - GROHE 12702001 Adapter, for selected 19354001 and 19984000 assemblies; check the installation generation rather than assuming interchangeability with 12702000

Service Parts for the Listed Rapido T-Based Installations

- - GROHE 45346000 1/2 Inch Ceramic Flow-Control Cartridge, the separate clockwise-closing flow-control headpart

- - GROHE 47483000 3/4 Inch Thermostatic Cartridge, for the standard temperature-control arrangement

- - GROHE 47765000 Retaining Ring, for the applicable thermostatic-cartridge retaining assembly

- - GROHE 47780000 Rapido T 27.5mm Extension Kit, an optional extension for the specified concealed installations; not the extension arrangement used by 34278000

- - GROHE 47186000 3/4 Inch Reverse Thermostatic Cartridge, an optional cartridge for the specified reversed hot and cold supply arrangements, not the standard cartridge

- - GROHE 29007000 Rapido T Safety Combination, an optional concealed-body accessory where required by the installation

Service Parts for GROHE 34278000

- - GROHE 47439000 1/2 Inch Compact Thermostatic Cartridge, for the standard temperature-control arrangement

- - GROHE 45869000 Flow On/Off Cartridge, the separate flow-control headpart

- - GROHE 45023000 Flow-Cartridge Seat, for the associated flow-control assembly

- - GROHE 47743000 Retaining Ring, for the applicable 34278000 assembly; match the installed cartridge and retaining-ring version before ordering

- - GROHE 47175000 1/2 Inch Reverse Thermostatic Cartridge, an optional cartridge for reversed hot and cold supplies, not the standard cartridge

- - GROHE 08565000 Non-Return Valve, for the shower wall-union position rather than the concealed valve-body position

Associated Seals and Servicing Components

- - GROHE 0392400M O-Rings Pack of 10, for the specified flow-headpart sealing position

- - GROHE 47753000 Non-Return Valve, for the applicable concealed valve-body non-return valve position

- - GROHE 19332000 34mm Hex Socket Box Spanner, a servicing tool for the specified retaining assembly

Fitting and Fault Identification

Follow the instructions for the exact shower model when removing the controls and escutcheon, retaining the correct control positions and temperature-stop settings. Isolate the water supplies before servicing internal valve components. A persistent drip from the shower head when the shower is turned off requires investigation of the flow-control assembly; changing the escutcheon does not repair an internal shut-off or temperature-control fault.
